MICHELL LIQUIDEW EEXD LIQUID ANALYZER

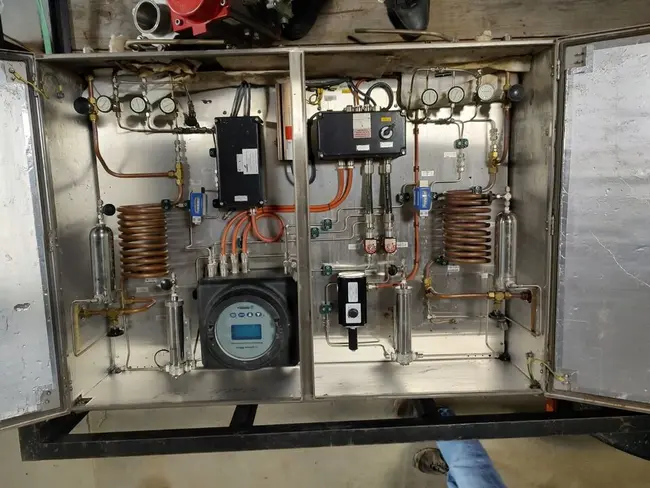

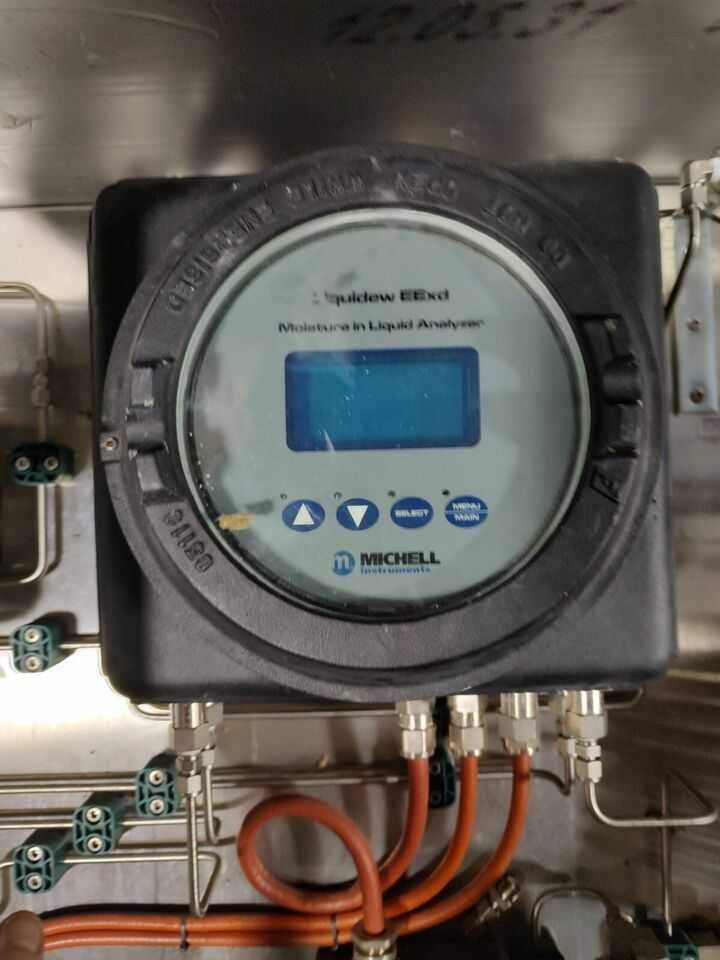

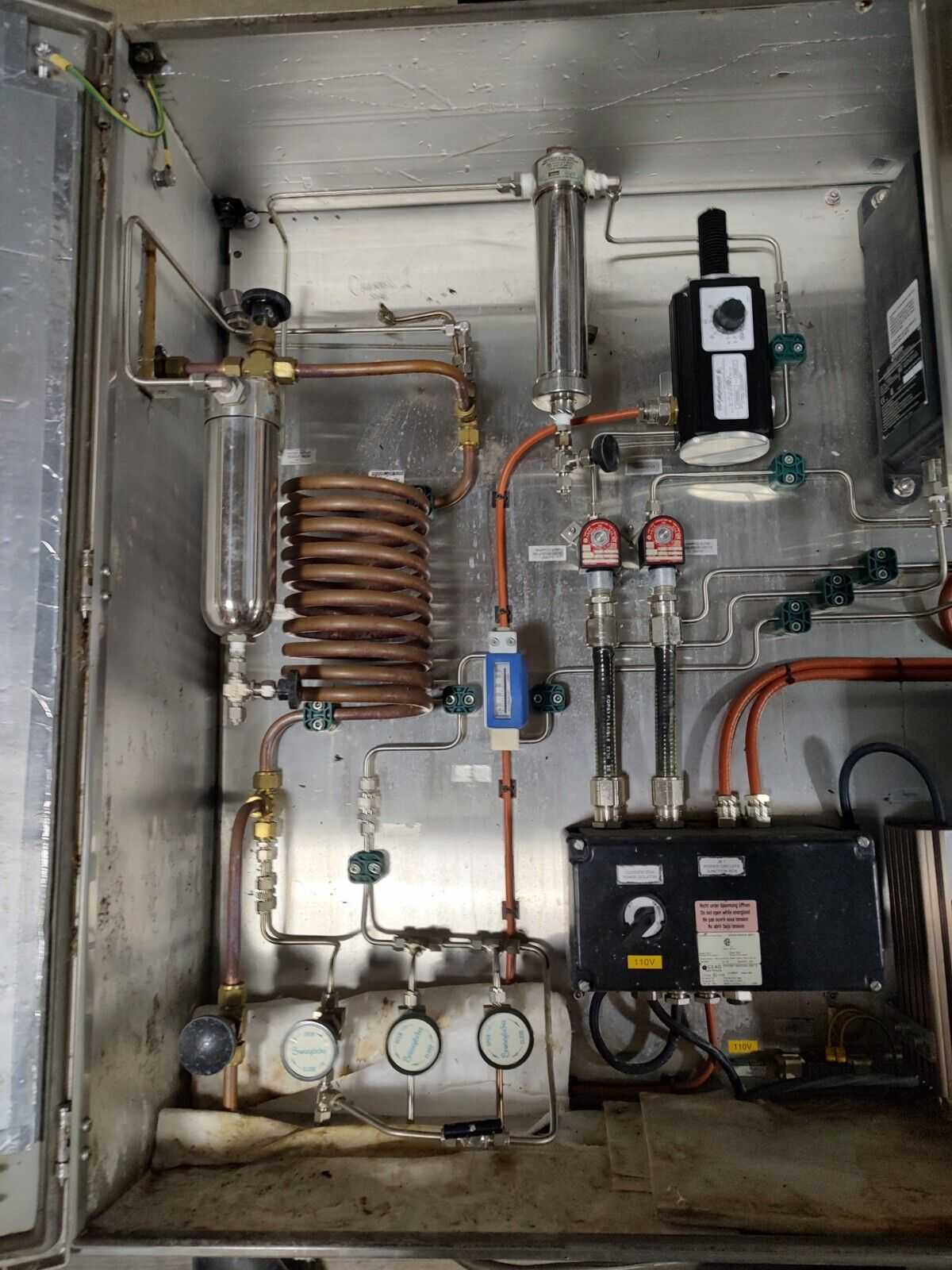

MOISTURE PROCESS ANALYZER The Liquidew EExd is designed for continuous, automatic measurement of the moisture content in hydrocarbon solutes, utilizing the Michell Ceramic Moisture Sensor. It is the result of more than 30 years' experience in the supply of analyzers to the worldwide oil, gas and petrochemical industry. The analyzer comprises either a single or a dual channel moisture measurement sensor cell, control electronics and a display interface housed in an Exd enclosure. The analyzer is ATEX Directive, IECEx or cCSAus compliant for use in a Zone 1 or 2 Hazardous Area and Class I, Div 1 Hazardous Location. See marking label located on right hand side of analyzer to identify approvals. An accompanying sample handling panel, designed to be positioned close to the process sample point to prepare the sample prior to entry into the Liquidew EExd, can also be supplied. The instrument offers several user-selectable display options based on a calibrated dew-point measurement range of -100 to +20°C (-148 to +68°F), traceable to the humidity metrology standards of NPL (UK) and NIST (USA). The instrument provides indication in moisture in liquids (ppm W). Buyer responsible for shipping and handling.
