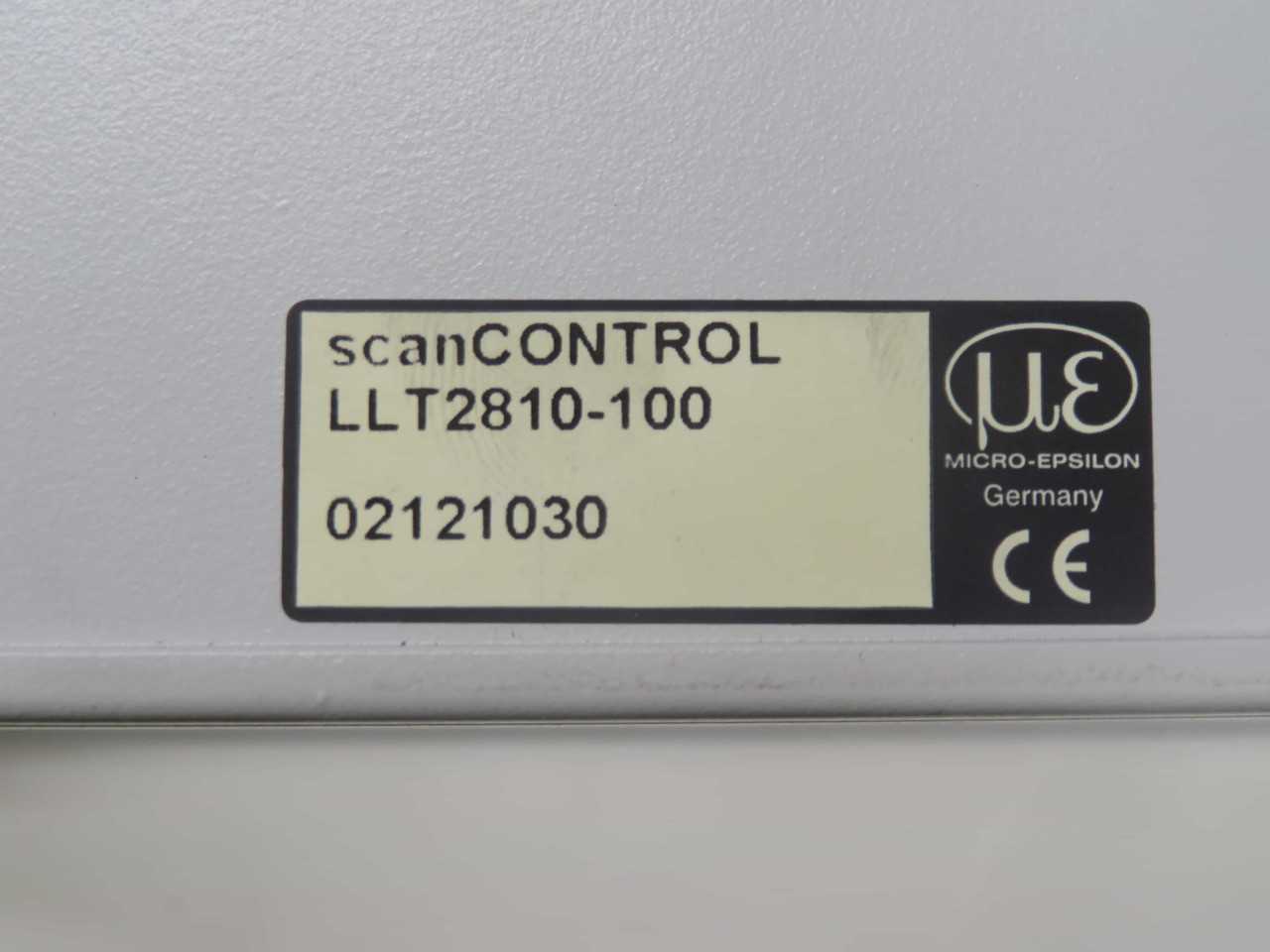

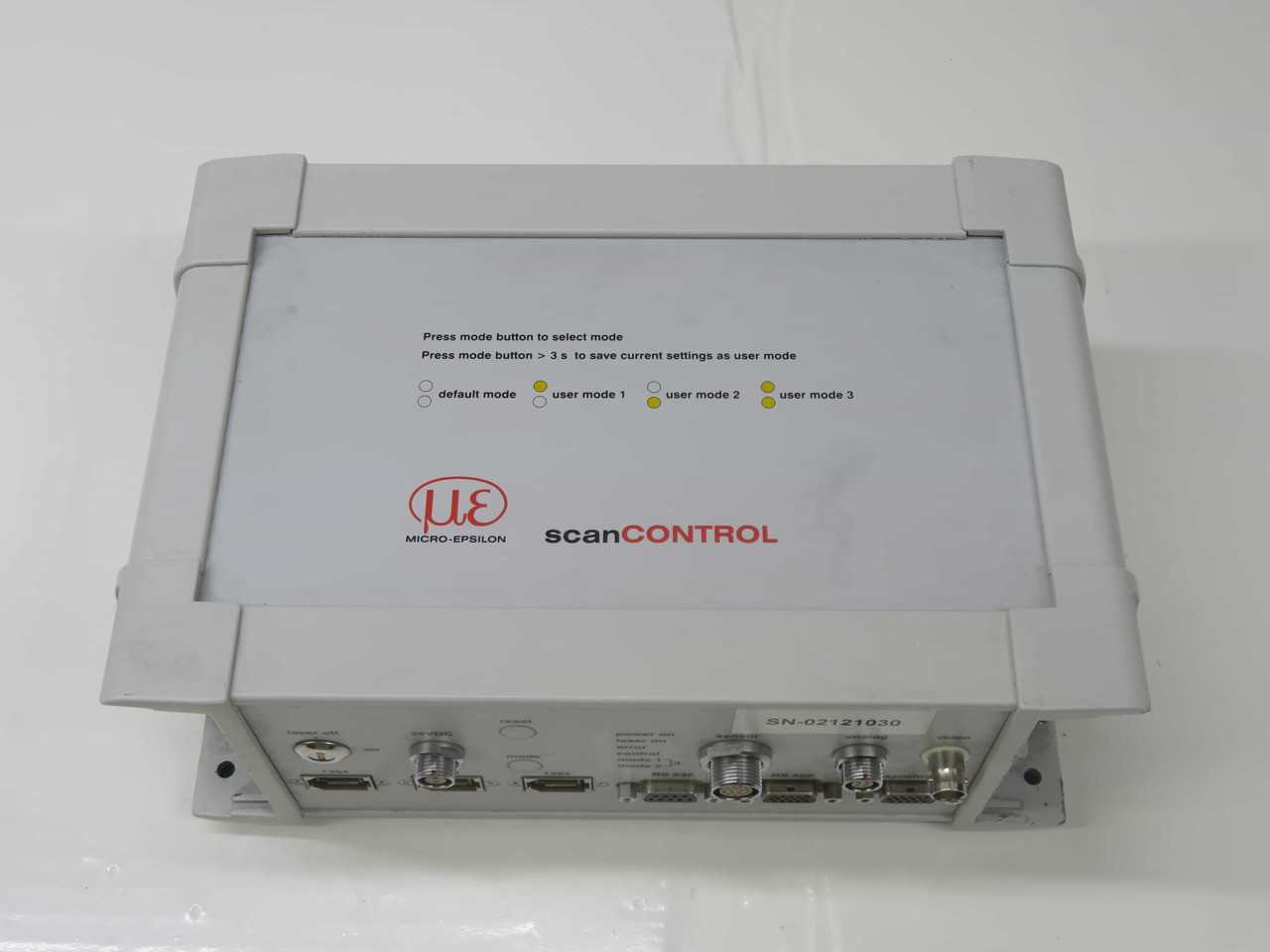

MICRO-EPSILON LLT2810-100 LASER PROFILE SCANNER, 100 MM Z-RANGE, 14 ΜM Z-RES, IP67

THE MICRO-EPSILON LLT2810-100 SCANCONTROL IS A HIGH-PERFORMANCE LASER PROFILE SCANNER OPERATING ON THE LASER LINE TRIANGULATION PRINCIPLE. IT INTEGRATES A RED LASER DIODE WITH A WAVELENGTH OF 658 NM, CLASSIFIED AS LASER CLASS 2M. THIS DEVICE OFFERS A Z-AXIS MEASUREMENT RANGE OF 100 MM AND AN X-AXIS PROFILE WIDTH OF 65 MM. IT PROVIDES A Z-AXIS RESOLUTION OF 14 ΜM AND AN X-AXIS RESOLUTION OF 65 ΜM. THE SENSOR CAPTURES UP TO 1280 MEASUREMENT POINTS PER PROFILE AT A MAXIMUM PROFILE RATE OF 2560 HZ. DATA TRANSMISSION IS HANDLED THROUGH A GIGABIT ETHERNET INTERFACE. ITS ROBUST DESIGN FEATURES AN IP67 PROTECTION RATING, ENSURING OPERATIONAL RELIABILITY ACROSS AN AMBIENT TEMPERATURE RANGE OF 0 TO 50°C.
