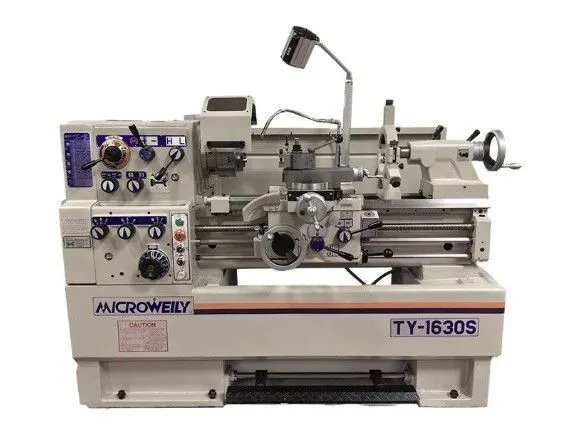

MICROWEILY TY-1630S TOOLROOM ENGINE LATHE, 16" SWING, 30" CENTERS, 5HP, 2" BORE, DRO, CHUCKS

THE MICROWEILY TY-1630S IS A TOOLROOM ENGINE LATHE FEATURING A 16 INCH SWING OVER THE BED, A 9 7/16 INCH SWING OVER THE CROSS SLIDE, AND 30 INCHES BETWEEN CENTERS. THE SPINDLE IS POWERED BY A 5 HP MOTOR AND FEATURES A D1-6 NOSE WITH A 2 INCH BORE. IT OFFERS 12 SPINDLE SPEEDS RANGING FROM 30 TO 2,000 RPM. THREADING CAPABILITIES INCLUDE 40 IMPERIAL THREADS FROM 2-56 T.P.I., 53 METRIC THREADS FROM 0.4-14 MM PITCH, 32 DIAMETRAL PITCH THREADS FROM 4-32 D.P., AND 44 MODULE PITCH THREADS FROM 0.4-7 M.P. THE TAILSTOCK QUILL FEATURES A NO. 4 MORSE TAPER. STANDARD EQUIPMENT INCLUDES A HEIDENHAIN 2-AXIS DIGITAL READOUT (DRO), 10 INCH 3-JAW CHUCK, 12 INCH 4-JAW CHUCK, ALORIS QUICK CHANGE TOOL POST, STEADY REST, AND INCH/METRIC THREADING CAPABILITIES. THE UNIT HAS PHYSICAL DIMENSIONS OF 79 INCHES BY 40 INCHES BY 56 INCHES AND WEIGHS APPROXIMATELY 4,000 LBS.
