MINSTER 5 OBI PRESS 45 TON 4" STROKE 90-180 SPM 3 HP

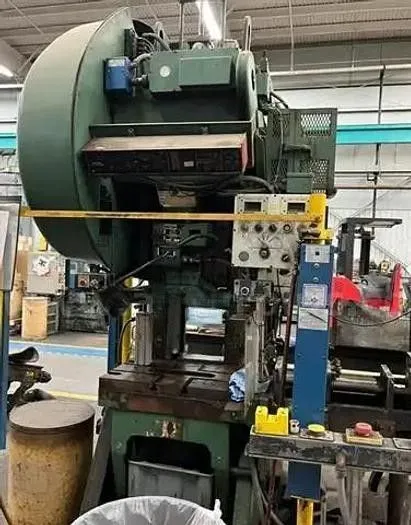

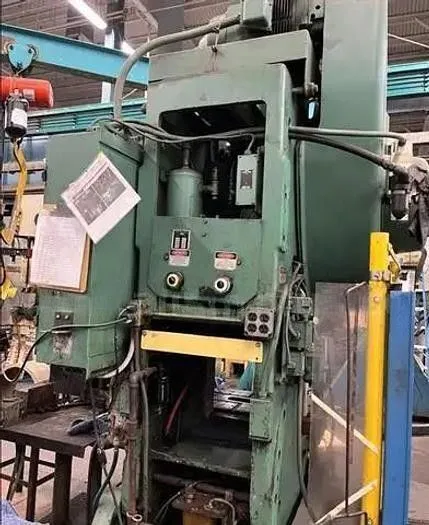

THIS MINSTER #5 OPEN BACK INCLINABLE (OBI) PRESS IS A FABRICATING MACHINE RATED FOR A 45 TON TONNAGE CAPACITY. KEY OPERATIONAL SPECIFICATIONS INCLUDE A 4" STROKE LENGTH AND A VARIABLE STROKES PER MINUTE RANGE OF 90 TO 180 SPM, POWERED BY A 3 HP DRIVE MOTOR. THE PRESS FEATURES A SHUT HEIGHT TO BED (SDAU) OF 12.25" AND A SHUT HEIGHT TO BOLSTER (SDAU) OF 10", WITH A RAM ADJUSTMENT OF 2.5". DIMENSIONAL SPECIFICATIONS INCLUDE A RAM AREA (L-R X F-B) OF 24" X 14" AND A BED AREA (L-R X F-B) OF 28" X 18". THE BED OPENING (L-R X F-B) MEASURES 16" X 12", AND THE THROAT DEPTH IS 9.5". THE APPROXIMATE WEIGHT OF THE MACHINE IS 10,000 LBS.
