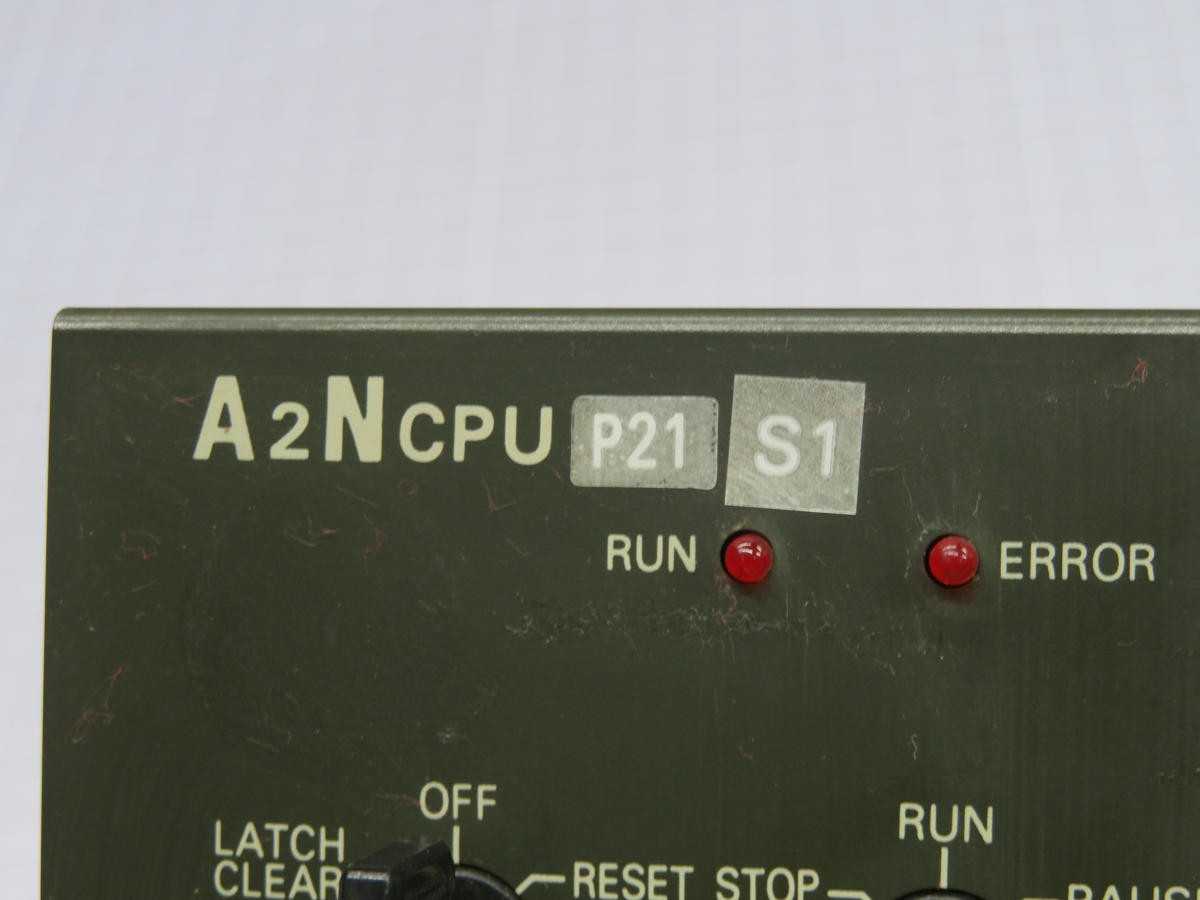

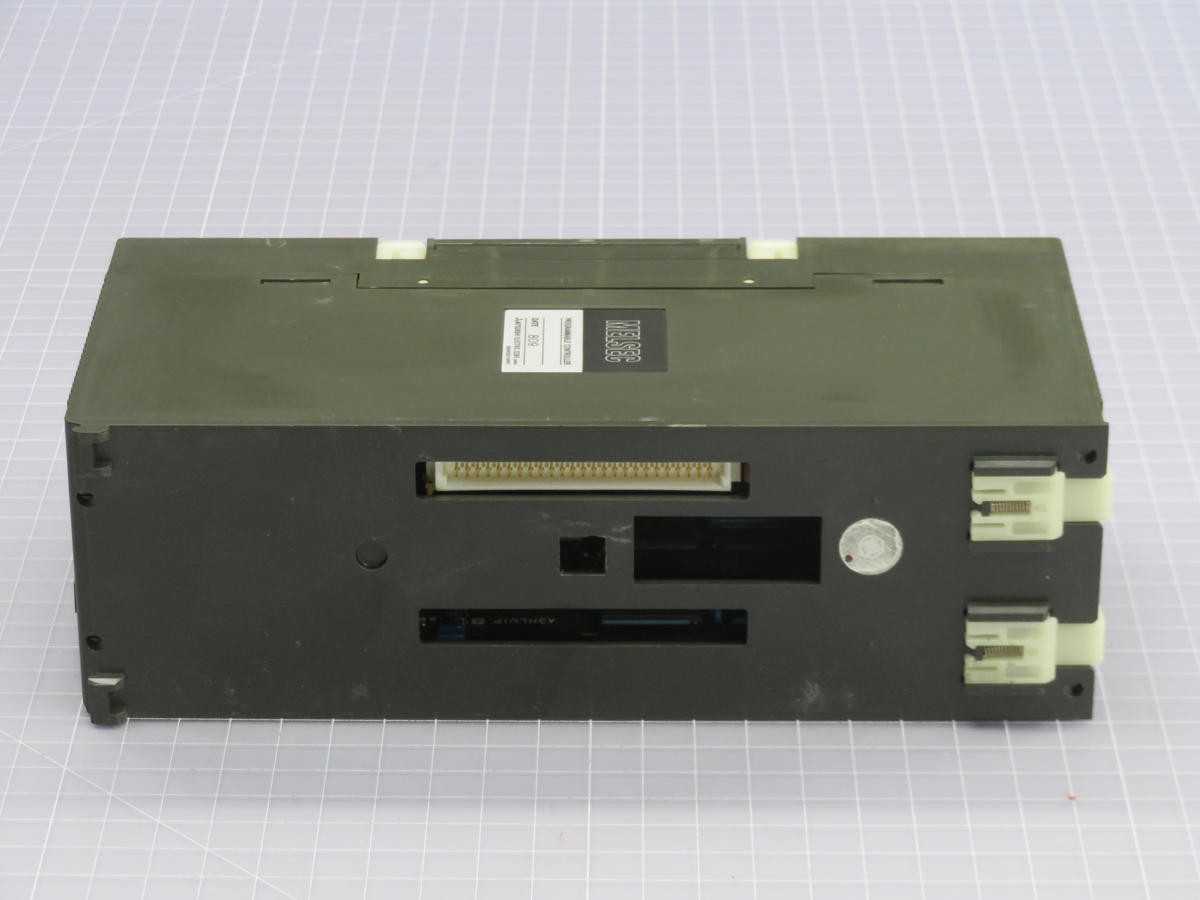

MITSUBISHI A2NCPUP21S1 CONTROLS PLCS, 20K STEPS MEMORY, 4096 I/O, 0.2 ΜS/INSTR SPEED, 5V DC, 0.7A

THE MITSUBISHI A2NCPUP21S1 IS A CENTRAL PROCESSING UNIT (CPU) MODULE SPECIFICALLY ENGINEERED FOR THE MELSEC-A SERIES PROGRAMMABLE LOGIC CONTROLLERS (PLCS). THIS UNIT PROVIDES A PROGRAM MEMORY CAPACITY OF 20K STEPS AND CAN MANAGE A MAXIMUM OF 4096 I/O POINTS, EMPLOYING A REFRESHING I/O CONTROL METHOD. IT DELIVERS A PROCESSING SPEED OF 0.2 MICROSECONDS PER BASIC INSTRUCTION. THE CPU MODULE INTEGRATES RAM FOR PROGRAM STORAGE, WITH BATTERY BACKUP ENSURING DATA RETENTION DURING POWER INTERRUPTIONS. IT OPERATES ON A 5V DC POWER SUPPLY, CONSUMING 0.7A. THE A2NCPUP21S1 SUPPORTS A COMPREHENSIVE INSTRUCTION SET INCLUDING BASIC, APPLICATION, AND SPECIAL INSTRUCTIONS, AND IS PROGRAMMABLE USING LADDER DIAGRAM AND SFC (SEQUENTIAL FUNCTION CHART) LANGUAGES. IT ALSO INCORPORATES ESSENTIAL COMMUNICATION FUNCTIONS.
