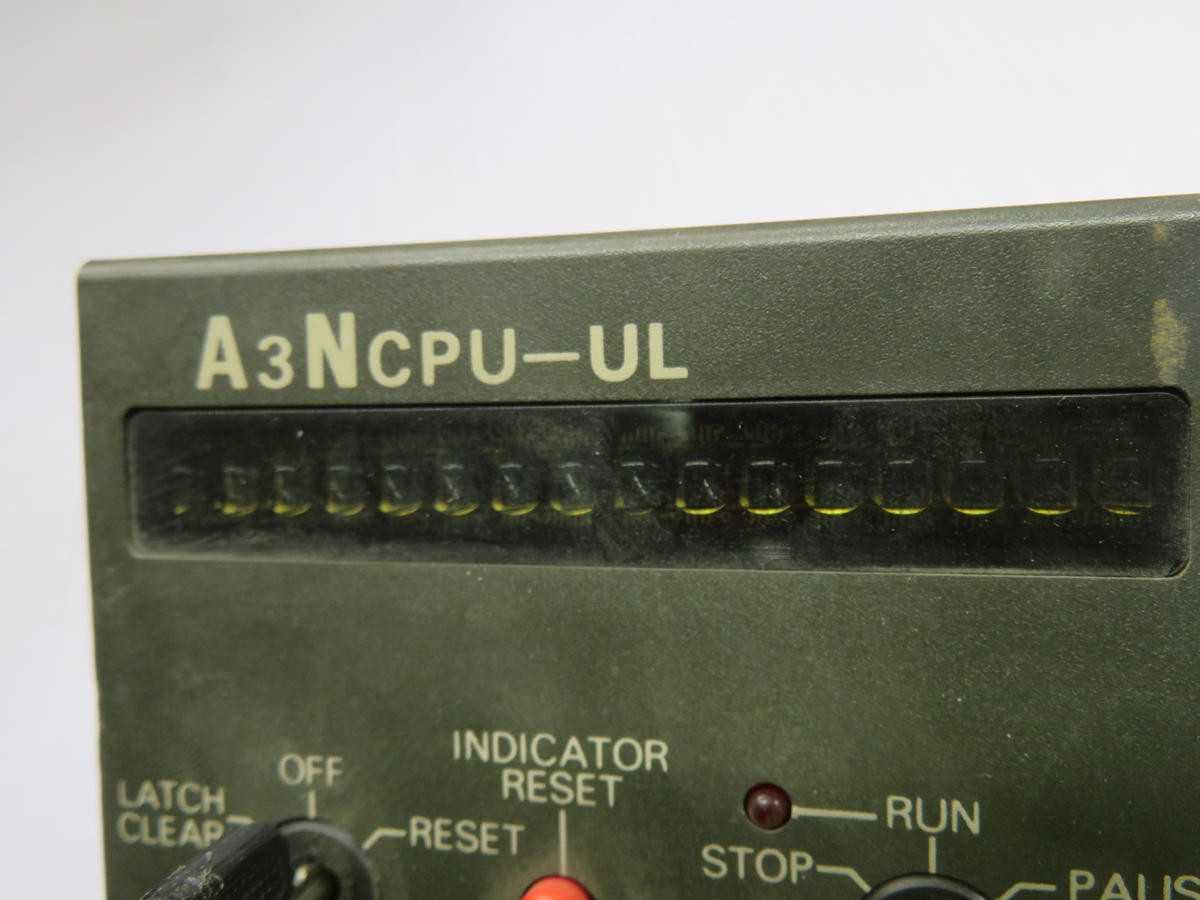

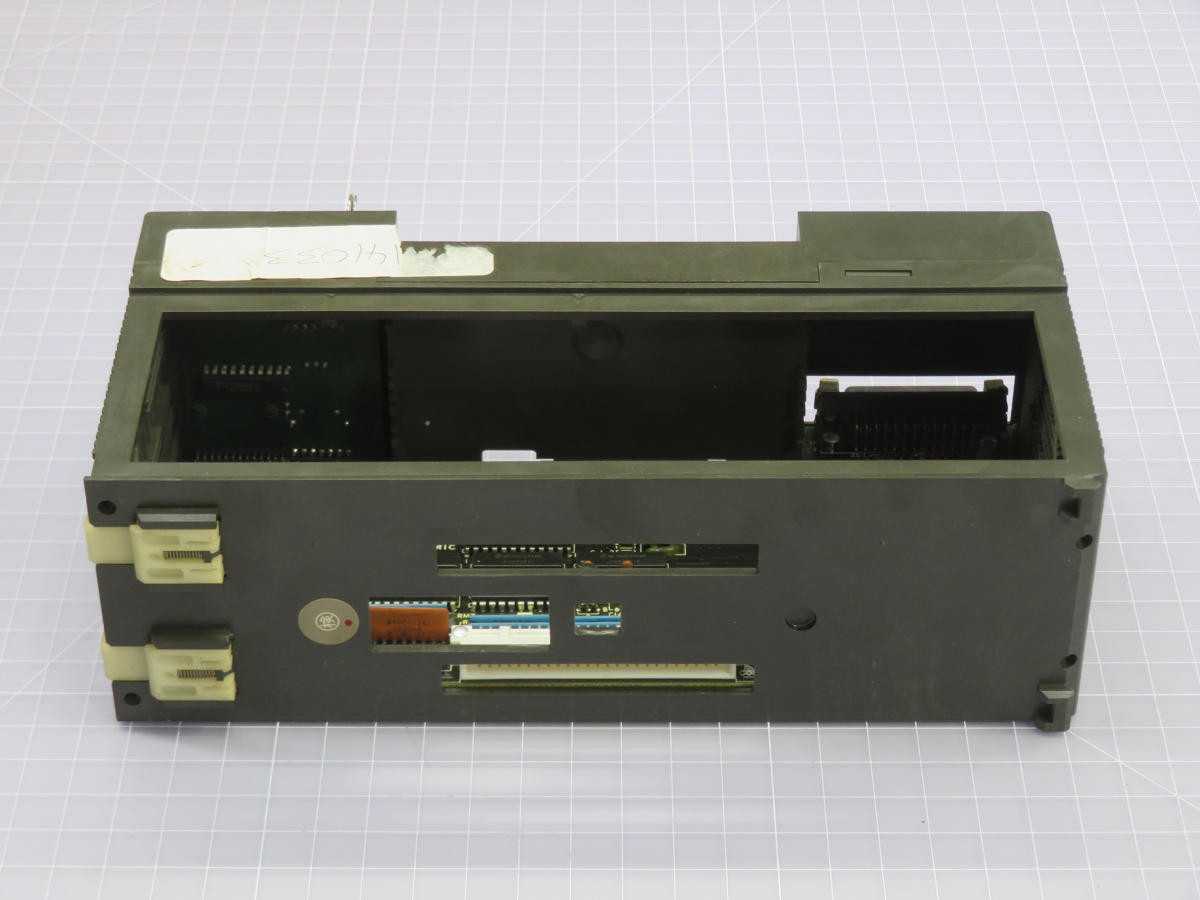

MITSUBISHI A3NCPU-UL CONTROLS PLCS, 2048 I/O POINTS, 16K STEPS MEMORY, 0.2 ΜS/BASIC INSTRUCTION SPEED, 5V DC POWER, 0.9 A CURRENT DRAW

THE MITSUBISHI A3NCPU-UL IS A CPU CONTROLLER MODULE WITHIN THE MELSEC-A SERIES, DESIGNED FOR INDUSTRIAL AUTOMATION APPLICATIONS. IT SUPPORTS A MAXIMUM OF 2048 INPUT/OUTPUT POINTS. THIS MODULE FEATURES A PROGRAM MEMORY CAPACITY OF 16K STEPS AND OFFERS A PROCESSING SPEED OF 0.2 MICROSECONDS PER BASIC INSTRUCTION. ITS CONTROL METHODS INCLUDE STORED PROGRAM CYCLIC OPERATION, TIME-DRIVEN INTERRUPT, SUBROUTINE PROCESSING, AND PARALLEL PROCESSING IN MULTI-CPU SYSTEMS. THE A3NCPU-UL OPERATES ON A 5V DC POWER SUPPLY, DRAWING 0.9 AMPS. PROGRAMMING CAN BE PERFORMED USING MELSEC LADDER DIAGRAMS, FUNCTION BLOCK DIAGRAMS (FBD), OR SEQUENTIAL FUNCTION CHARTS (SFC).
