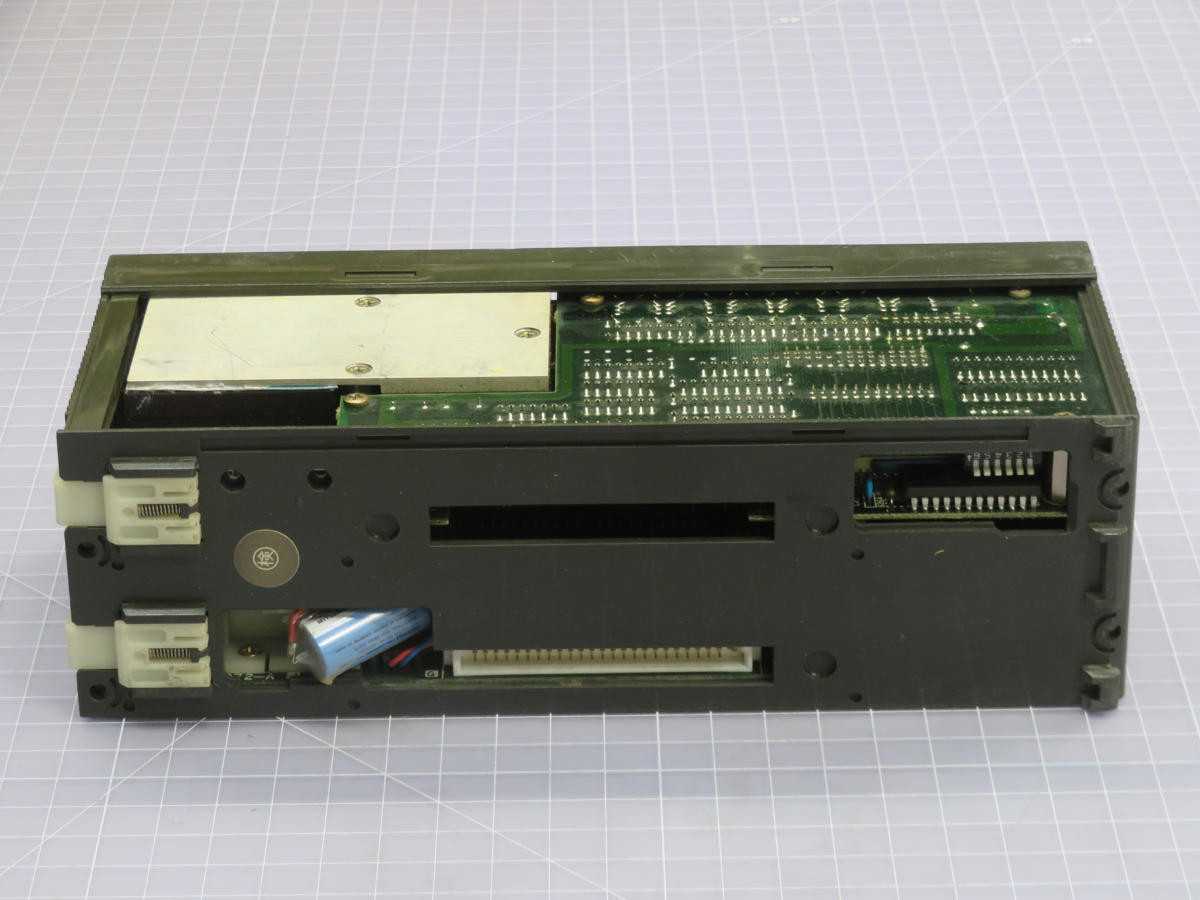

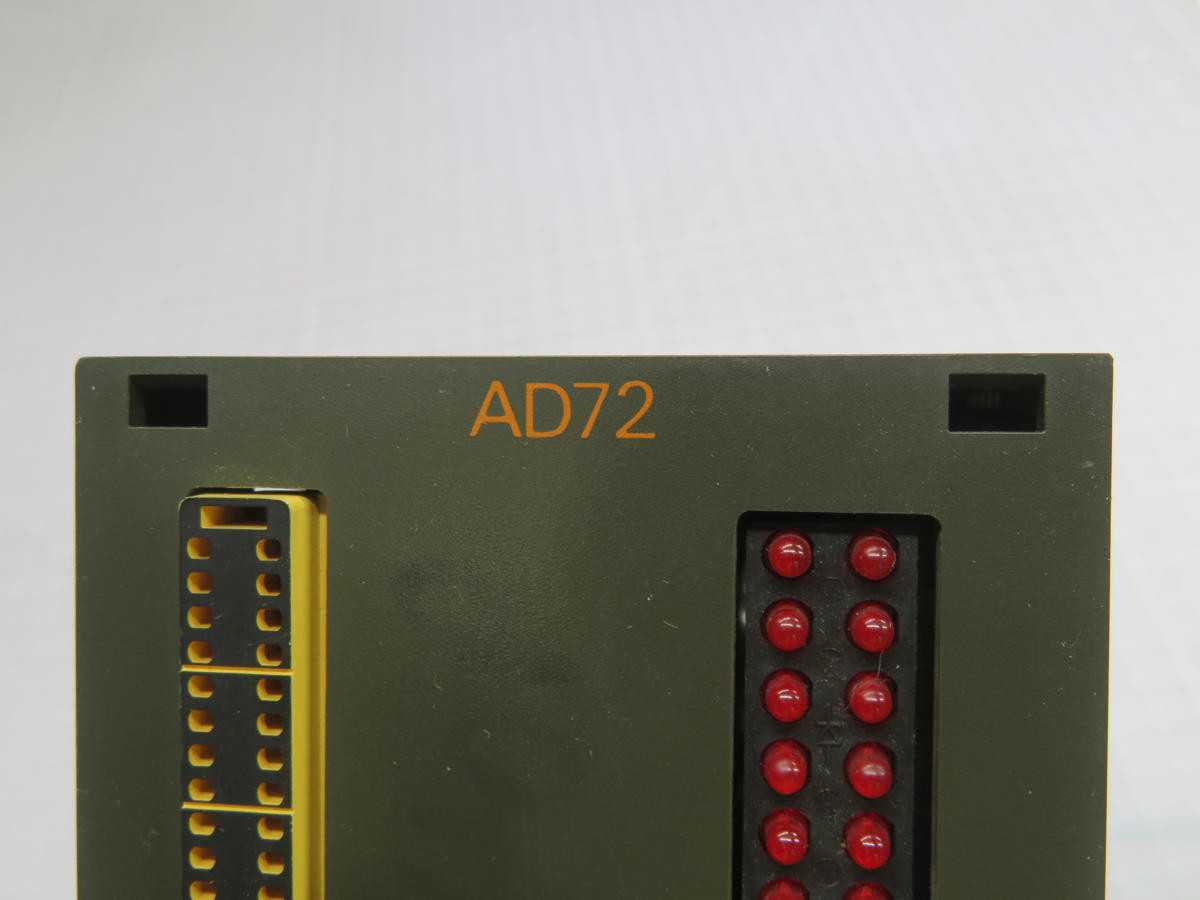

MITSUBISHI AD-72, CONTROLS PLCS, 2 AXIS, 200 KPPS MAX FREQ, 2 AXIS LINEAR INTERPOLATION

THE MITSUBISHI AD-72 IS A 2-AXIS POSITIONING MODULE DESIGNED FOR INTEGRATION WITH MELSEC-ANS AND QNA SERIES PROGRAMMABLE LOGIC CONTROLLERS. IT PROVIDES PULSE TRAIN OUTPUT FOR THE PRECISE CONTROL OF TWO INDEPENDENT SERVO OR STEPPING MOTOR AXES. THE MODULE SUPPORTS A MAXIMUM OUTPUT FREQUENCY OF 200 KPPS PER AXIS. POSITIONING FUNCTIONALITIES INCLUDE ABSOLUTE AND INCREMENTAL POSITIONING, ALONGSIDE 2-AXIS LINEAR INTERPOLATION. ADDITIONAL FEATURES ENCOMPASS JOG OPERATION, HOME POSITION RETURN, SPEED SWITCHING, AND INPUT CAPABILITY FOR MANUAL PULSE GENERATORS. CONTROL DATA AND COMMANDS ARE EXCHANGED WITH THE MAIN PLC CPU VIA BUFFER MEMORY.
