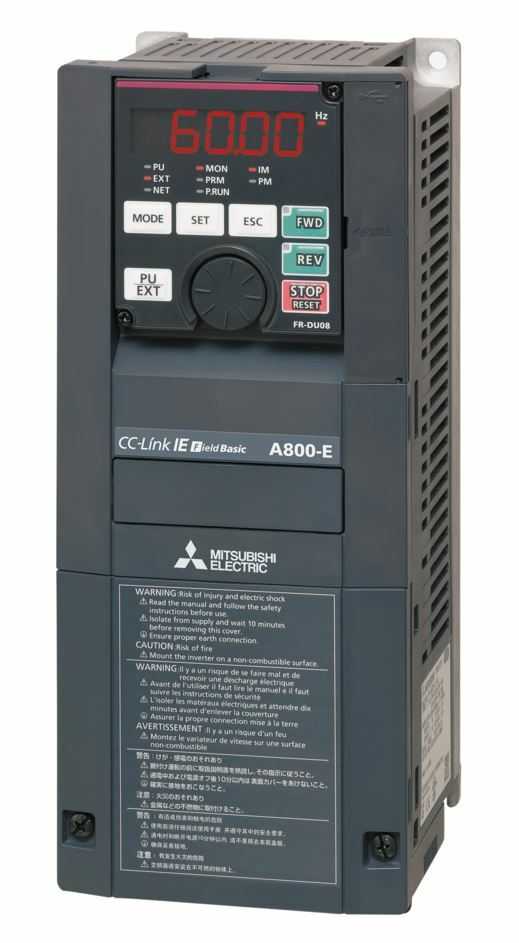

MITSUBISHI FR-A820-03800-E1U6 AC VFD DRIVE

MINIMUM RATED VOLTAGE (V) 200 MIN. PERMISSIBLE VOLTAGE (V) 170 MAXIMUM RATED VOLTAGE (V) 240 MAX. PERMISSIBLE VOLTAGE (V) 264 CURRENT TYPE AC PHASES 3 RATED OUTPUT CURRENT SLD (A) 380 RATED OUTPUT CURRENT LD (A) 346 RATED OUTPUT CURRENT ND (A) 288 RATED OUTPUT CURRENT HD (A) 215 RATED MOTOR CAPACITY LD (KW) 90 RATED MOTOR CAPACITY ND (KW) 75 RATED MOTOR CAPACITY HD (KW) 55 FREQUENCY RANGE (HZ) 0,2–590 CONTROL METHOD VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH-FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL MOTOR TYPE INDUCTION MOTOR, PM MOTOR INTEGRATED EMC FILTER YES (OFF ON INITIAL SETTINGS) SAFE TORQUE OFF (STO) YES REGENERATIVE (4Q) NO INTEGRATED DC CHOKE NO DISPLAY FR-DU08 DISPLAY TYPE 5 DIGITS LED (12 SEGMENT) PLC FUNCTION YES PROGRAM MEMORY 6K PROGRAM MEMORY UNIT STEPS INTEGRATED DIGITAL INPUTS 12 DIGITAL OUTPUTS (TRANSISTOR) 5 DIGITAL OUTPUTS (RELAY) 2 INTEGRATED ANALOGUE INPUTS 3 INTEGRATED ANALOGUE OUTPUTS 2 IO TYPE OF TERMINAL BLOCK SPRING CLAMP EXPANDABLE YES USB 1+1 MINI ETHERNET PORT 1 BUILT-IN NETWORK MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC, CC-LINK IE FIELD NETWORK LEAKAGE CURRENT (MA) 22 POWER LOSS SLD (W) 3020 POWER LOSS LD (W) 2710 POWER LOSS ND (W) 2180 POWER LOSS HD (W) 1700 PROTECTION CLASS IP00
