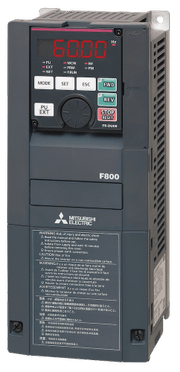

MITSUBISHI FR-F820-00250-E3N6 AC VFD DRIVE
Aucto ID: #81629
2098238c-36fc-4072-ae98-b7d7a154d69c
Sold!
sold
Location: Richmond, British Columbia, Canada
Logistics:
Rigging:
Not Required
Loading:
Included
Shipping:
Buyer
orAucto Delivery! buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller: Arrow Speed Controls2999
Selling since 2024.
Selling since 2024.
Product Description
VT INVERTER 7.5HP 230V ETHERNET
SERIES FR-F800 SERIES
TYPE FR-F800 PUMP AND FAN
MINIMUM RATED VOLTAGE (V) 200
MIN. PERMISSIBLE VOLTAGE (V) 170
MAXIMUM RATED VOLTAGE (V) 240
MAX. PERMISSIBLE VOLTAGE (V) 264
CURRENT TYPE AC
PHASES 3
RATED OUTPUT CURRENT SLD (A) 25
RATED OUTPUT CURRENT LD (A) 23
RATED MOTOR CAPACITY SLD (KW) 5,5
RATED MOTOR CAPACITY LD (KW) 5,5
CONTROL METHOD MAGNETIC FLUX VECTOR CONTROL
PM SENSORLESS VECTOR CONTROL
SOFT-PWM/HIGH FREQUENCY PWM
V/F CONTROL
MOTOR TYPE INDUCTION MOTOR, PM MOTOR
INTEGRATED EMC FILTER YES (OFF ON INITIAL SETTINGS)
SAFE TORQUE OFF (STO) YES
REGENERATIVE (4Q) NO
INTEGRATED DC CHOKE NO
DISPLAY FR-DU08
DISPLAY TYPE 5 DIGITS LED (12 SEGMENT)
PLC FUNCTION YES
PROGRAM MEMORY 6K
PROGRAM MEMORY UNIT STEPS
INTEGRATED DIGITAL INPUTS 12
DIGITAL OUTPUTS (TRANSISTOR) 5
DIGITAL OUTPUTS (RELAY) 2
INTEGRATED ANALOGUE INPUTS 3
INTEGRATED ANALOGUE OUTPUTS 2
IO TYPE OF TERMINAL BLOCK SPRING CLAMP
EXPANDABLE YES
USB 1+1 MINI
ETHERNET PORT 1
BUILT-IN NETWORK CC-LINK IE FIELD NETWORK BASIC
IQSS
SLMP
MODBUS/TCP
MELSOFT/FA
BACNET/IP
LEAKAGE CURRENT (MA) 22(EMC ON)/1(EMC OFF)
POWER LOSS SLD (W) 310
POWER LOSS LD (W) 285
STANDBY POWER CONSUMPTION (W) -
PROTECTION CLASS IP20
FREQUENCY RANGE (HZ) 0,2–590
Core Specifications
Manufacturer: MITSUBISHI
Model: FR-F820-00250-E3N6
Dimensions: 14 centimeter L x 15 centimeter W x 26 centimeter H
Weight: 3 kilogram
Condition: Factory New - New in original packaging with all associated accessories, components
Category: INDUSTRIAL PARTS -> AUTOMATION & CONTROLS -> MOTOR DRIVES -> AC VFD DRIVES
