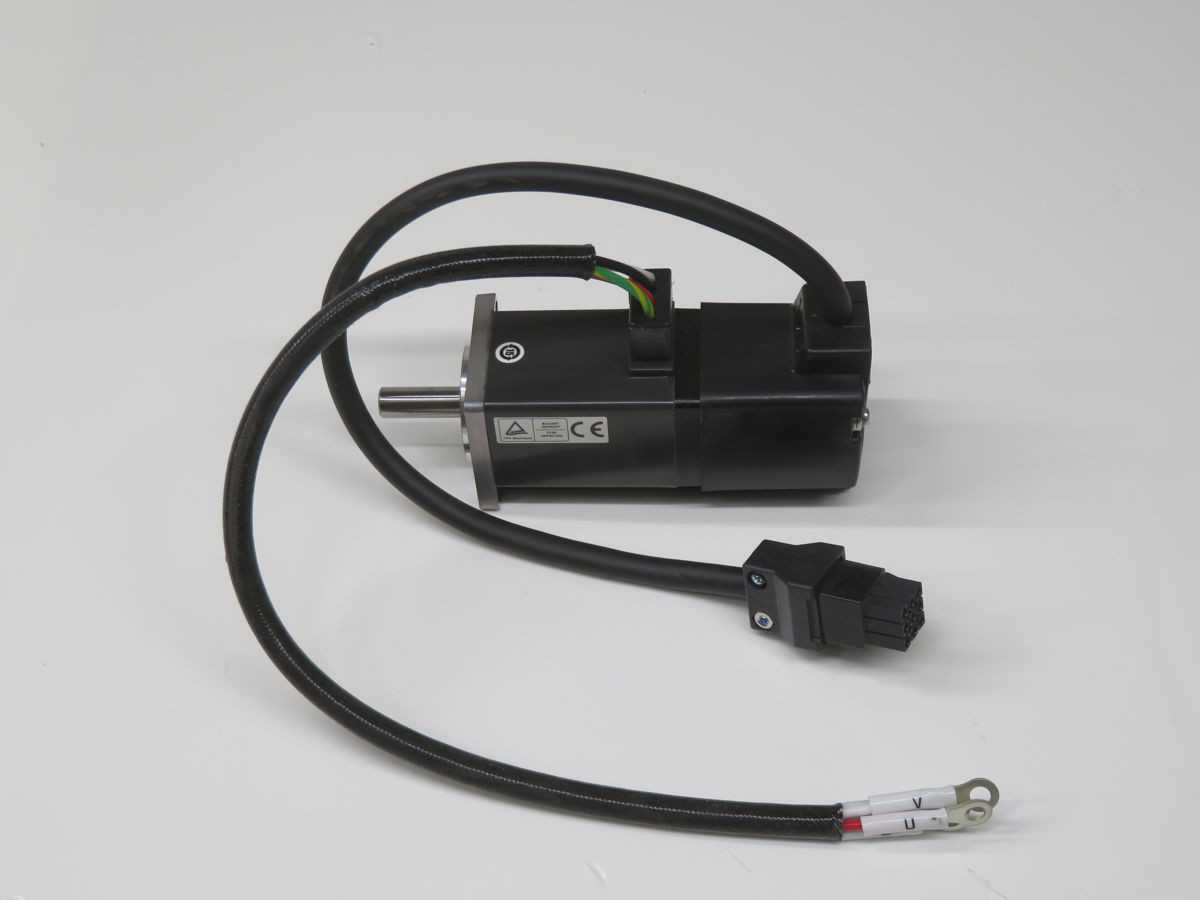

Mitsubishi HC-MFS13 Servo Motors, 100 W Power, 3000 RPM Max Speed, 0.96 NM Max Torque, 17-Bit Encoder

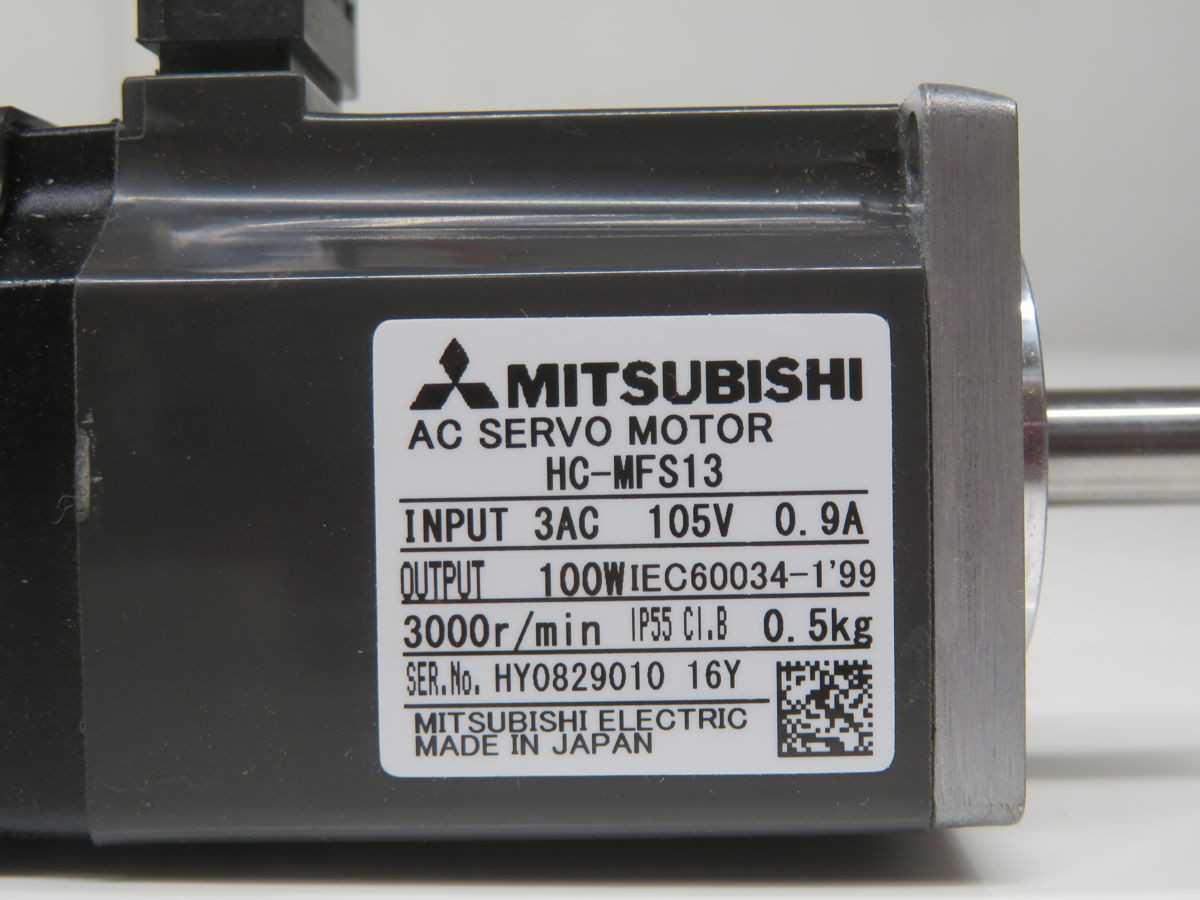

THE MITSUBISHI HC-MFS13 AC SERVO MOTOR FEATURES A RATED OUTPUT POWER OF 100 W AND A MAXIMUM ROTATIONAL SPEED OF 3000 RPM. IT OPERATES WITH A RATED CURRENT OF 0.9 A FROM A 3-PHASE, 105 V POWER SUPPLY. THIS MOTOR DELIVERS A RATED TORQUE OF 0.32 NM AND A MAXIMUM TORQUE OF 0.96 NM. POSITION FEEDBACK IS PROVIDED BY A 17-BIT ABSOLUTE/INCREMENTAL ENCODER OFFERING A RESOLUTION OF 131072 PULSES PER REVOLUTION. THE ROTOR'S MOMENT OF INERTIA IS 0.045 X 10^-4 KG·M².
