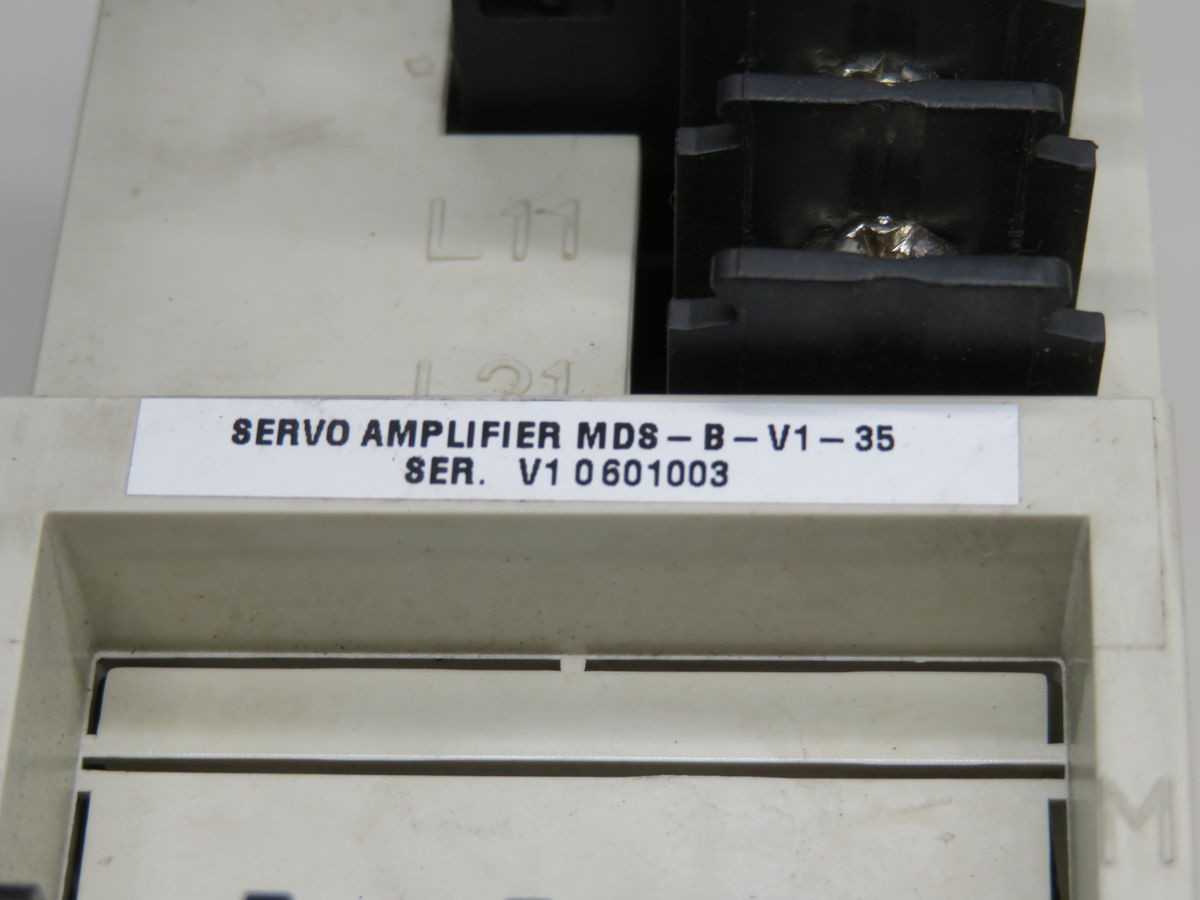

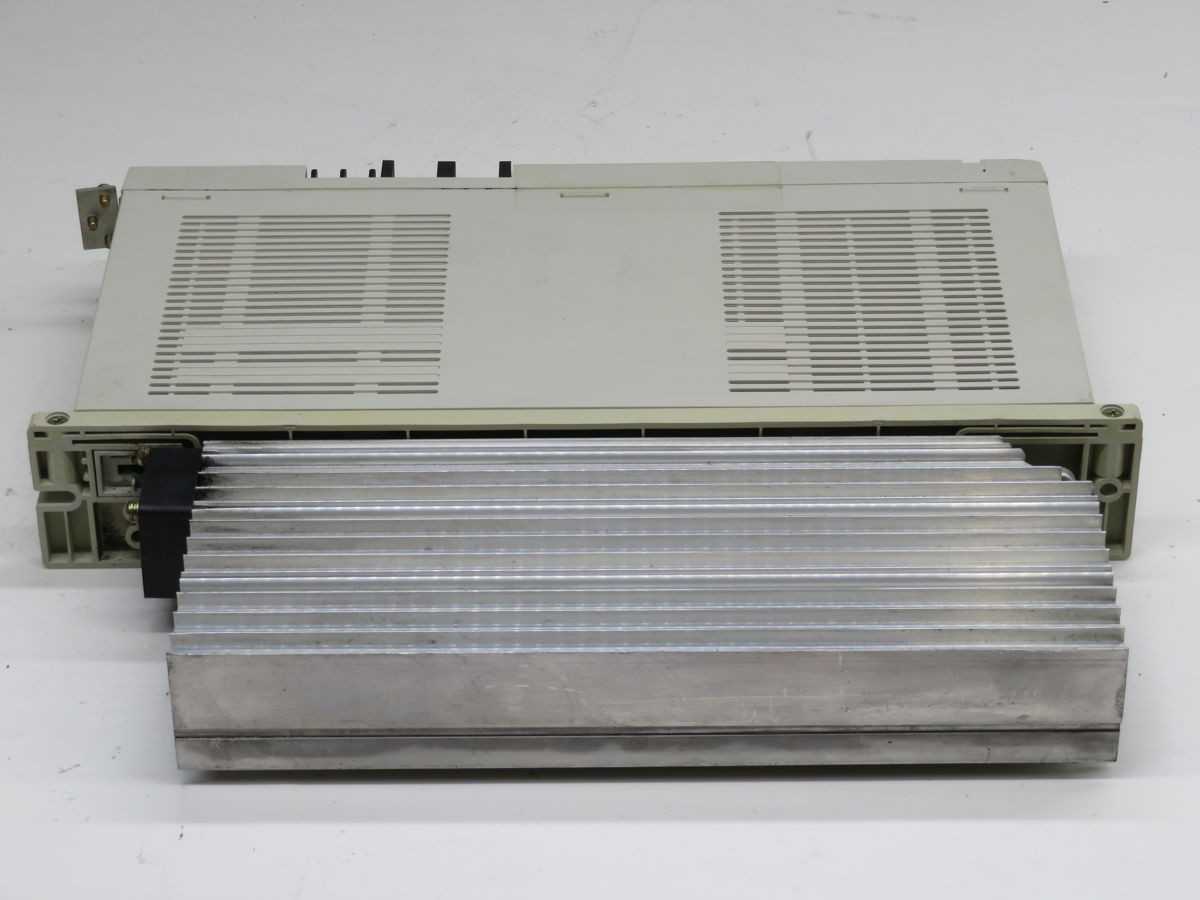

MITSUBISHI MDS-B-V1-35 SERVO DRIVES, 1 AXIS, 3.5 KW POWER, 18A RATED CURRENT

THE MITSUBISHI MDS-B-V1-35 IS A SINGLE-AXIS AC SERVO DRIVE UNIT DESIGNED FOR PRECISION MOTION CONTROL APPLICATIONS, SPECIFICALLY WITHIN CNC SYSTEMS. THIS SERVO AMPLIFIER OPERATES WITH A MAIN POWER INPUT OF 200-230 VAC AT 50/60 HZ OR A DC INPUT RANGE OF 270-311 VDC. IT PROVIDES A 3 AC OUTPUT FOR CONTROLLING A SINGLE SERVO MOTOR. THE MDS-B-V1-35 FEATURES A RATED OUTPUT POWER OF 3.5 KW, DELIVERING A RATED OUTPUT CURRENT OF 18A (RMS) AND A MAXIMUM OUTPUT CURRENT OF 54A (PEAK). IT IS ENGINEERED TO PROVIDE HIGH-RESPONSE CONTROL FOR ACCURATE POSITION, SPEED, AND TORQUE REGULATION.
