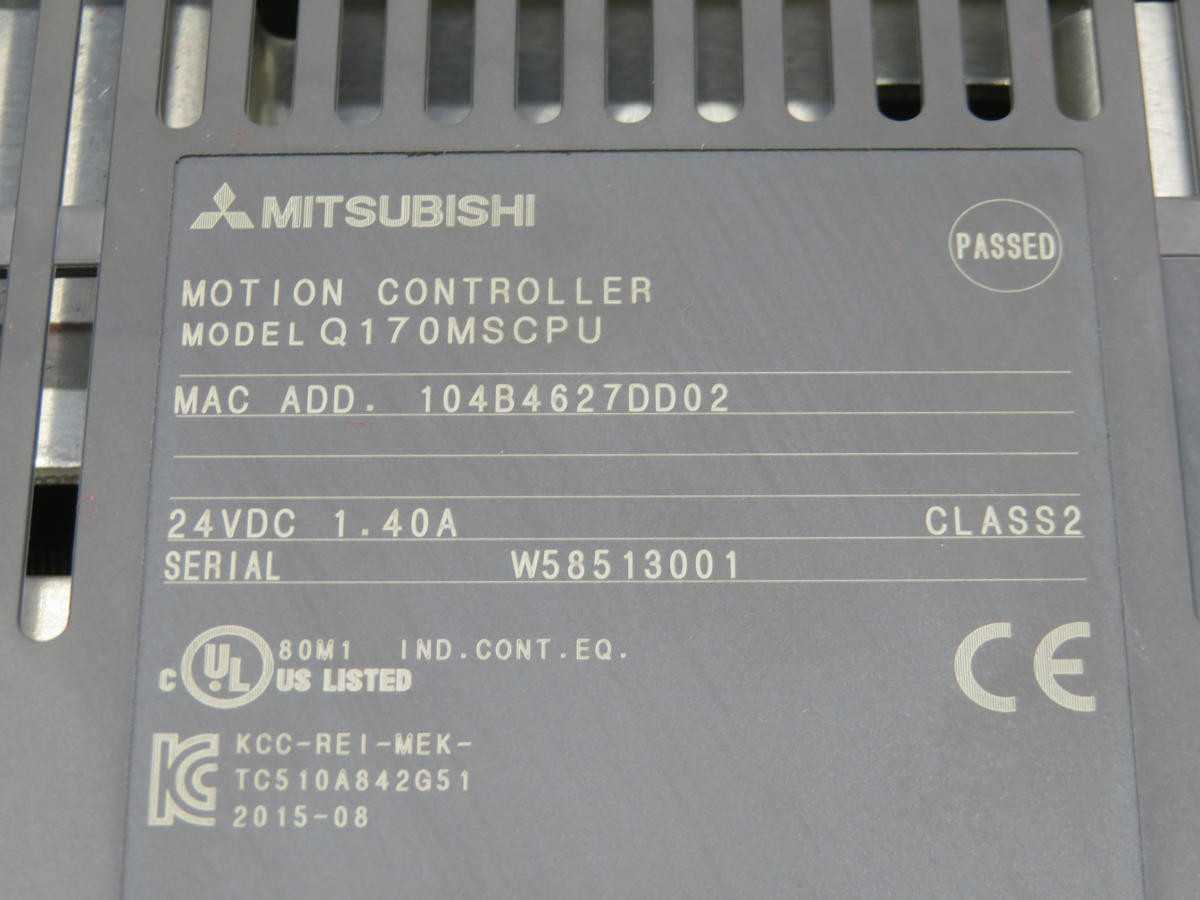

MITSUBISHI Q170MSCPU, AMPLIFIER CONTROLS, 24 VDC POWER, 32 AXIS CONTROL, 0-1 MS RESPONSE, 4 INPUT, 18 PT TERMINAL

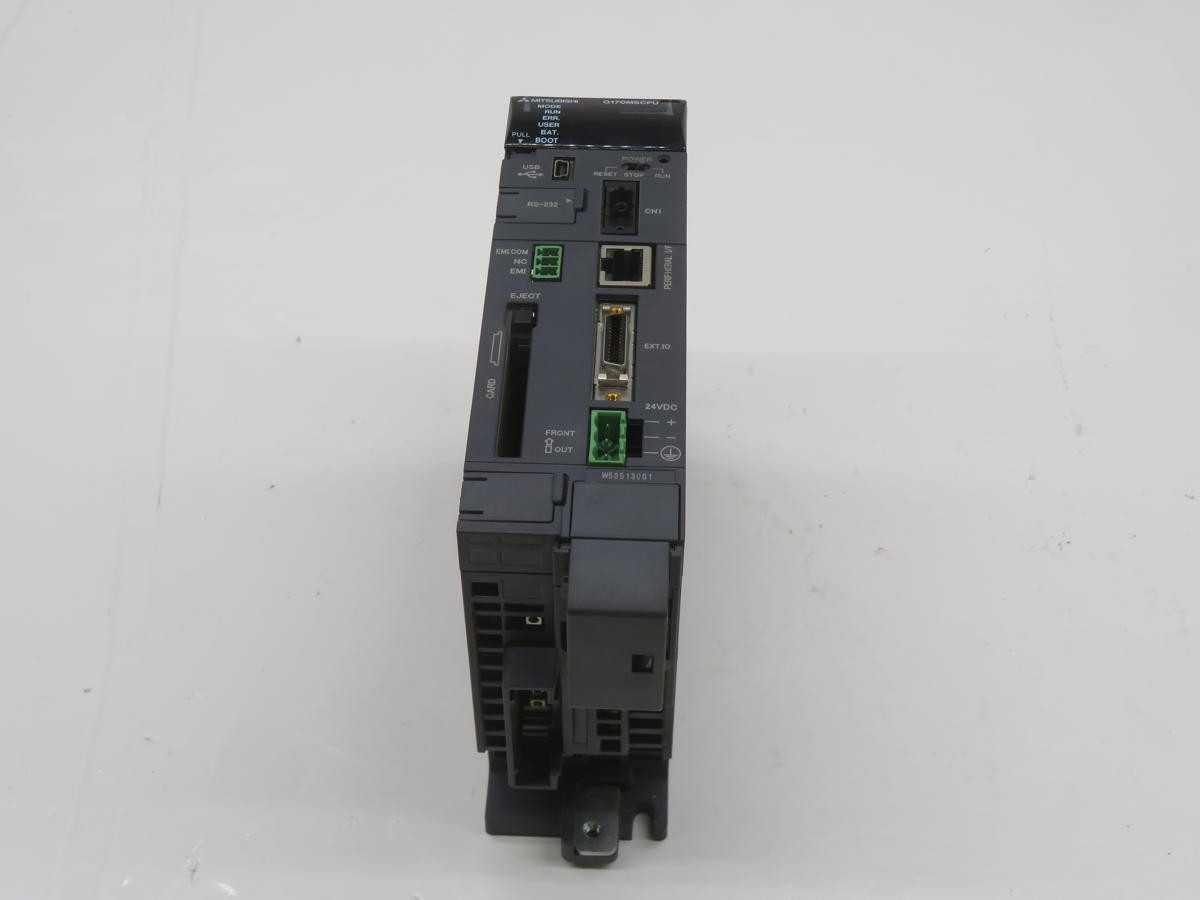

THE MITSUBISHI Q170MSCPU IS A MOTION CONTROLLER DESIGNED TO OPERATE ON A 24 VDC POWER SUPPLY. THIS UNIT PROVIDES CONTROL FOR UP TO 32 AXES, SUPPORTING COMPREHENSIVE INTERPOLATION FUNCTIONS INCLUDING 2-AXIS LINEAR, 3-AXIS LINEAR, 2-AXIS CIRCULAR, AND 3-AXIS HELICAL INTERPOLATION. IT FACILITATES VARIOUS CONTROL METHODS SUCH AS POSITION CONTROL, SPEED CONTROL, TORQUE CONTROL, AND CAM CONTROL. THE CONTROLLER OFFERS A CONFIGURABLE RESPONSE TIME WITH SETTINGS AVAILABLE AT 0, 0.1, 0.2, 0.4, 0.6, OR 1 MILLISECONDS. INTEGRATED CONNECTIVITY INCLUDES 4 INPUT CHANNELS AND AN 18-POINT TERMINAL STATION. THE Q170MSCPU IS PART OF THE MELSEC-Q SERIES, DESIGNED FOR MOUNTING ON COMPATIBLE MELSEC-Q SERIES BASE UNITS.
