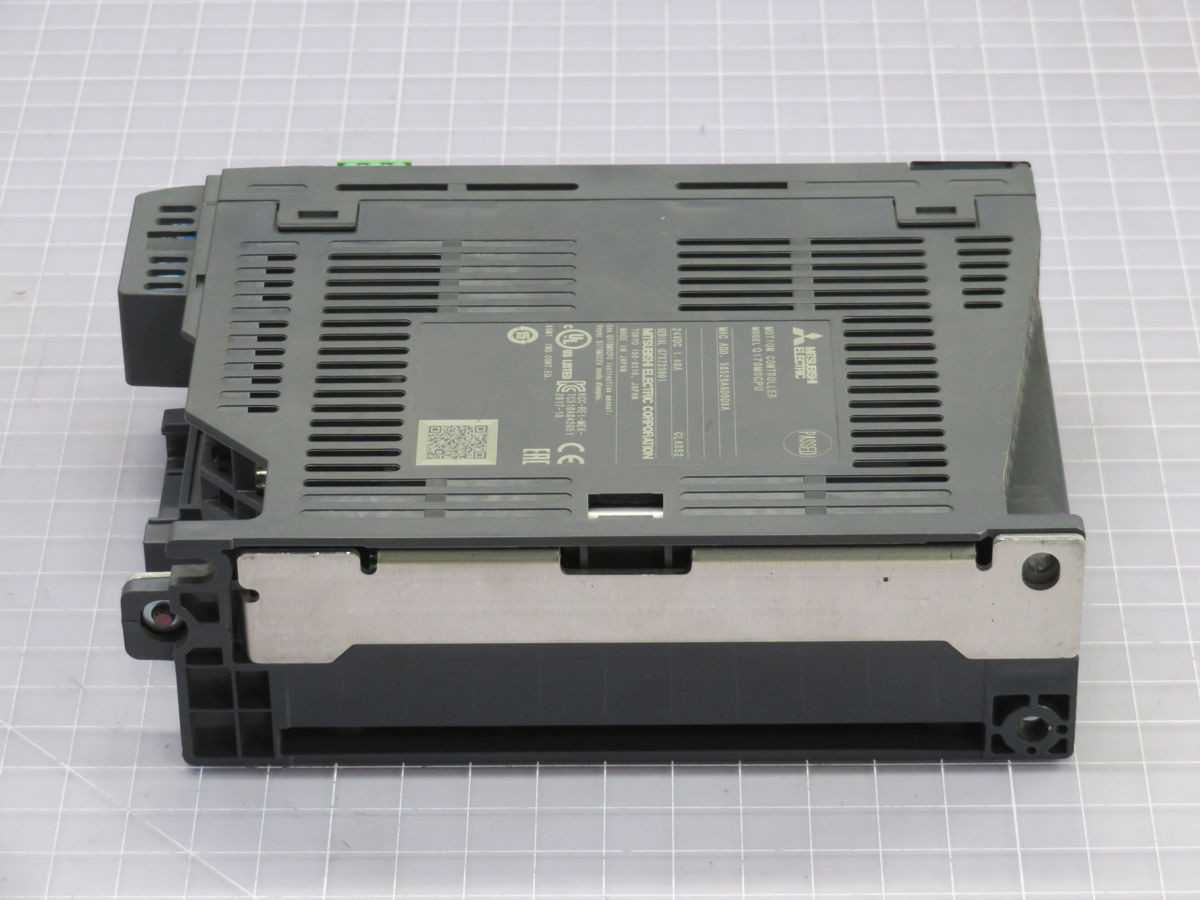

Mitsubishi Q170MSCPU PLC, 4 Axes, 16K Steps, 600 Pos/Axis, 4Ch 18Pt 24V In, 0-1Ms RT

THE MITSUBISHI Q170MSCPU IS A MOTION CONTROLLER DESIGNED FOR PRECISE AXIS CONTROL. IT SUPPORTS CONTROL OVER 4 AXES, OFFERING CAPABILITIES FOR POSITION, SPEED, TORQUE, AND PTP CONTROL. THE UNIT INTEGRATES VARIOUS INTERPOLATION FUNCTIONS, INCLUDING LINEAR (UP TO 4 AXES), CIRCULAR (2 AXES), HELICAL (3 AXES), AND SPLINE (UP TO 4 AXES) INTERPOLATION. IT FEATURES 16K STEPS OF PROGRAM MEMORY AND CAN MANAGE UP TO 600 POSITIONING DATA POINTS PER AXIS. INPUT SPECIFICATIONS INCLUDE 4 CHANNELS WITH 18 POINTS, OPERATING AT 24 VDC. THE RESPONSE TIME IS CONFIGURABLE, WITH OPTIONS OF 0, 0.1, 0.2, 0.4, 0.6, AND 1 MILLISECONDS. THIS CONTROLLER IS CAPABLE OF STAND-ALONE OPERATION.
