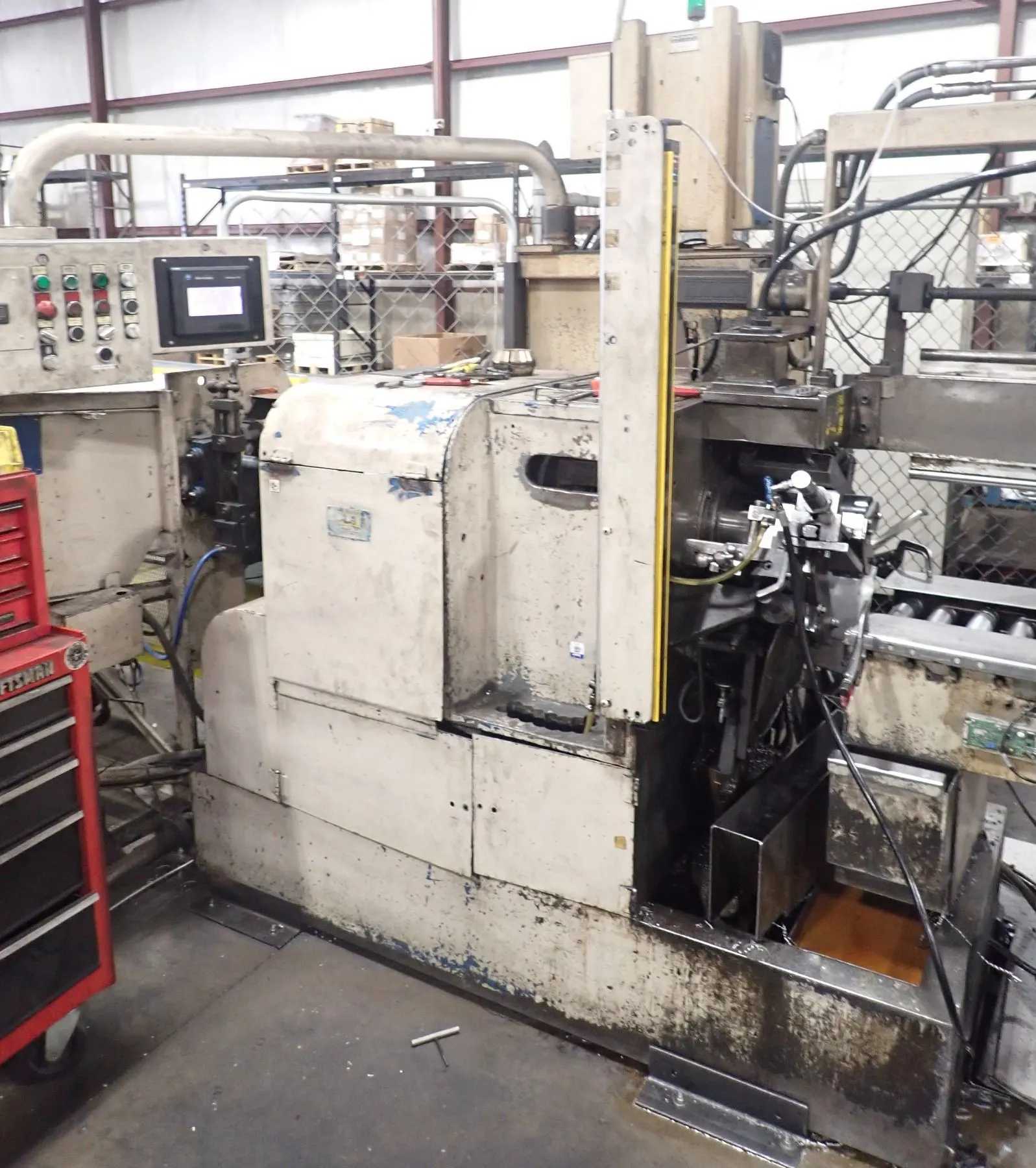

MODERN MACHINE 3K-LH AUTOMATIC CUT-OFF LATHE, 3-1/8" MAX DIA, 3" BAR, 130-2000 RPM, 5 HP 440V

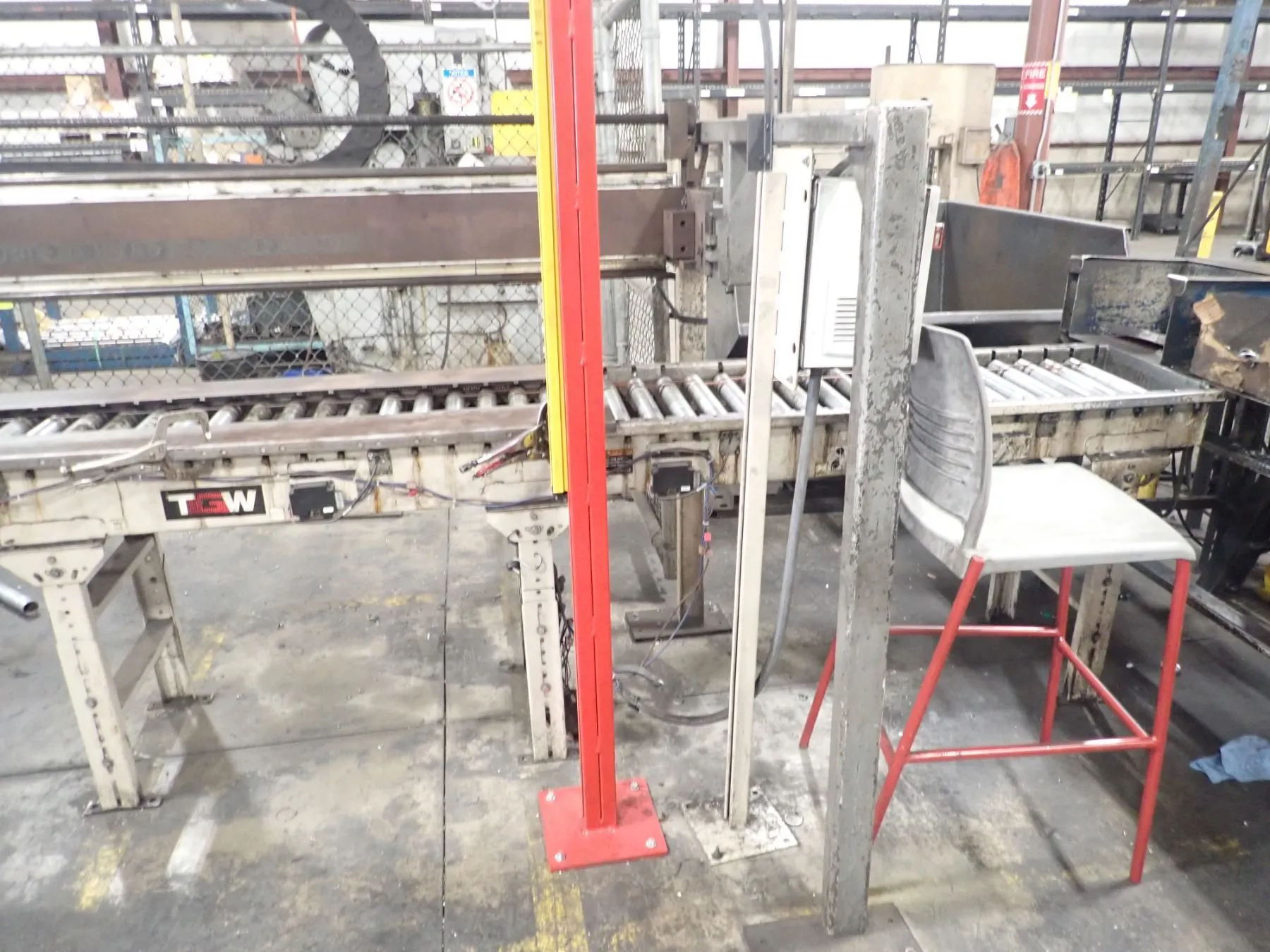

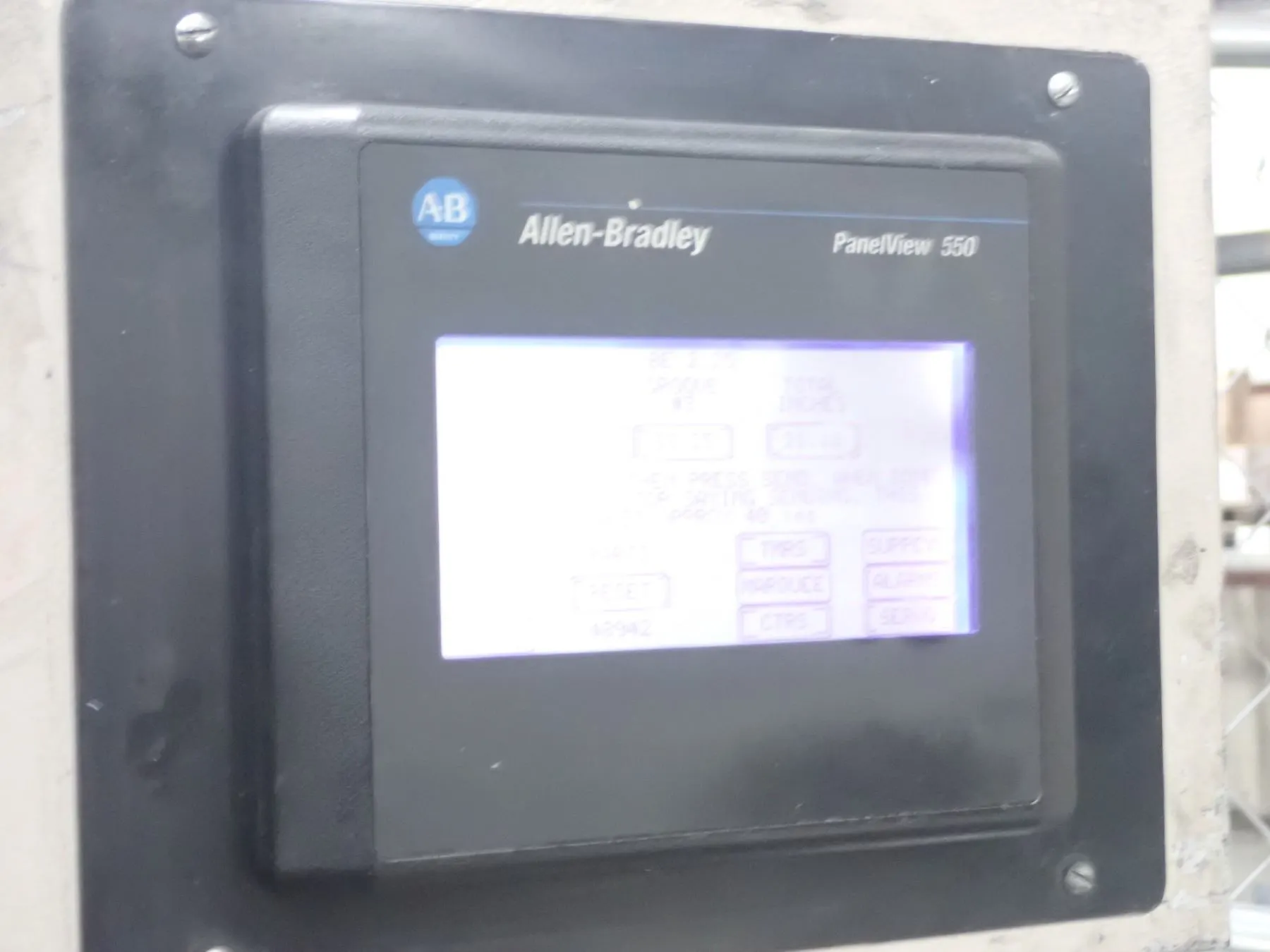

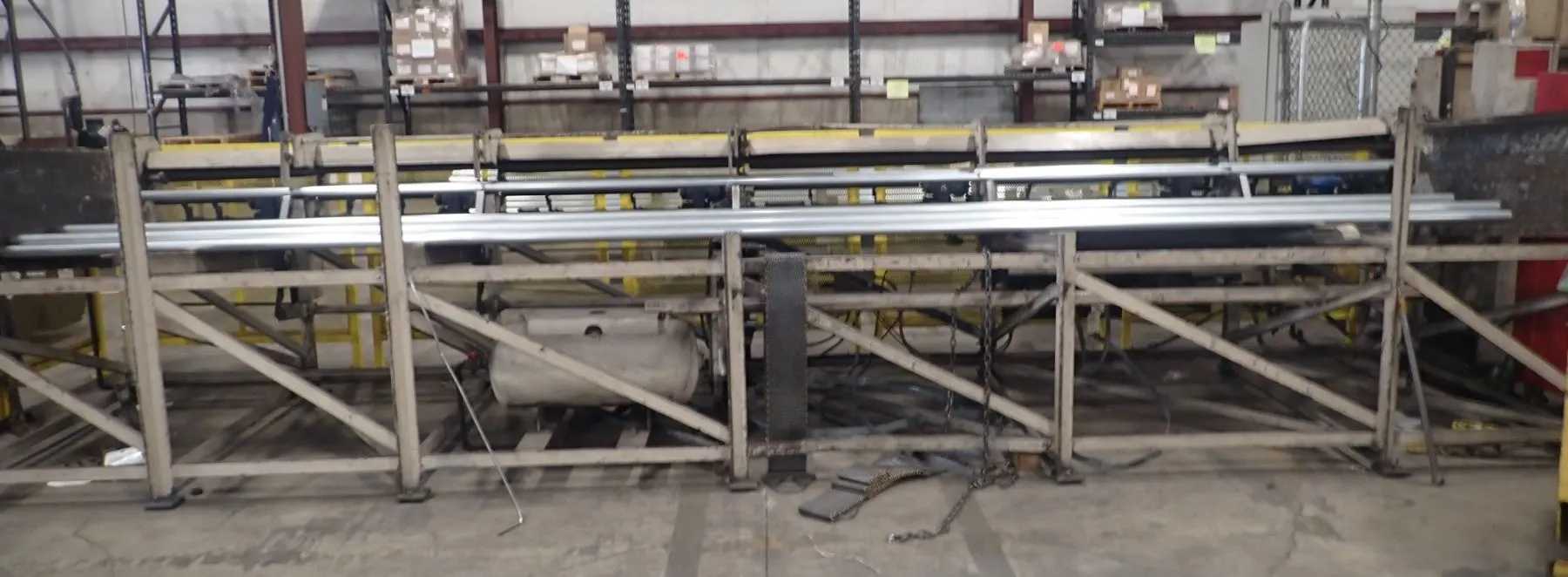

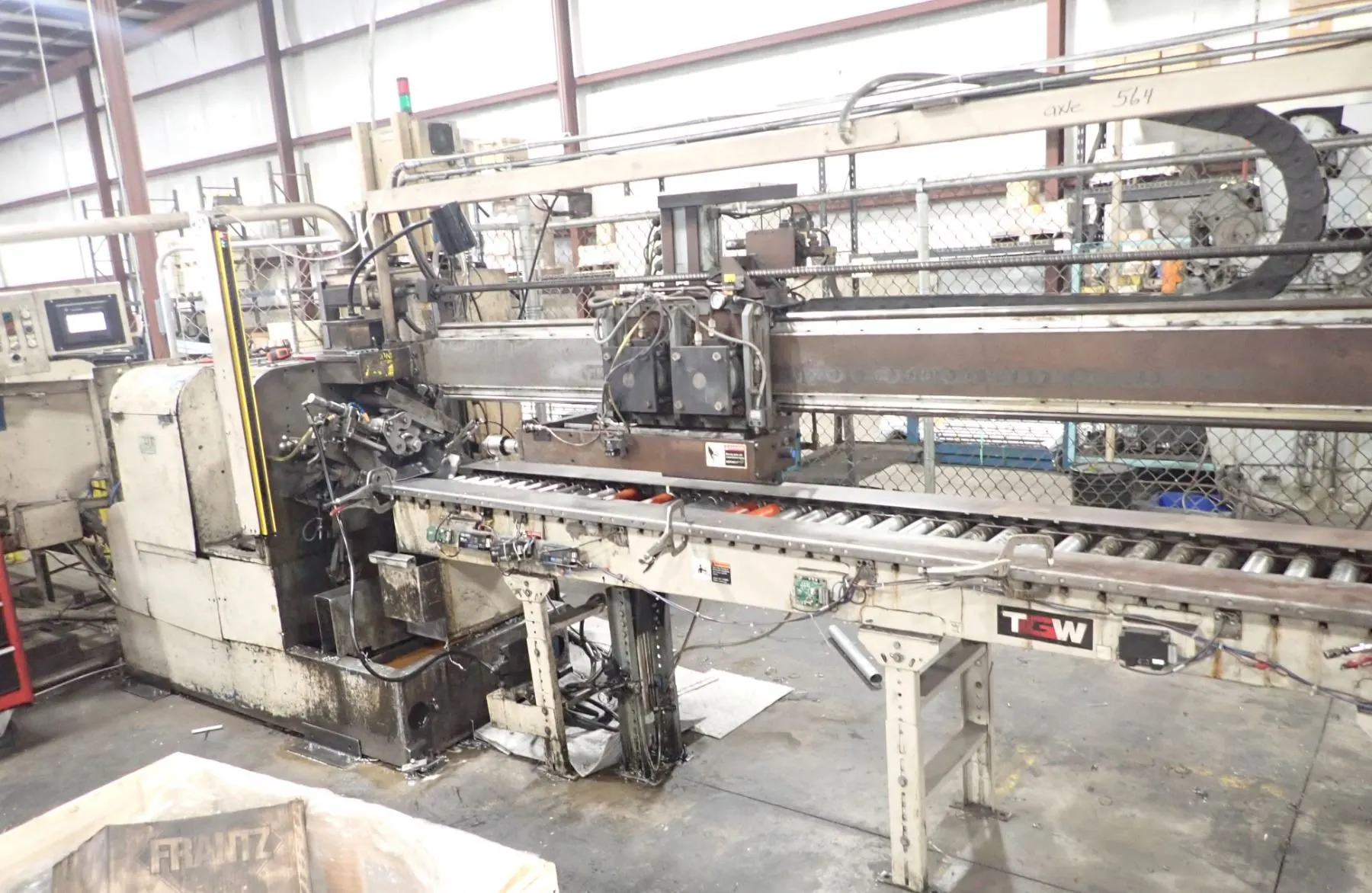

THE MODERN MACHINE MODEL 3K-LH IS A 3" AUTOMATIC PIPE-TUBE-BAR CUT-OFF LATHE EQUIPPED WITH UPDATED ALLEN BRADLEY PANEL VIEW 550 PLC CONTROLS AND A 20' MODERN AUTOMATIC BAR-FEED SYSTEM. IT FEATURES AN 11' OVERHEAD MICROMETER STOCK-STOP THAT ALLOWS FOR A MAXIMUM 8' CUT-OFF LENGTH, WITH THE STOCK-STOP LENGTH ADJUSTMENT ALSO SPECIFIED AT 8'. THE MACHINE UTILIZES FRONT AND REAR CUT-OFF SLIDES AND INCLUDES A 15' EXIT ROLLER CONVEYOR. TECHNICAL SPECIFICATIONS DETAIL A MINIMUM DIAMETER CAPACITY OF 1/4" (6MM) AND A MAXIMUM DIAMETER CAPACITY OF 3-1/8" (79MM). THE MAXIMUM WALL CAPACITY IS 1-1/2" (38MM), WHILE THE MAXIMUM SOLID BAR CAPACITY IS 3" (76MM). THE SPINDLE SPEED RANGE IS 130 TO 2000 RPM, AND THE STOCK FEED RATE IS 160 FPM (49 MPM). THE UNIT IS POWERED BY A 5 HP MAIN MOTOR OPERATING AT 440 VOLTS.
