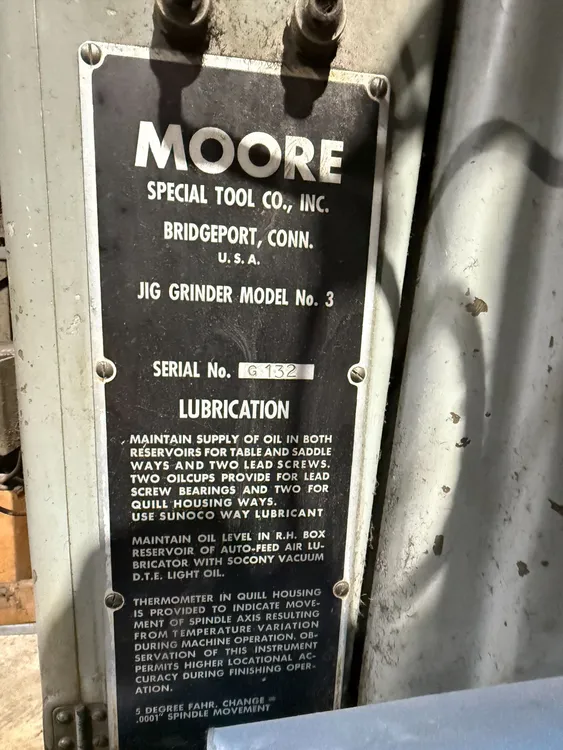

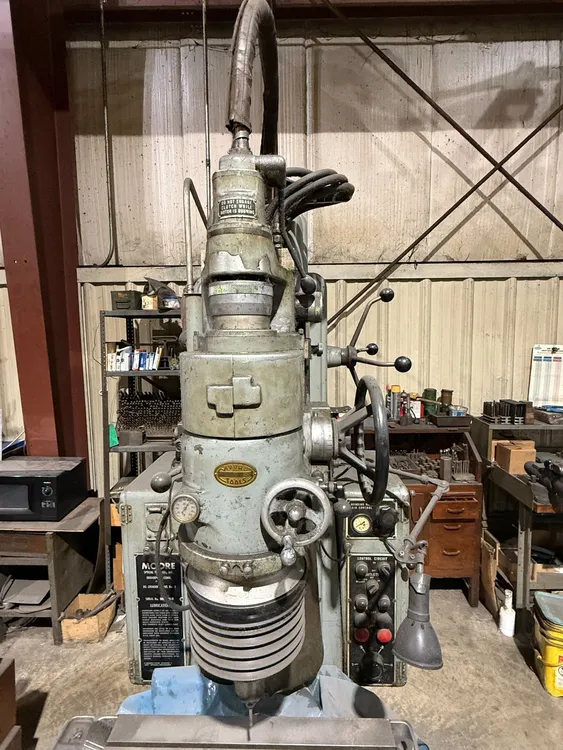

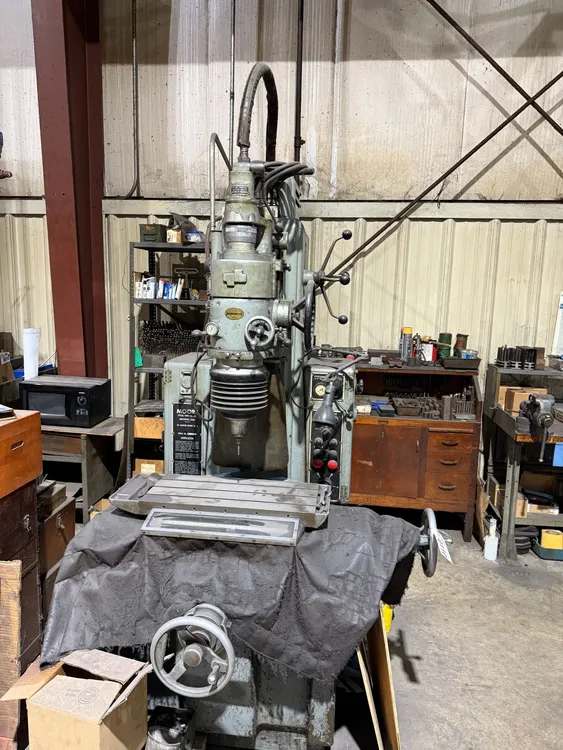

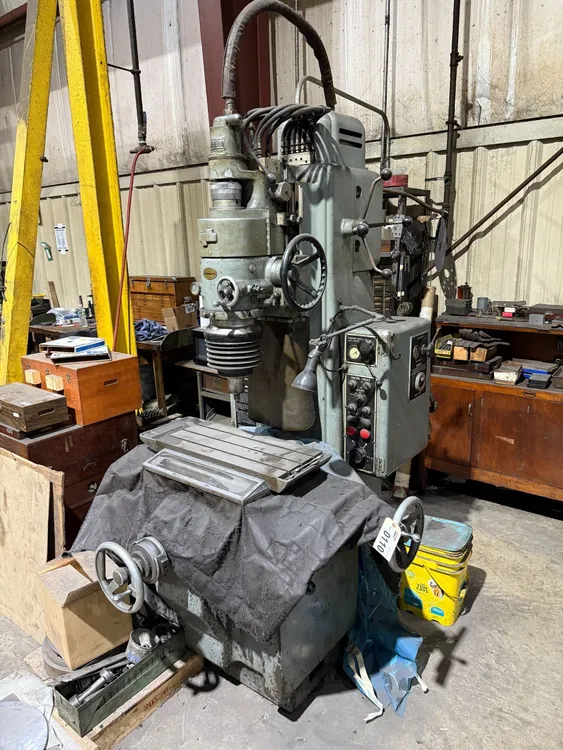

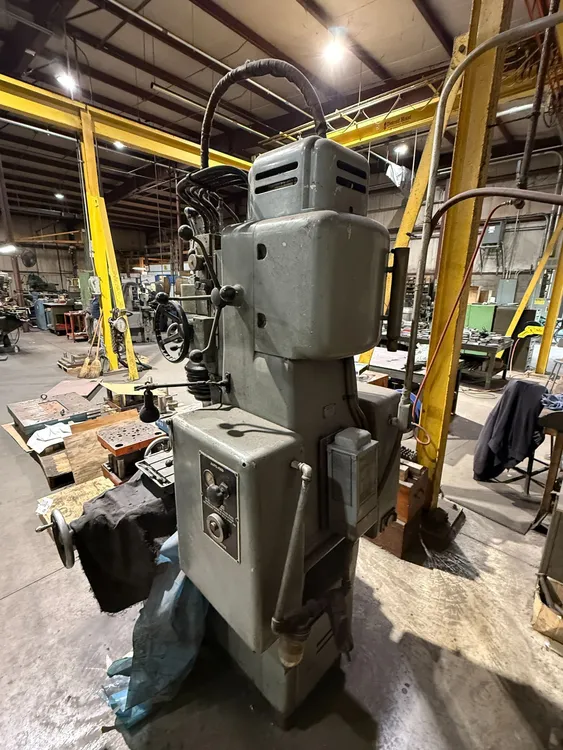

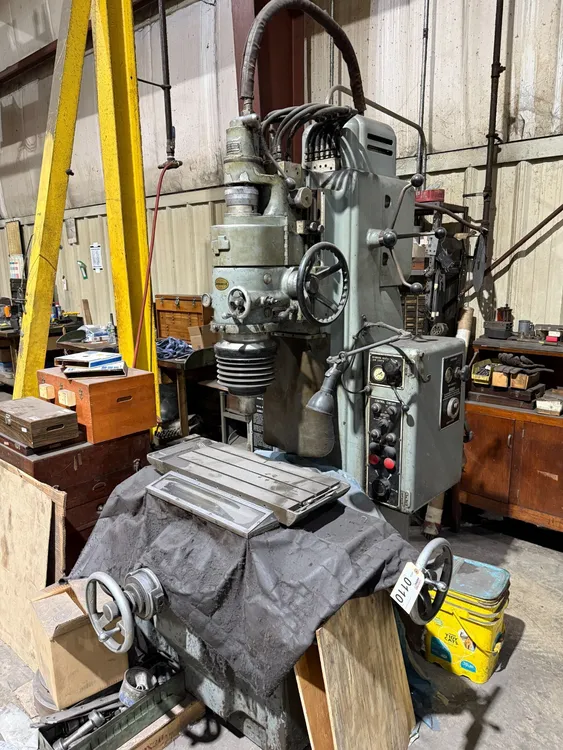

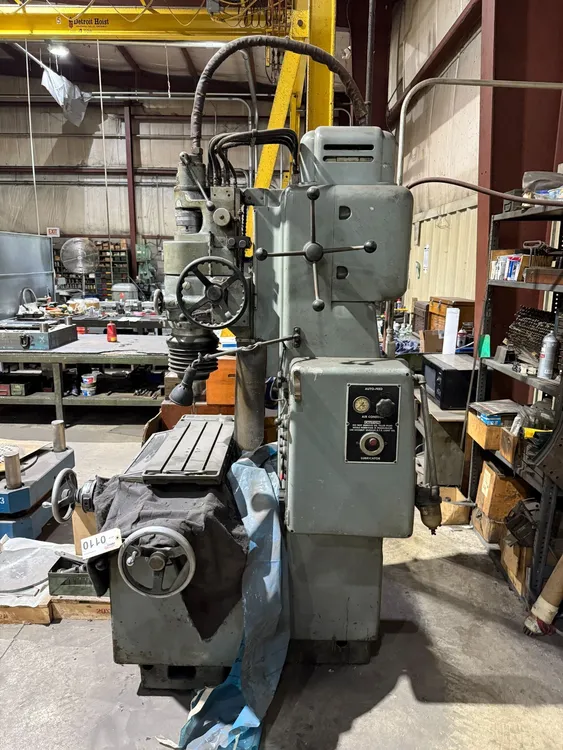

MOORE TOOLS JIG GRINDER MODEL NO. 3, 440V 3PH, 11'' X 24'' TABLE, 3,800 LB.

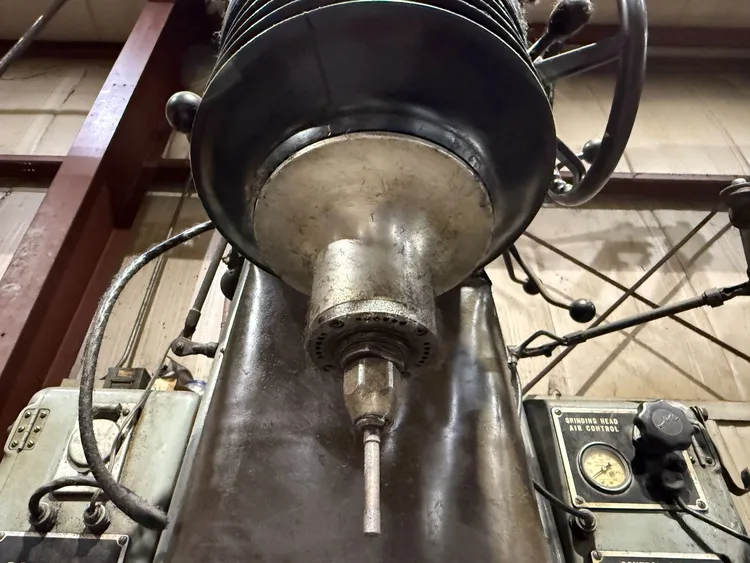

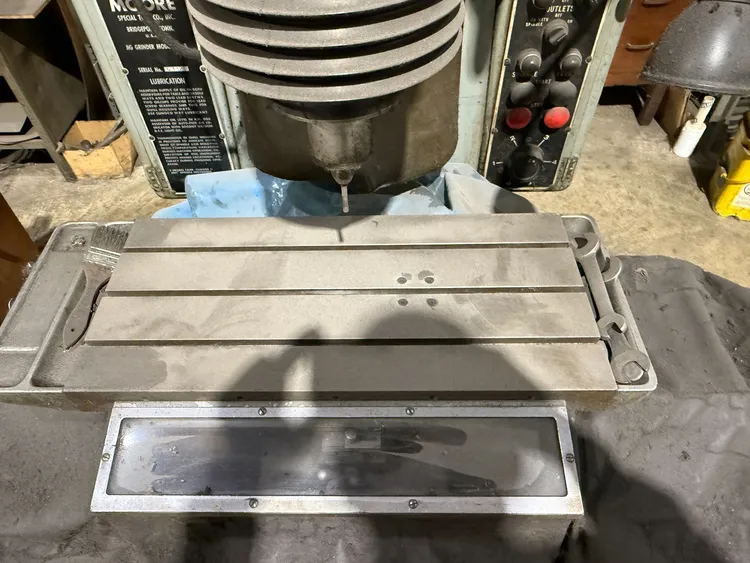

THE MOORE TOOLS JIG GRINDER MODEL NO. 3 OPERATES ON 440V 3PH POWER AND FEATURES AN 11'' × 24'' TABLE WITH 18'' LONGITUDINAL AND 11'' CROSS TRAVEL. THE SPINDLE-TO-COLLECT RANGE IS 2'' – 18'', WITH 10'' SPINDLE-TO-WAYS CLEARANCE AND 13½'' SPINDLE-TO-COLUMN BELOW WAYS. HEAD VERTICAL TRAVEL IS APPROXIMATELY 3⅝''. SPINDLE SPEEDS ARE INFINITELY VARIABLE FROM 40–250 RPM, AND WHEEL SPEED REACHES UP TO APPROXIMATELY 10,000 RPM. SPINDLE FEED RANGES FROM 4–240 SPM, AND THE MACHINE OFFERS AN ANGULAR TILT OF ±1½°. GRINDING CAPACITY IS 0.187'' – 5''. CONTROLS UTILIZE HYDRAULIC/AIR VARIABLE FEEDS AND SPEEDS. THE MACHINE HAS DIMENSIONS OF 80'' × 65'' × 102'' (F×R×H) AND WEIGHS 3,800 LB.
