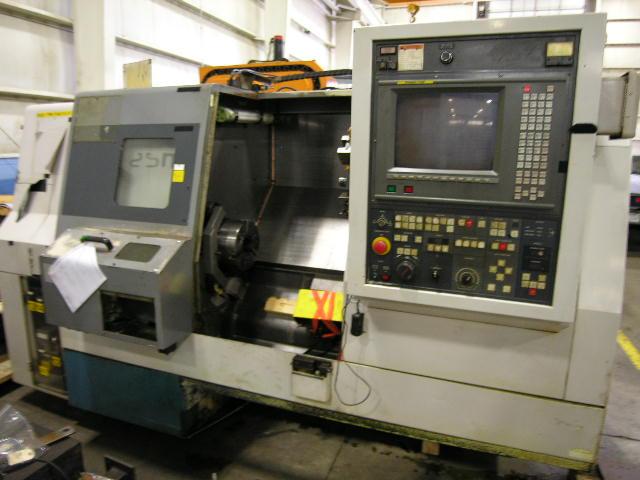

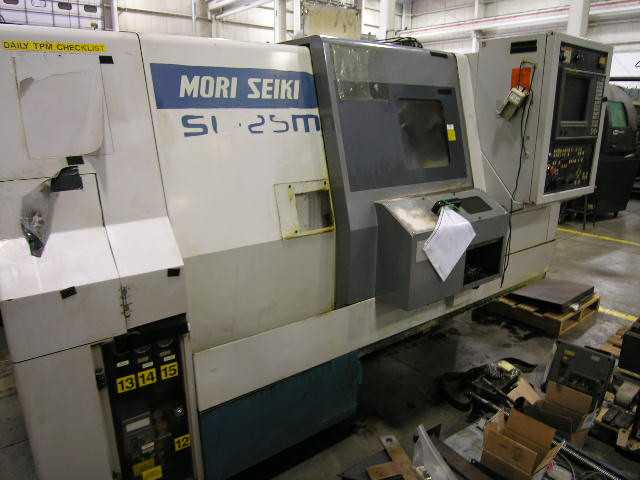

Mori Seiki SL-25MC lathe
Aucto ID: #6
3612544
10450
ended
CNC Machining Centers & Lathes
Auction Lot Ended
Location:
Logistics:
Rigging:
Loading:
Shipping:
Verified Seller:
Selling since 2025.
Product Description

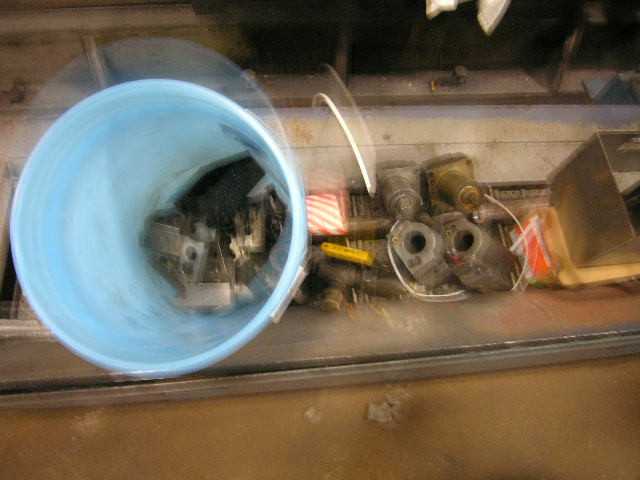

Model: SL-25MC-500 Swing over bed: 20.5” Swing over cross slide: 13.8” Max. machining diameter: 13.4” Std. machining diameter: 9.1” Distance between centers: 24.6” Max. turning length: 20.9” Spindle speeds: 35 to 3500 rpm Spindle motor: 20/15 HP Hole thru spindle: 3.1” Bar capacity: 2 5/8” Spindle nose: JIS A2-6 Turret stations: 12, with six being “live” Turret square tool: 1” sq. Turret boring bar diameter: 2” Turret index time: 1.3 sec. Live milling speeds: 80-2000 rpm Live milling HP: 5/3 C axis: .001 degree increments Rapids: X: 472 ipm, Z: 590 ipm Dimensions: 119” x 65” x 9,680 lbs. EQUIPPED WITH: Fanuc Moric T6F Big Screen controls (FAPT) conversational Parts catcher Tool setter 5) Live milling heads, 3) straight, 2) 90 degree 3) Block type boring bar holders and 4) OD holders for “stick” tooling 10” LMC 3-jaw chuck with 3” diameter hole recess Tail stock with 19” travel and #5 MT with center Turbo Chip conveyor Bar feed interface Coolant: 100 gallon cap. Recent ball screw in Z axis with new thrust bearings. Video link: https://www.youtube.com/watch?v=z6kUxg8A5pI SN: 1093, very good condition
Technical Specifications
Category
MACHINING EQUIPMENT -> LATHES -> CNC LATHESSale Terms & Conditions
