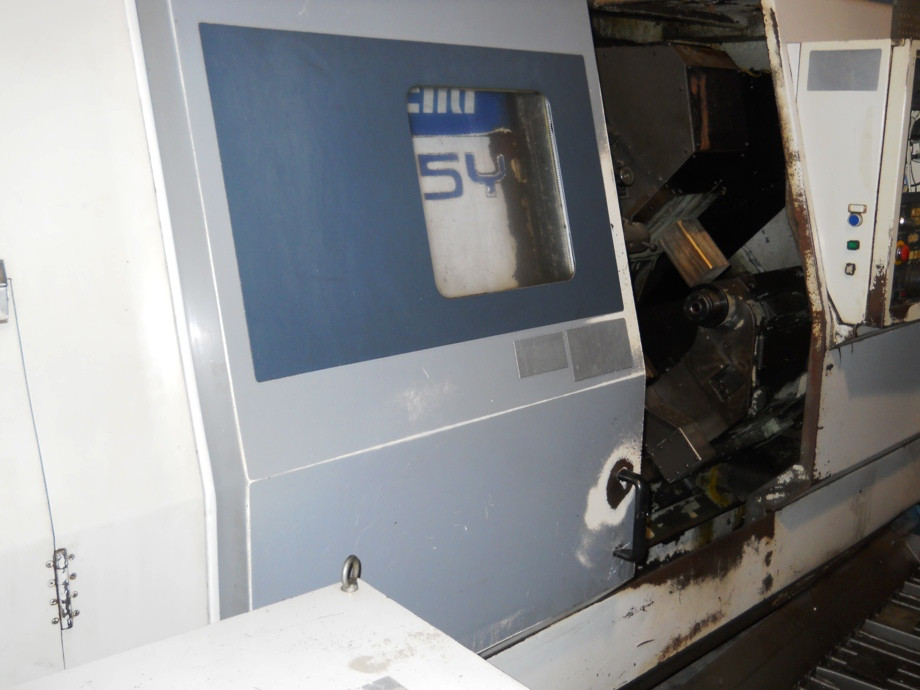

Name | Mori Seiki SL-25Y CNC Lathe |
---|---|
Aucto ID | 6 |
Manufacturer | Mori Seiki |
Model | SL-25Y |
Additional Info | USED MORI SEIKI LIVE MILL, Y-AXIS MULTI- AXIS CNC LATHES
Model: SL-25Y
Specifications:
X travel: 7.7 “ <5.1” + 2.6”>
Z travels: 23.2”
Y travels: 3.9”
Swing: 32.1”
Swing over cross slide: 26.73”
Max. diameter of part: 10.24”
Max. distance between centers: 24.41”
Max. turning length: 20.87”
Spindle nose: A2-8
Spindle rpm: 35-3,500
Spindle HP: 20/15
Spindle positioning: 0.001”
Bore thru spindle: 3.1”
Max. bar capacity: 2 5/8”
Traverse rates:
X: 472 ipm
Z: 590 ipm
Y: 236 ipm
Rotary HP/RPM: 5/3 HP and 100 to 2,000 rpm
Tail stock spindle travels: 4.33”
Tail stock taper: #5MT
Machine KVA rating: 36
Dimensions: 125.3” x 70.8” x 81” high x 11,880 lbs.
EQUIPPED WITH:
Kitagawa 10” hydraulic chuck
Tail stock with #5MT and 15.9” of travel, quill travel: 3.9”
Turbo Chip conveyor (side exit)
Full C & Y axis

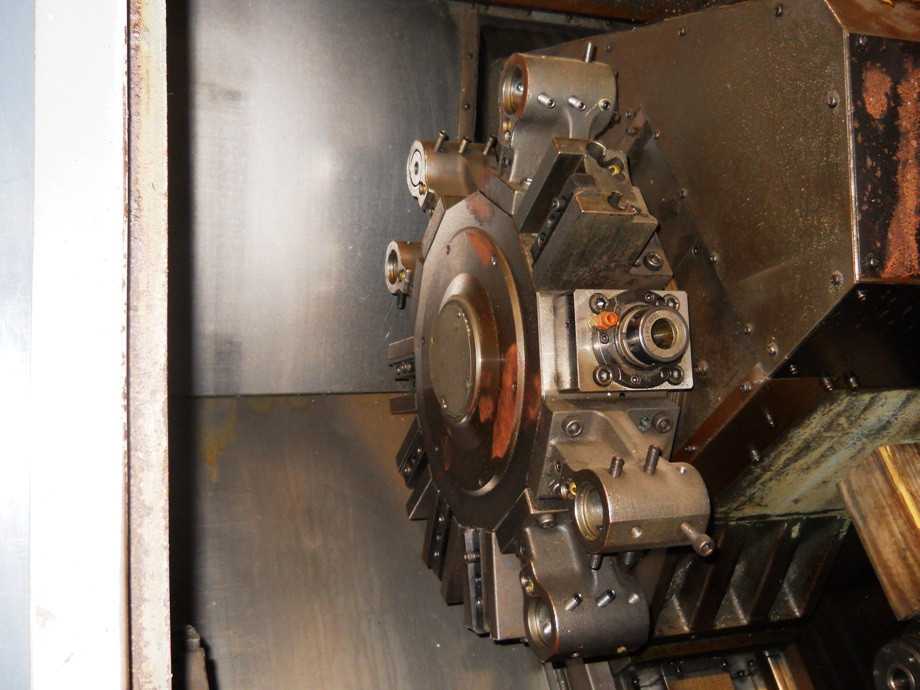

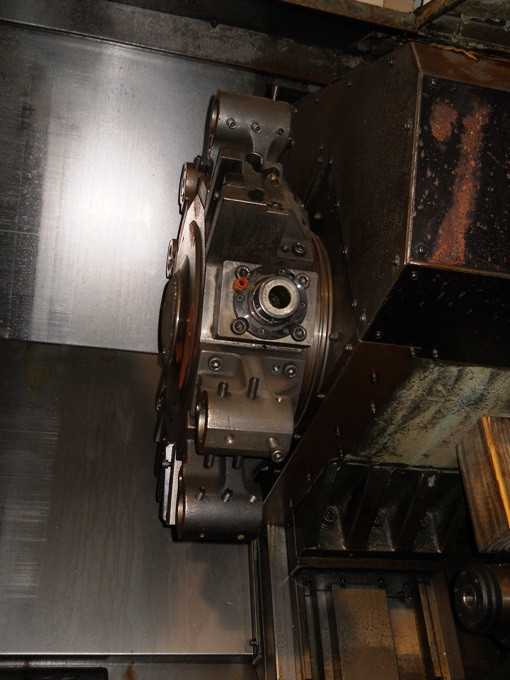

One axial live head for each machine (more available) also a brand new 2” shell mill holder available
One radial live head for each machine (more available) also an adjustable angle head holder available
Rigid tapping
Tool pre setter
Bar feed interface
4) Boring bar holders for
Fanuc 16T controls
Available manuals
SN: 33 comes with 5) Boring bar holders and 5) block type holders plus 1 each radial and live milling holder. This machine has an electrical issue with either the spindle encoder or the spindle drive on the Live milling motor
Video link: https://youtu.be/IJnt7yQJQ7s |
