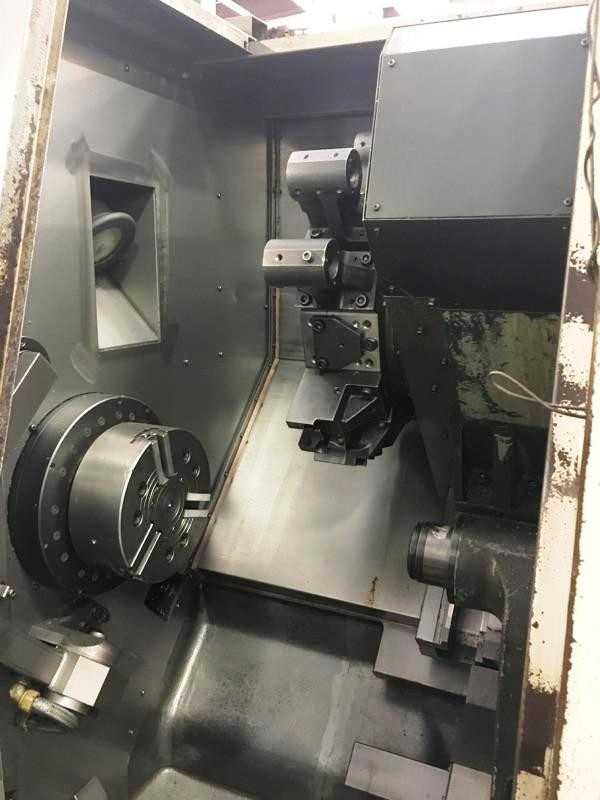

Mori Seiki SL-25Y

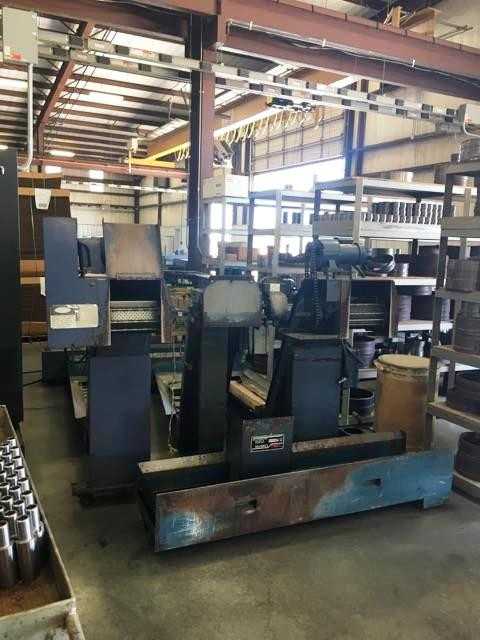

MODEL: SL-25Y SPECIFICATIONS: X TRAVEL: 7.7 “ <5.1” + 2.6”> Z TRAVELS: 23.2” Y TRAVELS: 3.9” SWING: 32.1” SWING OVER CROSS SLIDE: 26.73” MAX. DIAMETER OF PART: 10.24” MAX. DISTANCE BETWEEN CENTERS: 24.41” MAX. TURNING LENGTH: 20.87” SPINDLE NOSE: A2-8 SPINDLE RPM: 35-3,500 SPINDLE HP: 20/15 SPINDLE POSITIONING: 0.001” BORE THRU SPINDLE: 3.1” MAX. BAR CAPACITY: 2 5/8” TRAVERSE RATES: X: 472 IPM Z: 590 IPM Y: 236 IPM ROTARY HP/RPM: 5/3 HP AND 100 TO 2,000 RPM TAIL STOCK SPINDLE TRAVELS: 4.33” TAIL STOCK TAPER: #5MT MACHINE KVA RATING: 36 DIMENSIONS: 125.3” X 70.8” X 81” HIGH X 11,880 LBS. EQUIPPED WITH: KITAGAWA 10” HYDRAULIC CHUCK TAIL STOCK WITH #5MT AND 15.9” OF TRAVEL, QUILL TRAVEL: 3.9” TURBO CHIP CONVEYOR (SIDE EXIT) FULL C & Y AXIS ONE AXIAL LIVE HEAD FOR EACH MACHINE (MORE AVAILABLE) ALSO A BRAND NEW 2” SHELL MILL HOLDER AVAILABLE ONE RADIAL LIVE HEAD FOR EACH MACHINE (MORE AVAILABLE) ALSO AN ADJUSTABLE ANGLE HEAD HOLDER AVAILABLE RIGID TAPPING TOOL PRE SETTER BAR FEED INTERFACE 4) BORING BAR HOLDERS FOR EACH FANUC 16T CONTROLS AVAILABLE MANUALS SN: 33
