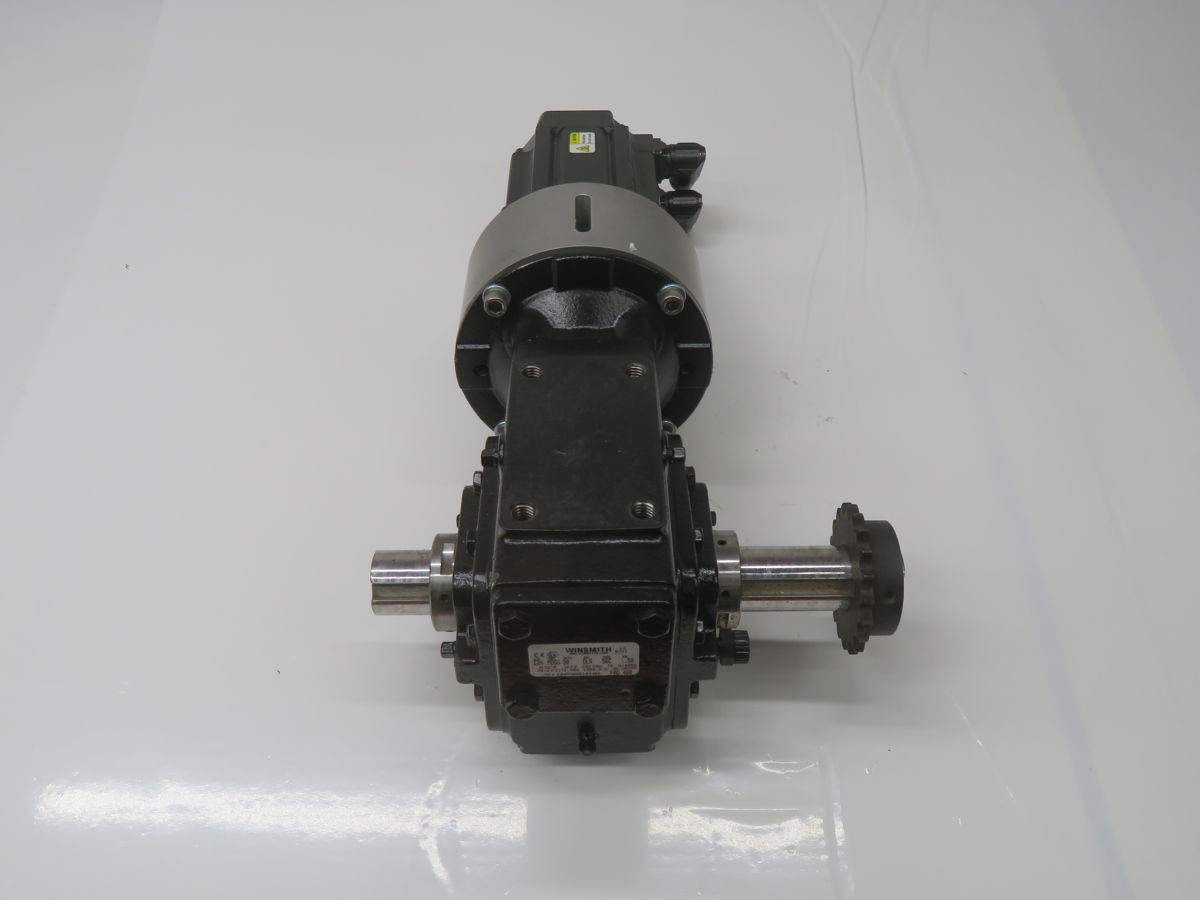

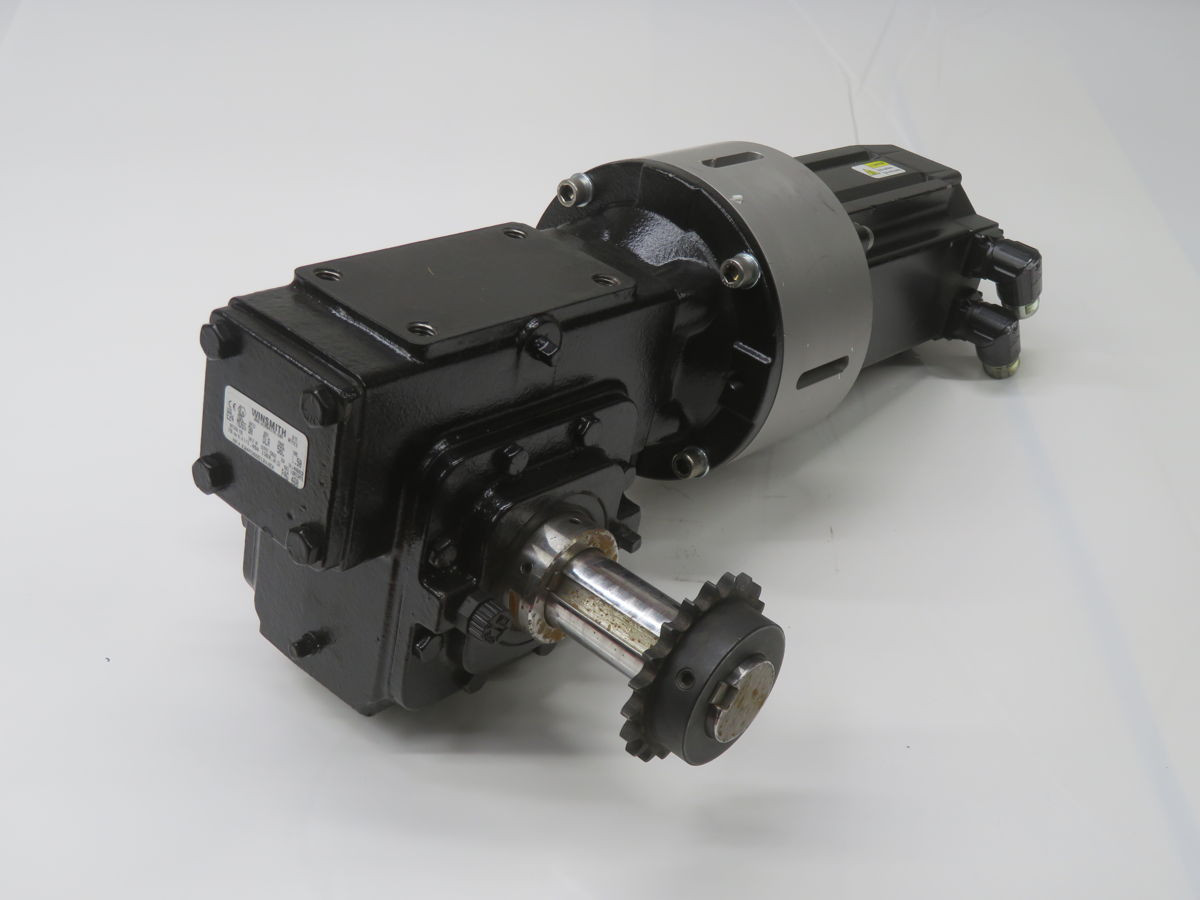

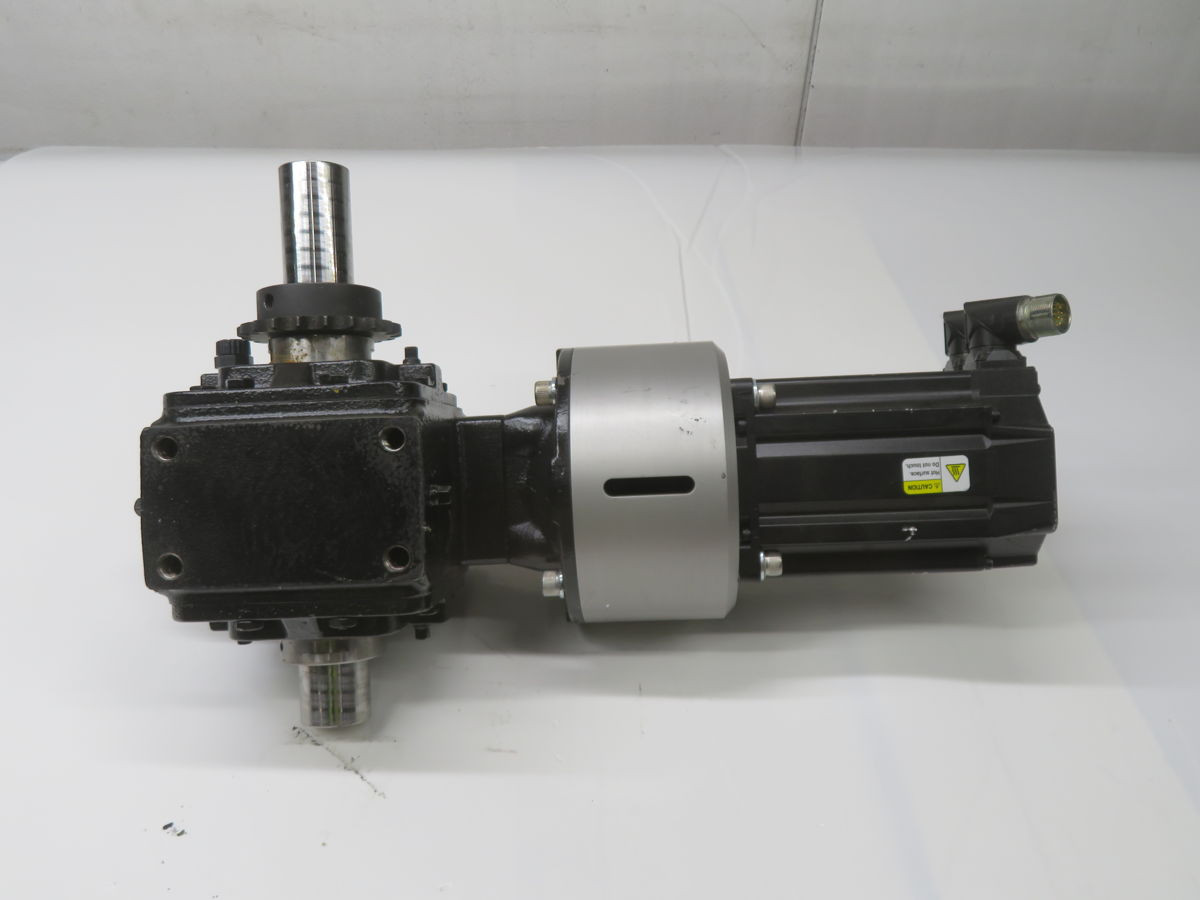

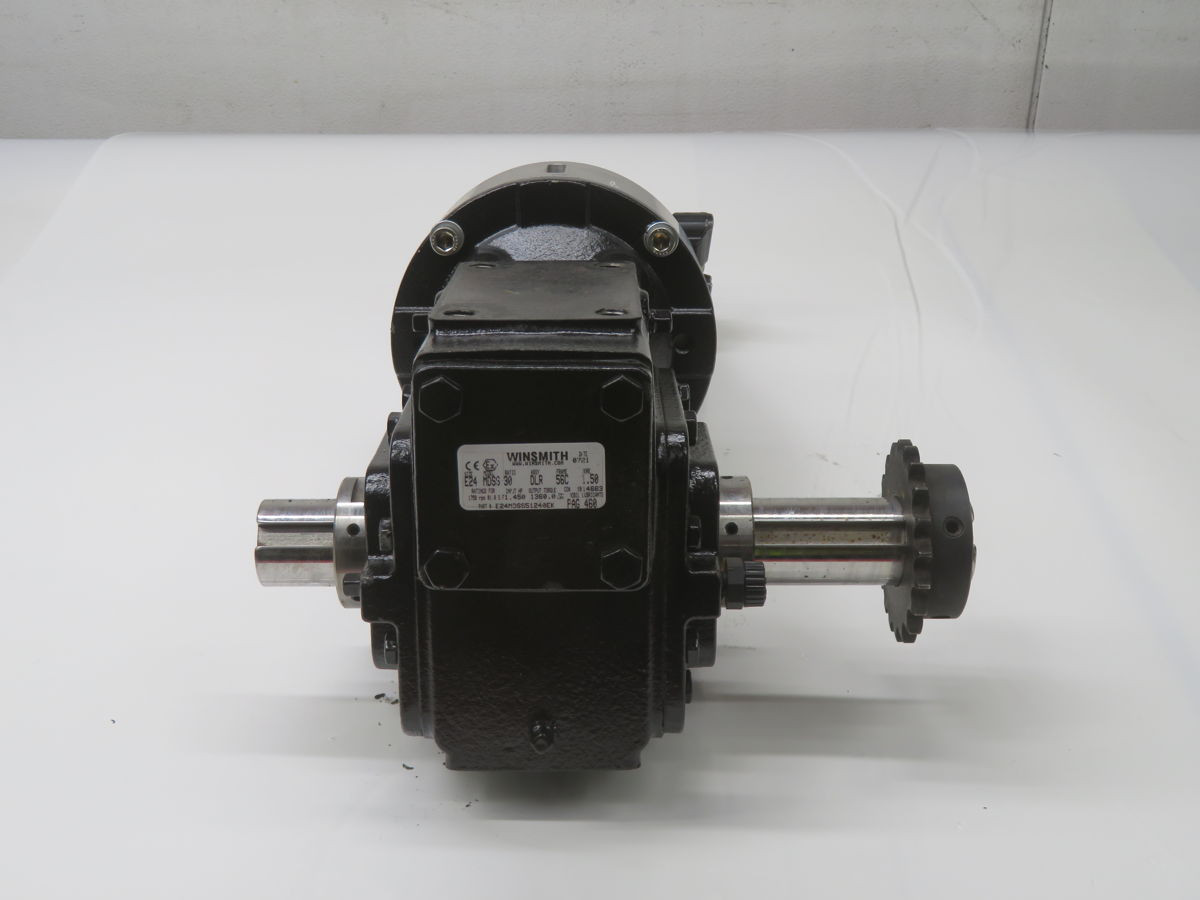

MPL-A4530K-MJ72AA E24 MDSS 30 DLR 56C 1.50 AC SERVO MOTOR AND GEAR SPEED REDUCER

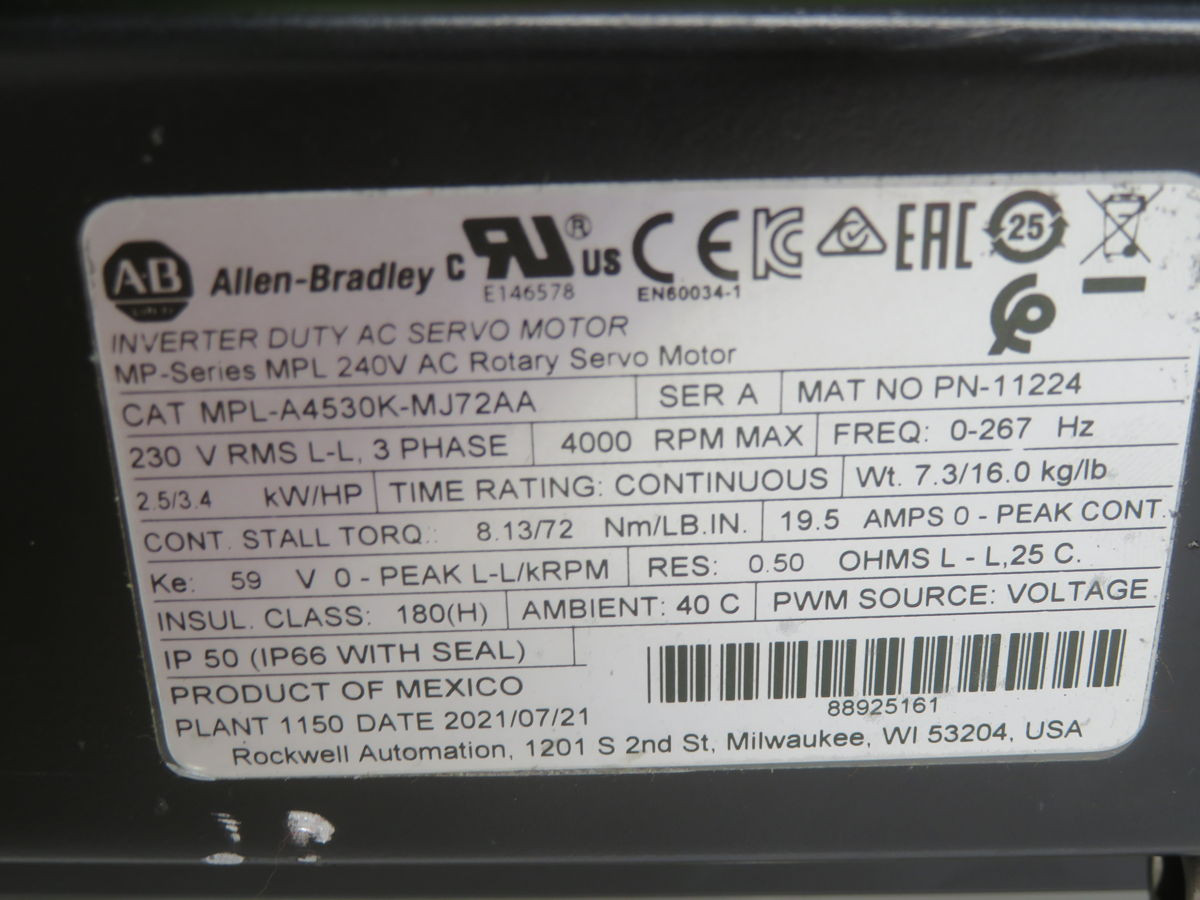

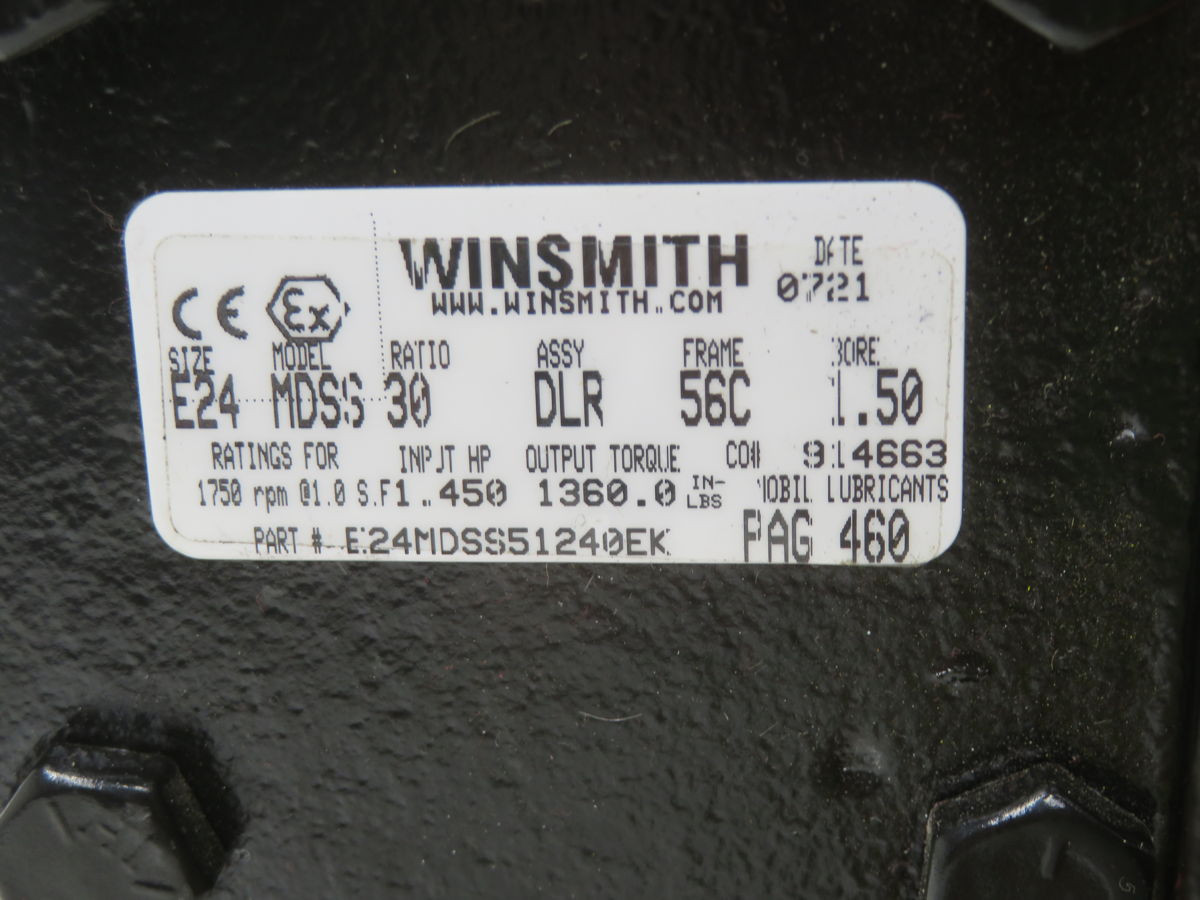

ALLEN-BRADLEY MPL-A4530K SERVO MOTOR WITH A WINSMITH E24 REDUCER CREATES A HIGH-TORQUE MOTION CONTROL SYSTEM. THE "MJ72" SUFFIX MEANS IT HAS A MULTI-TURN ENCODER. IT KNOWS ITS POSITION EVEN AFTER A POWER LOSS, WHICH IS PERFECT FOR THIS 30:1 SETUP BECAUSE IT ELIMINATES THE NEED FOR "HOMING" ROUTINES, WHEREAS THE RATIO (30:1): THIS IS A "SINGLE REDUCTION" RATIO. IT PROVIDES EXCELLENT HOLDING POWER (SELF-LOCKING) BUT IS LESS EFFICIENT (~70%) THAN HELICAL GEARS, GENERATING HEAT THAT MUST BE MANAGED AT HIGH RPMS. | VOLTAGE: 230 VAC | PHASE: 3 PHASE | RATIO: 30:1 RATIO | ALTERNATIVE PART NUMBER: E24 MDSS 30 DLR 56C 1.50
