MYFORD MG-12HP HYDRAULIC CYLINDRICAL GRINDER, 3" MAX DIA, 5" SWING, 12" CAP, 440V/3PH/60HZ

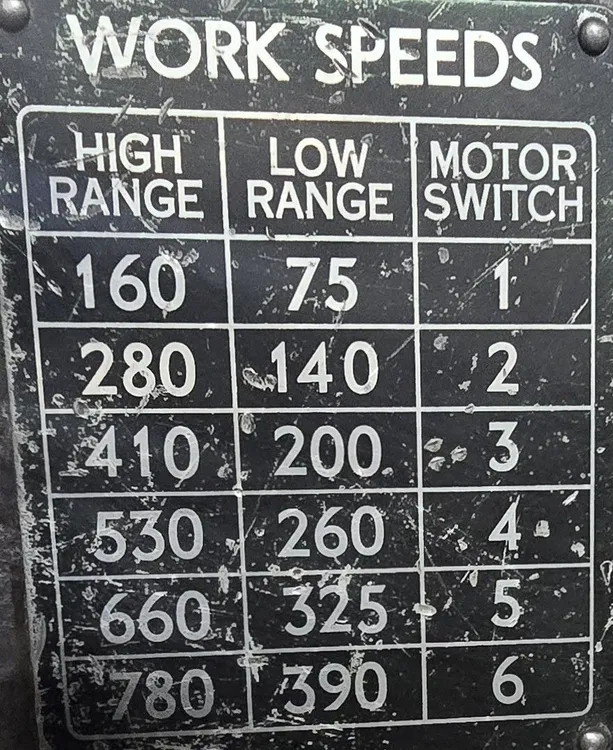

THIS MYFORD MG-12HP HYDRAULIC CYLINDRICAL GRINDER FEATURES A 3” MAXIMUM GRINDING DIAMETER AND A 5” SWING OVER THE TABLE, WITH A 12” CAPACITY BETWEEN CENTERS. MAXIMUM TABLE TRAVEL IS 13-3/4”, WITH THE TABLE SWIVELING 10° EITHER WAY, AND HYDRAULIC TRAVERSE OPERATING FROM 0 TO 120 I.P.M. THE WHEELHEAD PROVIDES 3-7/8” TOTAL TRAVEL BY FEEDSCREW AND 1-1/8” HYDRAULIC RAPID RETRACTION. AUTOMATIC MECHANICAL IN-FEED RANGES FROM 0.0001” TO 0.001”, WITH FINE FEED TO DEAD STOP AT 0.000025” AND WHEEL FEED GRADUATIONS OF 0.0001”. SPINDLE SPEEDS ARE 1,830 AND 1,988 R.P.M., ACCOMMODATING A 12” X 1-1/2” GRINDING WHEEL WITH A 5” BORE. THE WORKHEAD OFFERS STEPLESSLY VARIABLE WORKSPEEDS FROM 100 TO 900 R.P.M., POWERED BY A ¼” H.P. DC MOTOR. A 3 H.P. DRIVE MOTOR POWERS THE MACHINE, WHICH IS WIRED FOR 440 VOLT / 3 PHASE / 60 H.Z. THE MACHINE WEIGHS 2250 LBS. AND MEASURES 72’’ L X 44’’ W X 70’’ H.
