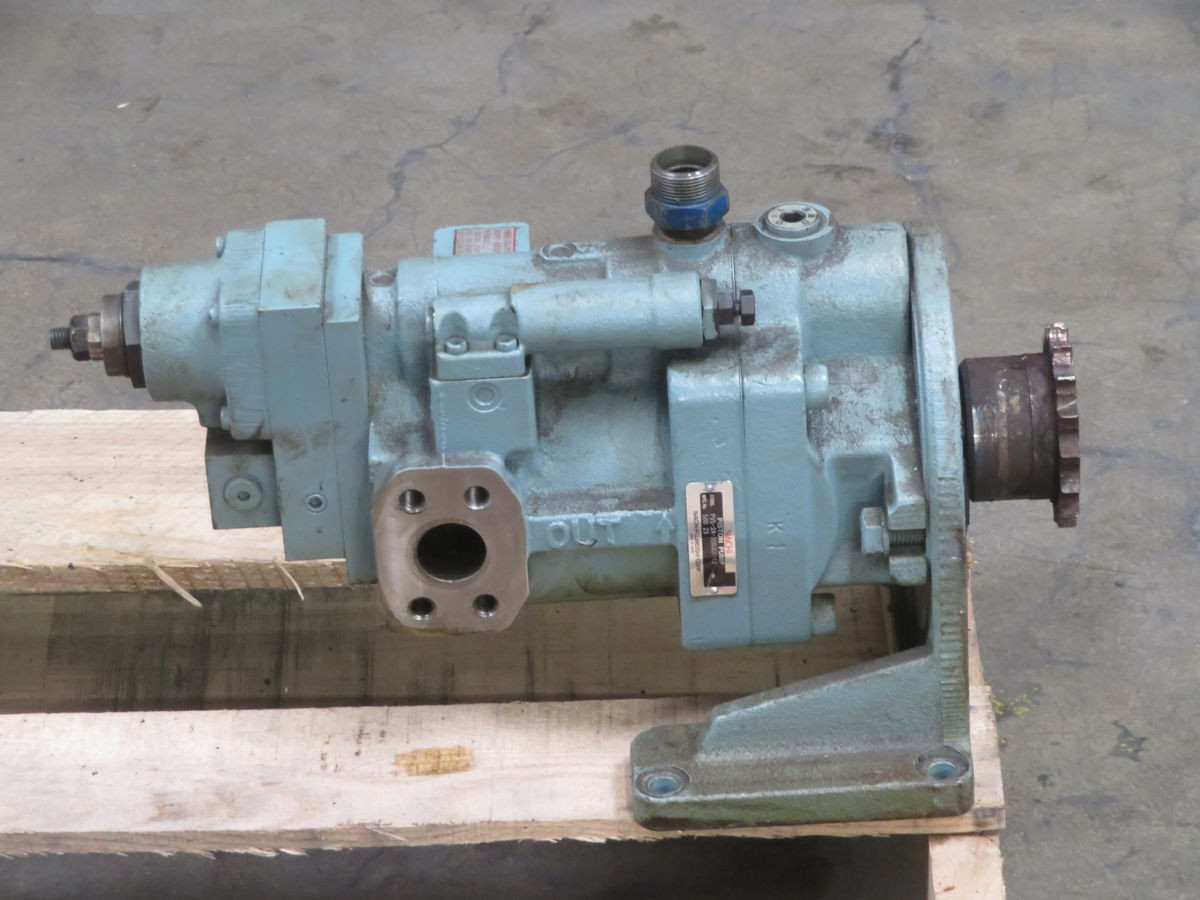

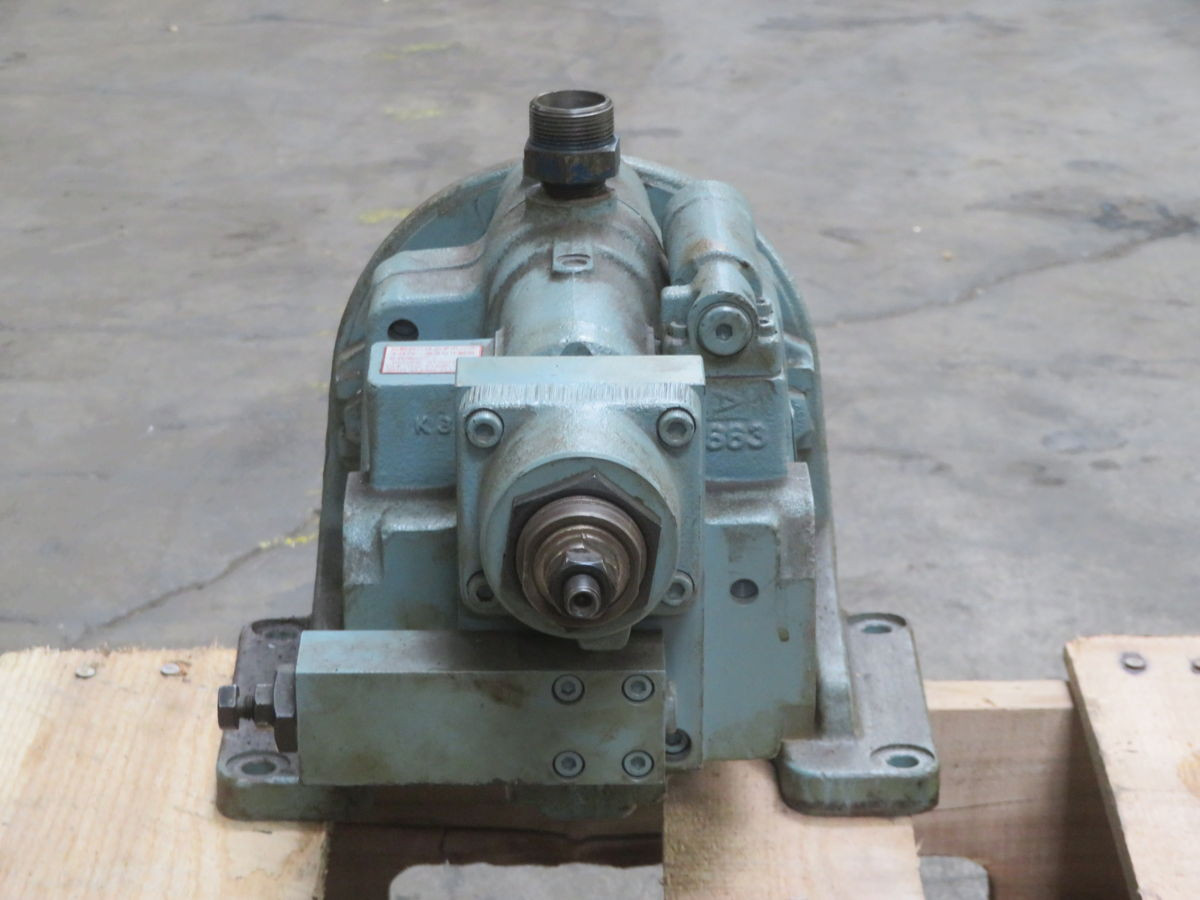

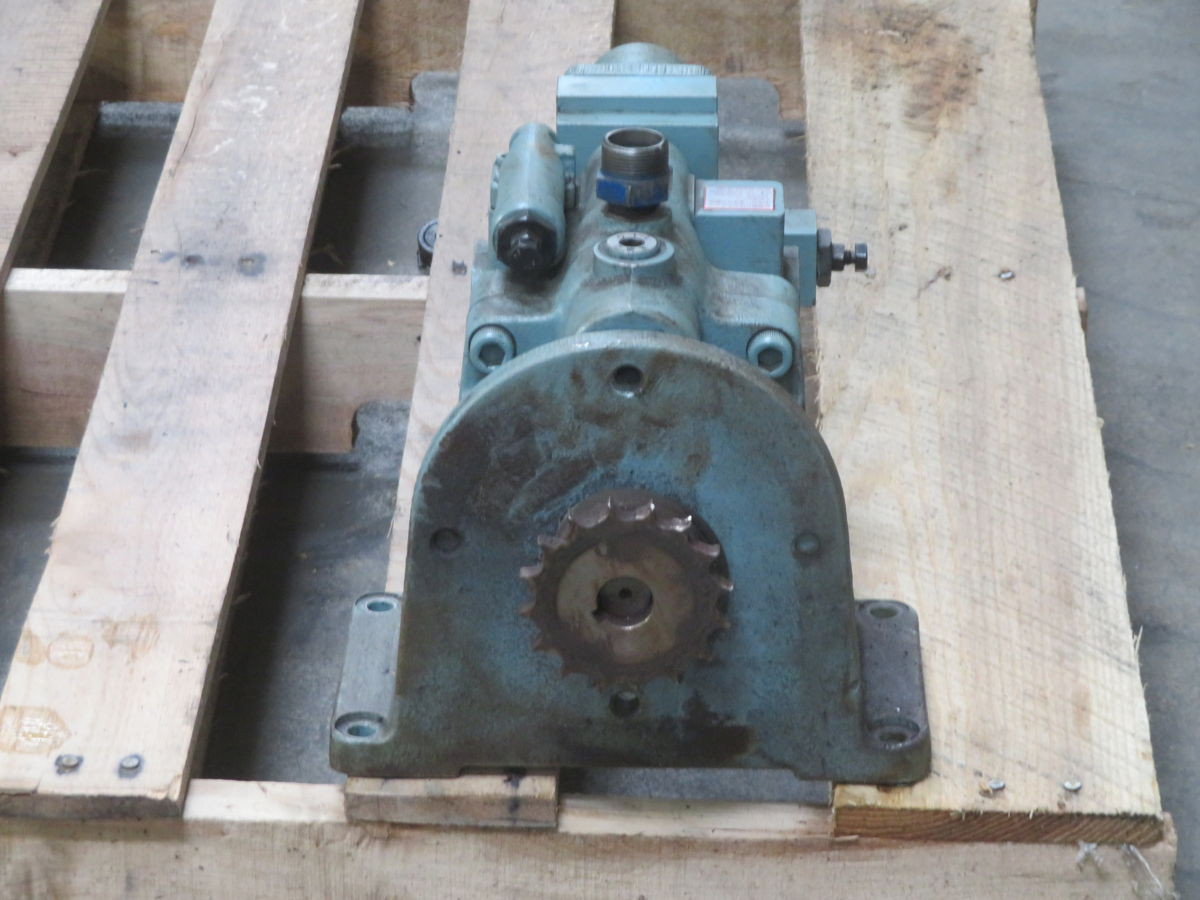

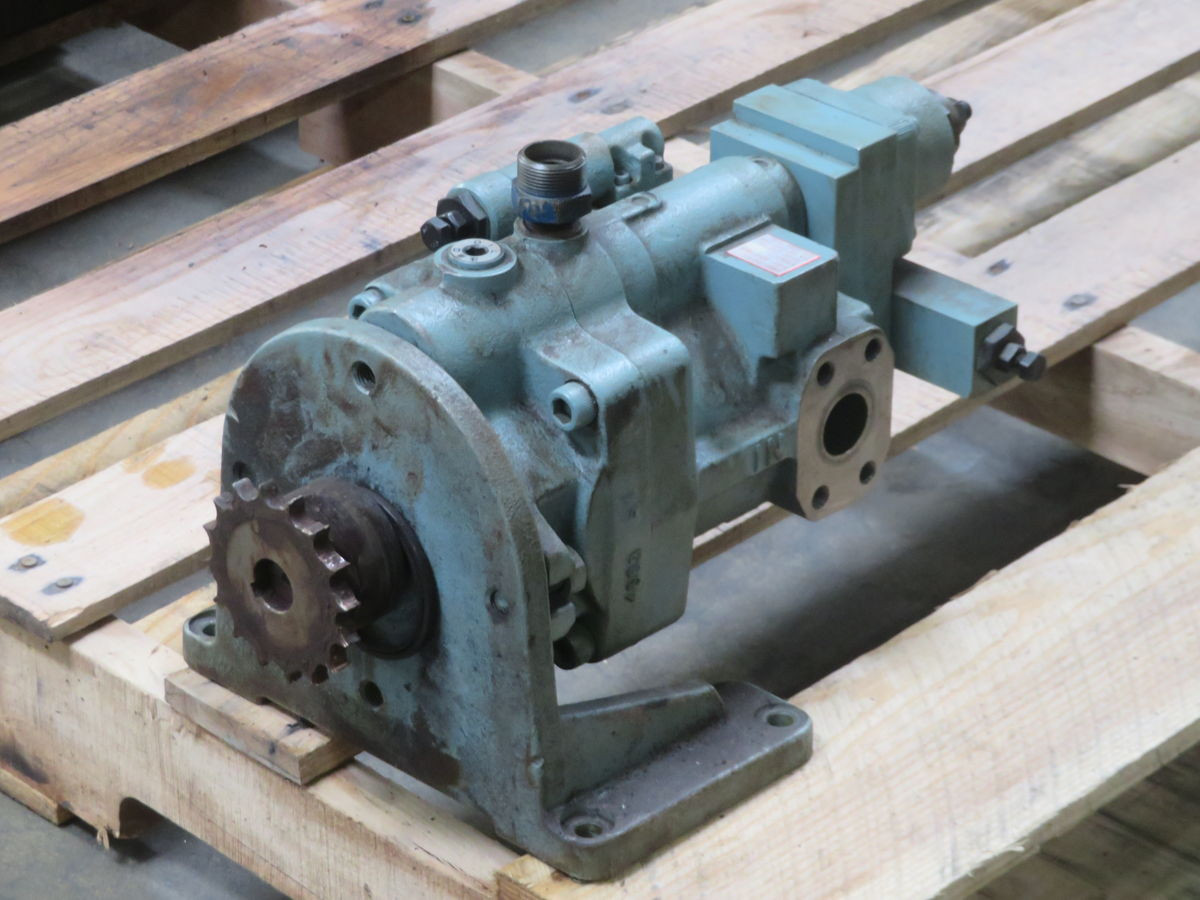

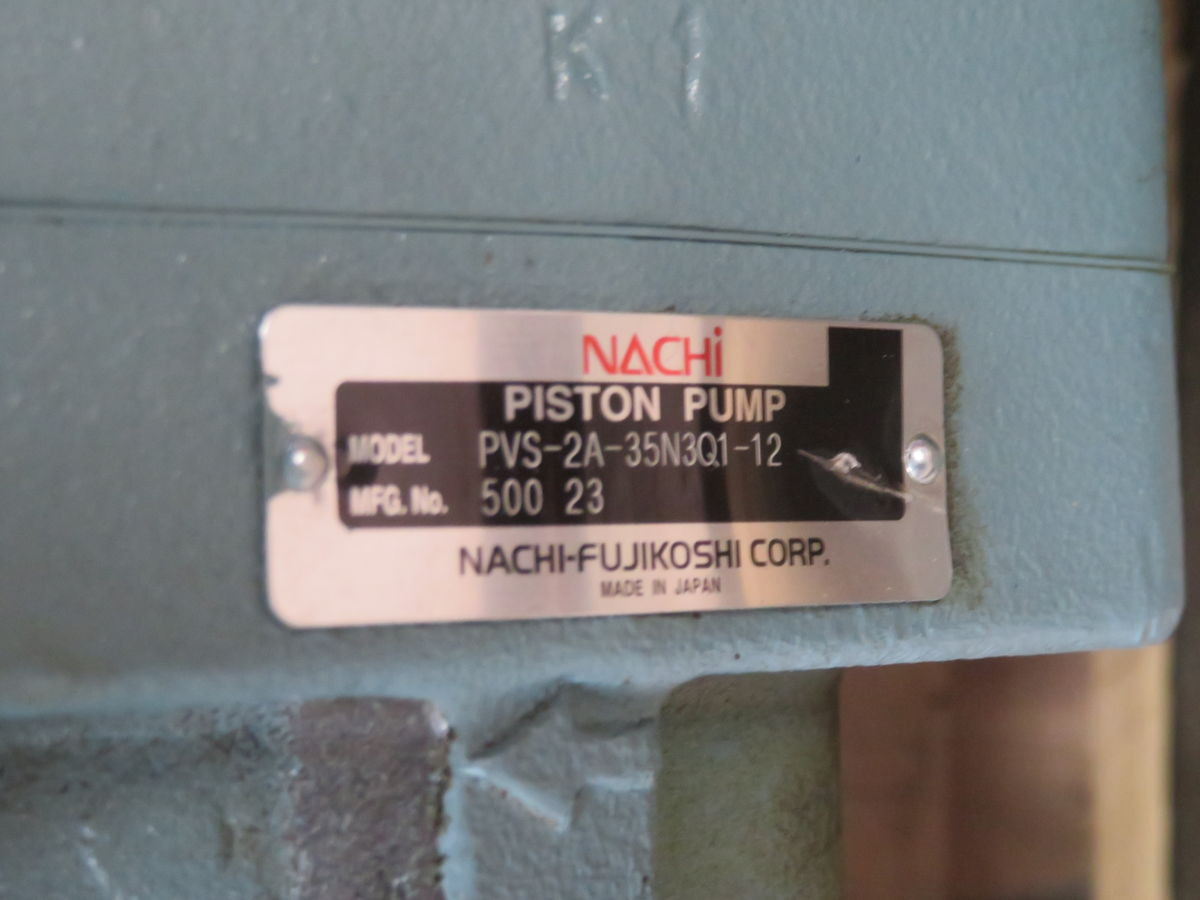

NACHI PVS-2A-35N3Q1-12 HYDRAULIC PISTON PUMP

THE NACHI PVS-2A-35N3Q1-12 IS A VARIABLE DISPLACEMENT AXIAL PISTON PUMP DESIGNED FOR HYDRAULIC APPLICATIONS. THIS UNIT PROVIDES A NOMINAL DISPLACEMENT OF 35 CM³/REV (2.14 IN³/REV). IT IS RATED FOR A MAXIMUM OPERATING PRESSURE OF 21 MPA (210 BAR, 3050 PSI) AND CAN OPERATE AT A MAXIMUM ROTATIONAL SPEED OF 1800 RPM. THE PUMP INCORPORATES A PRESSURE COMPENSATOR CONTROL, DESIGNATED BY Q1, WHICH AUTOMATICALLY ADJUSTS THE PUMP'S DISPLACEMENT TO MAINTAIN A CONSTANT SYSTEM PRESSURE. THE N3 CODE TYPICALLY INDICATES A STANDARD PRESSURE SETTING RANGE, WITH THE MAXIMUM OUTPUT PRESSURE CONFIGURABLE UP TO 21 MPA. AS PART OF THE PVS SERIES, THIS MODEL IS ENGINEERED FOR ENERGY EFFICIENCY AND REDUCED NOISE LEVELS IN INDUSTRIAL HYDRAULIC CIRCUITS. THE APPROXIMATE WEIGHT OF THE PUMP IS 13 KG.
