NAMCO EE510-21000 PROXIMITY SWITCH, 12.7MM SENSING, 8-28VDC, 200MA OUTPUT, IP67, -25/70C TEMP

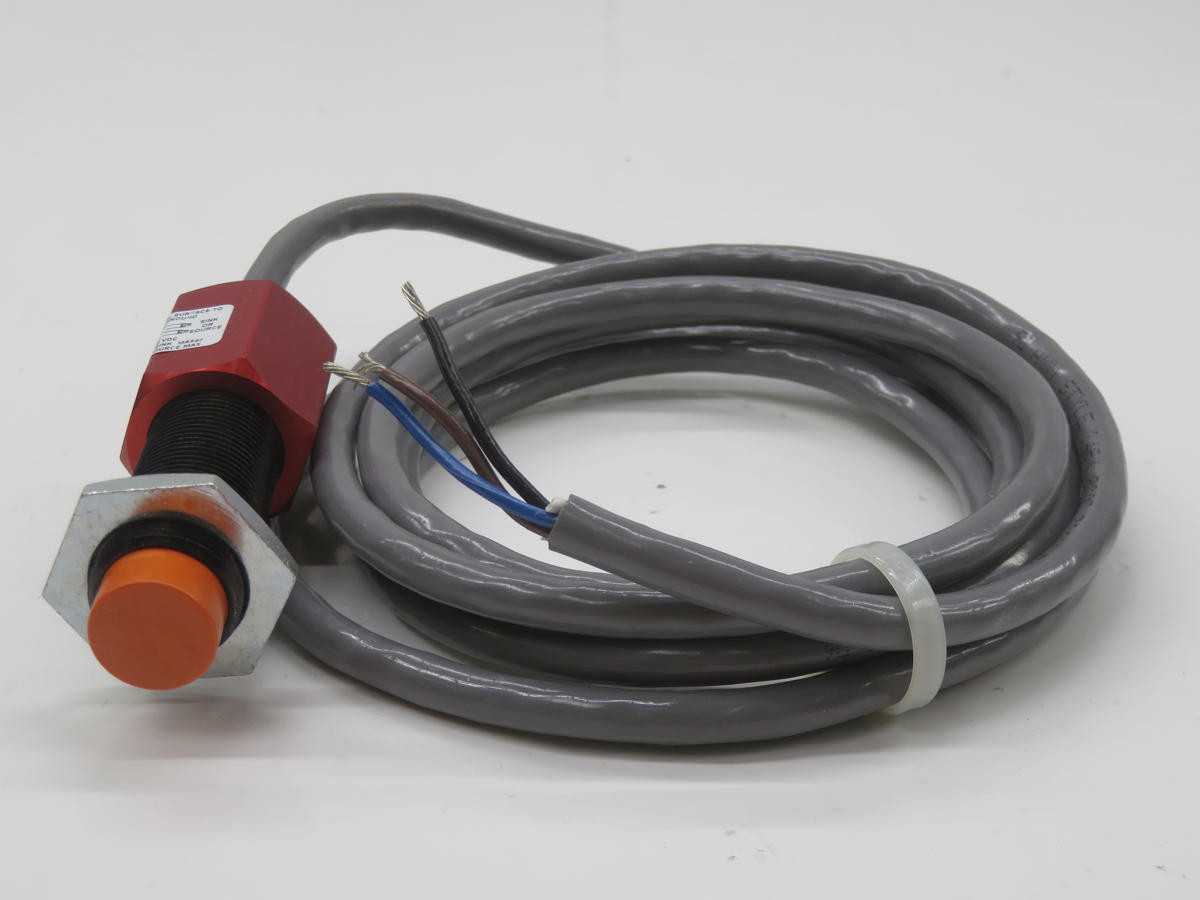

THE NAMCO EE510-21000 IS AN INDUCTIVE PROXIMITY SWITCH WITH A 3/4-20 UNF THREADED TUBULAR HOUSING CONSTRUCTED FROM NICKEL-PLATED BRASS, OFFERING AN IP67 PROTECTION RATING. IT OPERATES ON A DIRECT CURRENT SUPPLY RANGING FROM 8 TO 28 VOLTS. THIS SENSOR PROVIDES A NOMINAL SENSING DISTANCE OF 0.500 INCHES (12.7 MM) AND FEATURES A 6-WIRE CABLE CONNECTION DESIGNED FOR 1/2" NPT CONDUIT INTEGRATION. THE OUTPUT CONFIGURATION IS FIELD-SELECTABLE FOR BOTH NPN AND PNP OPERATION, AS WELL AS NORMALLY OPEN (NO) OR NORMALLY CLOSED (NC) STATES, SUPPORTING A MAXIMUM OUTPUT CURRENT OF 200 MA. IT MAINTAINS A SWITCHING FREQUENCY OF 100 HZ AND FUNCTIONS WITHIN AN OPERATING TEMPERATURE RANGE OF -25°C TO 70°C.
