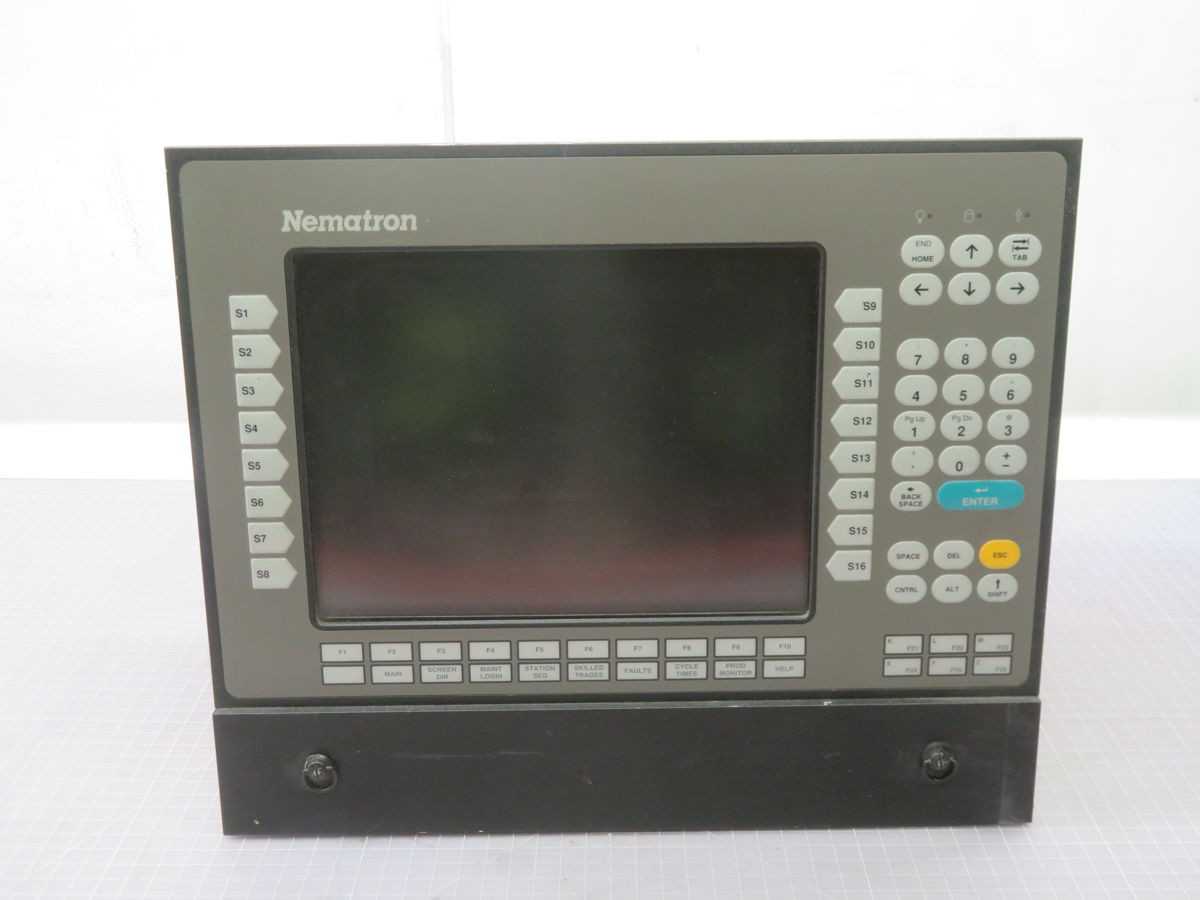

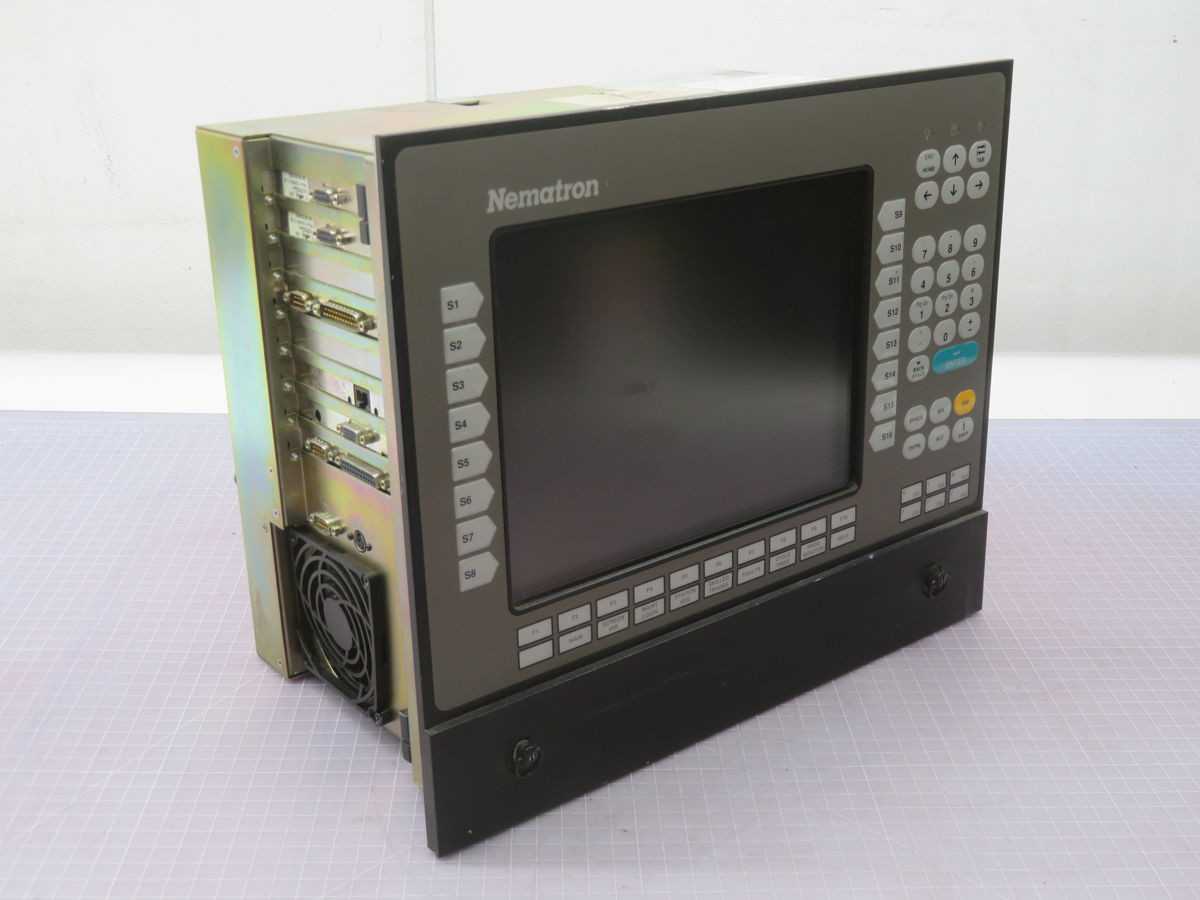

Nematron ICC-6L6-HS2 IC63A2-JB310401, Control Panels Interfaces, 12.1 Inch Touch Display

The Nematron ICC-6L6-HS2 IC63A2-JB310401 is an industrial computer and control panel interface. It features a 12.1-inch TFT LCD with 800 x 600 SVGA resolution and an integrated resistive touchscreen. Power input requirements are 90-250VAC at 2.5A, 50/60Hz. Processing is managed by an Intel Celeron 400 MHz CPU, supported by 64MB of SDRAM. Internal storage is provided by a 2GB EIDE hard disk drive. Connectivity options include two RS-232 serial ports, one parallel port, two USB ports, one 10/100BASE-T Ethernet port, and a VGA port for external display. PS/2 ports are available for keyboard and mouse peripherals. The unit features a NEMA 4/IP65 rated front panel, designed for demanding industrial environments.
