NEW BRUNSWICK SCIENTIFIC U535-86 ULT FREEZER 535L 120VAC 1-PHASE -86C

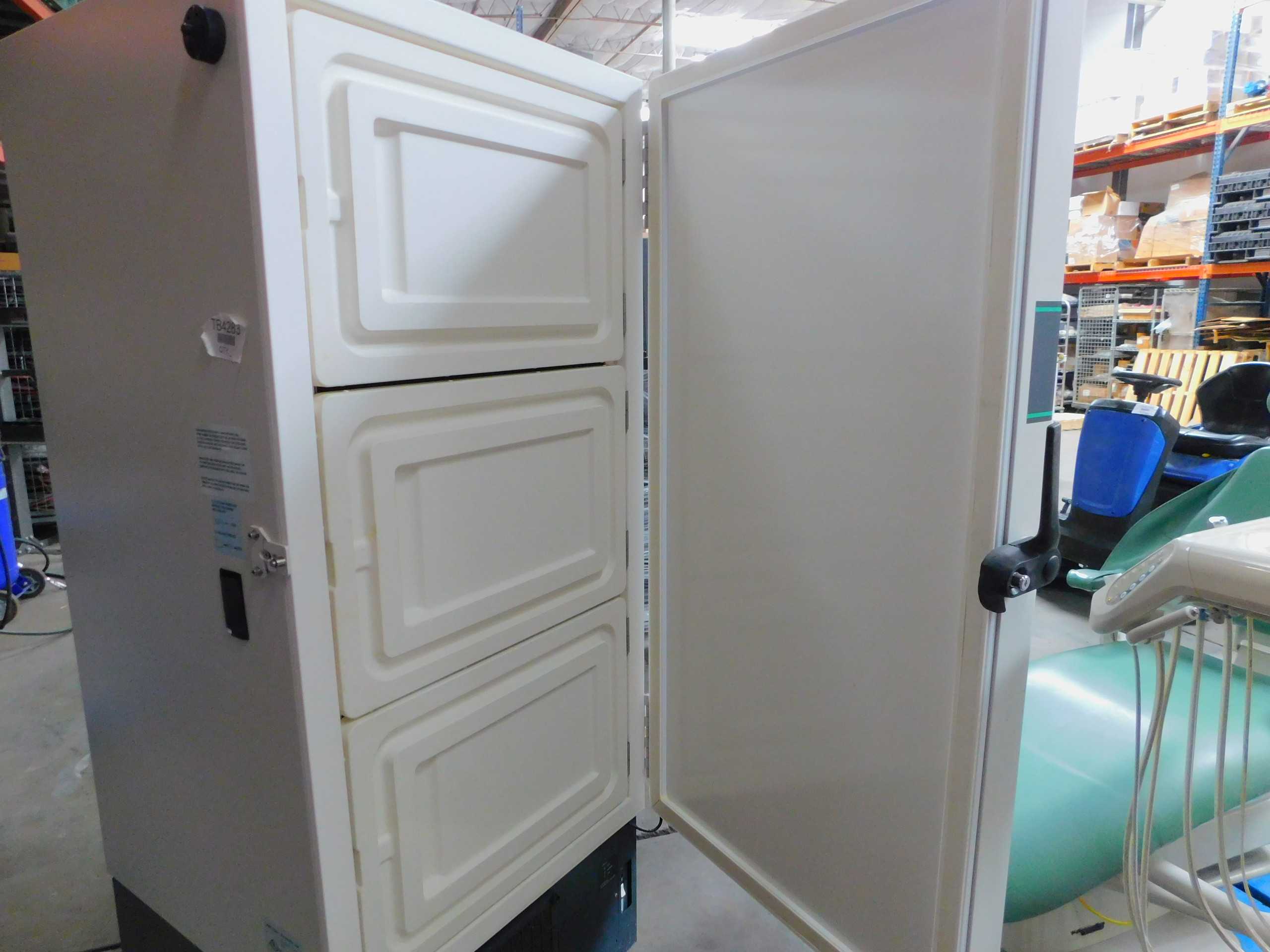

THE NEW BRUNSWICK SCIENTIFIC INNOVA U535 IS AN UPRIGHT ULTRA-LOW TEMPERATURE LABORATORY FREEZER DESIGNED FOR THE SECURE, LONG-TERM STORAGE OF BIOLOGICAL SAMPLES. FEATURING VACUUM INSULATION PANEL (VIP) TECHNOLOGY COMBINED WITH TRADITIONAL INSULATION, IT MINIMIZES WALL THICKNESS TO 80 MM TO MAXIMIZE INTERNAL STORAGE SPACE WHILE OCCUPYING A COMPACT FOOTPRINT OF 31.5 BY 34.1 INCHES. THE FREEZER HAS AN INTERNAL CAPACITY OF 18.9 CUBIC FEET (535 LITERS) AND OPERATES ACROSS A TEMPERATURE RANGE OF -50 C TO -86 C, UTILIZING A RELIABLE TWO-STAGE CASCADE COMPRESSOR REFRIGERATION SYSTEM. TO ENSURE TEMPERATURE STABILITY AND REDUCE COLD AIR LOSS, THE UNIT FEATURES THREE SEPARATE INTERNAL COMPARTMENTS EQUIPPED WITH INSULATED, GASKETED INNER DOORS THAT CAN BE REMOVED WITHOUT TOOLS. THE CABINET CONTAINS ADJUSTABLE STAINLESS STEEL SHELVING AND IS SECURED BY A LOCKABLE OUTER DOOR HANDLE WITH LOW-TEMPERATURE OUTER DOOR SEALS. AN ERGONOMICALLY LOCATED HEATED VACUUM VENT WITH A PLUNGER FACILITATES IMMEDIATE RE-ENTRY BY CLEARING ICE BUILDUP AND RELIEVING VACUUM PRESSURE. USER CONTROL IS MANAGED VIA A FLUSH-MOUNTED DIGITAL LED CONTROL PANEL THAT DISPLAYS CURRENT TEMPERATURE, DIAGNOSTICS, AND PASSWORD-PROTECTED ALARM SETPOINTS. POWER SPECIFICATIONS FOR THIS MODEL FAMILY ACCOMMODATE EITHER 115 VAC, 60 HZ OR 208-230 VAC, 60 HZ CONFIGURATIONS, WITH AN AVERAGE ENERGY CONSUMPTION OF 13.2 KWH/DAY AND A RAPID PULL-DOWN TIME TO -80 C OF APPROXIMATELY 5.3 HOURS.
