NIPPON THOMPSON LWLF 42 R1600 BCS H S2, CNC LINEAR SLIDE RAIL, 31.9 KN DYN LOAD

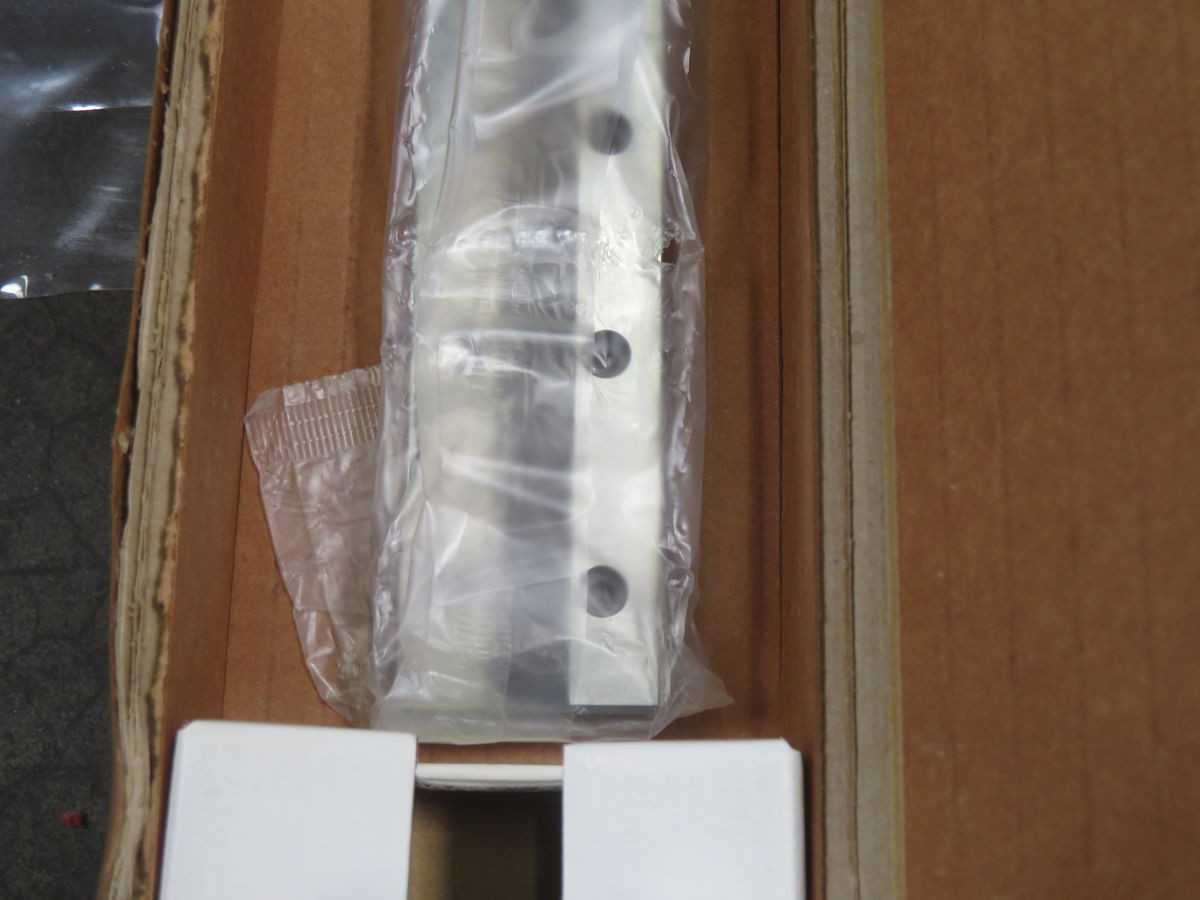

THE NIPPON THOMPSON (IKO) LWLF 42 R1600 BCS H S2 IS A LINEAR WAY L (WIDE RAIL TYPE) ASSEMBLY, MANUFACTURED FROM HIGH CARBON STEEL AND FEATURING A BALL-RETAINED DESIGN. THIS HIGH-PERFORMANCE CNC LINEAR SLIDE RAIL ASSEMBLY INCLUDES A 1600 MM LONG RAIL WITH A WIDTH OF 42 MM AND A HEIGHT OF 16 MM. THE CORRESPONDING BLOCK, IDENTIFIED BY ITS BCS H S2 DESIGNATION, OPERATES WITH A HIGH ACCURACY GRADE AND A LIGHT PRELOAD (S2), ENSURING ENHANCED RIGIDITY. THE BLOCK HAS A WIDTH OF 90 MM, A LENGTH OF 117 MM, AND A TOTAL HEIGHT OF 44 MM WHEN MOUNTED ON THE RAIL. IT PROVIDES A BASIC DYNAMIC LOAD RATING (C) OF 31.9 KN AND A BASIC STATIC LOAD RATING (C0) OF 56.6 KN. THE WIDE RAIL PROFILE IS SPECIFICALLY ENGINEERED FOR HIGH MOMENT-LOAD RESISTANCE, MAKING IT SUITABLE FOR SYSTEMS CONFIGURED WITH A SINGLE RAIL. STATIC PERMISSIBLE MOMENTS ARE RATED AT 0.72 KN·M FOR MR (ROLLING DIRECTION) AND 1.28 KN·M FOR BOTH MP (PITCHING DIRECTION) AND MY (YAWING DIRECTION).
