NORD SK 9032.1 VL N210TC GEARBOX WITH 10 HP MARATHON ELECTRIC MOTOR

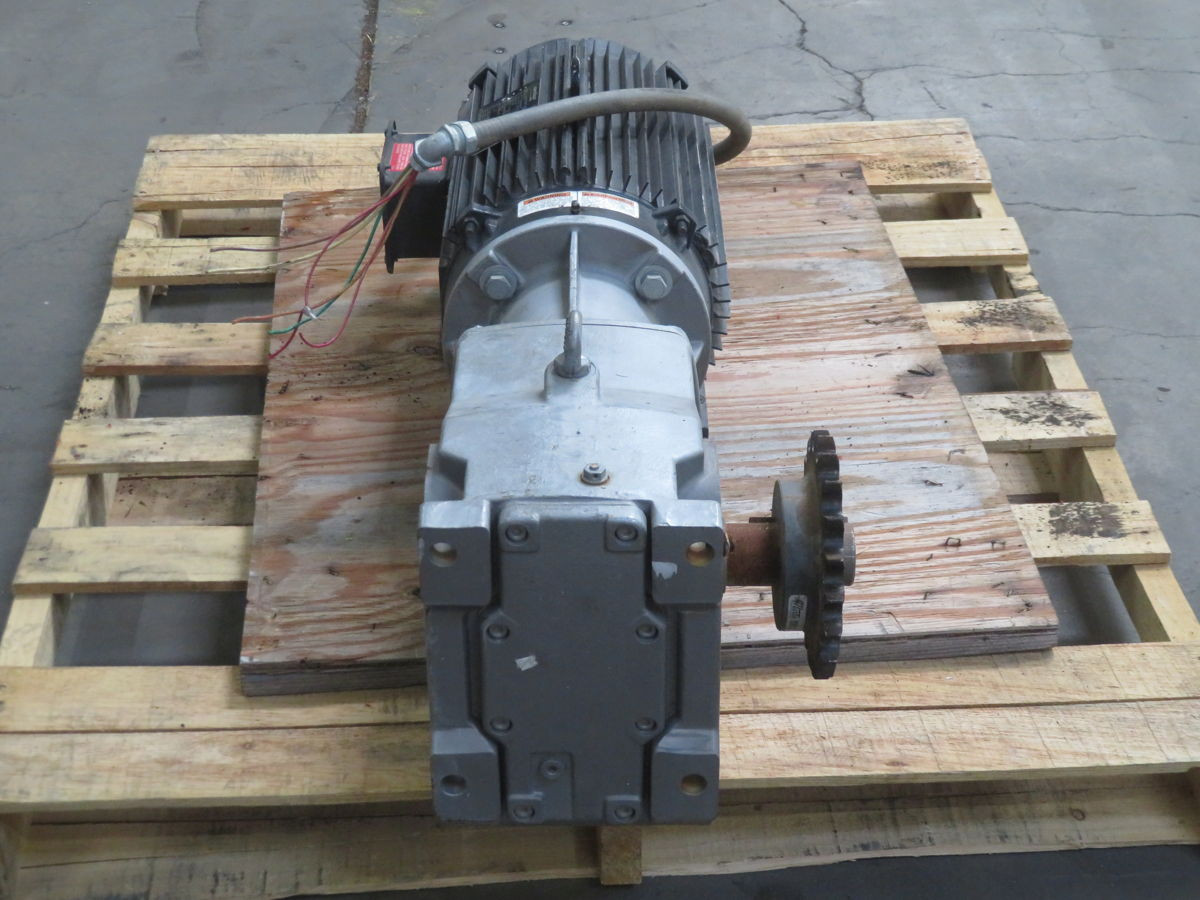

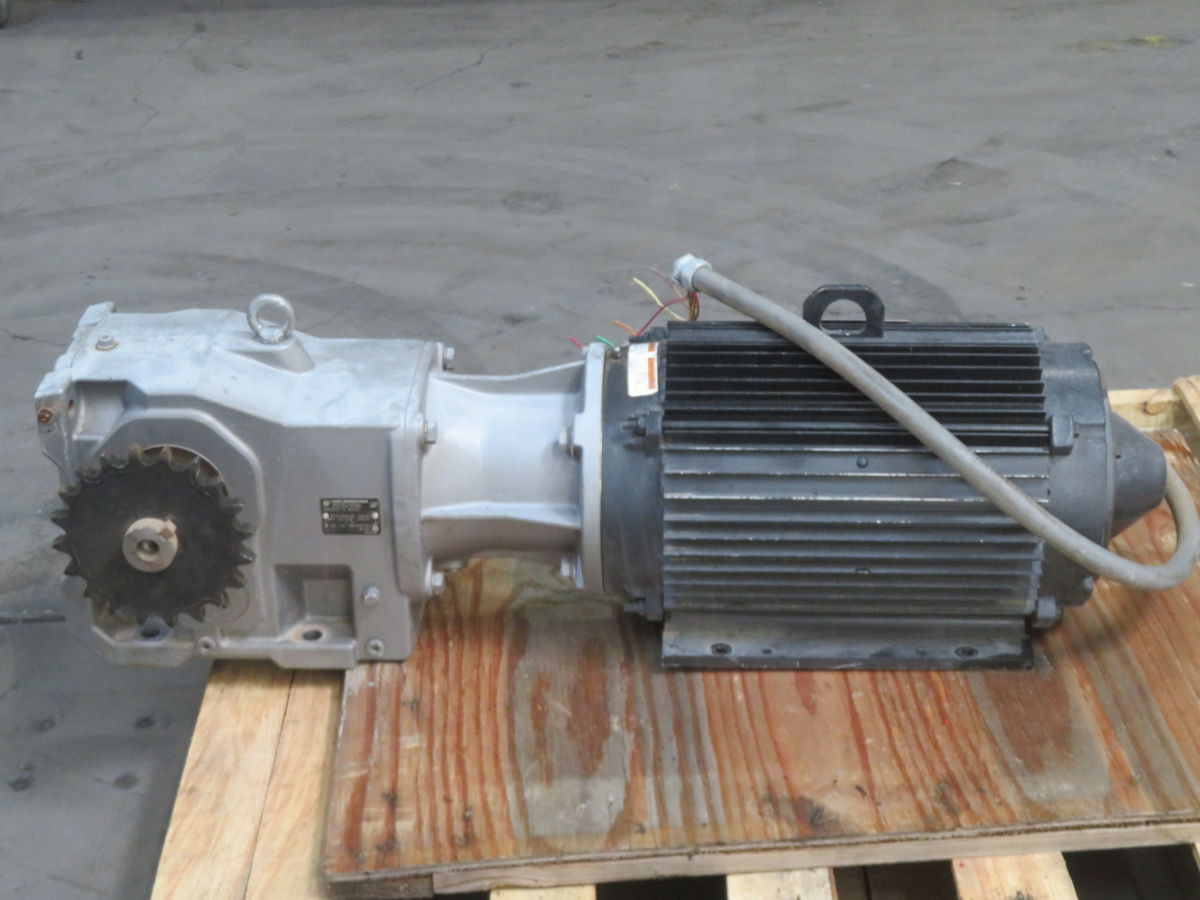

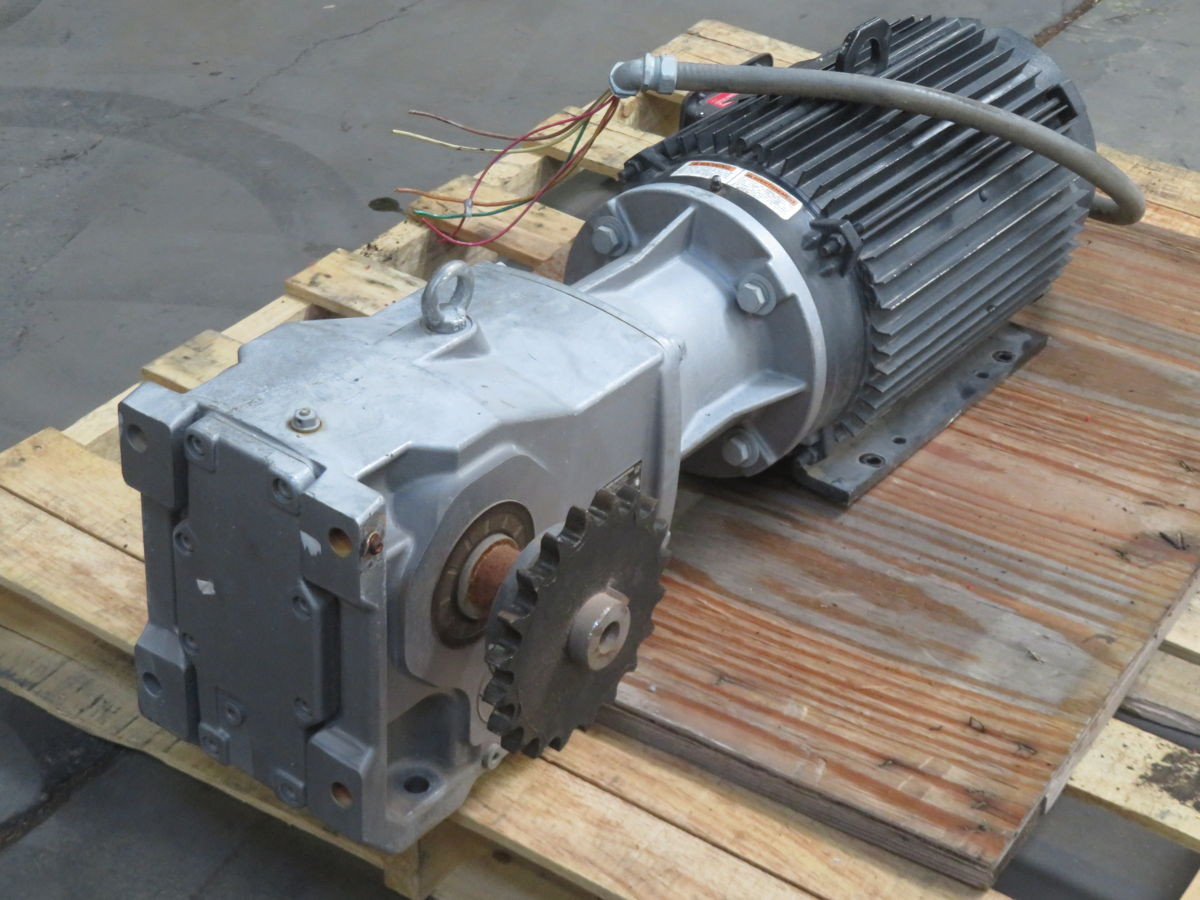

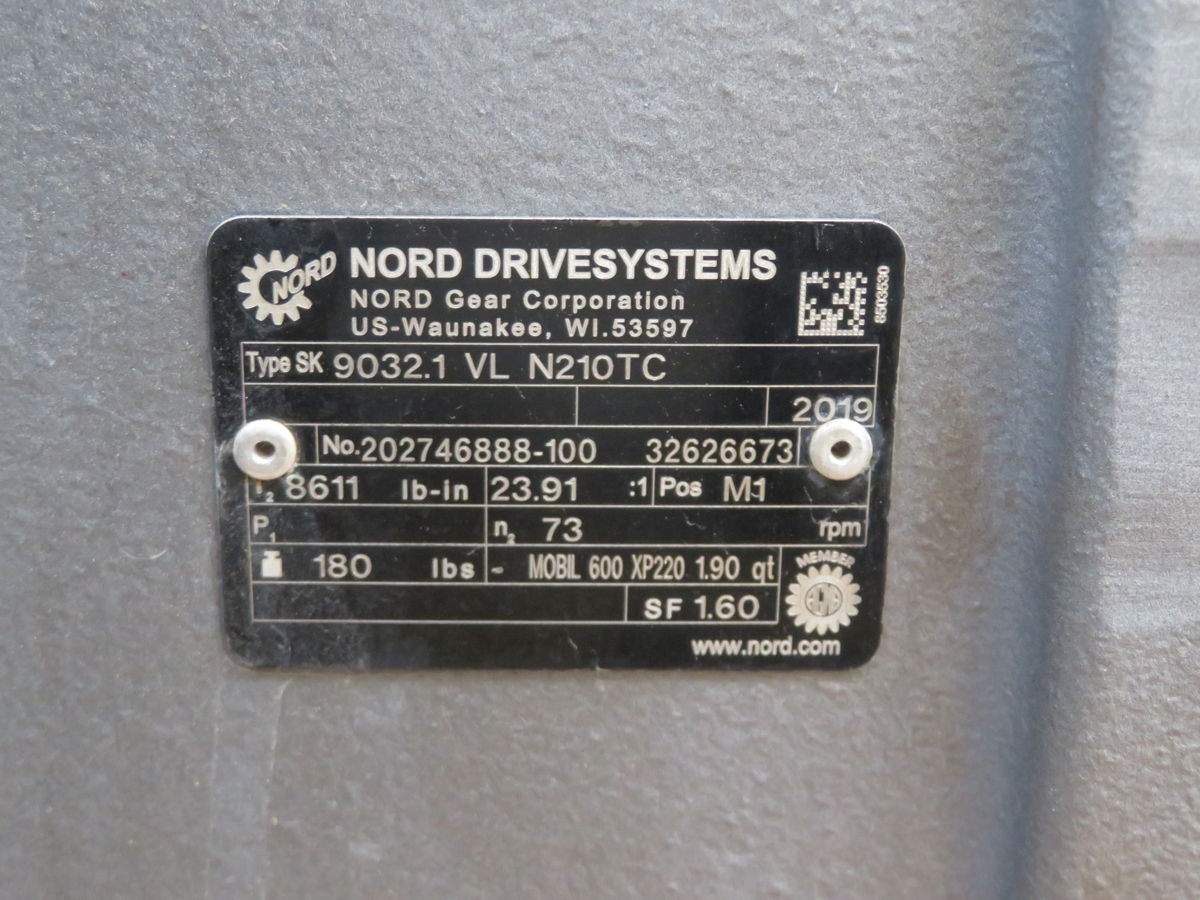

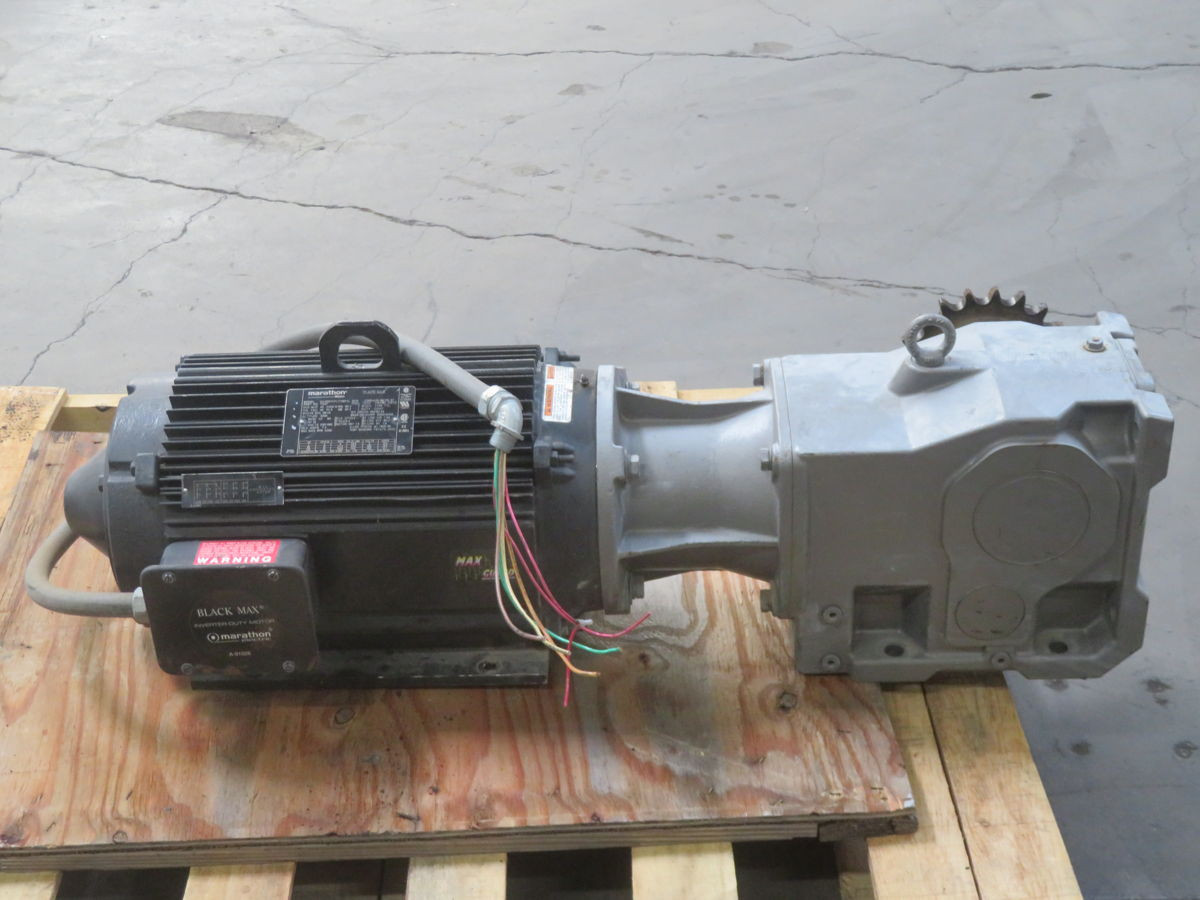

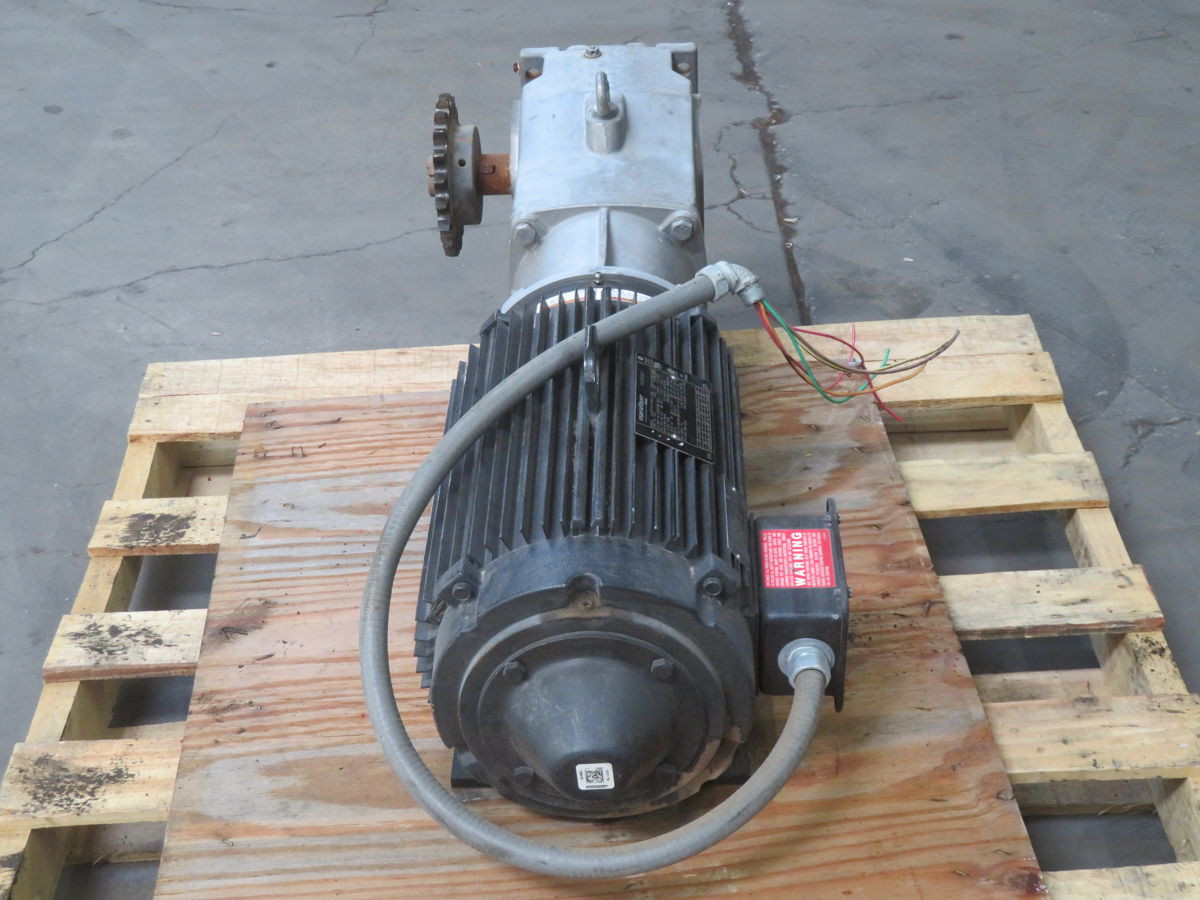

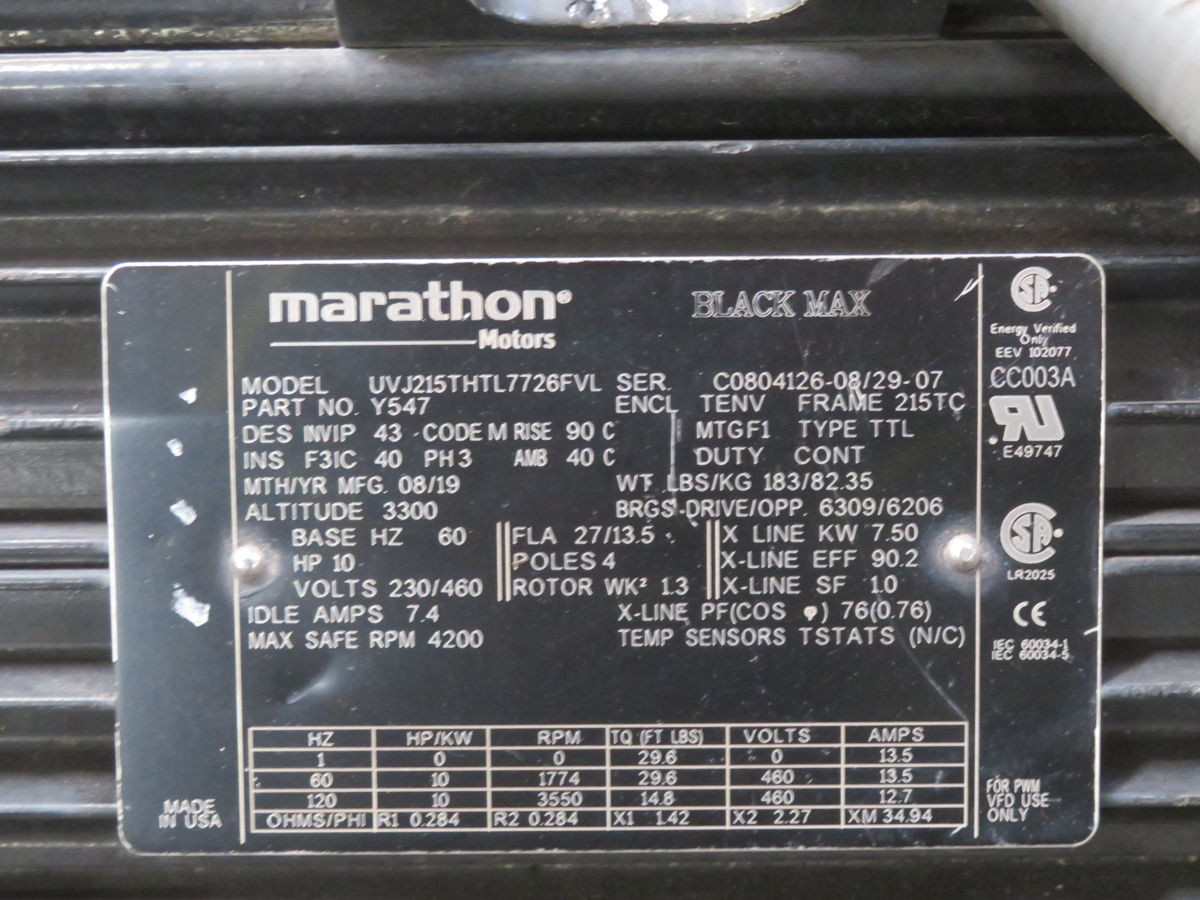

THE NORD SK 9032.1 VL N210TC GEARBOX IS COUPLED WITH A MARATHON UVJ215THTL7726FVL ELECTRIC MOTOR IN A MOTOR AND GEARBOX ASSEMBLY CONFIGURATION. THE SYSTEM FEATURES A 10 HP MOTOR WITH 230/460 V VOLTAGE RATING, 3-PHASE OPERATION, AND 60 HZ FREQUENCY. THE MOTOR OPERATES AT APPROXIMATELY 1774 RPM AND IS BUILT WITH A TENV ENCLOSURE AND CONTINUOUS DUTY RATING. THE GEARBOX IS DESIGNED FOR TORQUE TRANSMISSION WITH OUTPUT SPEED REDUCTION, WITH NAMEPLATE INDICATING APPROXIMATELY 73 RPM OUTPUT. THE ASSEMBLY INCLUDES A SERVICE FACTOR OF 1.60 AND IS MOUNTED ON A BASE WITH A CHAIN SPROCKET OUTPUT CONFIGURATION. THIS UNIT IS SUITABLE FOR INDUSTRIAL POWER TRANSMISSION APPLICATIONS REQUIRING SPEED REDUCTION AND TORQUE MULTIPLICATION.
