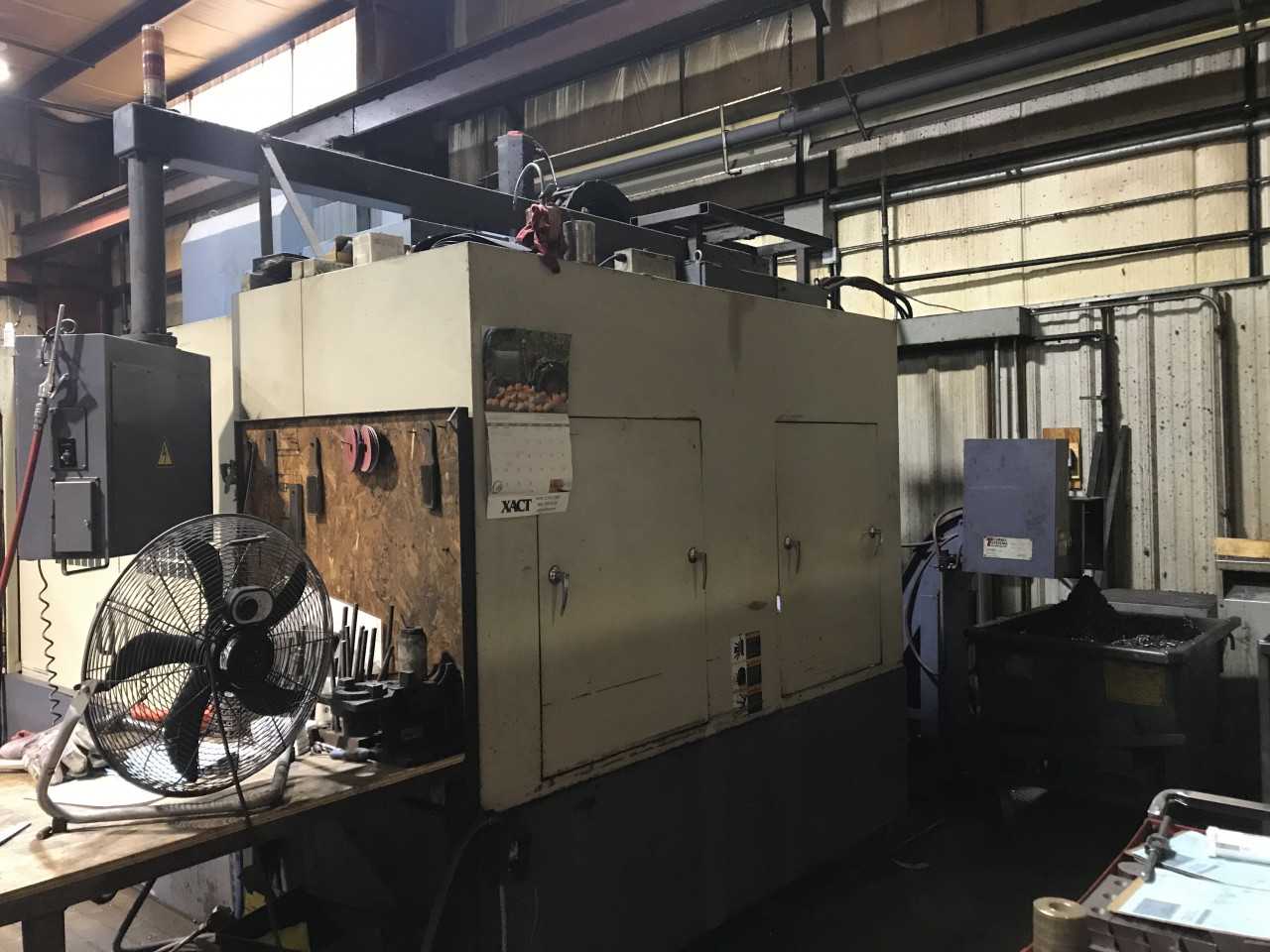

OKK Geared Head VMC

Model: VM-7 Table: 68” x 32” Travels: 60.240” x 29.130” x 25.980” Rapids in X & Y: 945 ipm Rapids in Z: 787 ipm Max. weight on table: 3,306 lbs. Spindle taper: Cat 50 Spindle HP: 20 – 2-speed Geared RPM: 6,000 Max. tool diameter: 4.33” Max.tool length: 13.780” Max. tool weight: 22 lbs. ATC: 20 EQUIPPED WITH: Fanuc 160iS-M controls External air blast 300 psi Coolant thru spindle Renishaw tool setting probe Prepped for spindle probe Dual chip augers Chip conveyor Full enclosures Manuals SN: 377, New 2003, Mfg’s #MA64437 On Hours: 44,859 Cut hours: 16,651
