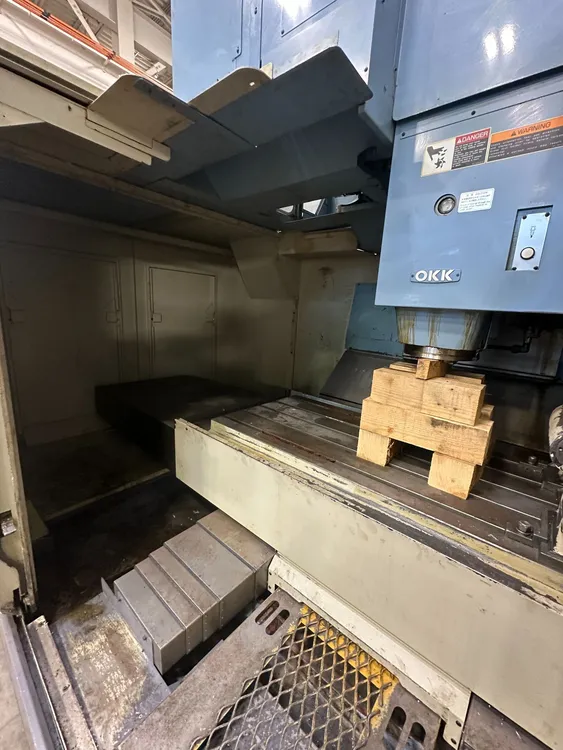

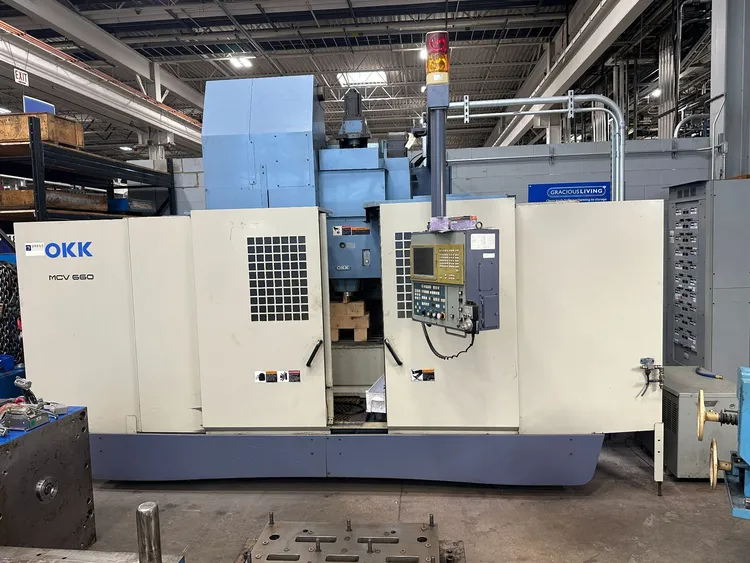

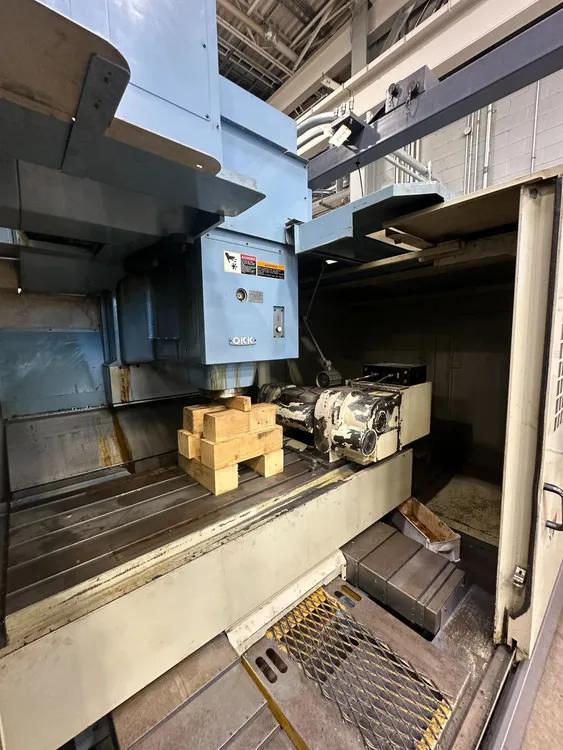

OKK MCV-660 5-AXIS CNC VERTICAL MACHINING CENTER

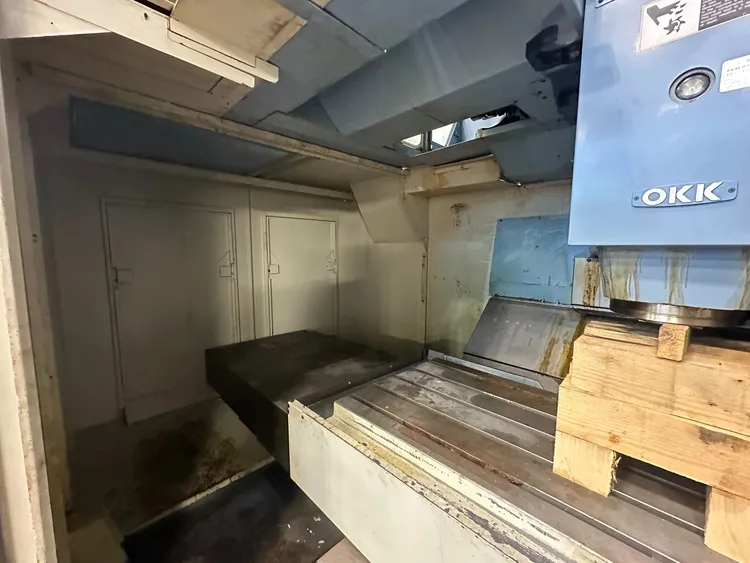

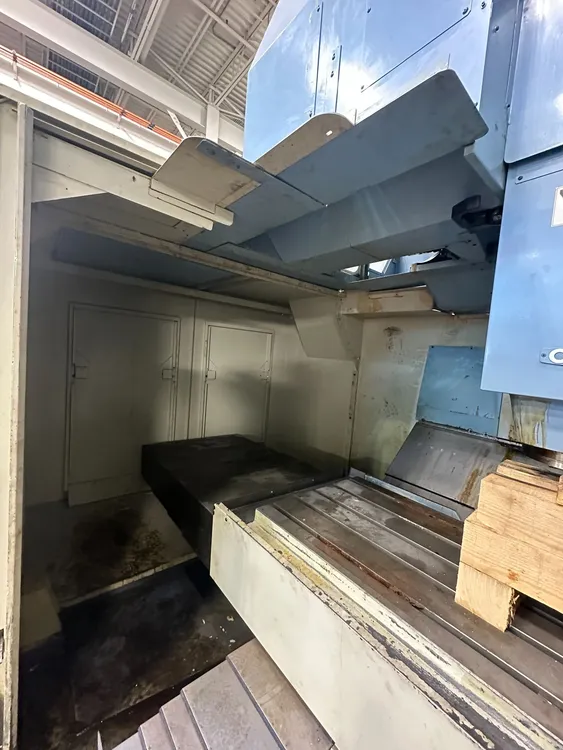

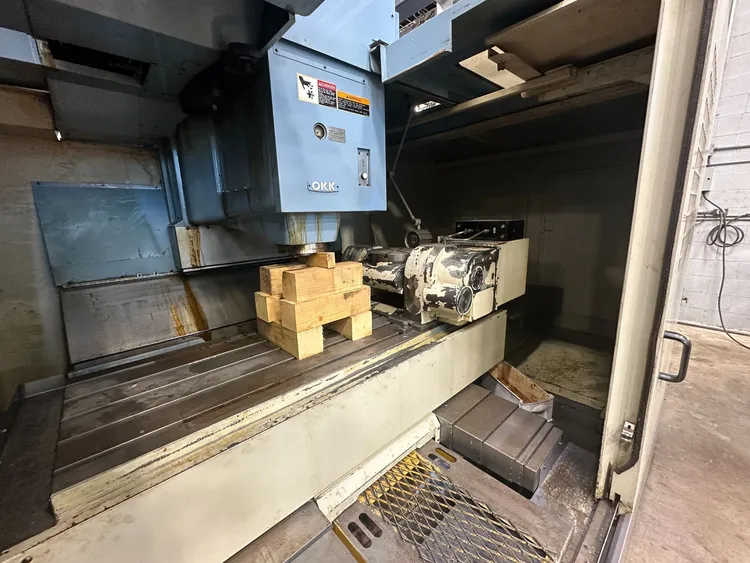

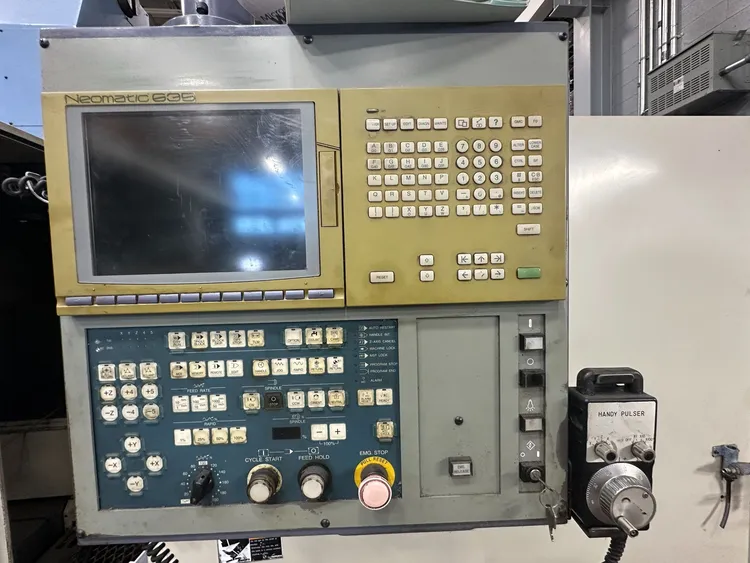

THE OKK MCV-660 IS A VERTICAL MACHINING CENTER, OFTEN CONFIGURED FOR 5-AXIS OPERATIONS. IT TYPICALLY FEATURES TRAVELS OF APPROXIMATELY 59 INCHES (X-AXIS), 26 INCHES (Y-AXIS), AND 25 TO 26 INCHES (Z-AXIS). THE MACHINE UTILIZES A LARGE TABLE, MEASURING AROUND 67 INCHES BY 26 INCHES, WITH A MAXIMUM TABLE LOAD CAPACITY OF 4,400 LBS. SPINDLE SPECIFICATIONS INCLUDE A CAT-50 OR 50 TAPER, POWERED BY A 25 HP OR 30 H.P. MOTOR, CAPABLE OF REACHING SPEEDS UP TO 4,500 RPM OR 6,000 RPM, DEPENDING ON THE SPECIFIC MODEL VARIATION. RAPID TRAVERSE RATES FOR THE X AND Y AXES ARE GENERALLY 787 IPM, WITH THE Z-AXIS AT 630 IPM. THE CUTTING FEED RATE IS UP TO 394 IPM. THIS MACHINE WEIGHS APPROXIMATELY 26,500 LBS AND IS CONTROLLED BY A CNC SYSTEM, SUCH AS FANUC 16M OR MITSUBISHI NEOMATIC M-635.
