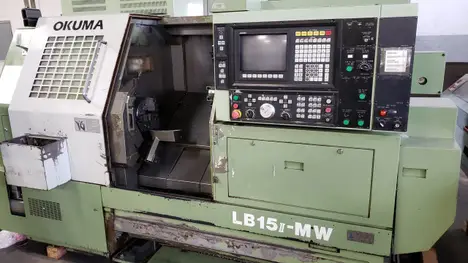

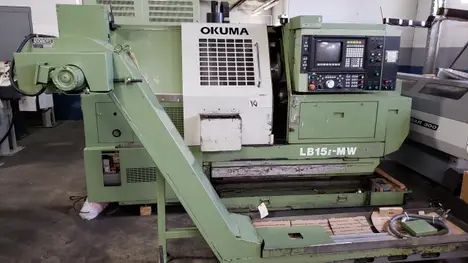

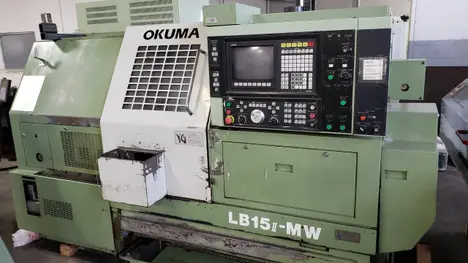

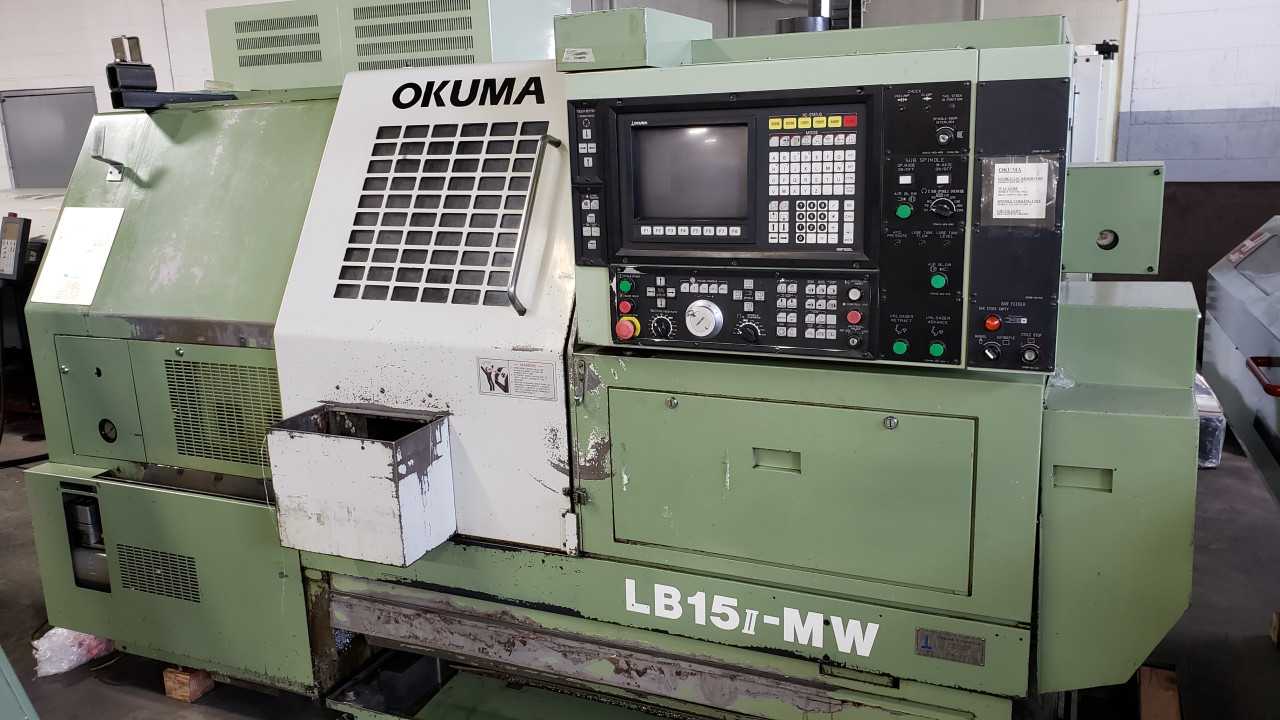

Name | OKUMA LB-15-II |
---|---|
Aucto ID | 5 |
Manufacturer | Okuma |
Model | LB15II |
Additional Info | To the best of our knowledge all details listed below are deemed correct. It
is the buyer's responsibility to confirm all details and we encourage an
inspection of the machine(s) and accessories prior to purchase.
Equipped With:
OSP 5020L Control
Sub spindle

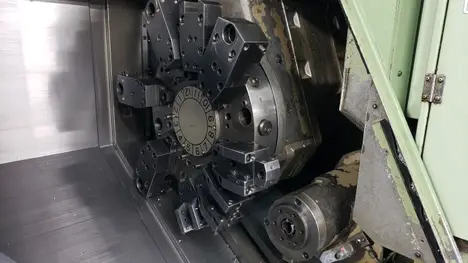

Live Tool
Chip Conveyor
General Specifications:
X-Axis Travel: 5.91"
Z-Axis Travel: 20.47"
Swing Over Bed: 15.75"
Work Length: 19.69"
Spindle Drive: 15/10 HP, VAC
Spindle Speeds: 3,800 RPM
Spindle Bore: 2.2"
Spindle Nose: A2-6
Cutting Feedrate: .0001-40 IPM
Rapid Traverse Rate: 472 IPM
Turret Positions: 12
Machine Dimensions: 74" x 108"
Machine Weight: 9,240 lbs
Machine: 127" x 75" x 83" 9,500 lbs
Coolant/chip pan: 81" x 40" x 17" 260 lbs
Chip conveyor: 122" x 35" x 71" 625 lbs
Machine cover: 31" x 23" x 17" 20 lbs |
