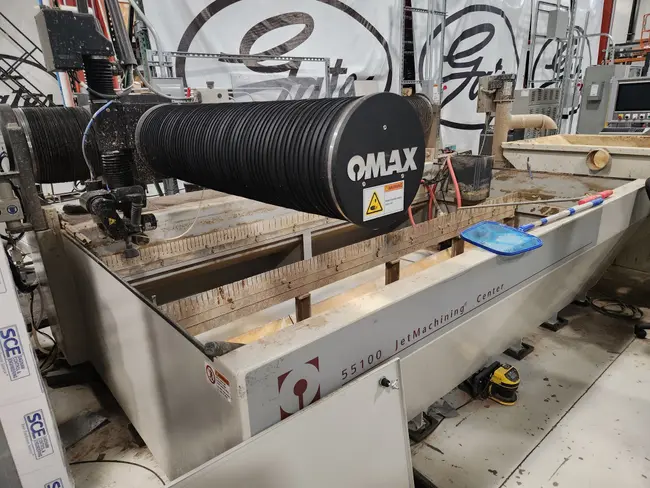

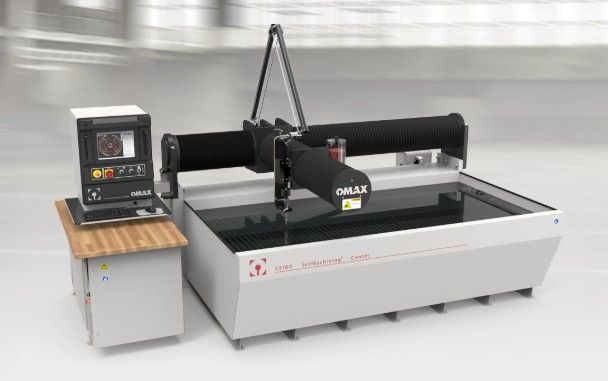

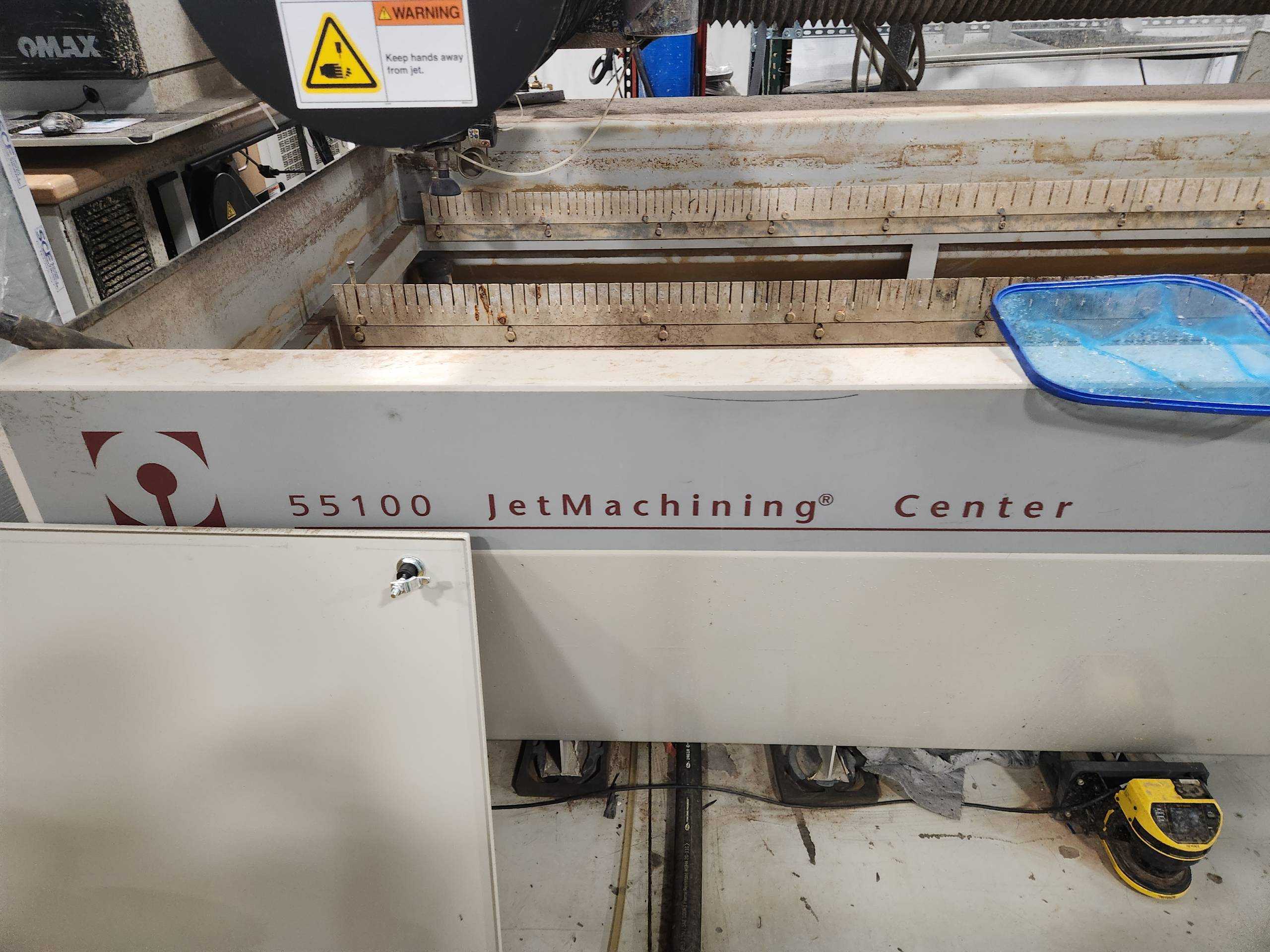

Omax 55100 Waterjet Cutting Machine

- Material support slats 4" x 1/8" galvanized steel - Cutting envelope: 2.54 m x 1.39 m (8’ 4” x 4’ 7”) - Maximum supported material load 400 lbs/sq ft (1,953 kg/sq meter) - Electrical requirements 3-phase, 380-480 VAC ±10%, 50-60 Hz - Noise level below 80 dBA at one meter for submerged cutting - Speed 180 in/min (4.57 m/min) - Linear axis accuracy* ±0.001” (±0.025 mm) - Linear axis repeatability* ±0.001” (±0.025 mm) - Ballbar circularity* ±0.0025” (±0.064 mm) - Nozzle type: OMAX MAXJET 5I - Z-axis: automated height control (motorized & programmable) - Cutting method: submerged cutting with automatic water level adjustment - Standard output pressure: 60,000 PSI - Standard bulk abrasive delivery system: 600 lb capacity hopper that feeds garnet into a “zero-downtime” hopper on the Z-axis
