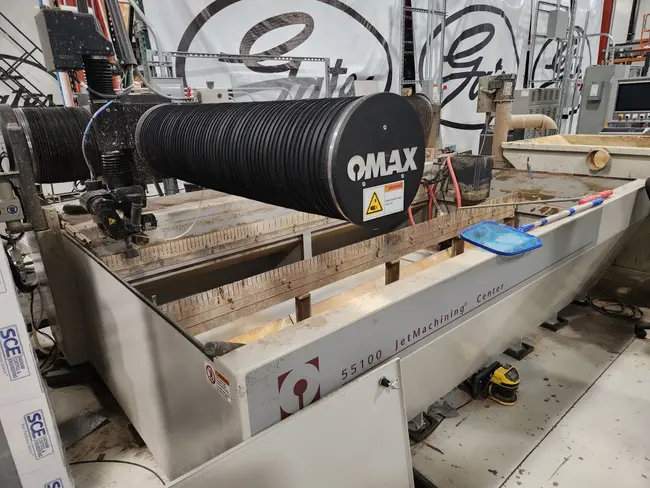

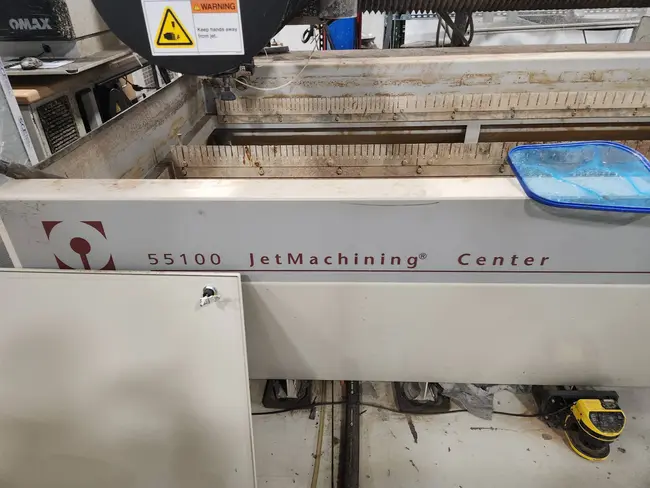

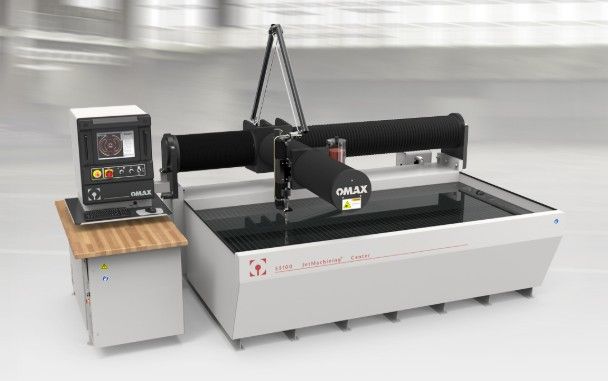

OMAX 55100 WATERJET CUTTING MACHINE

- MATERIAL SUPPORT SLATS 4" X 1/8" GALVANIZED STEEL - CUTTING ENVELOPE: 2.54 M X 1.39 M (8’ 4” X 4’ 7”) - MAXIMUM SUPPORTED MATERIAL LOAD 400 LBS/SQ FT (1,953 KG/SQ METER) - ELECTRICAL REQUIREMENTS 3-PHASE, 380-480 VAC ±10%, 50-60 HZ - NOISE LEVEL BELOW 80 DBA AT ONE METER FOR SUBMERGED CUTTING - SPEED 180 IN/MIN (4.57 M/MIN) - LINEAR AXIS ACCURACY* ±0.001” (±0.025 MM) - LINEAR AXIS REPEATABILITY* ±0.001” (±0.025 MM) - BALLBAR CIRCULARITY* ±0.0025” (±0.064 MM) - NOZZLE TYPE: OMAX MAXJET 5I - Z-AXIS: AUTOMATED HEIGHT CONTROL (MOTORIZED & PROGRAMMABLE) - CUTTING METHOD: SUBMERGED CUTTING WITH AUTOMATIC WATER LEVEL ADJUSTMENT - STANDARD OUTPUT PRESSURE: 60,000 PSI - STANDARD BULK ABRASIVE DELIVERY SYSTEM: 600 LB CAPACITY HOPPER THAT FEEDS GARNET INTO A “ZERO-DOWNTIME” HOPPER ON THE Z-AXIS
