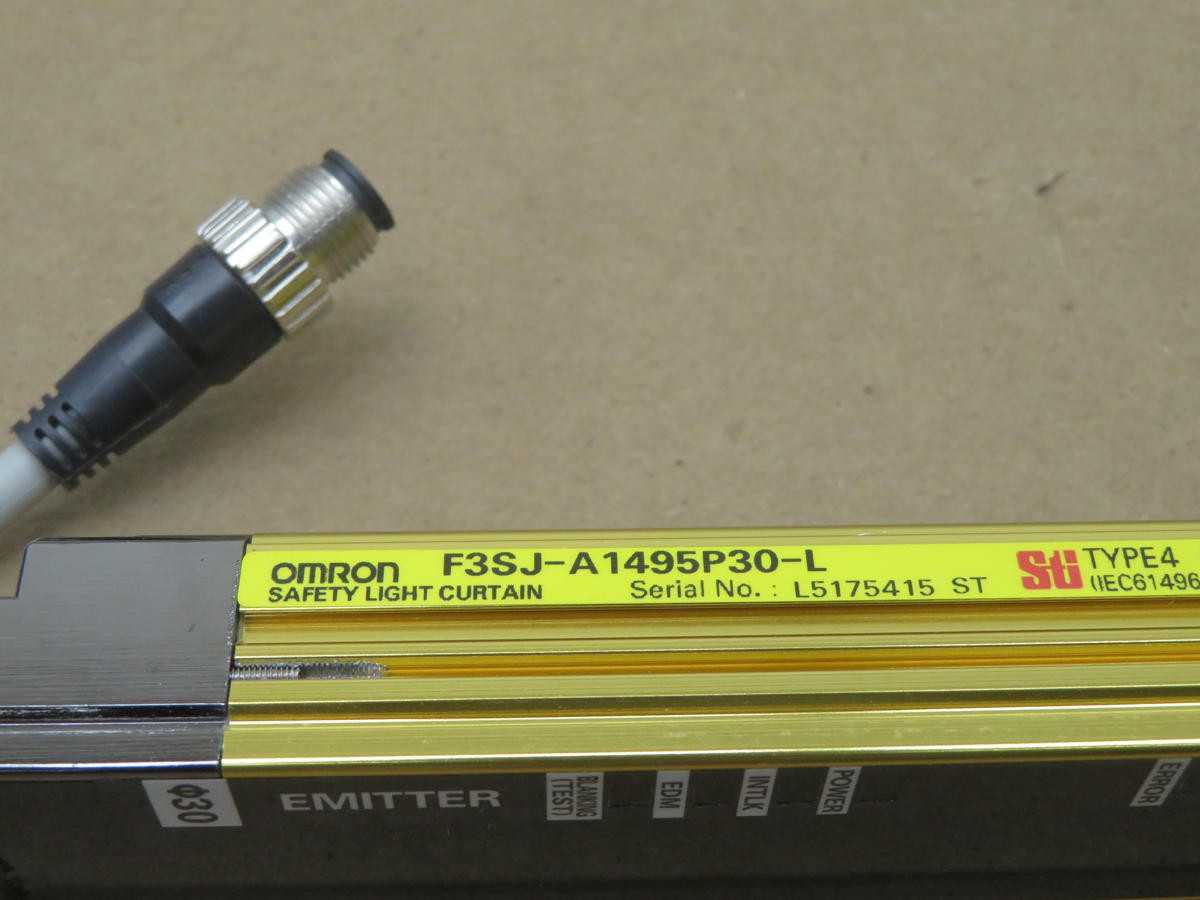

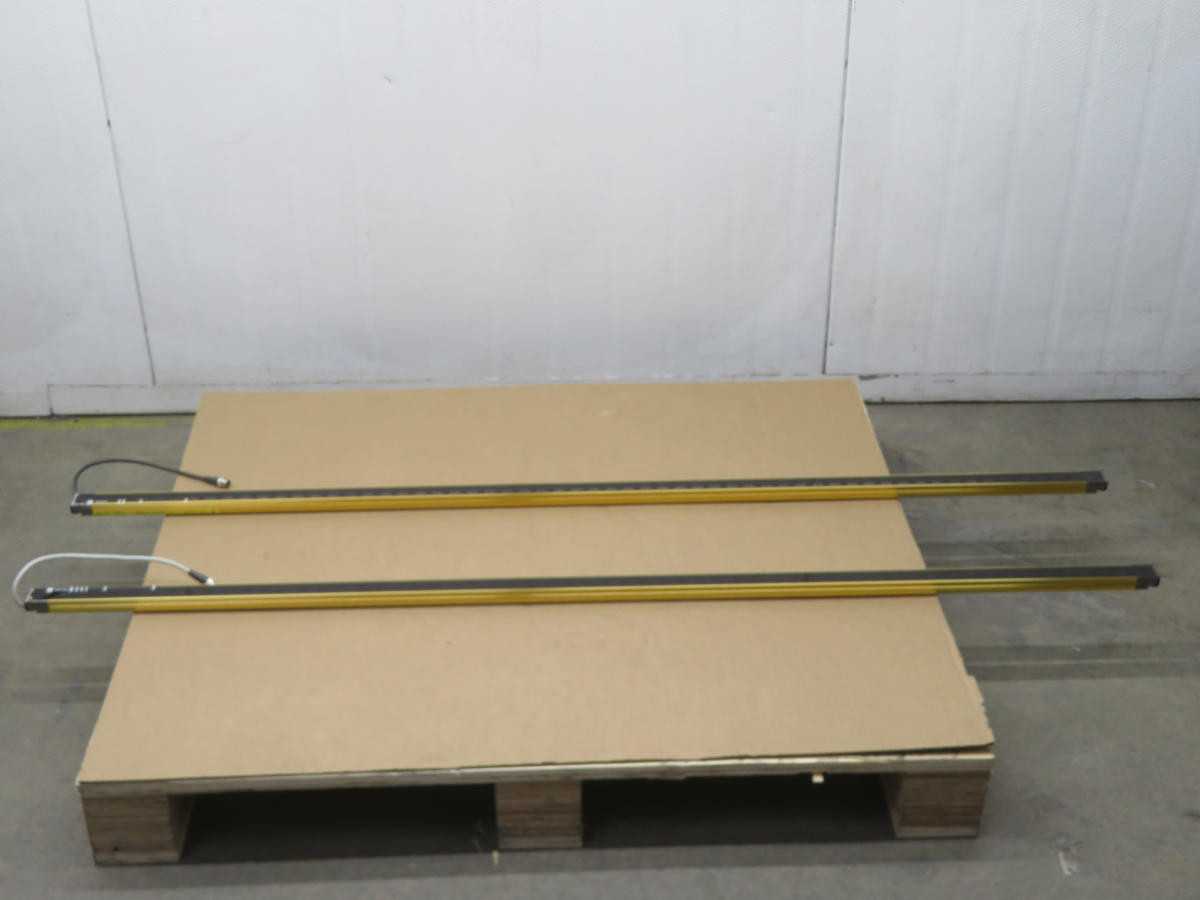

Omron F3SJ-A1495P30, Type 4 Light Curtain, 1495 mm HT, 30 mm Res, 24 VDC Pwr, 15 ms Resp

THE OMRON F3SJ-A1495P30 IS A TYPE 4 SAFETY LIGHT CURTAIN ENGINEERED FOR INDUSTRIAL MACHINE SAFEGUARDING. THIS DEVICE PROVIDES A PROTECTION HEIGHT OF 1495 MM AND FEATURES A DETECTION CAPABILITY (RESOLUTION) OF 30 MM, SUITABLE FOR HAND PROTECTION APPLICATIONS. IT OPERATES ON A 24 VDC POWER SUPPLY AND IS EQUIPPED WITH TWO PNP OSSD (OUTPUT SIGNAL SWITCHING DEVICE) SAFETY OUTPUTS. THE LIGHT CURTAIN MAINTAINS A MAXIMUM RESPONSE TIME OF 15 MS. CONSTRUCTED WITH AN IP65 ENCLOSURE RATING, IT OFFERS PROTECTION AGAINST DUST INGRESS AND LOW-PRESSURE WATER JETS. ITS OPERATIONAL TEMPERATURE RANGE SPANS FROM -10 TO +55 °C, WITH A MAXIMUM SENSING DISTANCE OF 10 METERS. THE F3SJ-A SERIES COMPLIES WITH IEC 61496-1/-2 AND ISO 13849-1 PLE/CATEGORY 4 SAFETY STANDARDS.
