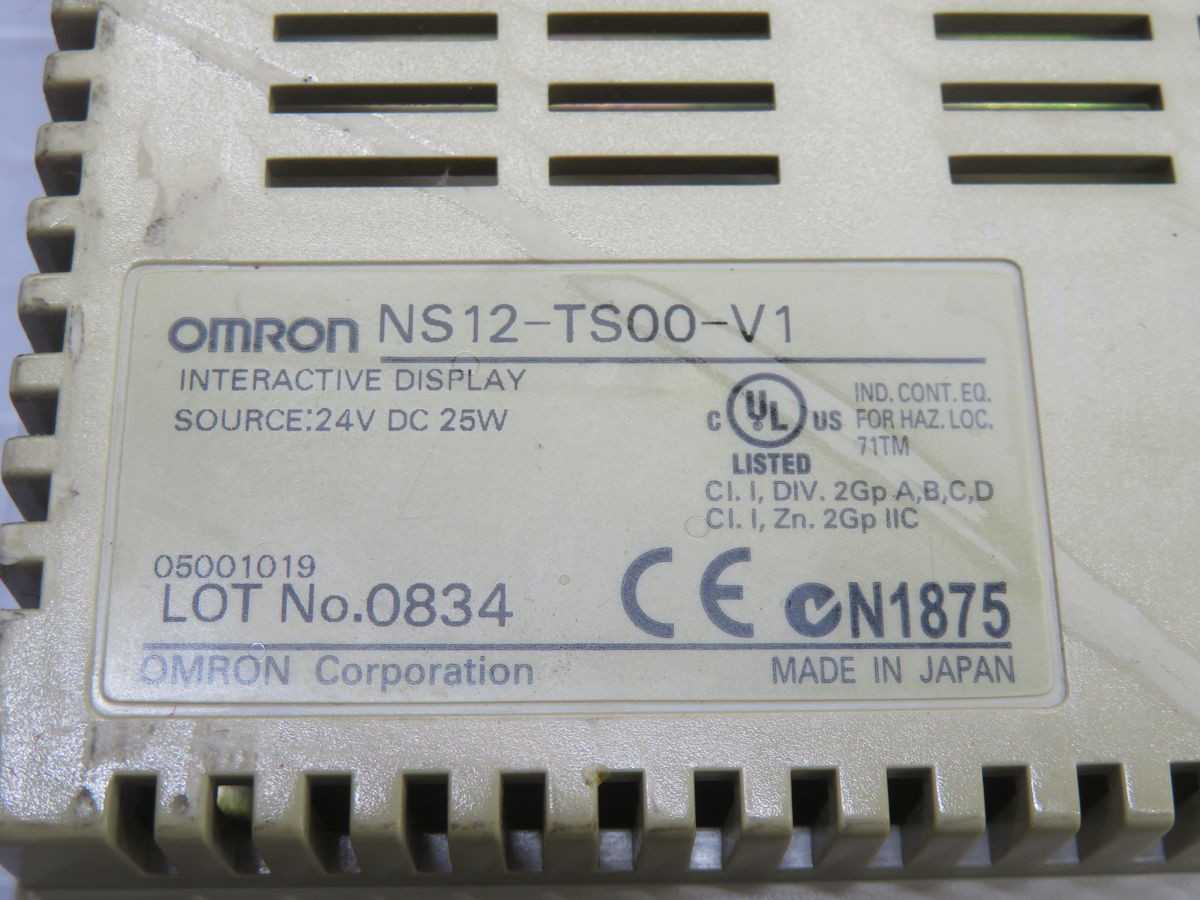

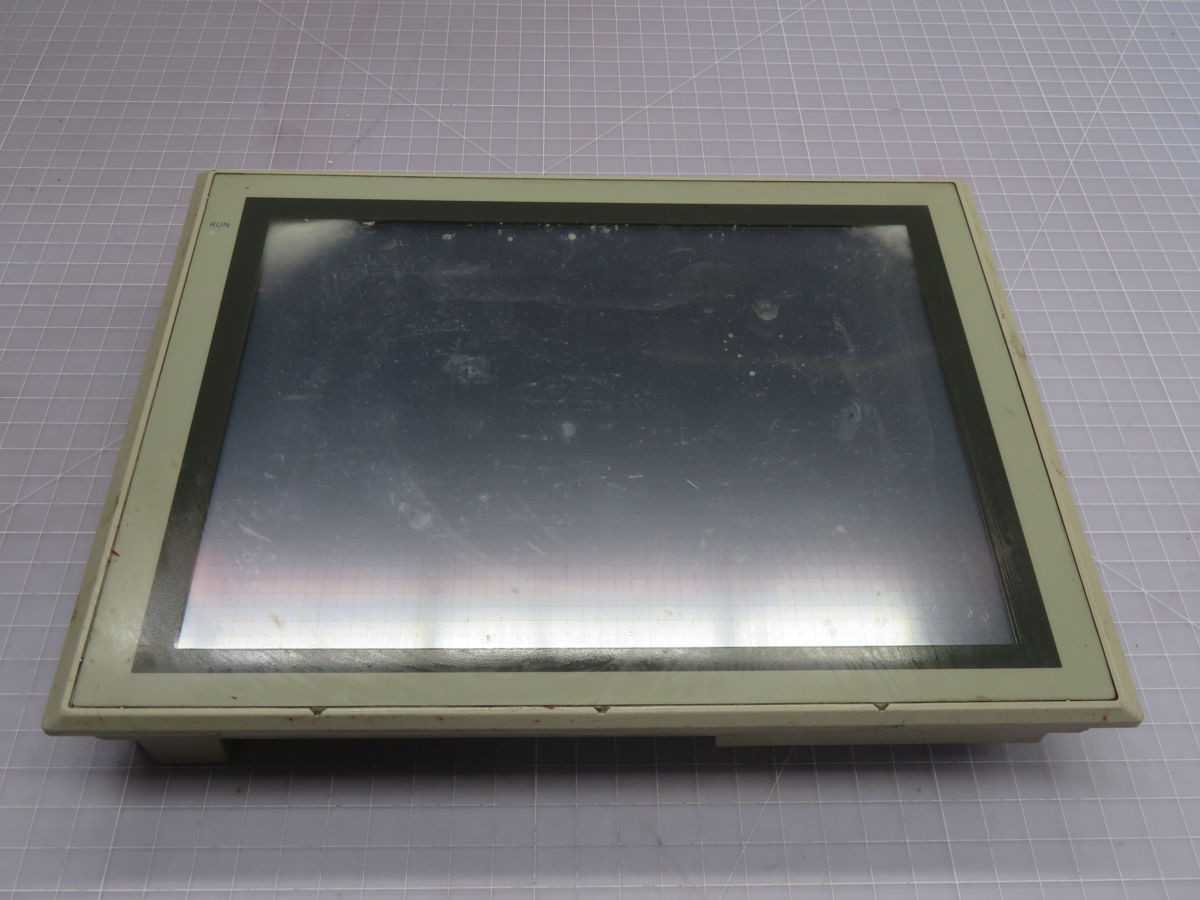

OMRON NS12-TS00-V1 CONTROL PANEL, 12.1 INCH LCD, 800X600, RESISTIVE TOUCH, 24 VDC, IP65F

THE OMRON NS12-TS00-V1 IS AN OPERATOR INTERFACE FEATURING A 12.1-INCH HD TFT COLOR LCD WITH 256 DISPLAY COLORS AND AN 800 X 600 PIXEL (SVGA) RESOLUTION. IT INCORPORATES AN ANALOG RESISTIVE TOUCHSCREEN FOR USER INTERACTION. POWER INPUT REQUIREMENTS ARE 24 VDC WITH A MAXIMUM CONSUMPTION OF 25 W. COMMUNICATION CAPABILITIES INCLUDE RS-232C AND RS-422A/485 SERIAL PORTS; ETHERNET CONNECTIVITY IS NOT INTEGRATED. THE UNIT IS HOUSED IN AN IVORY-COLORED CASE AND DESIGNED FOR FRONT PANEL MOUNTING, ACHIEVING AN IP65F DEGREE OF PROTECTION FOR THE FRONT PANEL. IT OPERATES WITHIN A TEMPERATURE RANGE OF 0 TO 50 °C AND IS EQUIPPED WITH A CCFL BACKLIGHT. USER PROGRAM AND DATA MEMORY IS APPROXIMATELY 60 MB.
