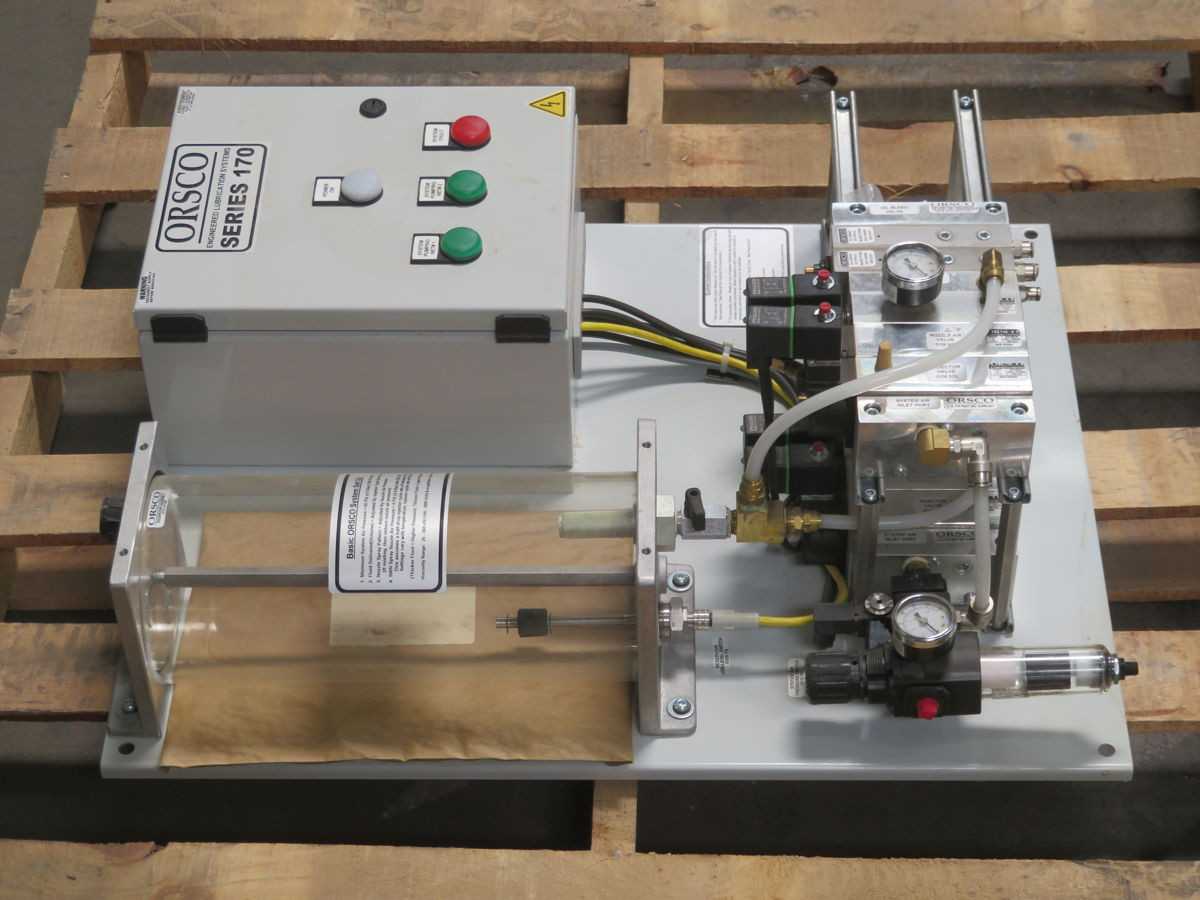

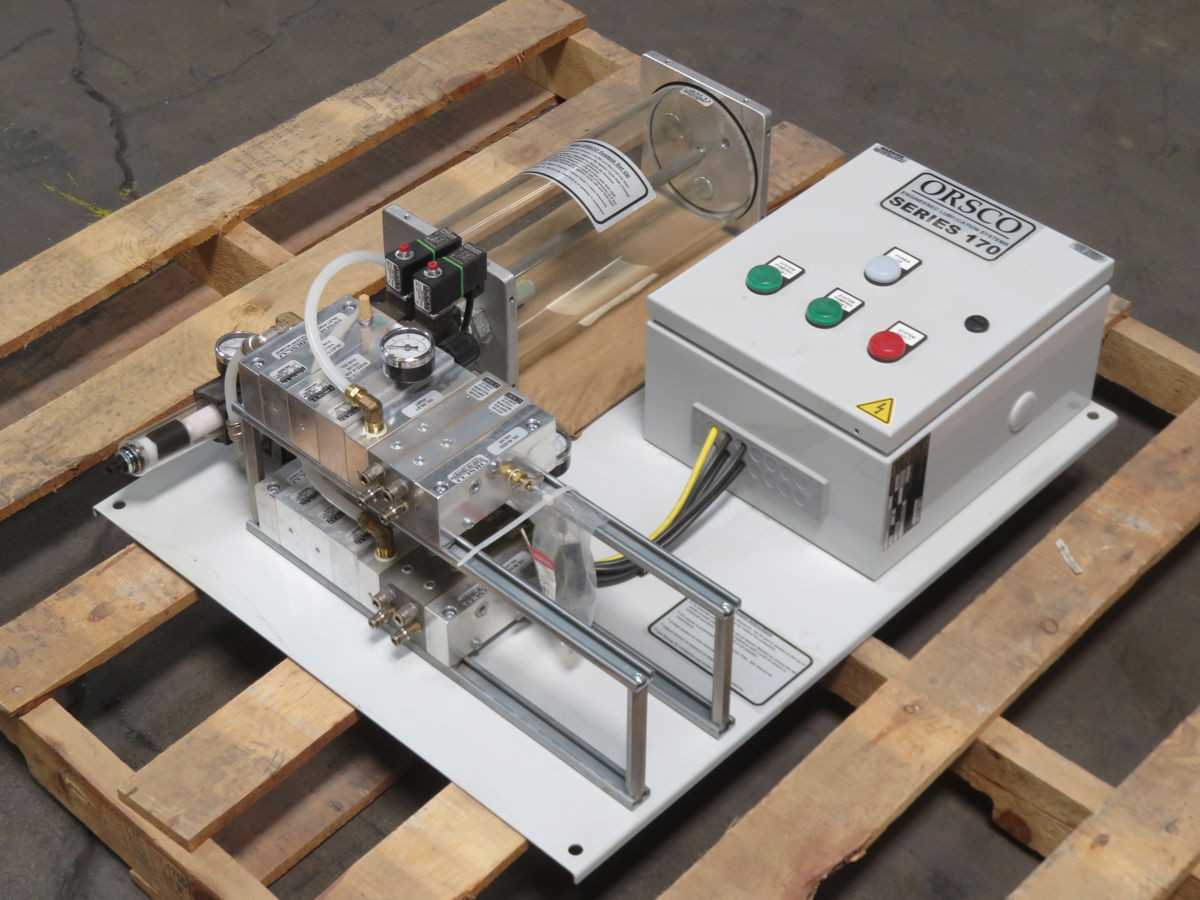

ORSCO 170-0115-4-AC, LUBE SYSTEM, 120 VAC POWER, 4 LUBE POINTS, 1.5 GAL RES, 200 PSI MAX P

THE ORSCO MODEL 170-0115-4-AC IS AN OIL SPRAY LUBRICATION SYSTEM FROM THE SERIES 170 PRODUCT LINE. IT OPERATES ON A 120 VAC, 60 HZ, SINGLE-PHASE POWER SUPPLY. THIS SYSTEM IS DESIGNED TO SERVICE FOUR INDEPENDENT LUBRICATION POINTS AND FEATURES AN INTEGRATED CONTROLLER FOR PRECISE OPERATION. IT INCORPORATES A 1.5 US GALLON RESERVOIR AND IS CAPABLE OF GENERATING A MAXIMUM OPERATING PRESSURE OF 200 PSI. THE SYSTEM IS COMPATIBLE WITH LUBRICANTS HAVING A VISCOSITY RANGE FROM ISO 32 TO ISO 460. TYPICAL FLOW RATES ARE BETWEEN 0.05 AND 1.0 US GALLONS PER HOUR PER LUBRICATION POINT. THE OPERATIONAL TEMPERATURE RANGE FOR THIS UNIT SPANS FROM 32°F TO 120°F (0°C TO 49°C).
