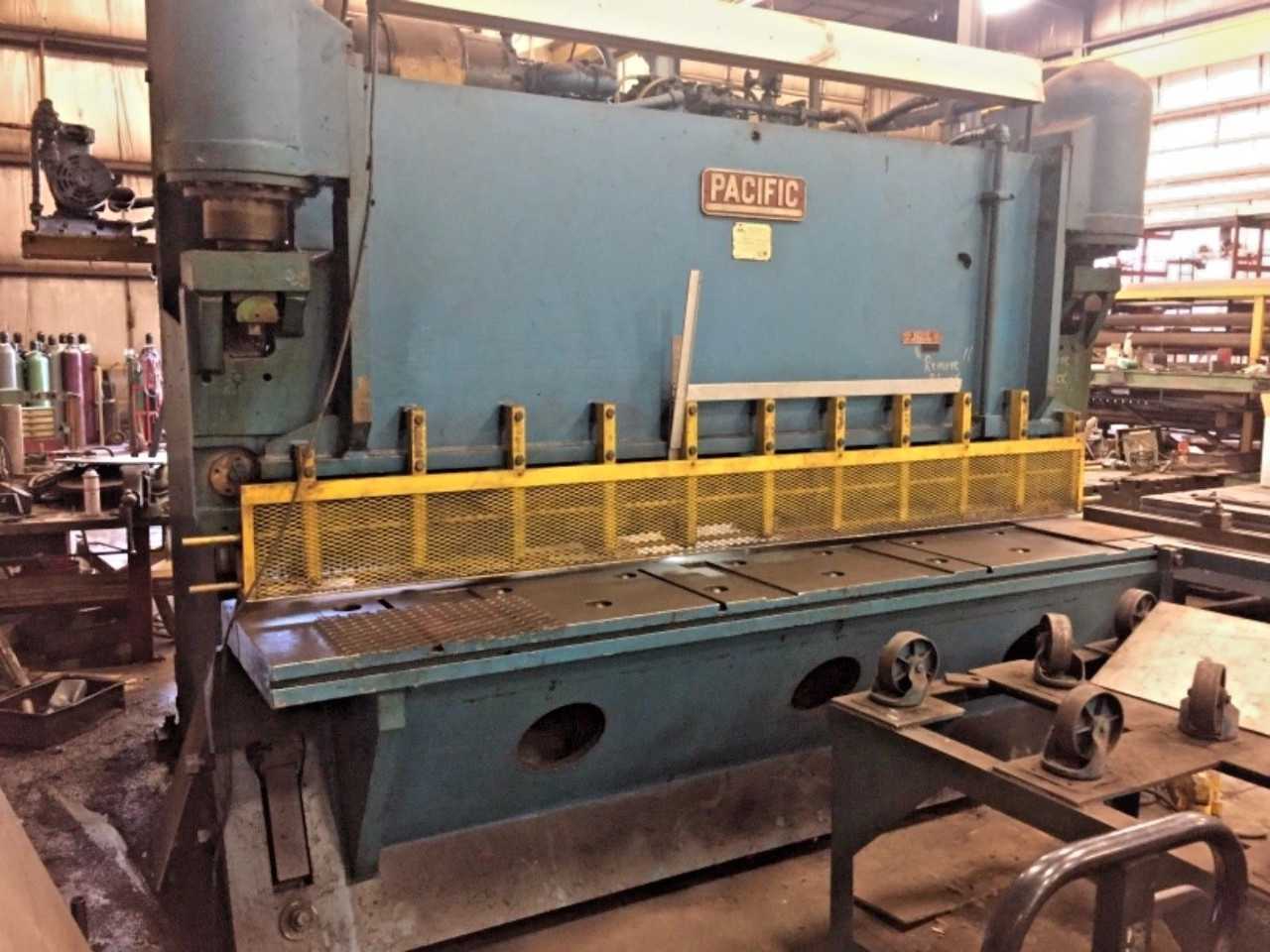

Pacific Hydraulic 1/2” x 10ft Shear, High Speed

Rated Capacity Mild Steel At Rated Rake: 1/2” x 10’ Rated Rake Angle: 3/8” / FT Maximum Rake: 5/8” / FT Strokes Per Minute: 14 SPM Short Strokes Per Minute (24”): 36 SPM Knife Travel Speed Inches / Min Down: 95” / Min Inches / Min Up: 270” / Min Hold Down Tonnage: 33 Tons Standard Open Height Under Holddowns: 1-1/2” Main Motor: 40 HP Back Gauge: 36” Squaring Arm: 50” Distance Between Side Housings: 10’3” Knife Size: 1-1/8” x 5” x 124”
