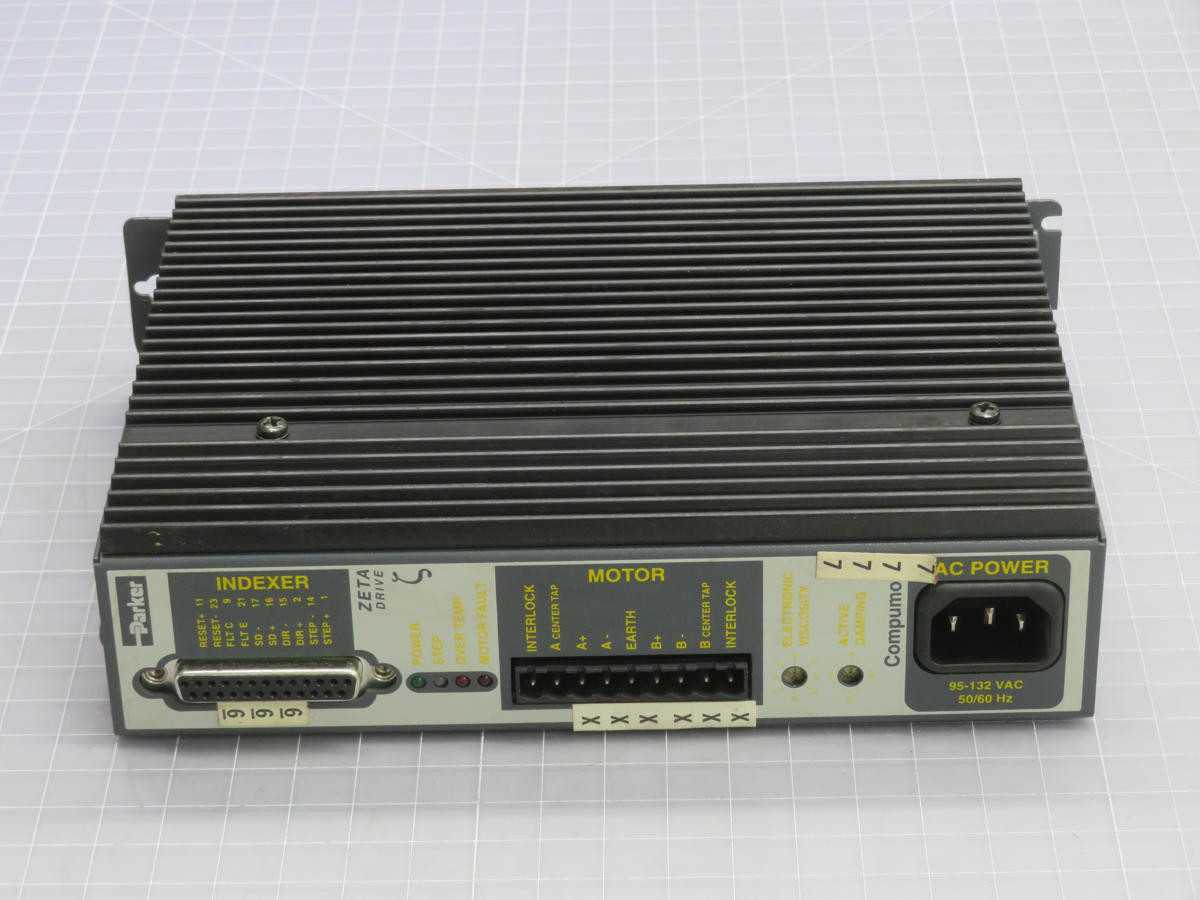

PARKER 87-014030-02A STEPPER DRIVE, 120-240 VAC IN, 3.0 A CONT, 4.2 A PEAK, 50,800 STEPS/REV

THE PARKER MODEL 87-014030-02A IS A ZETA SERIES MICROSTEPPING STEPPER DRIVE. IT OPERATES FROM A 120-240 VAC SINGLE-PHASE INPUT SUPPLY, PROVIDING A MAXIMUM MOTOR SUPPLY VOLTAGE OF 170 VDC. THIS DRIVE DELIVERS A CONTINUOUS RMS OUTPUT CURRENT OF UP TO 3.0 A PER PHASE AND A PEAK OUTPUT CURRENT OF 4.2 A PER PHASE. IT SUPPORTS CONFIGURABLE MICROSTEPPING RESOLUTIONS, REACHING UP TO 50,800 STEPS PER REVOLUTION. CONTROL IS FACILITATED VIA STEP AND DIRECTION SIGNALS, COMPLEMENTED BY AN RS-232 SERIAL PORT FOR CONFIGURATION AND ADVANCED SETUP. INTEGRATED FEATURES INCLUDE ANTI-RESONANCE TECHNOLOGY, ELECTRONIC DAMPING, AND PROGRAMMABLE DIGITAL INPUT/OUTPUT CAPABILITIES FOR PRECISE MOTION CONTROL APPLICATIONS.
