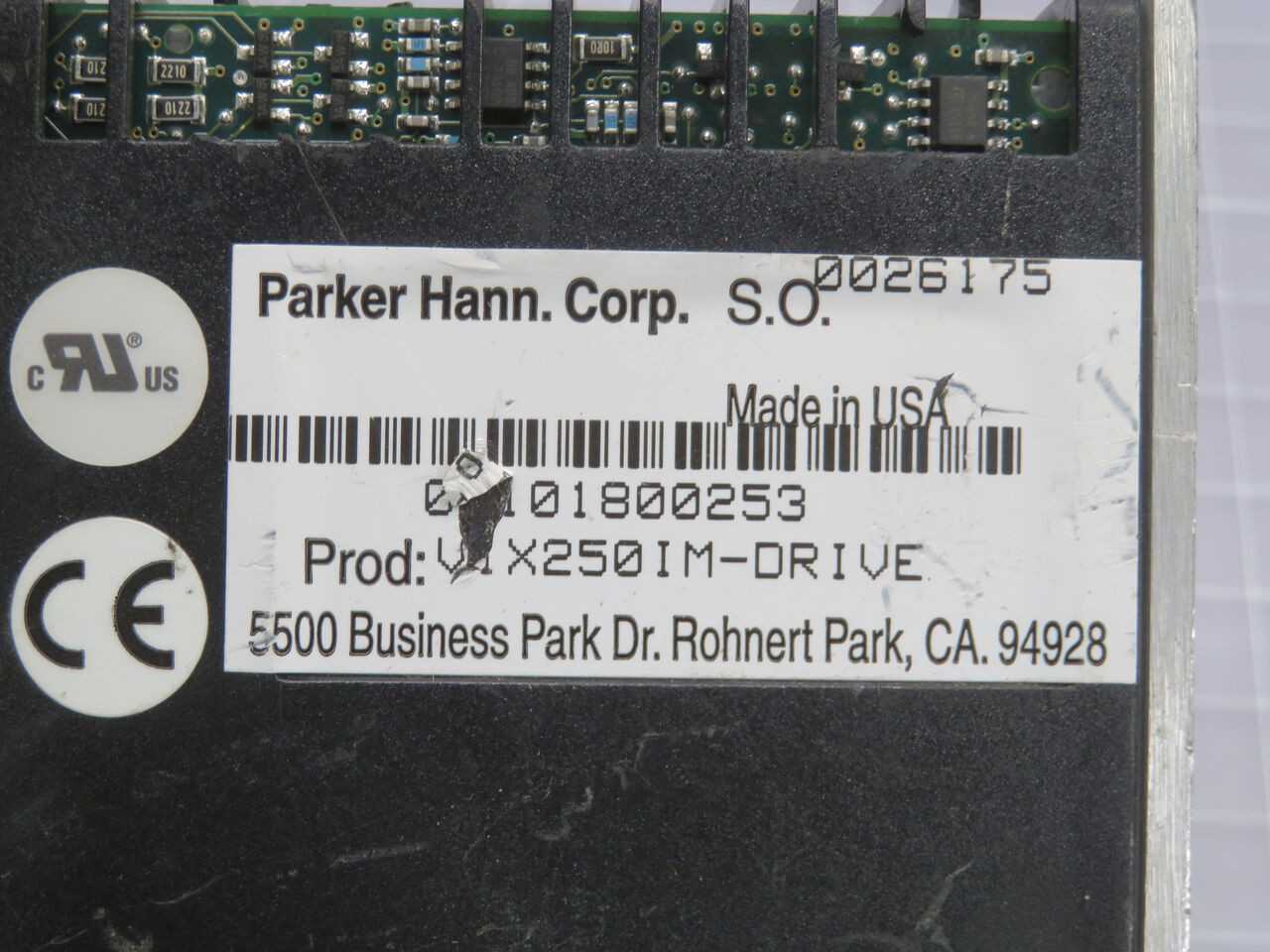

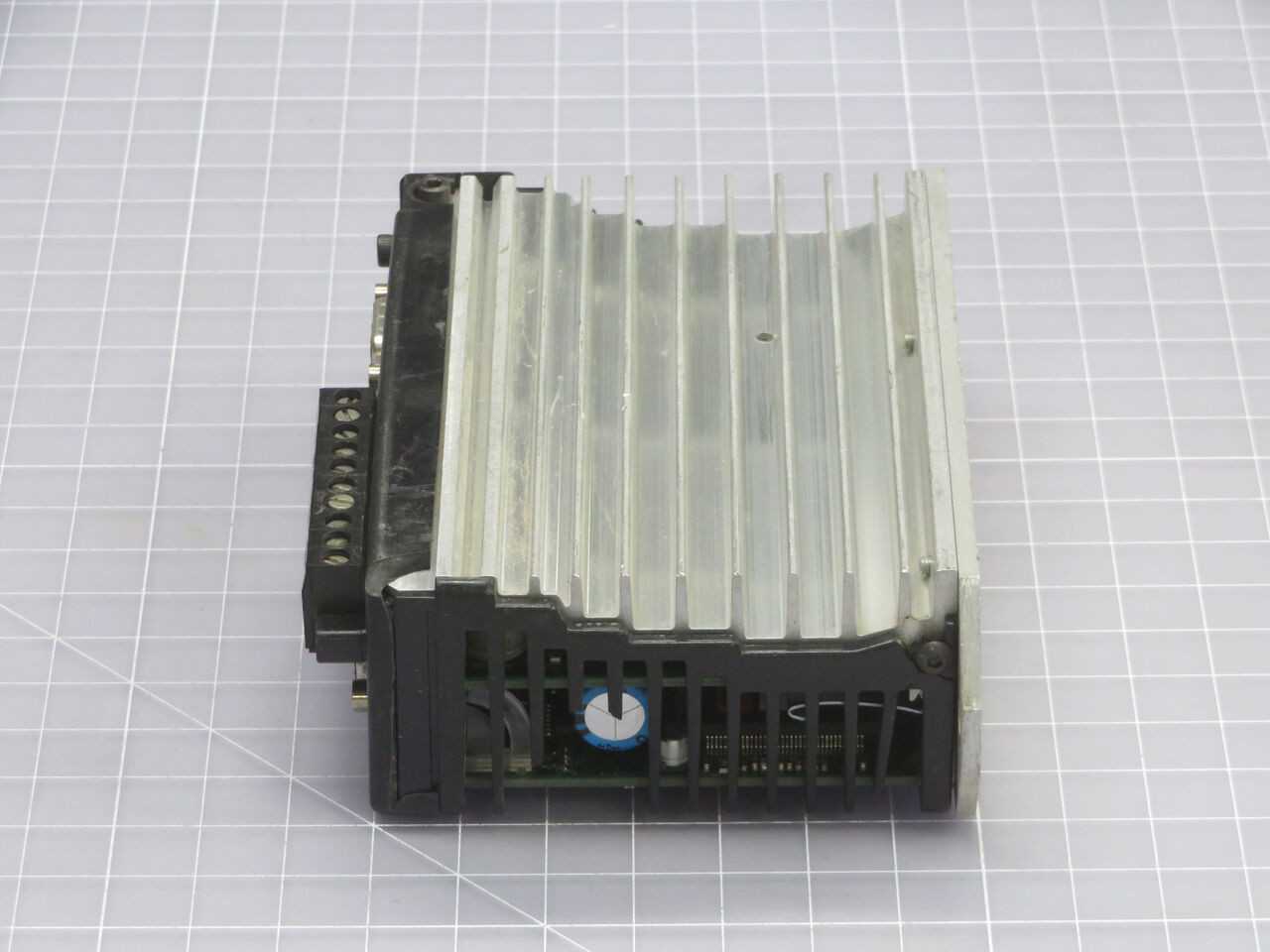

PARKER VIX250IM STEPPER DRIVES, 24-80 VDC IN, 4 AMP PEAK CURRENT, 5 DI, 3 DO, 51,200 STEPS/REV

THE PARKER VIX250IM IS A MICROSTEPPING STEPPER DRIVE ENGINEERED FOR PRECISE MOTOR CONTROL APPLICATIONS. IT OPERATES ON A 24-80 VDC INPUT VOLTAGE AND DELIVERS A 4 AMP PEAK CURRENT OUTPUT TO THE MOTOR WINDINGS. THE UNIT FEATURES 5 DIGITAL INPUTS AND 3 DIGITAL OUTPUTS, FACILITATING COMPREHENSIVE COMMAND AND CONTROL INTEGRATION. CAPABLE OF ACHIEVING MICROSTEP RESOLUTIONS UP TO 51,200 STEPS PER REVOLUTION, THIS DRIVE ENSURES SMOOTH MOTION AND HIGH POSITIONAL ACCURACY. CONTROL IS TYPICALLY ESTABLISHED VIA STEP/DIRECTION OR CW/CCW PULSE SIGNALS. INTEGRATED PROTECTION MECHANISMS INCLUDE OVER-VOLTAGE, UNDER-VOLTAGE, OVER-TEMPERATURE, AND MOTOR SHORT-CIRCUIT DETECTION, ENHANCING OPERATIONAL RELIABILITY. THE DRIVE IS UL COMPLIANT, CONFIRMING ADHERENCE TO RECOGNIZED SAFETY AND PERFORMANCE STANDARDS. IT IS COMPATIBLE WITH VARIOUS 2-PHASE STEPPER MOTORS, COMMONLY RANGING FROM NEMA 17 TO NEMA 34 FRAME SIZES.
