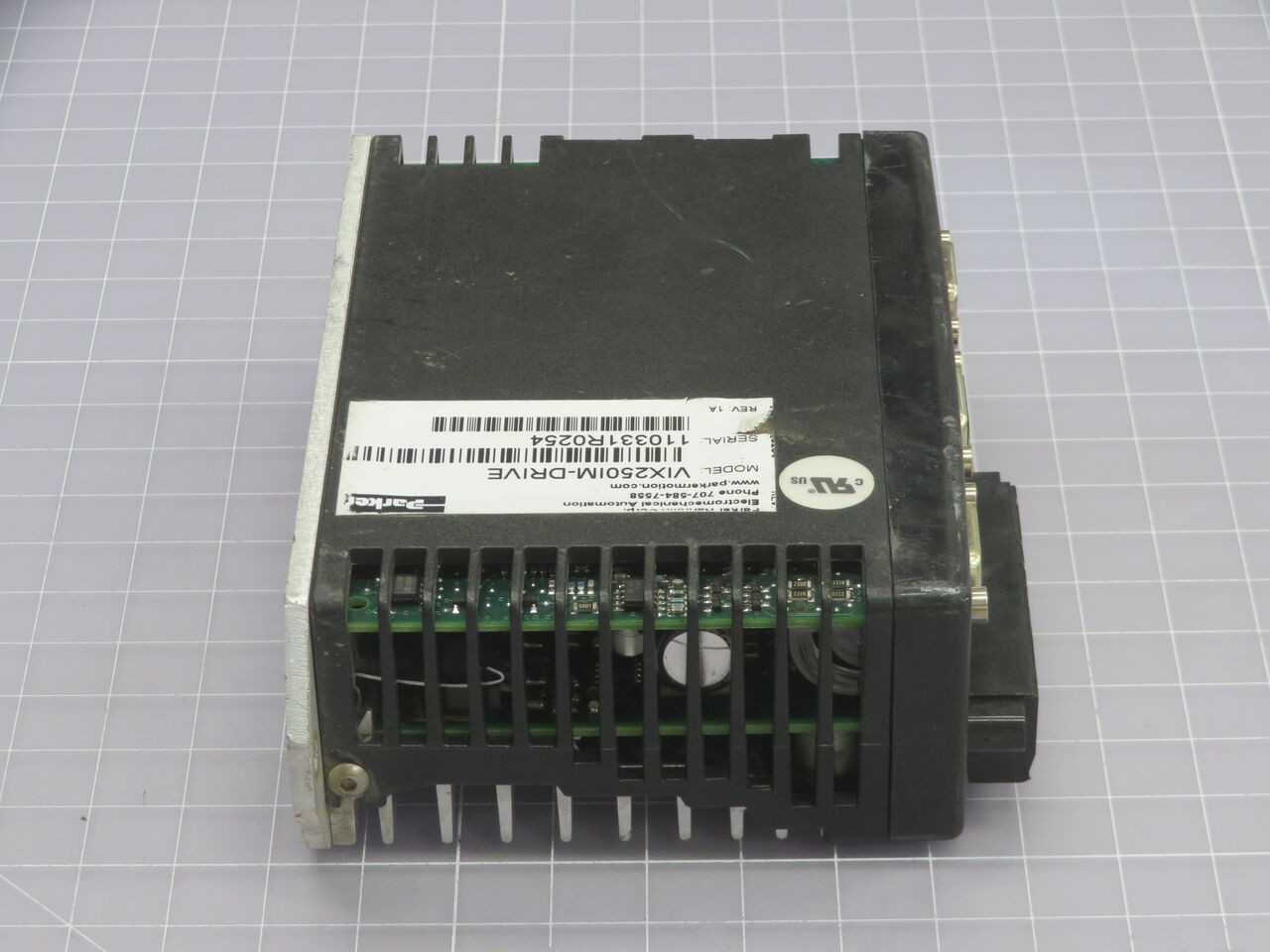

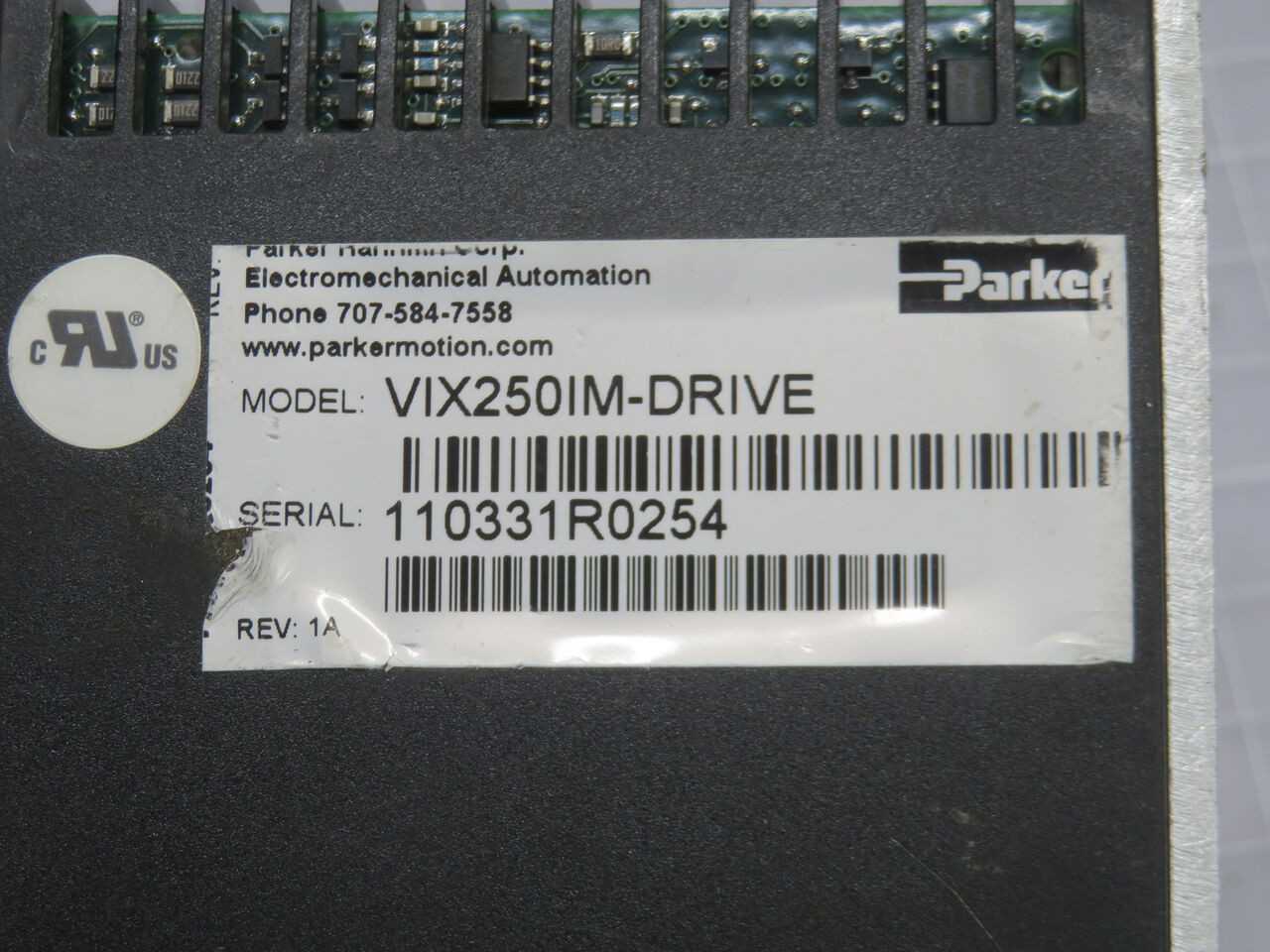

PARKER VIX250IM STEPPER DRIVES, 24-80 VDC INPUT, 4A PEAK, 2.8A RMS CONT, 256 MICROSTEPS, 5 DI, 3 DO

THE PARKER VIX250IM IS A VIX SERIES MICROSTEPPER DRIVE DESIGNED FOR 2-PHASE STEPPER MOTORS. IT OPERATES WITH AN INPUT VOLTAGE RANGE OF 24-80 VDC AND DELIVERS A 4 AMP PEAK CURRENT, WITH A CONTINUOUS CURRENT RATING OF 2.8 A RMS. THE DRIVE SUPPORTS PROGRAMMABLE MICROSTEPPING RESOLUTIONS UP TO 256 MICROSTEPS PER FULL STEP AND UTILIZES STEP AND DIRECTION CONTROL INPUTS. IT INTEGRATES 5 DIGITAL INPUTS AND 3 DIGITAL OUTPUTS. PROTECTION FEATURES INCLUDE OVER-TEMPERATURE, OVER-VOLTAGE, UNDER-VOLTAGE, AND SHORT-CIRCUIT SAFEGUARDS. THE UNIT IS UL AND CE COMPLIANT.
