PARLEC C50-15SM6 CAT 50 SHELL MILL HOLDER, 1.5" PILOT, 6" PROJECTION, 30K RPM, AISI 8620

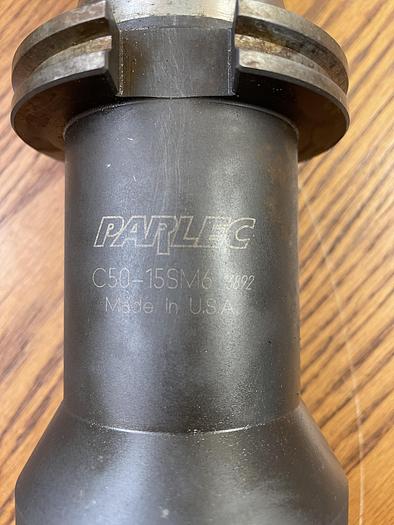

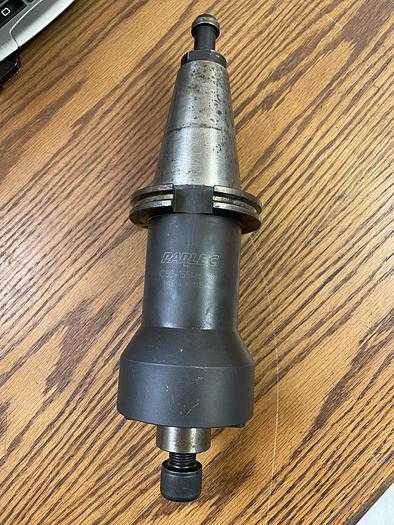

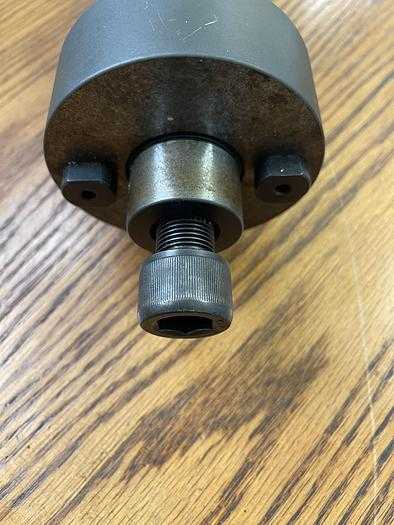

THE PARLEC C50-15SM6 IS A CAT 50 TAPER SHELL AND FACE MILL HOLDER DESIGNED FOR PRECISION MACHINING APPLICATIONS. IT FEATURES A 1-1/2 INCH PILOT DIAMETER (1.5000") AND A 6-INCH PROJECTION FROM THE FLANGE TO THE NOSE END. THE HOLDER HAS A NOSE DIAMETER OF 3.75 INCHES AND IS CONSTRUCTED FROM AISI 8620 ALLOY STEEL, HARDENED TO 56-60 RC FOR ENHANCED WEAR RESISTANCE AND DURABILITY. TECHNICAL SPECIFICATIONS INCLUDE A MAXIMUM TOTAL INDICATED RUNOUT (TIR) OF 0.0002 INCHES AND A BALANCING RATING OF UP TO 30,000 RPM. THIS MODEL IS COMPATIBLE WITH SHELL MILL CUTTING DIAMETERS RANGING FROM 4 TO 5 INCHES. THE UNIT UTILIZES A 3/4-16 LOCK SCREW THREAD SIZE AND INCLUDES A 15LS LOCK SCREW. IT FEATURES A SINGLE CONTACT TAPER SHANK AND IS DESIGNED FOR NON-COOLANT THROUGH OR THROUGH-SPINDLE COOLANT SUPPLY DEPENDING ON THE SPECIFIC CONFIGURATION. THE PILOT LENGTH AND DIMENSION G ARE BOTH 0.94 INCHES. NO YEAR OF MANUFACTURE WAS AVAILABLE.
