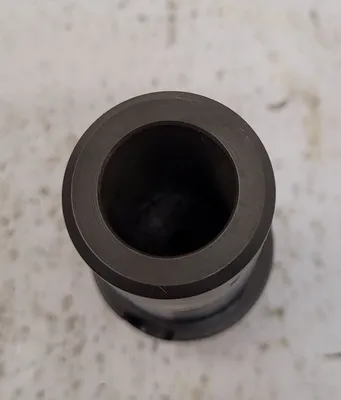

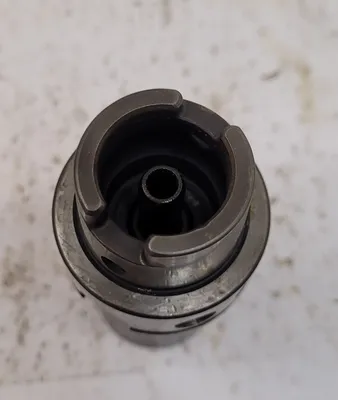

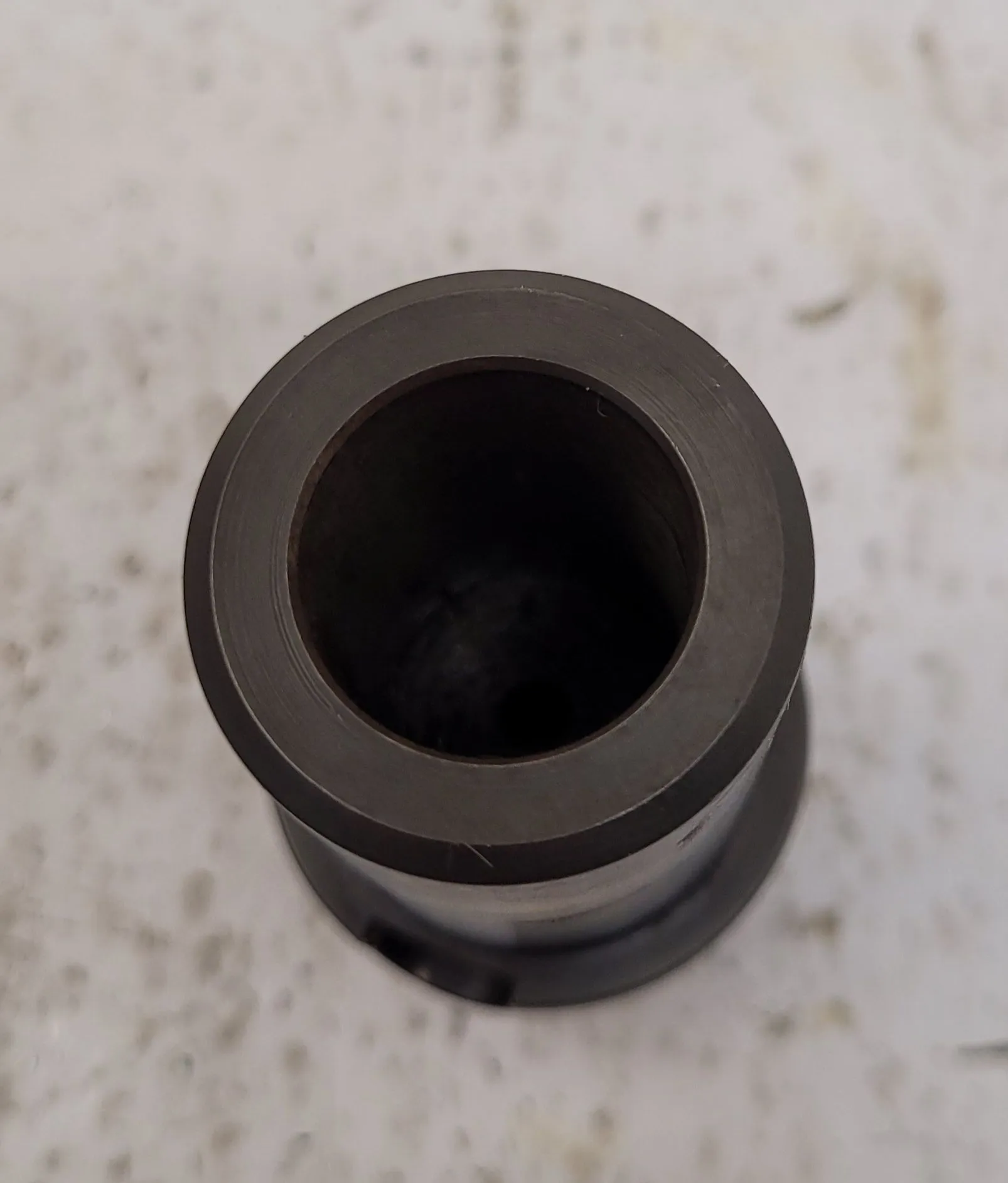

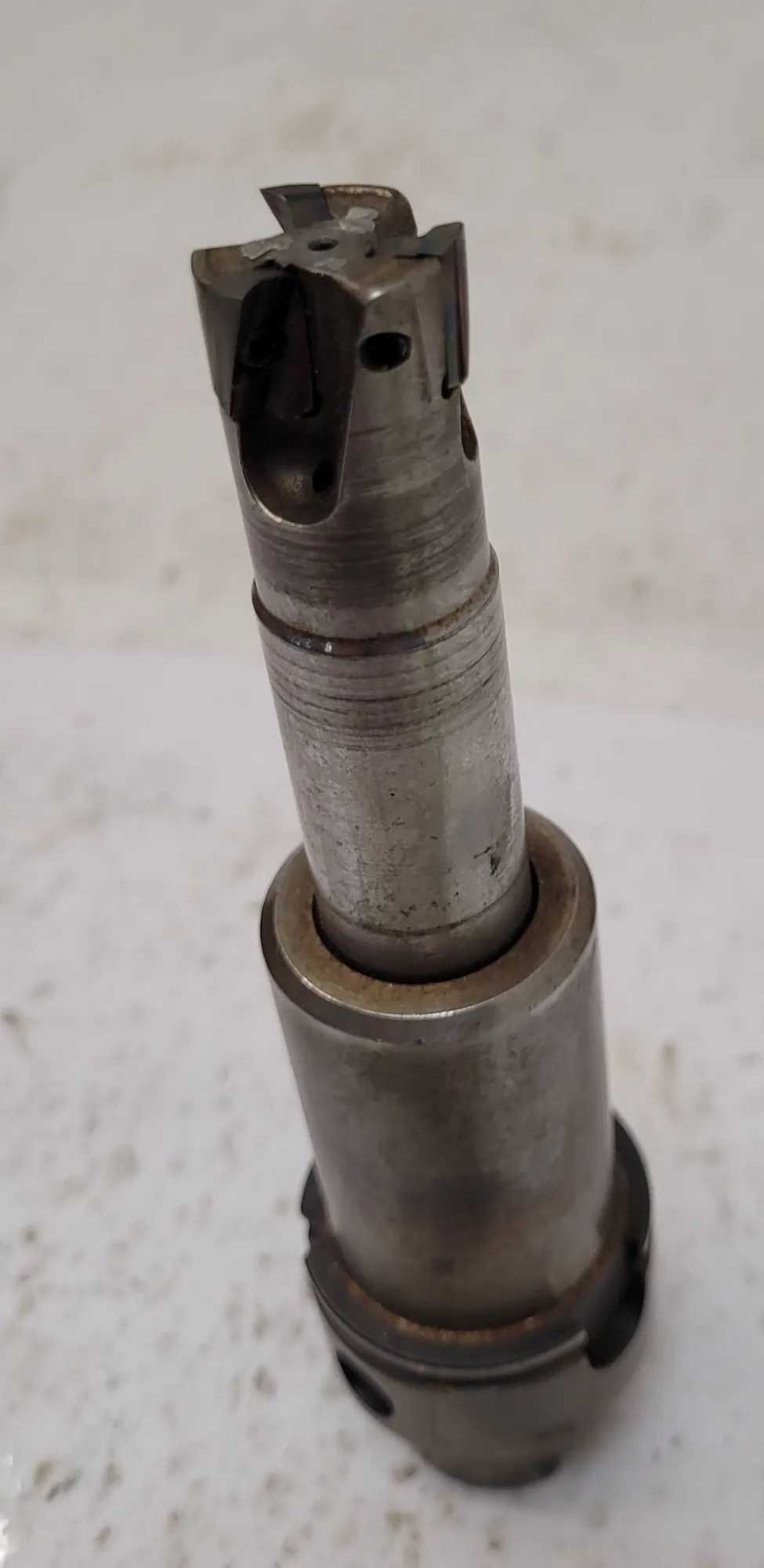

PARLEC HSK40A H40 SHRINK FIT TOOL HOLDER .75IN CLAMPING DIA WITH DAISHOWA SEIKI CUTTER

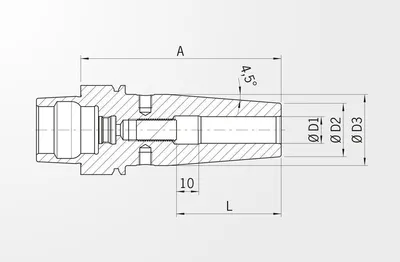

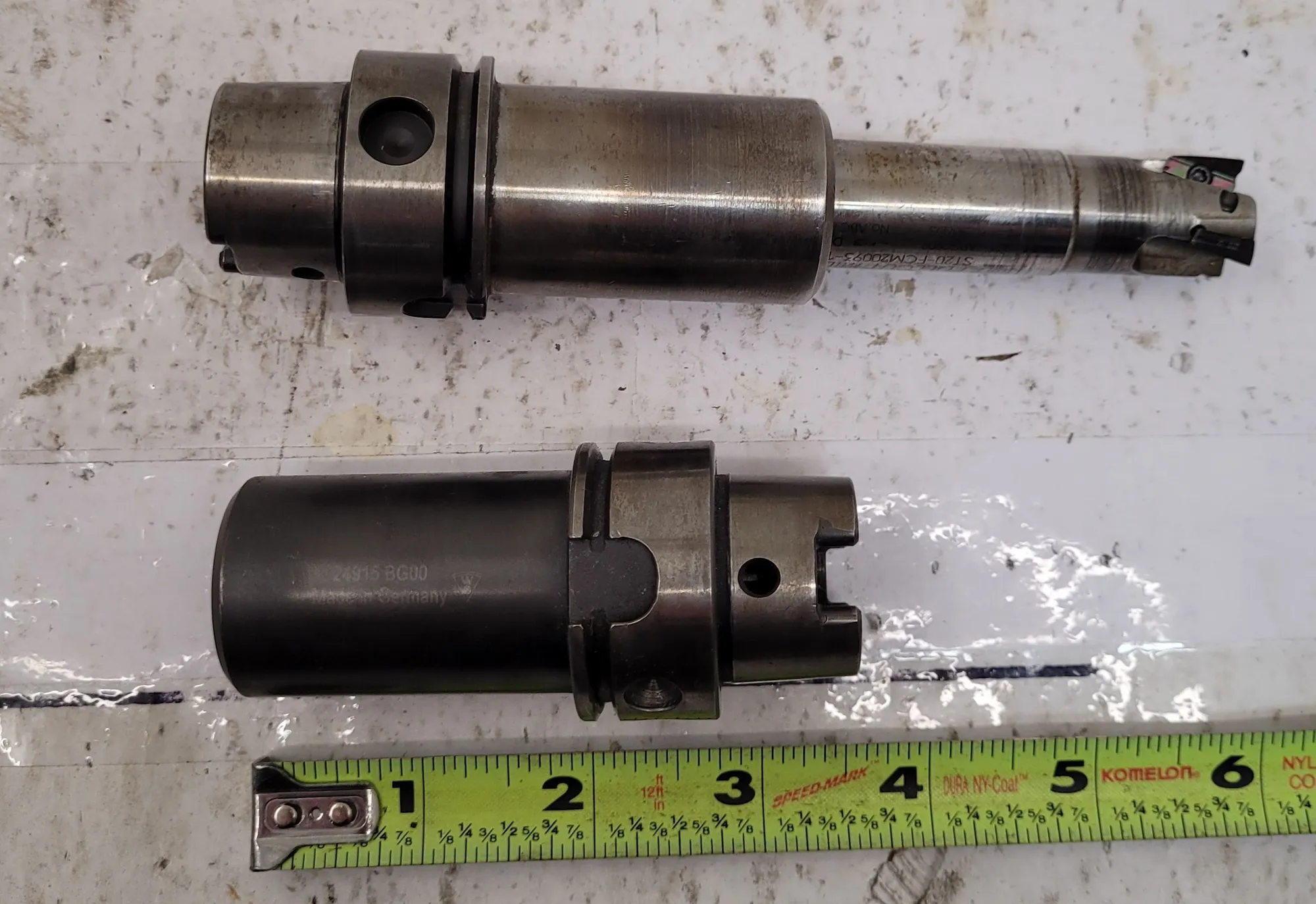

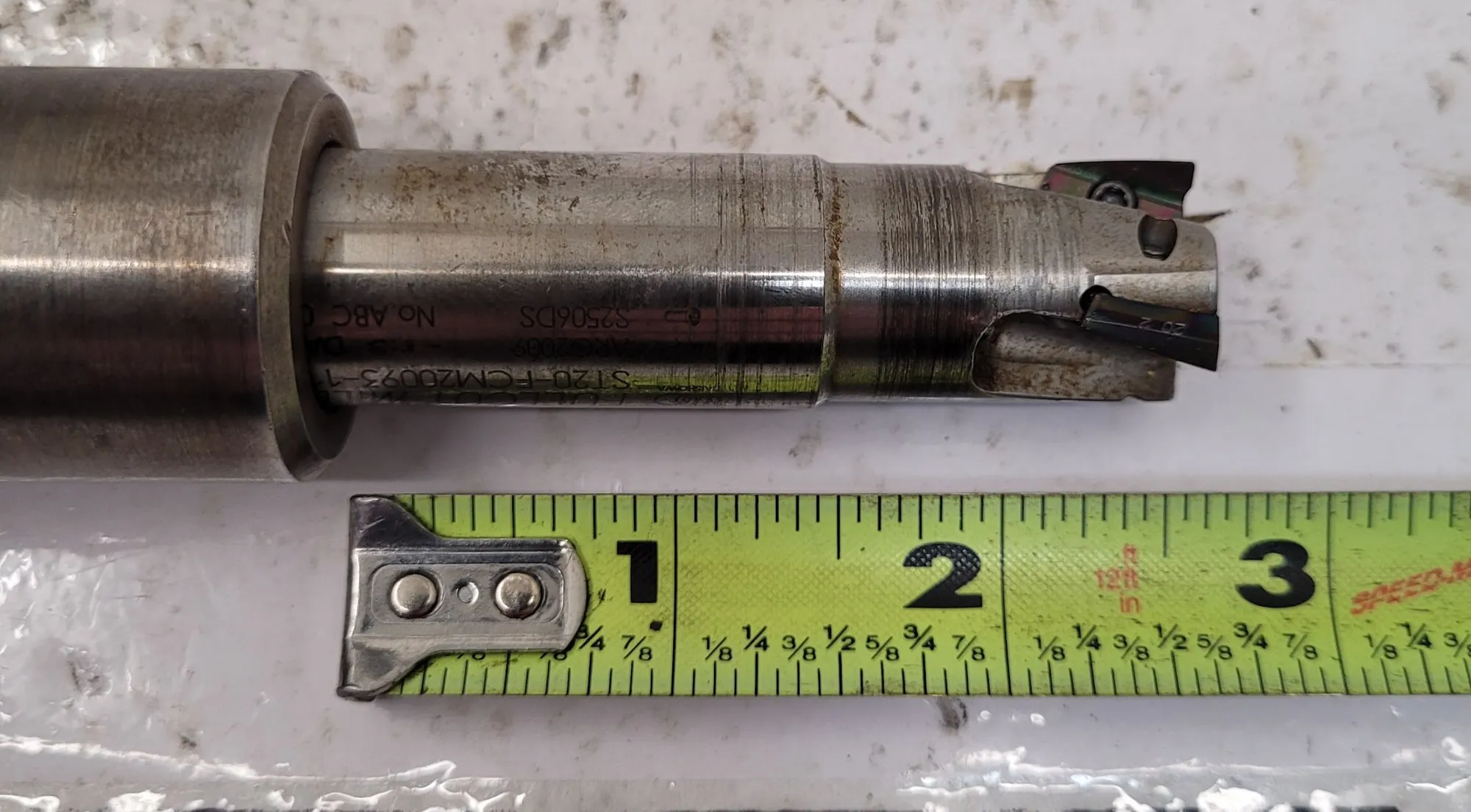

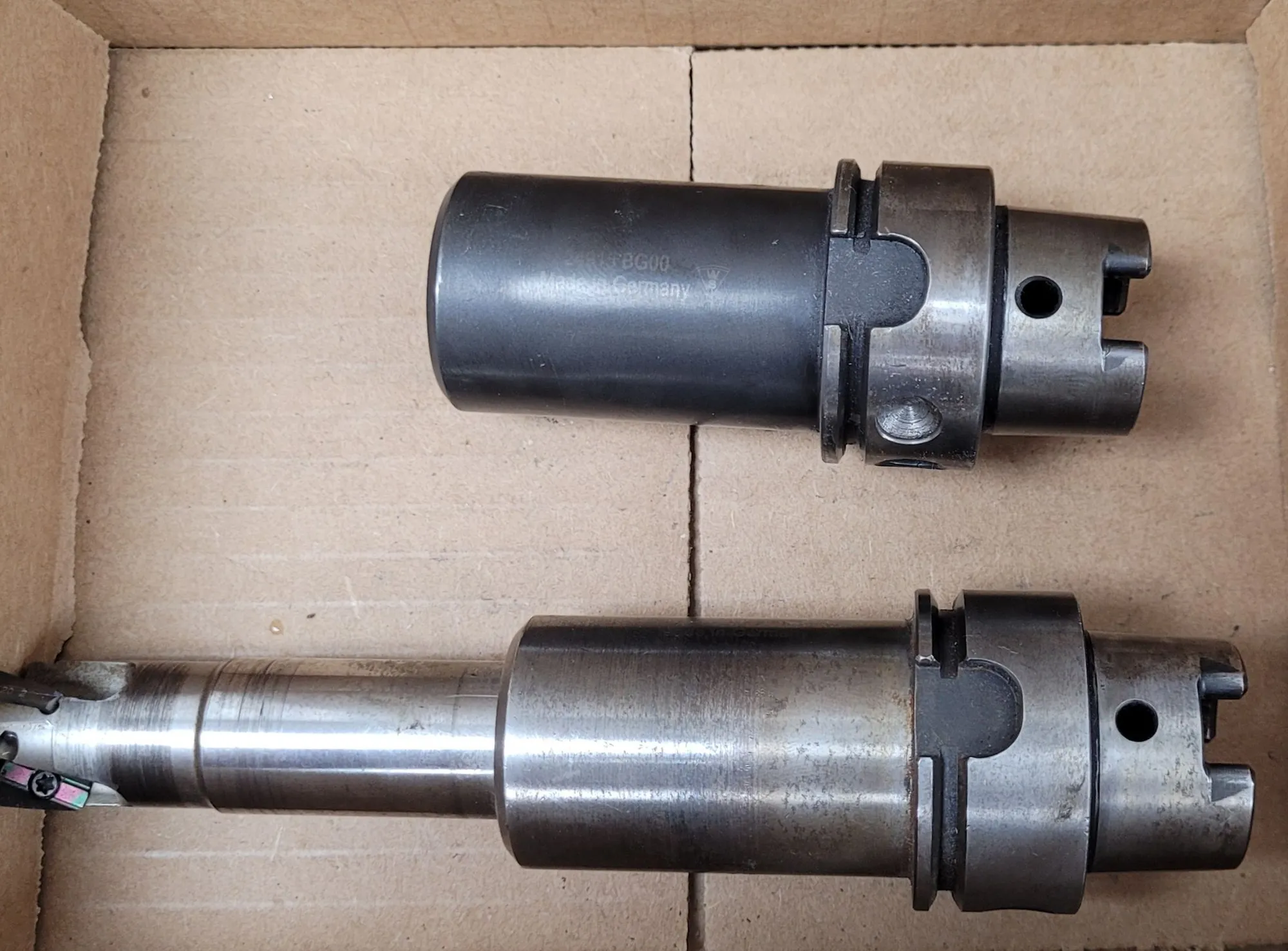

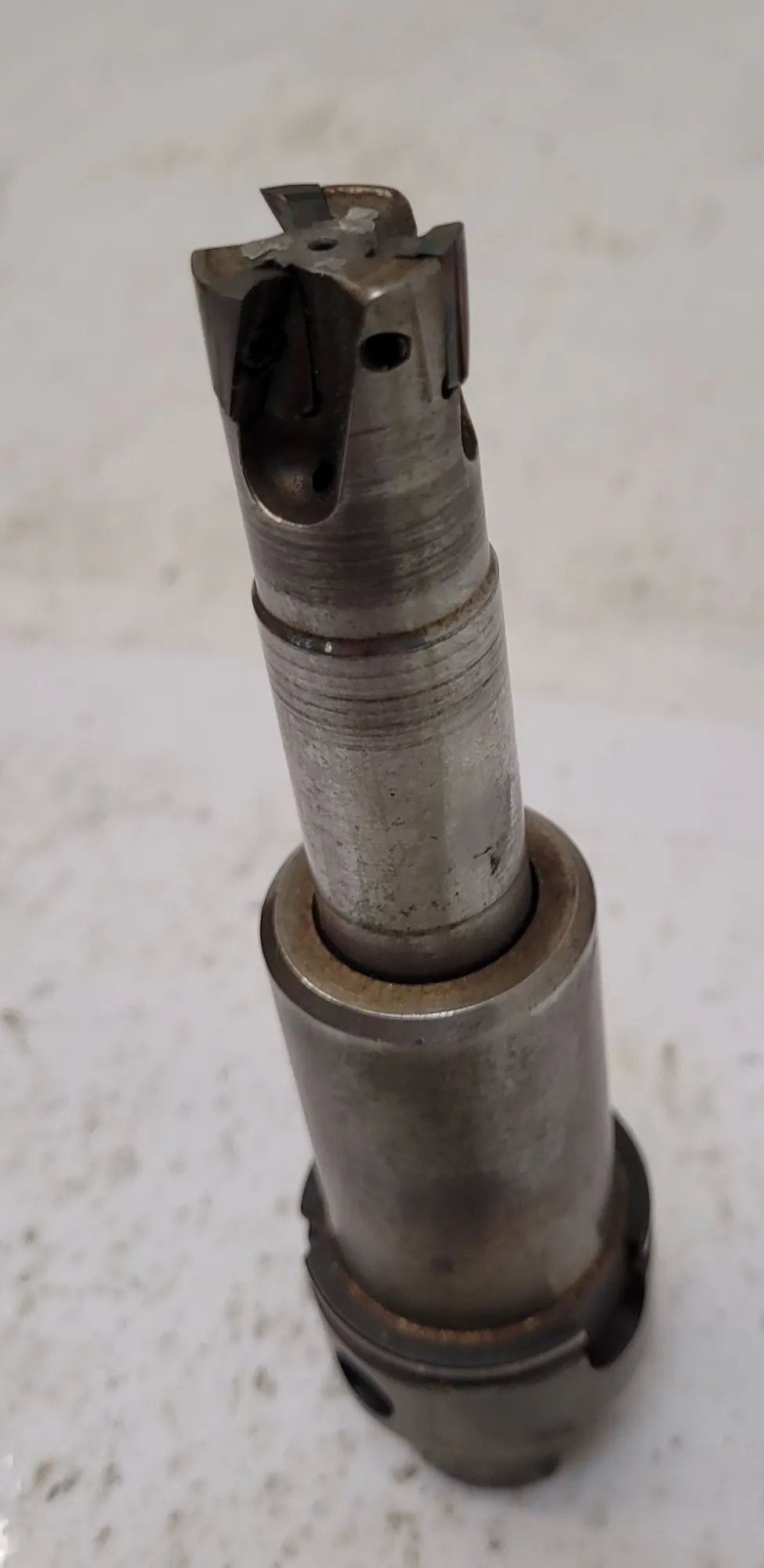

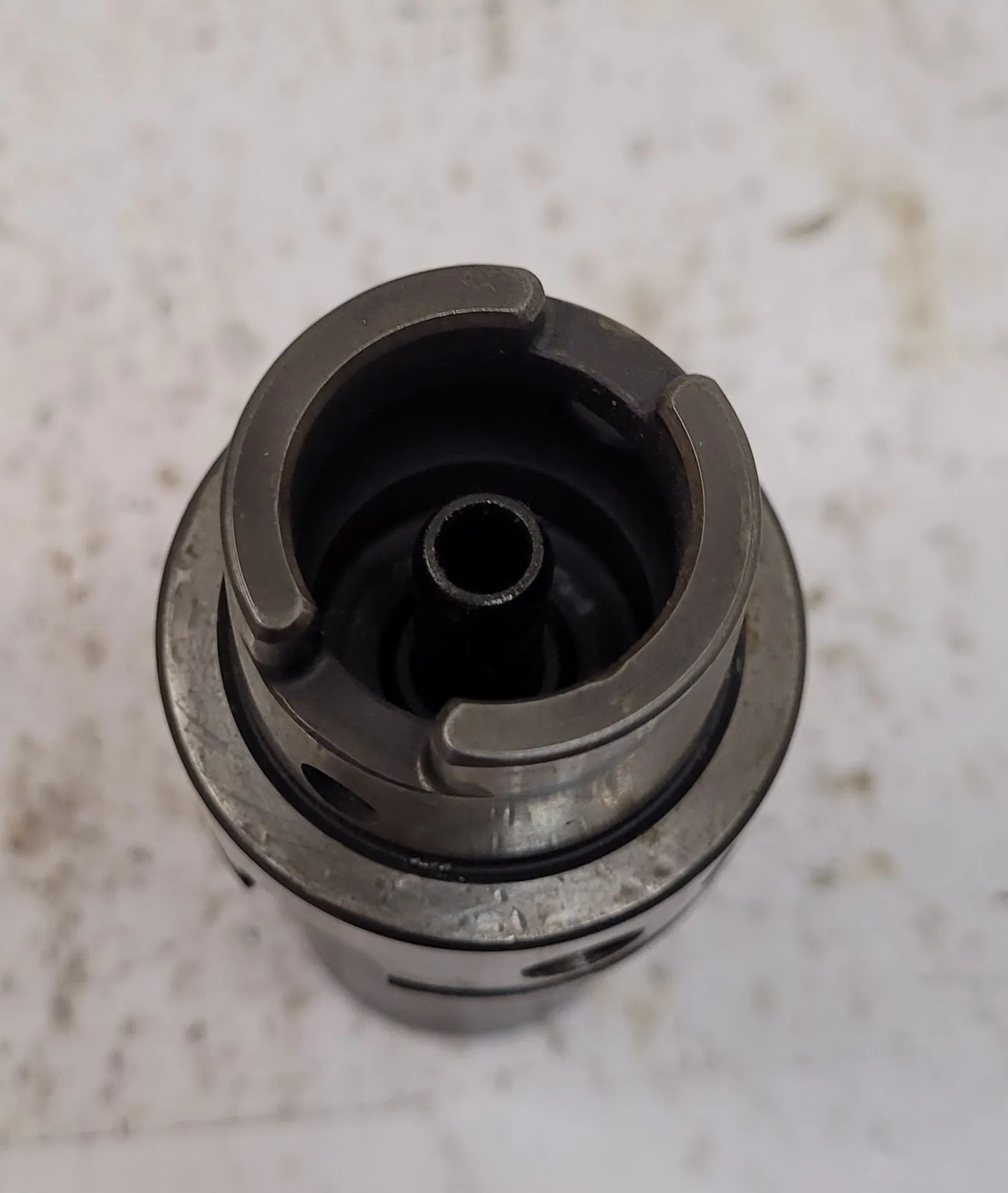

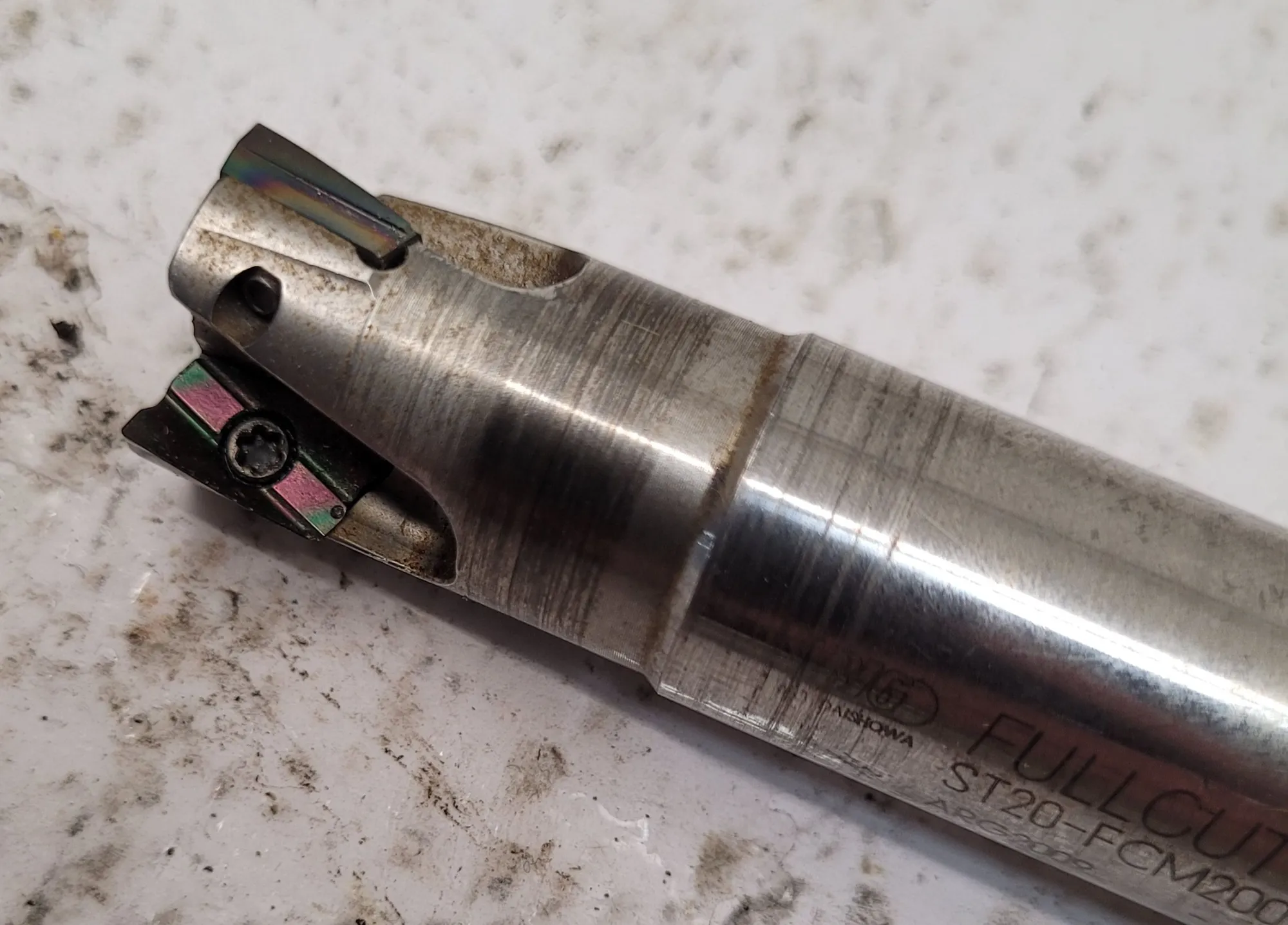

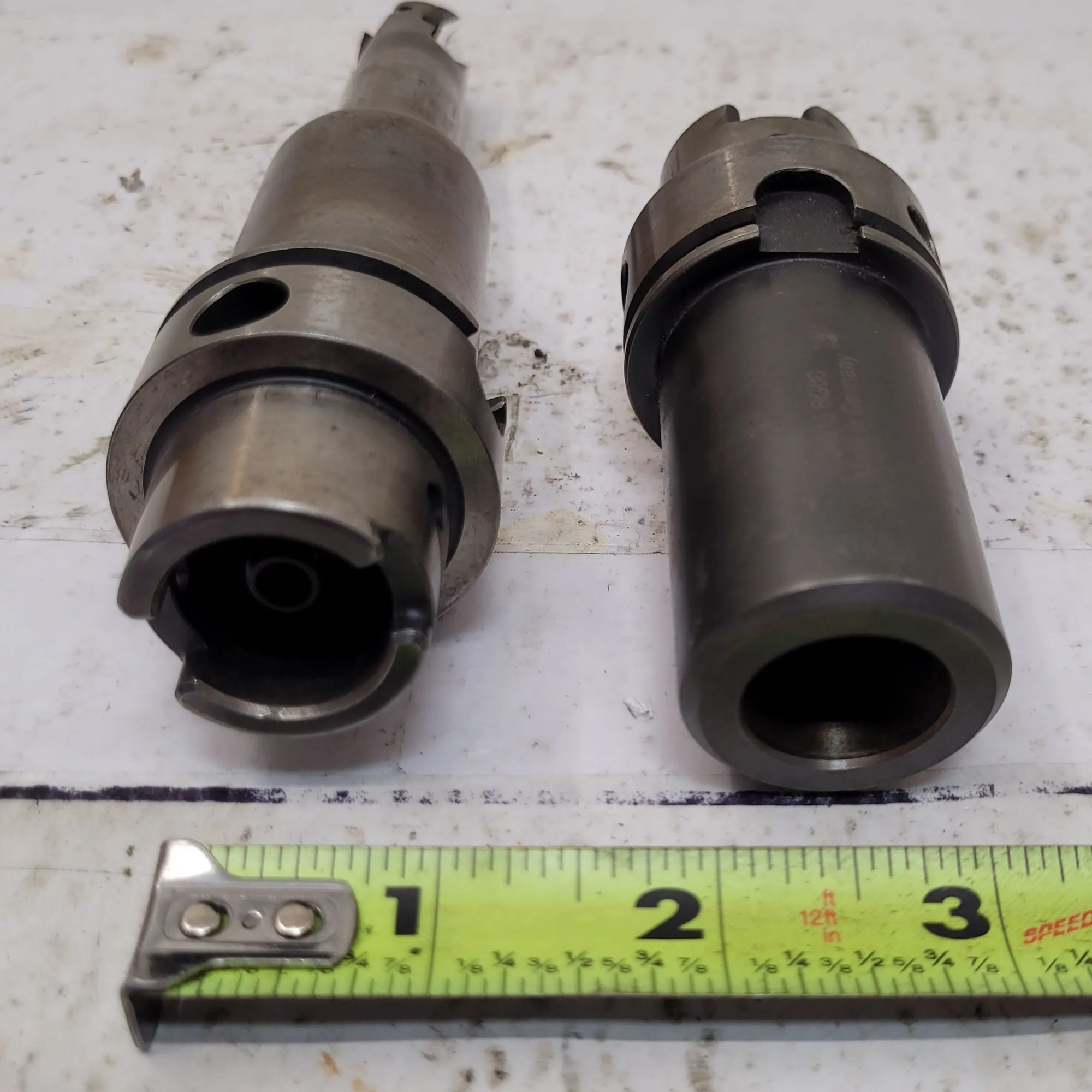

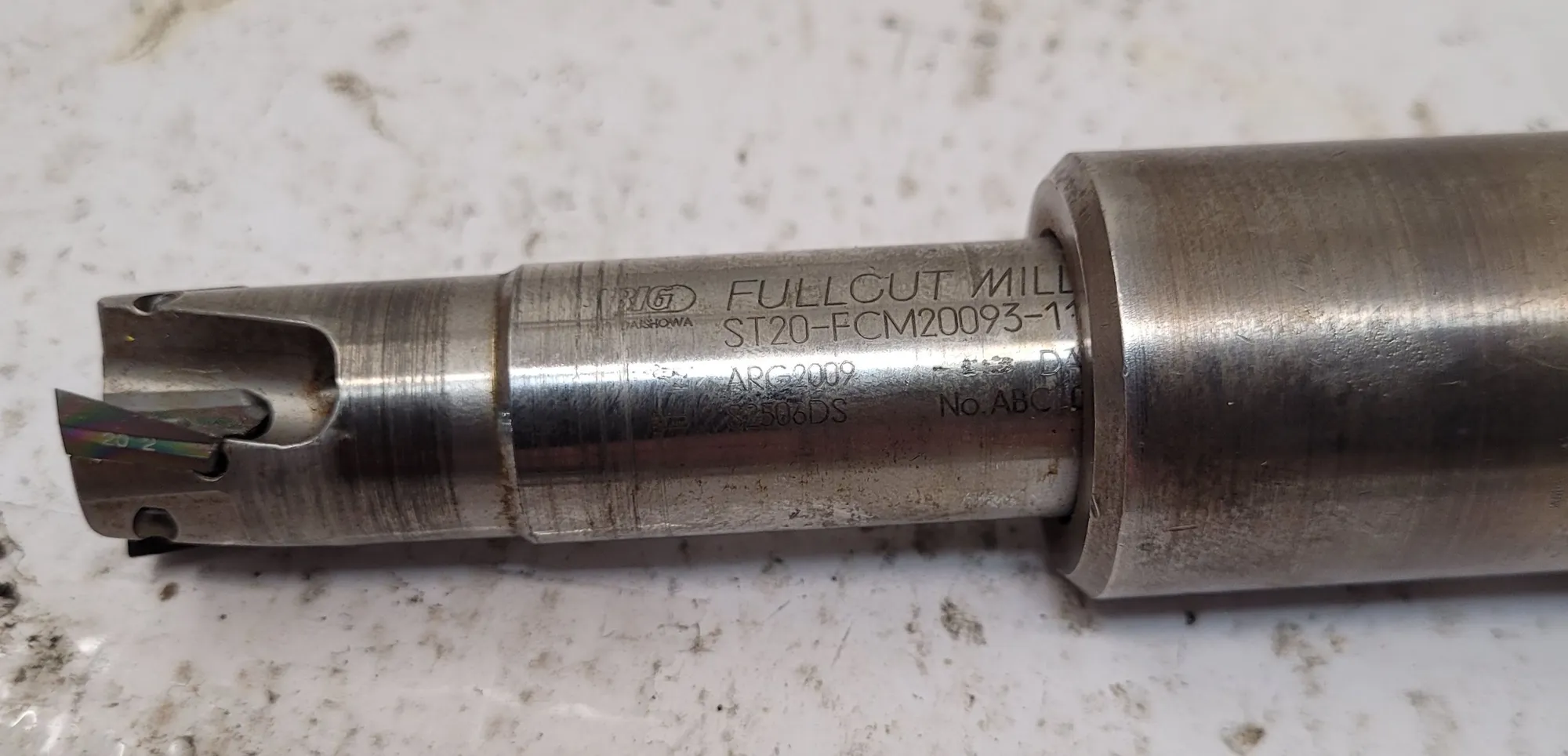

THE PARLEC H40 SHRINK FIT TOOL HOLDER IS SUPPLIED AS A SET OF TWO, WITH ONE HOLDER FEATURING A DAISHOWA SEIKI CUTTER, MODEL ST20-FCM20093-110. THE TOOL HOLDER FEATURES AN HSK40A INTERFACE, A 0.75-INCH CLAMPING DIAMETER, A 0.75-INCH HOLE DIAMETER, AND AN APPROXIMATE 3.5-INCH OVERALL LENGTH (OAL). KEY DIMENSIONS INCLUDE LENGTH A AT 2.875 INCHES, DIAMETER 2 (D2) AT 1.25 INCHES, DIAMETER 3 (D3) AT 1.25 INCHES, AND LENGTH L AT 2.0 INCHES. THE VERSION IS SHORT. THE INTEGRATED DAISHOWA SEIKI CUTTER IS DESIGNED FOR SIDE / GROOVE MACHINING WITH A BLADE DIAMETER D(Φ) OF 20, AN OVERALL LENGTH (L) OF 110 MM, A SHANK DIAMETER (D) OF 20 MM, AND 3 FLUTES. IT UTILIZES A STRAIGHT SHANK TYPE WITH A MOUNTING METHOD THAT INCLUDES A HANDLE. FURTHER SPECIFICATIONS FOR THE CUTTER INCLUDE AN EFFECTIVE CUTTING EDGE LENGTH AP OF 9 MM AND AN L2 OF 80 MM.
