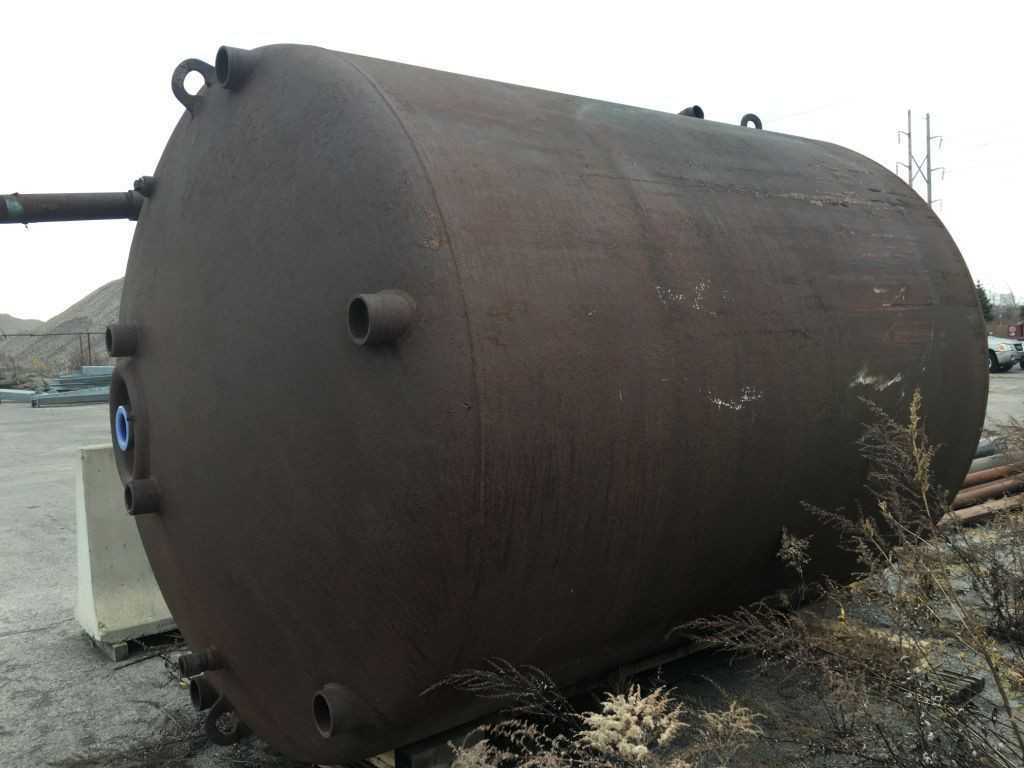

Pfaudler 4000 Gallon Glass Lined Reactor

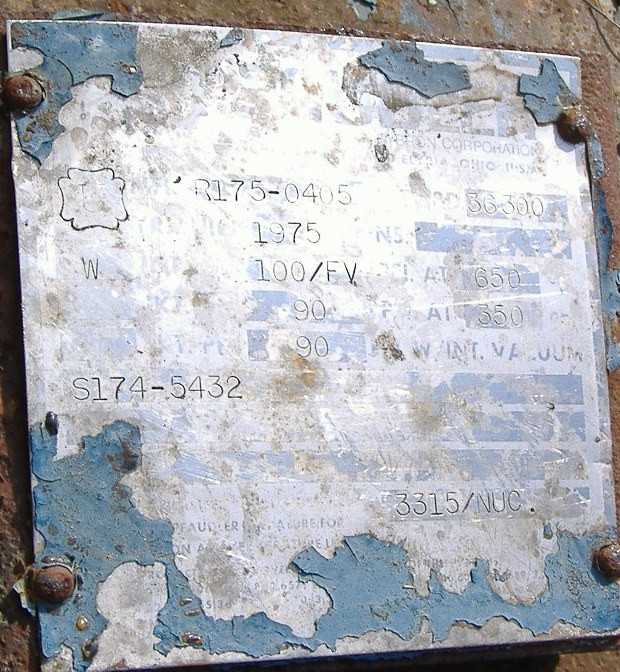

PFAUDLER 4,000 GALLON GLASS LINED REACTOR MODEL R175-0405 NATIONAL BOARD NUMBER: 30300 YEAR BUILT: 1975 INTERNAL DESIGN PRESSURE: 100/FV PSI @ 650 F JACKET DESIGN PRESSURE: 90 PSI @ 350 F SERIAL NUMBER: S174-5432, SPECIFICATIONS: WORKING CAPACITY: 4000 GALLONS PER INCH OF STRAIGHT SIDE: 31.33 GALLONS BOTTOM HEAD: 501 GALLONS TOP HEAD: 501 GALLONS JACKET: 453 GALLONS GLASS: 3315/NUC. HEATING AREA: JACKET: 300 SQ.-FT. BOTTOM HEAD: 69.4 SQ.-FT. PER INCH OF STRAIGHT SIDE: 2.09 SQ.-FT. DESIGN PRESSURE: INTERNAL @ 450 DEG. F: 100 PSI/FULL VACUUM JACKET @ 450 DEG. F: 90 PSI STEEL THICKNESS: INNER VESSEL: TOP HEAD: 15/16" SHELL: 1" BOTTOM HEAD: 15/16" JACKET SHELL: 1/2" JACKET BOTTOM HEAD: 5/8" DIMENSIONS: OVERALL HEIGHT: 180" BOTTOM OF 36" TOP OPENING TO BOTTOM OF LEG. VESSEL ID: 96" JACKET ID: 102" QTY(1): 18" ROUND MANHOLE OPENING ON TOP (NO MANHOLE COVER) QTY(1): 36" ROUND OPENING ON TOP (NO COVER) TOP NOZZLES: QTY(4) 4.00", QTY(2): 6.00", QTY(2): 8.00" WEIGHT: 26,000 LBS. PLEASE UNDERSTAND THAT EVERYTHING IS SOLD “AS IS, WHERE IS”…PLEASE READ THE AUCTION CONTRACT. WE ENCOURAGE MAKING AN INSPECTION. PLEASE CALL 310-487-3800 FOR INSPECTION. THANK YOU.
