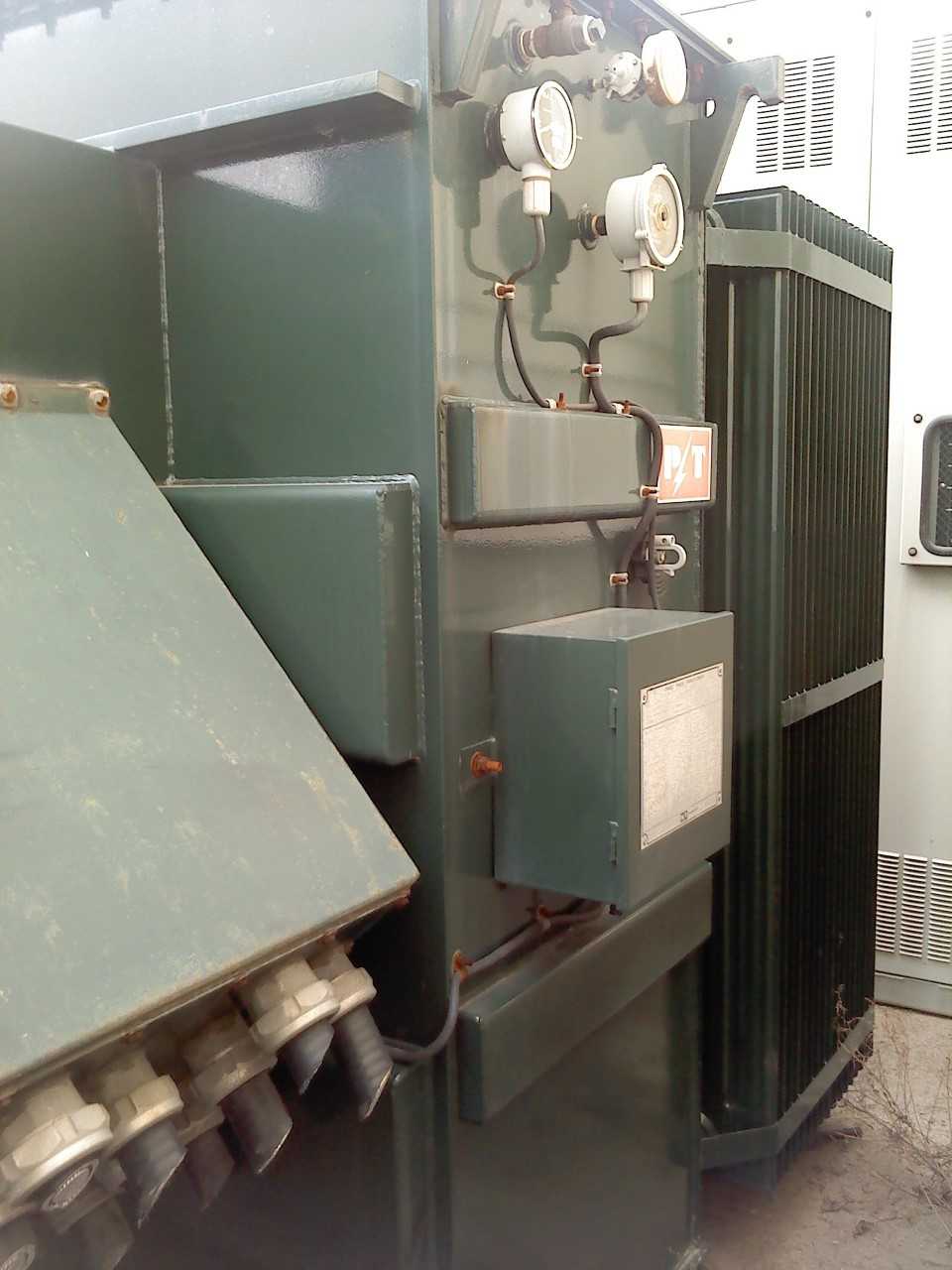

Pioneer Substation Transformer

Pioneer Substation Transformer 4000 / 5333 KVA @ 30 C Ambient 5000 / 6333 KVA @ 0 C Ambient HV: 27,600 Delta with standard no load straddle taps - BIL 150 Kv LV: 600 Y/347 - BIL 30 K 3 Phase 60 Hertz Class ONAN / ONAF Rise 65 C Configuration: Delta / Wye LV Amperes: 5,179 Amps @ 5.33 MVA Primary Bushings: TOP Secondary Bushings: FRONT Standard Gauges & Valve Package Included Coolant - Voltesso 50 (3255 L) Manufactured 1998 Built to CSA STD C88-M90 High Voltage Taps 1. 28,980 volts 2. 28,290 volts 3. 27,600 volts 4. 26,910 volts 5. 26,220 volts Weight: 9,525 kg (21,000 pounds) PLEASE UNDERSTAND THAT EVERYTHING IS SOLD “AS IS, WHERE IS”…PLEASE READ THE AUCTION CONTRACT. WE ENCOURAGE MAKING AN INSPECTION. PLEASE CALL 310-487-3800 FOR INSPECTION. THANK YOU.
