Pioneer Substation Transformer

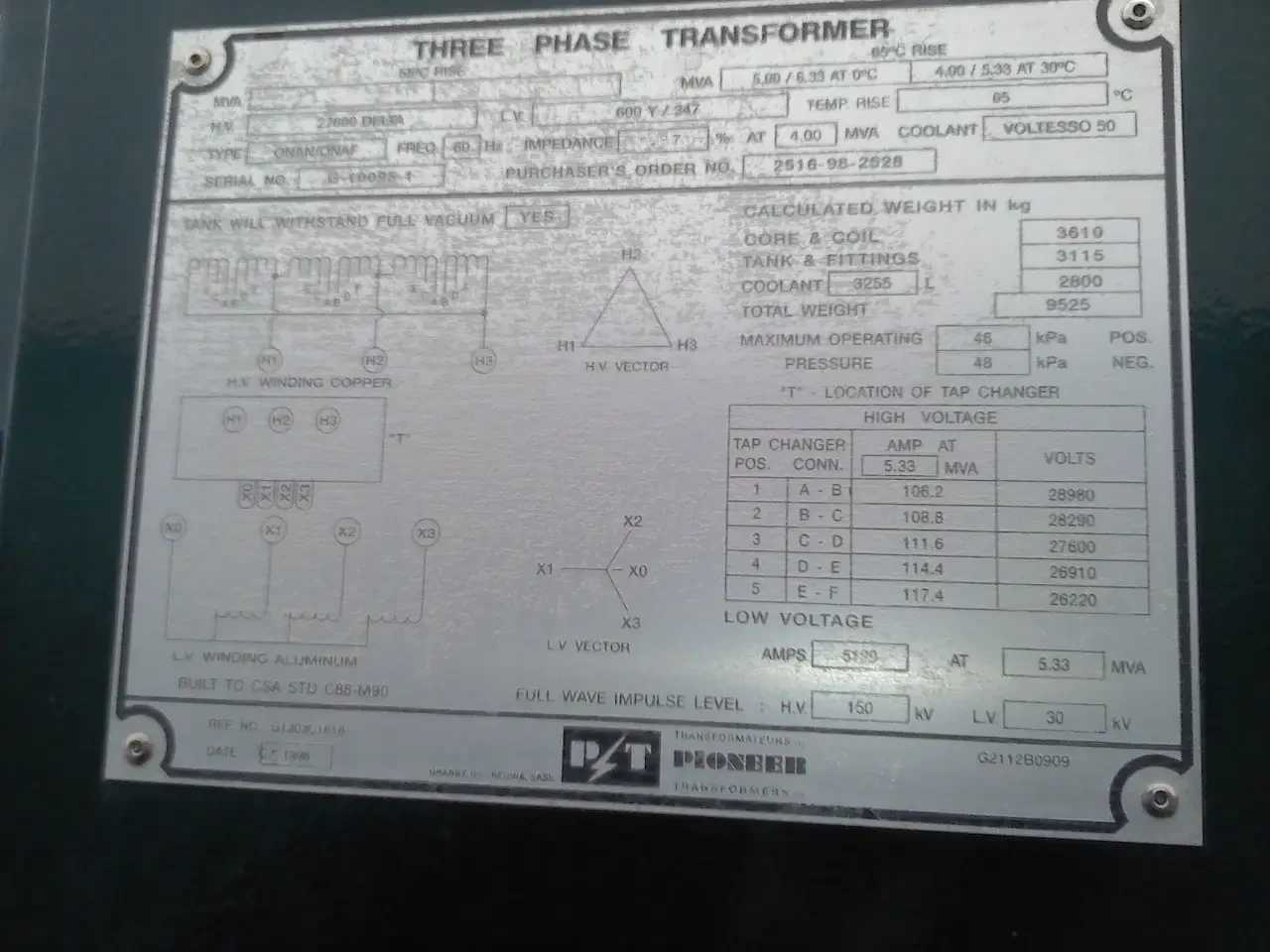

Pioneer Substation Transformer "Pioneer Substation Transformer 4000 / 5333 KVA @ 30 C Ambient 5000 / 6333 KVA @ 0 C Ambient HV: 27,600 Delta with standard no load straddle taps - BIL 150 Kv LV: 600 Y/347 - BIL 30 K 3 Phase 60 Hertz Class ONAN / ONAF Rise 65 C Configuration: Delta / Wye LV Amperes: 5,179 Amps @ 5.33 MVA Primary Bushings: TOP Secondary Bushings: FRONT Standard Gauges & Valve Package Included Coolant - Voltesso 50 (3255 L) Manufactured 1998 Built to CSA STD C88-M90 High Voltage Taps 1. 28,980 volts 2. 28,290 volts 3. 27,600 volts 4. 26,910 volts 5. 26,220 volts Weight: 9,525 kg (21,000 pounds) Located at 2137 Fairfield Ave., Niagara Falls NY PLEASE UNDERSTAND THAT EVERYTHING IS SOLD “AS IS, WHERE IS”…PLEASE READ THE AUCTION CONTRACT. WE ENCOURAGE MAKING AN INSPECTION. PLEASE CALL 310-487-3800 FOR INSPECTION. THANK YOU.
