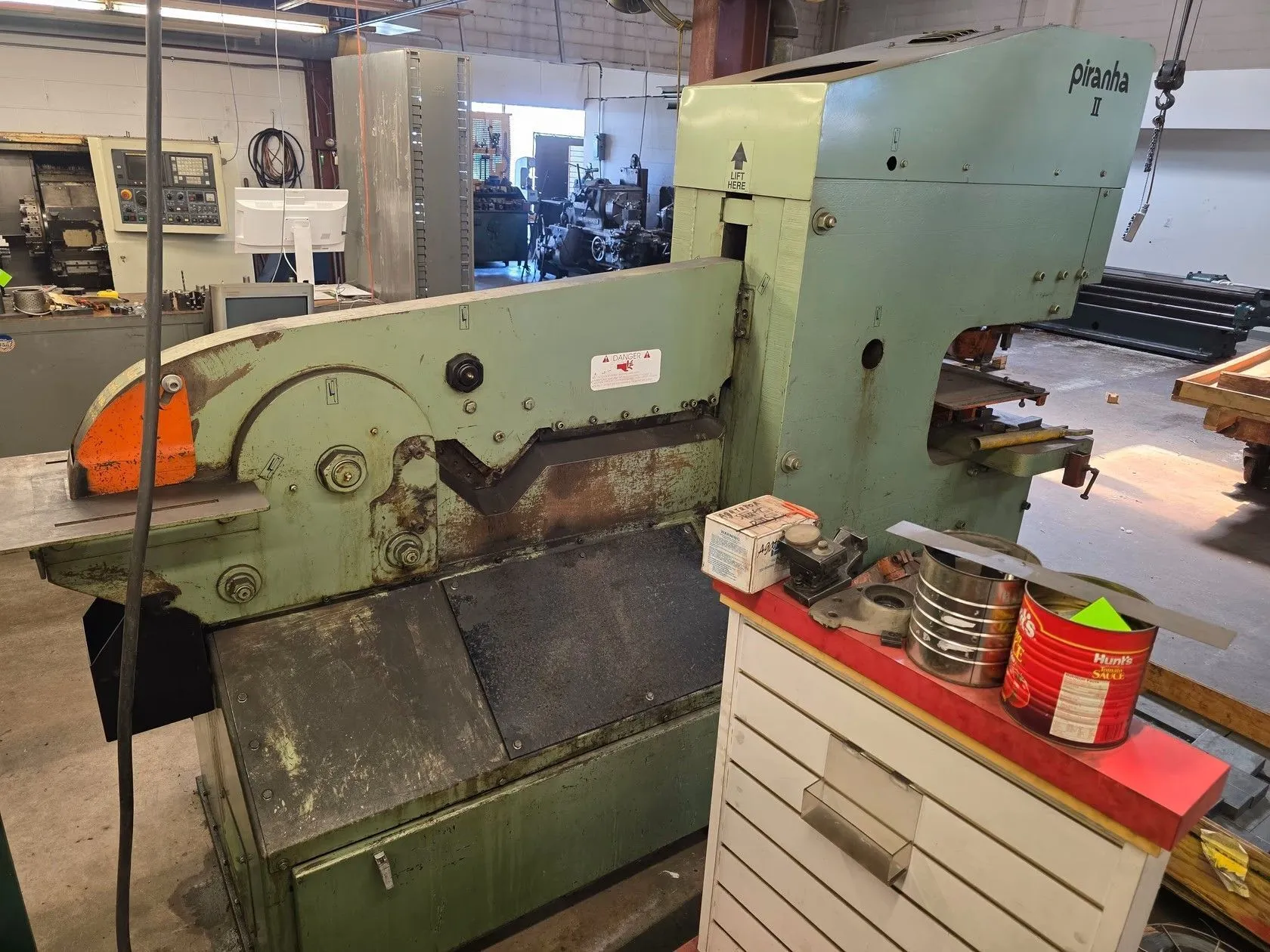

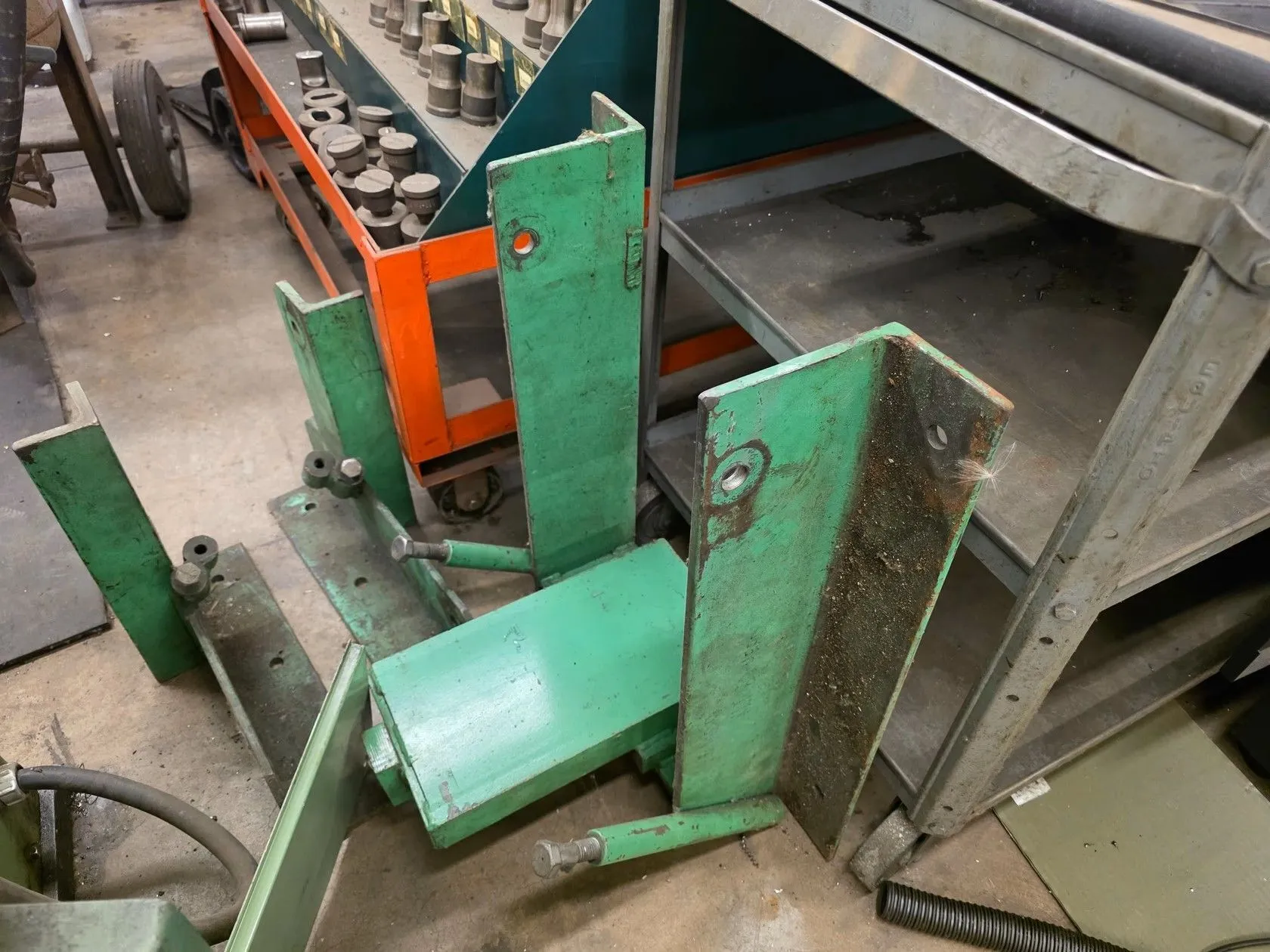

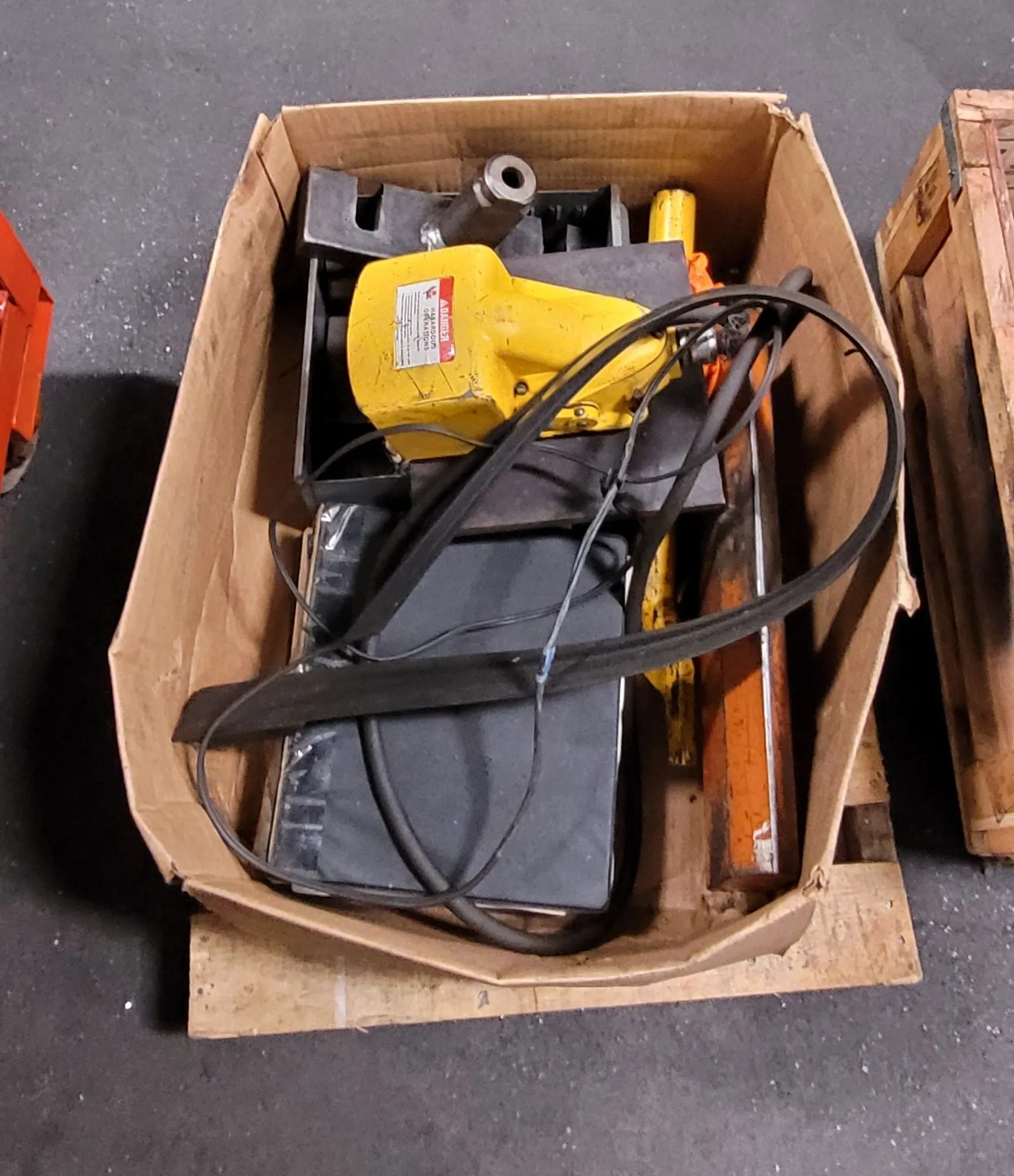

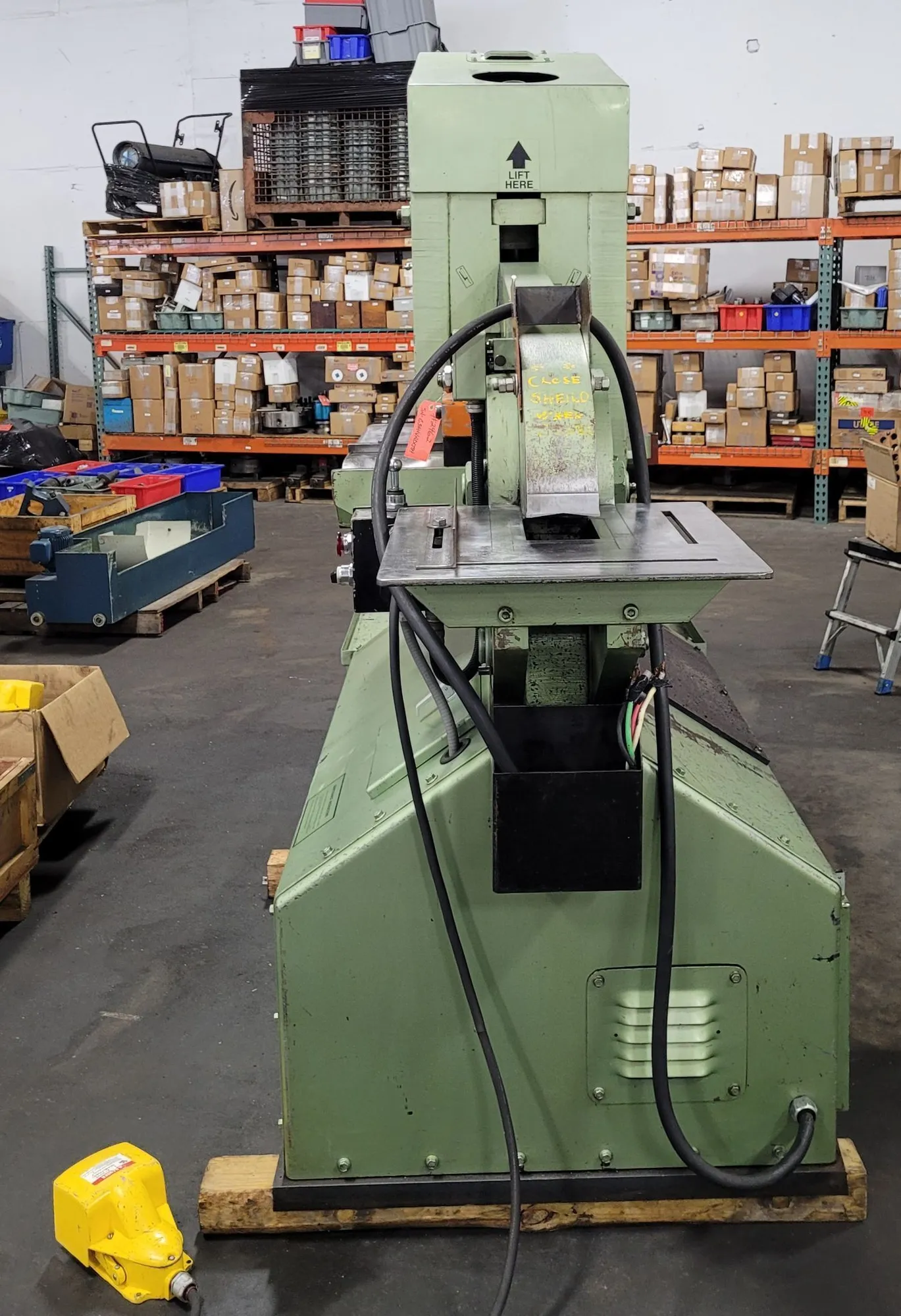

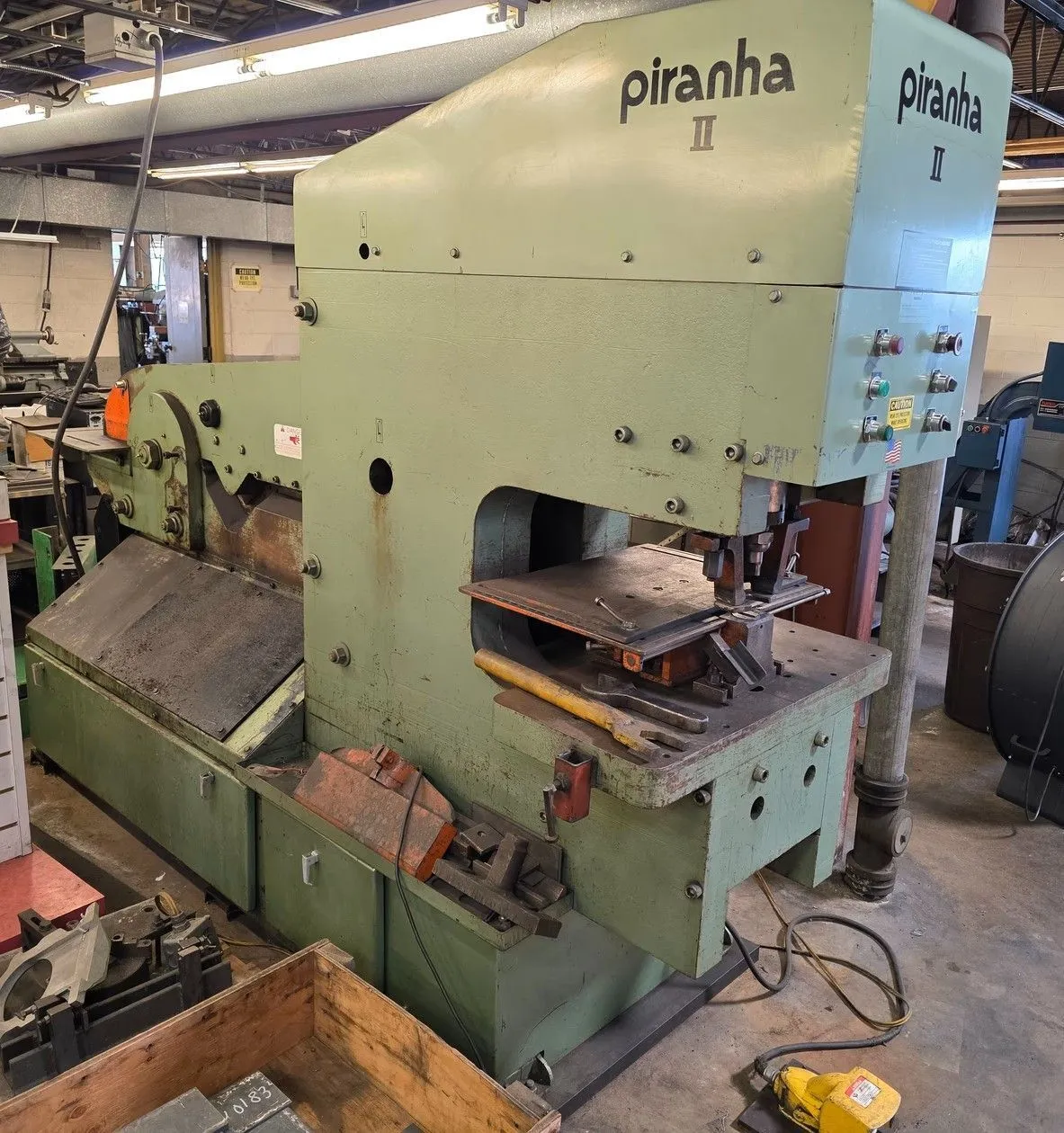

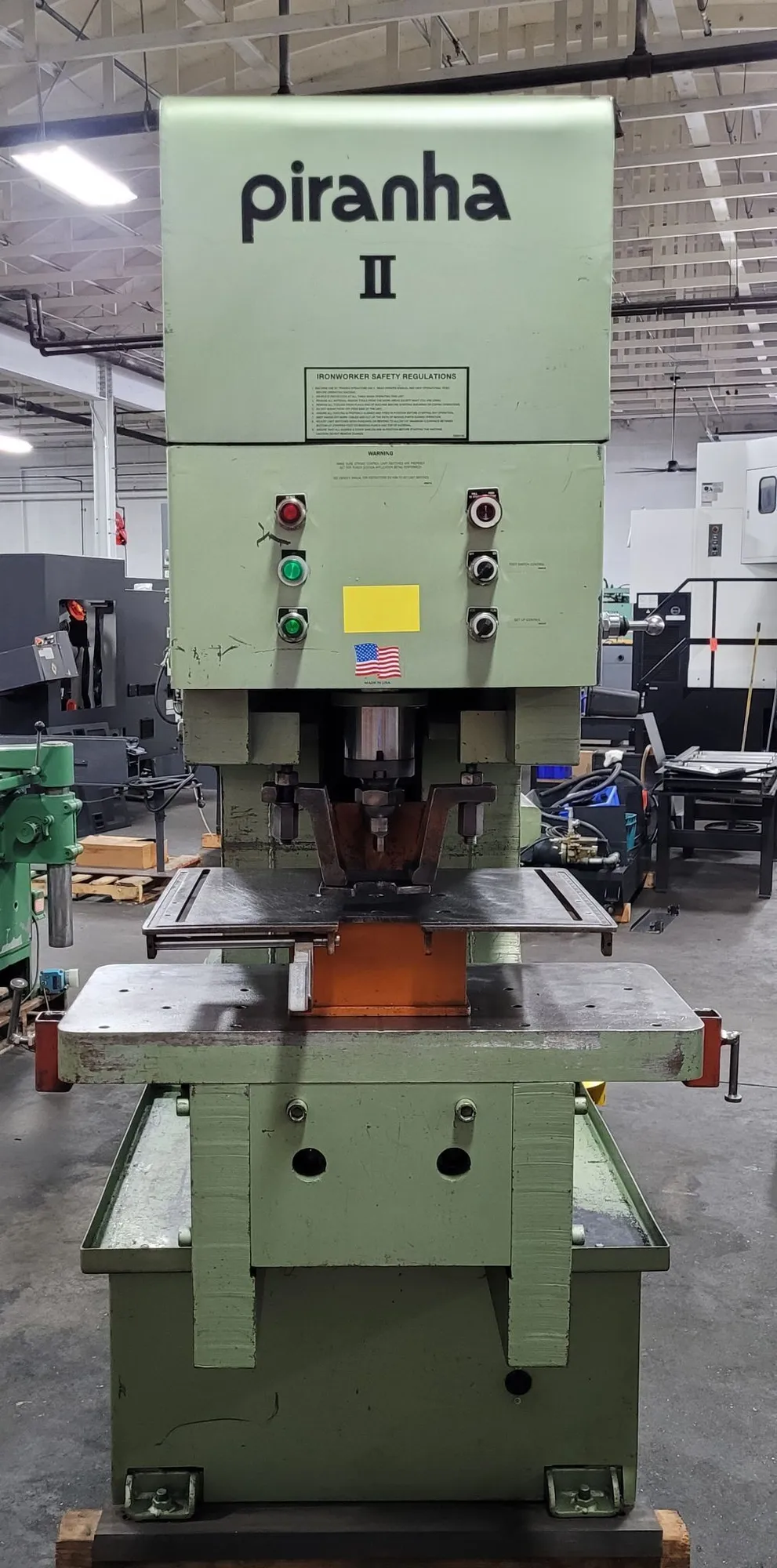

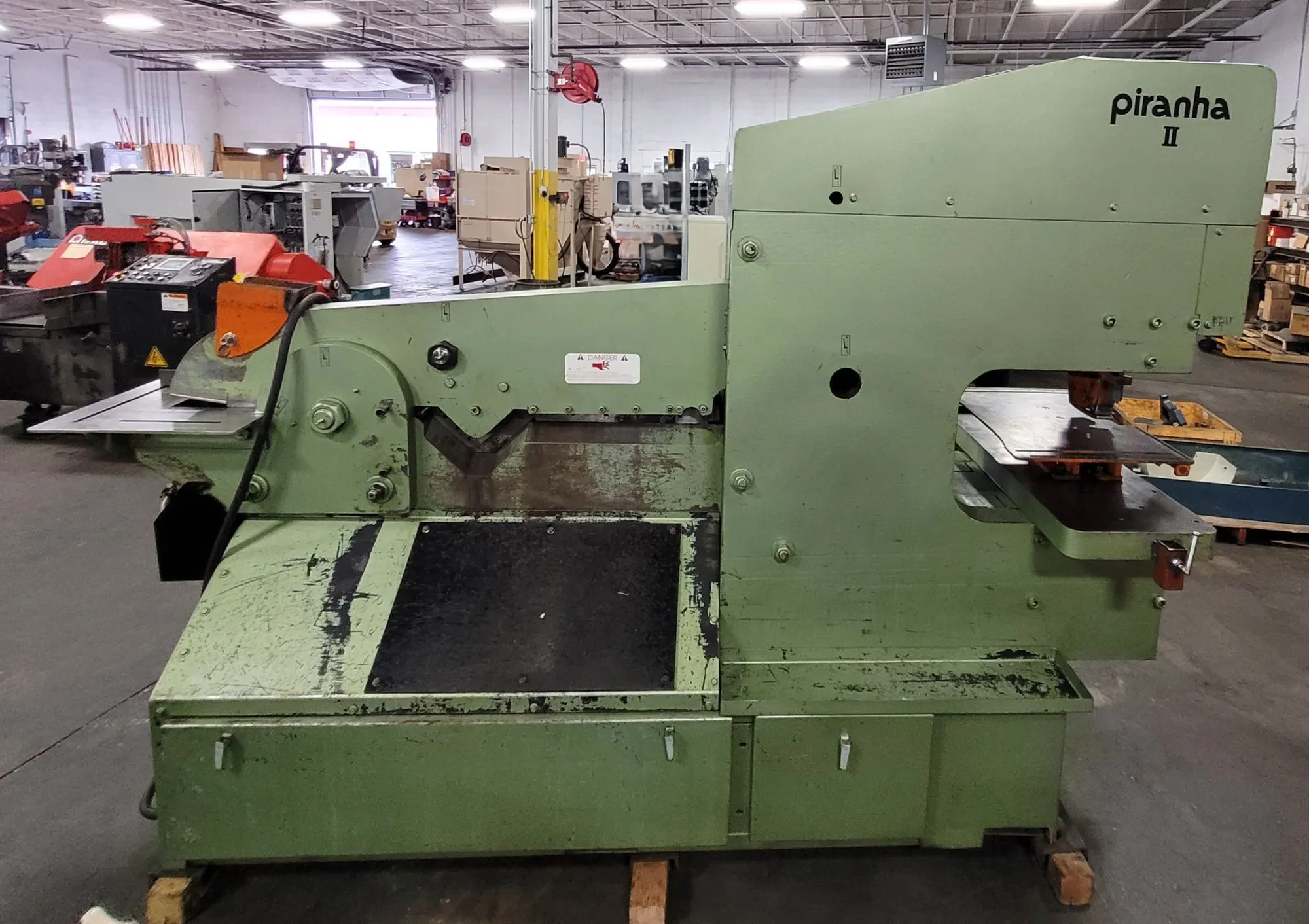

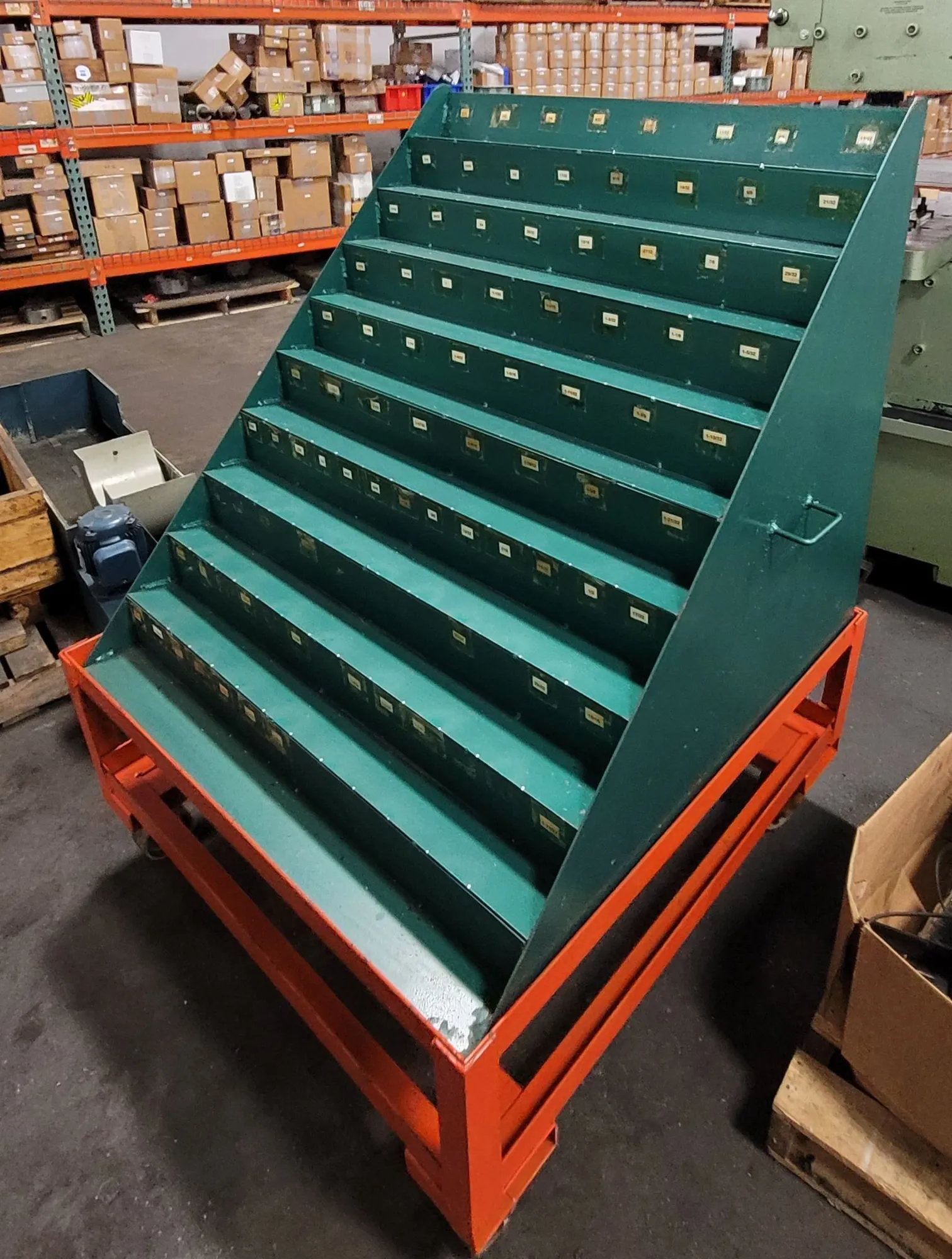

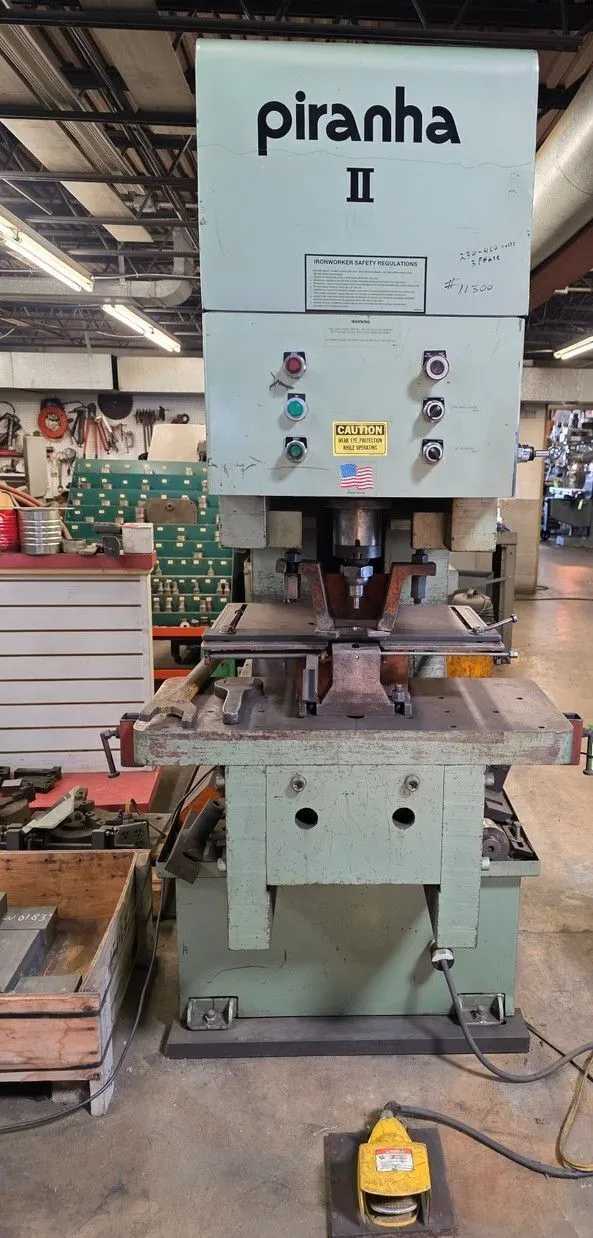

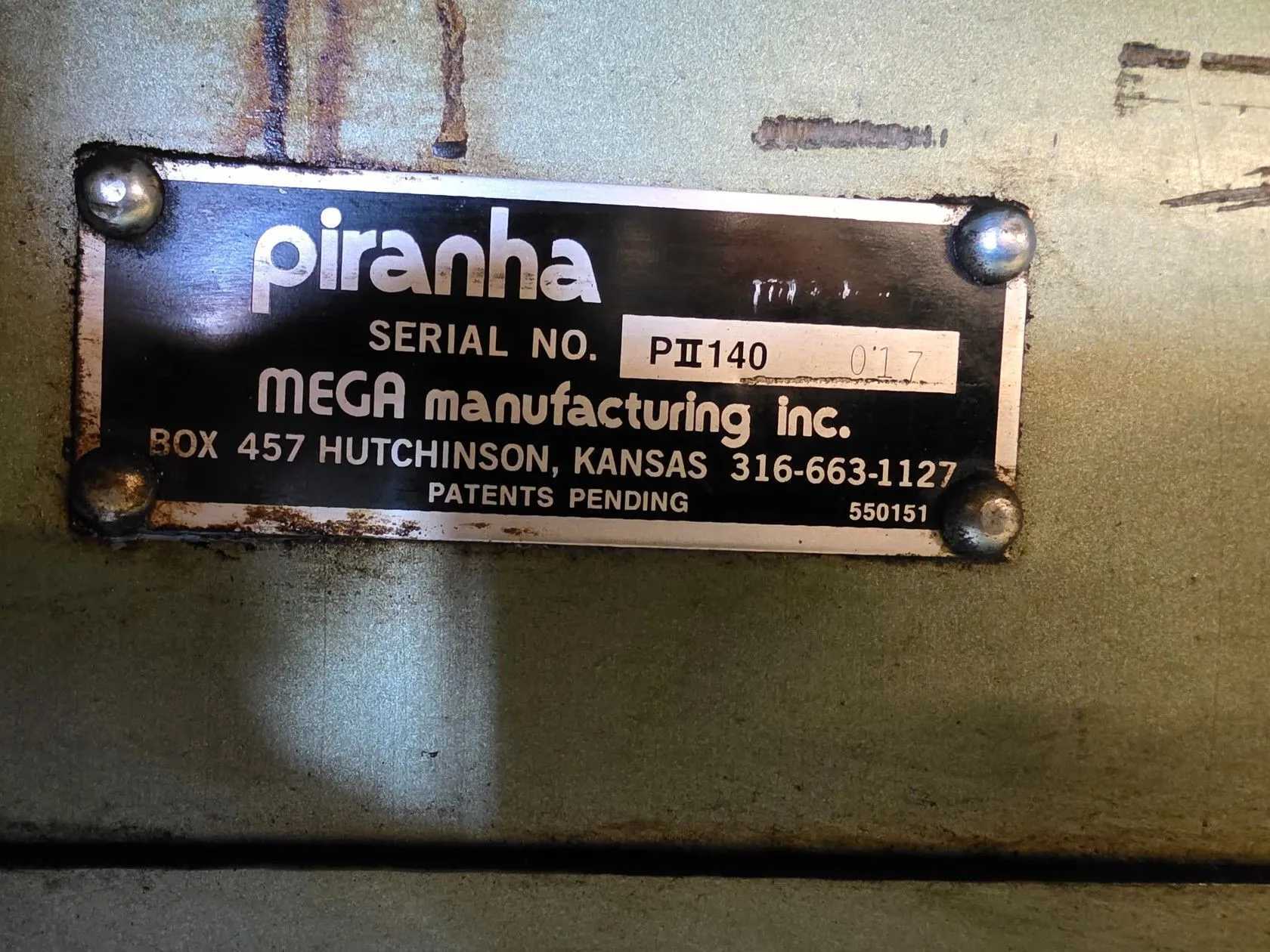

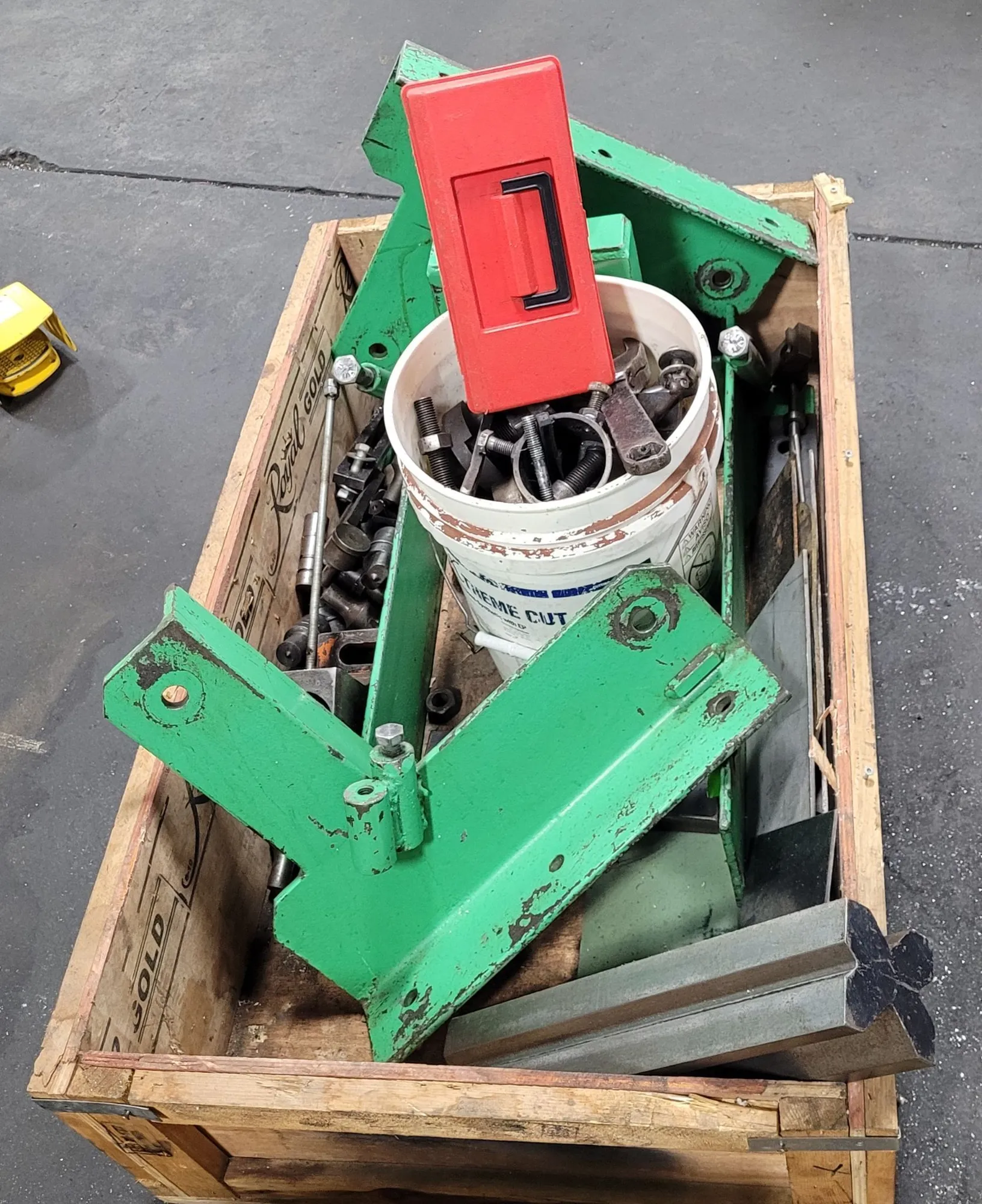

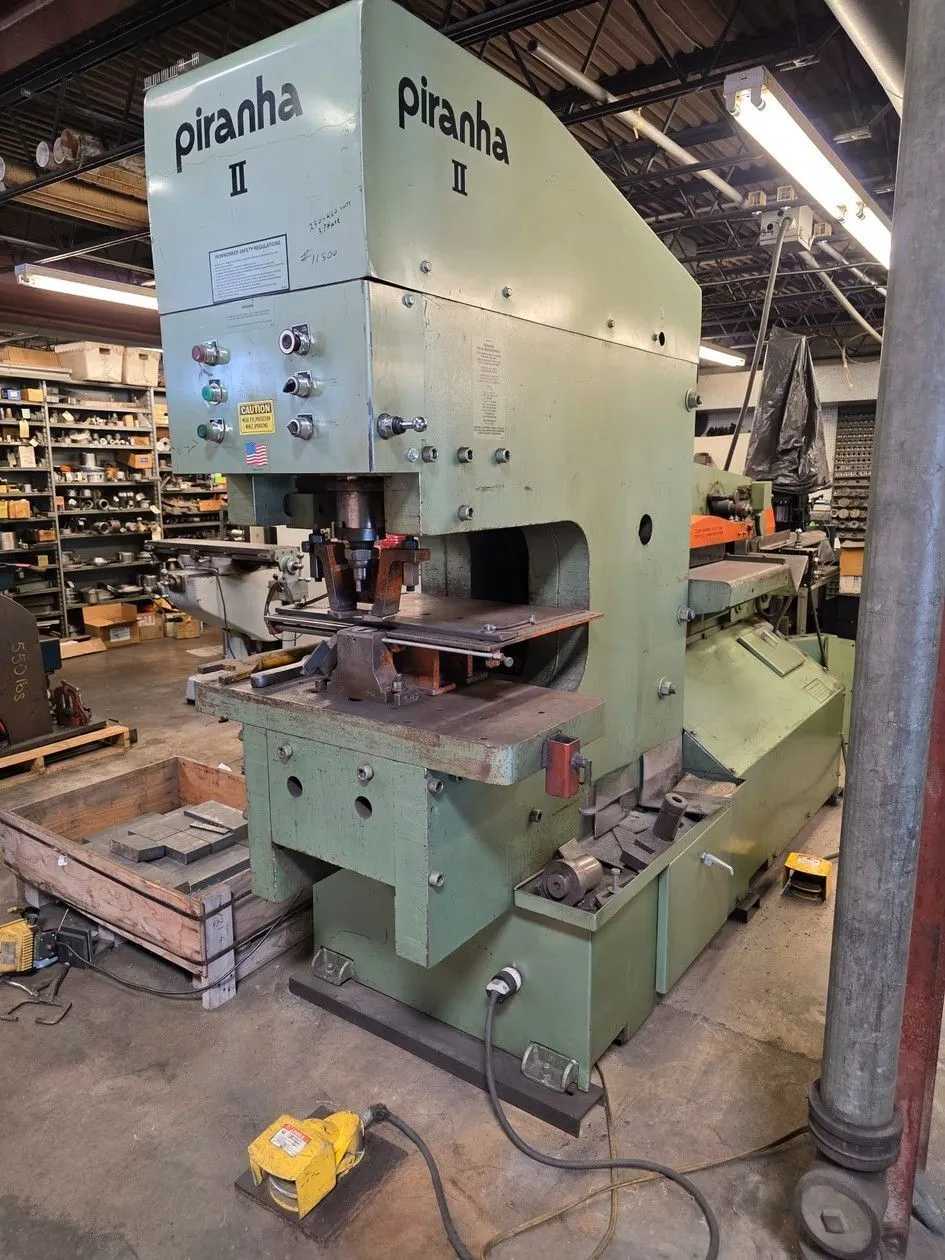

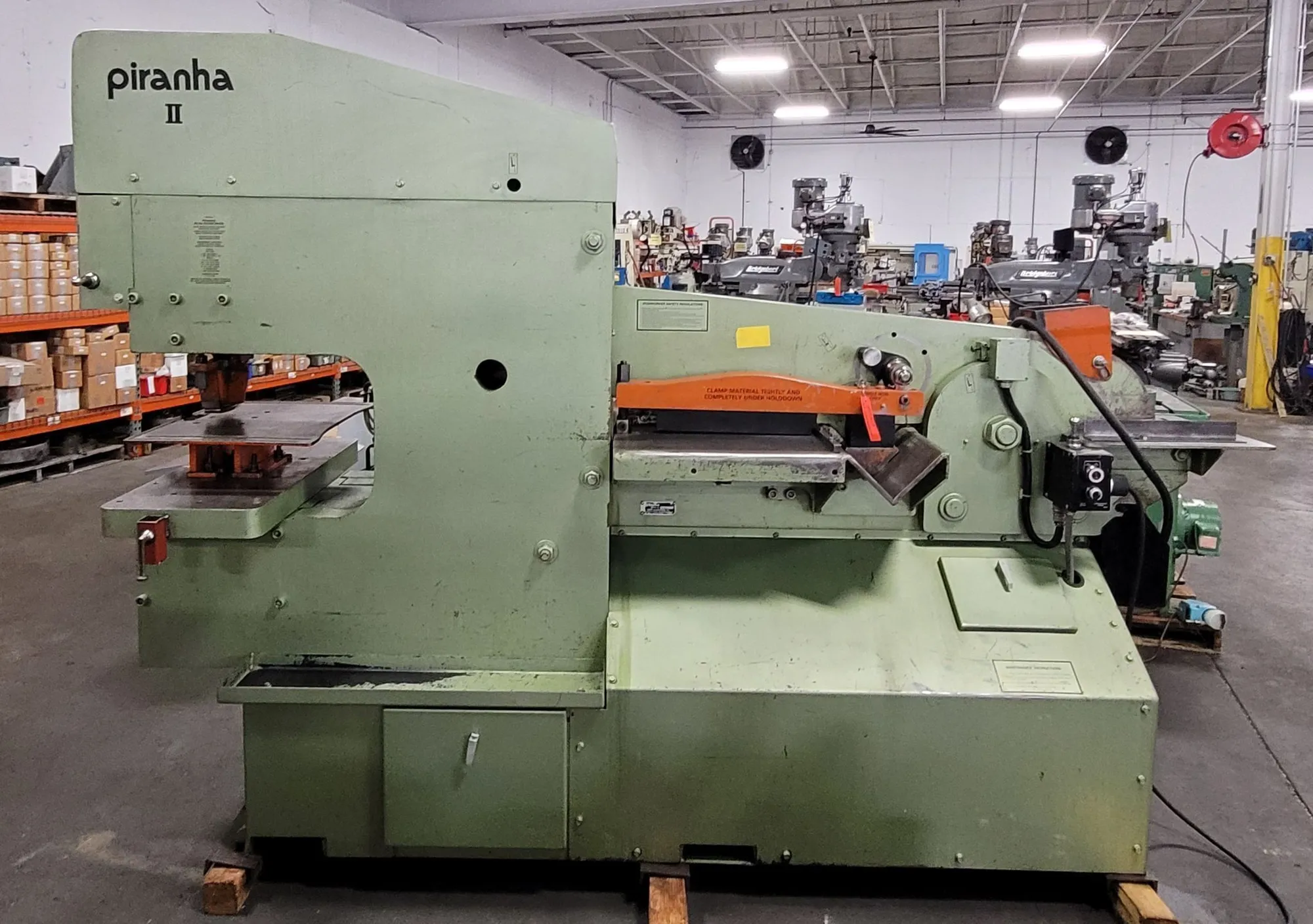

Piranha PII-140 Hydraulic Ironworker 6"X6"X5/8" - Includes Extensive Tooling!

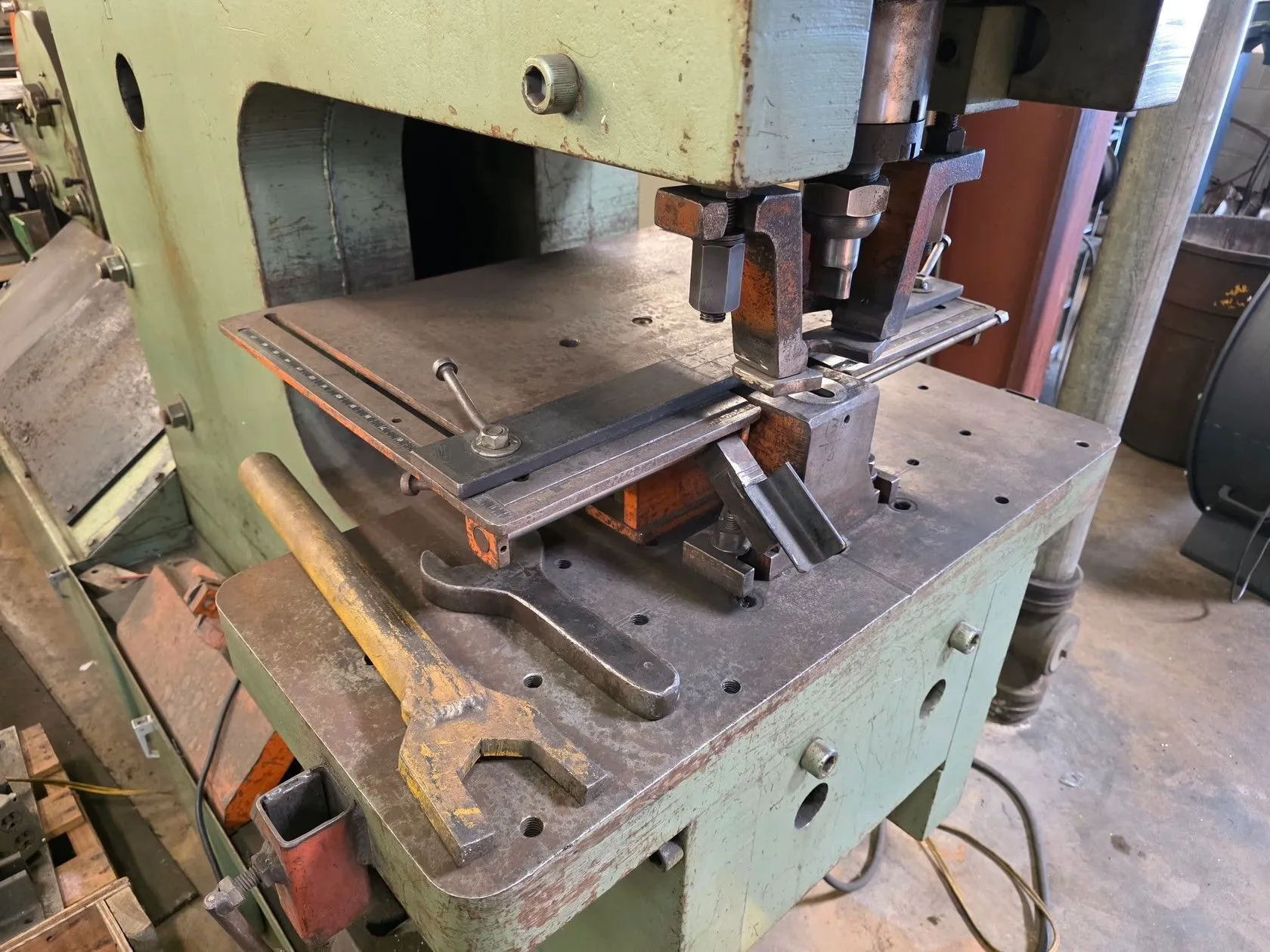

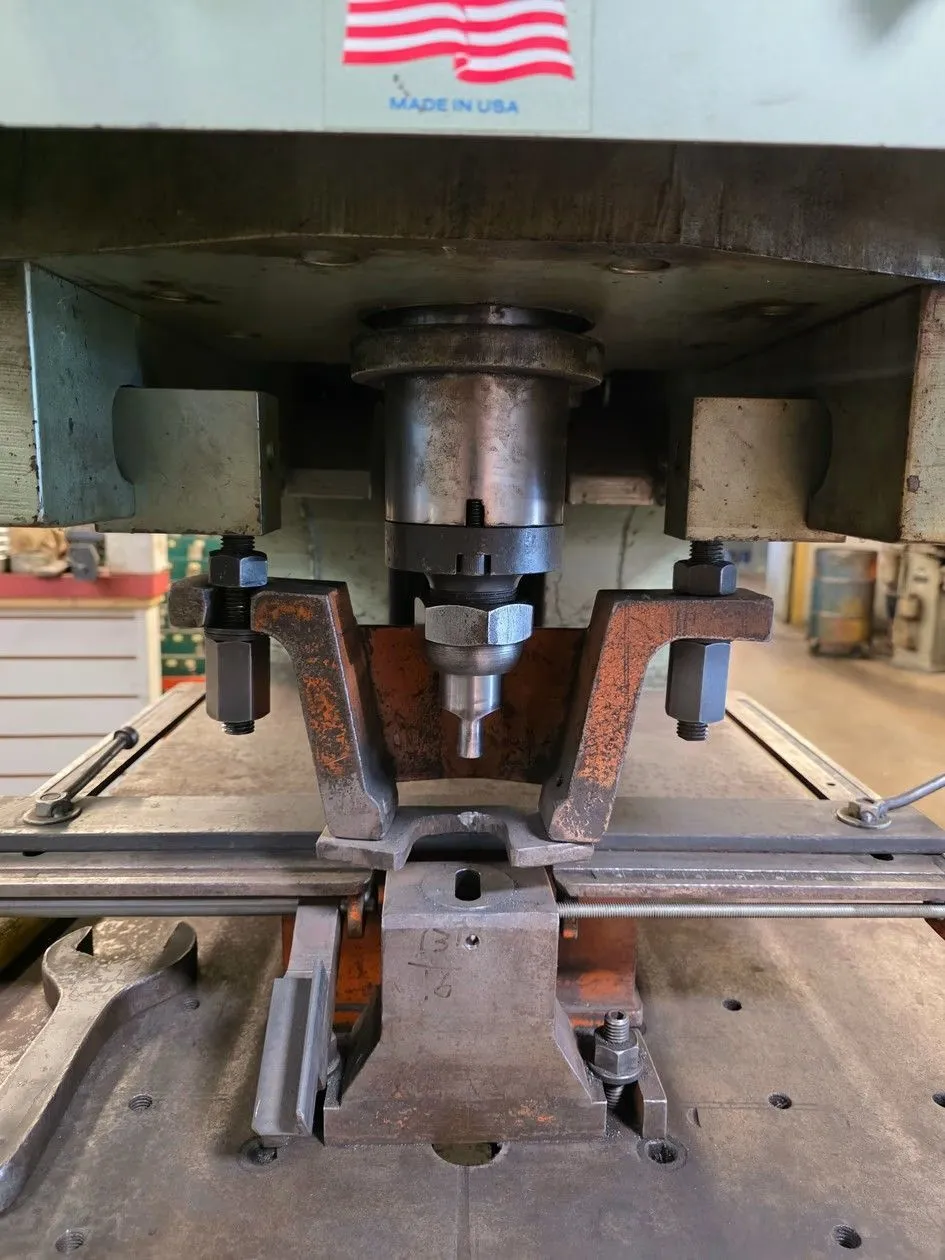

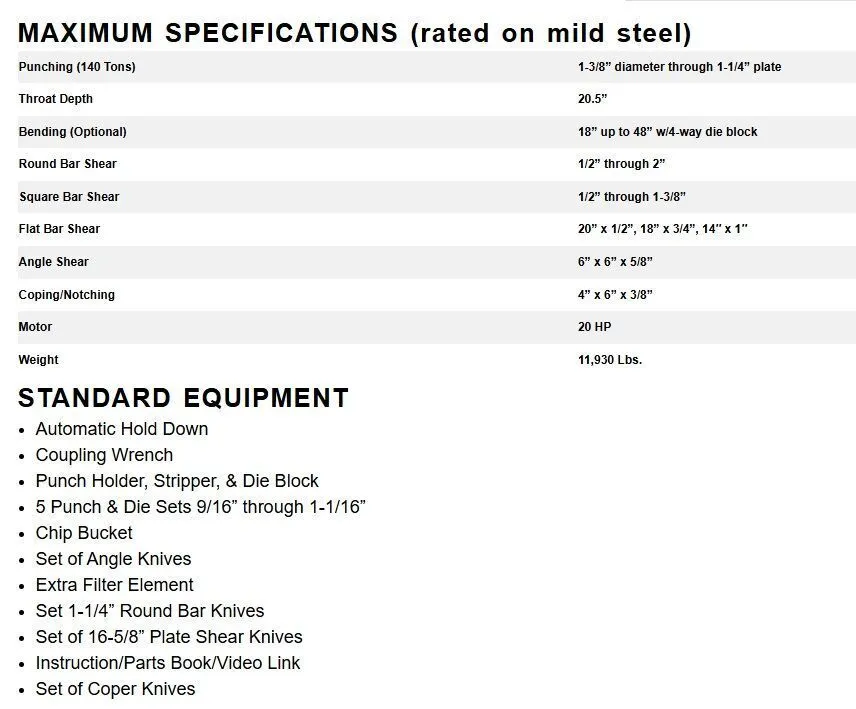

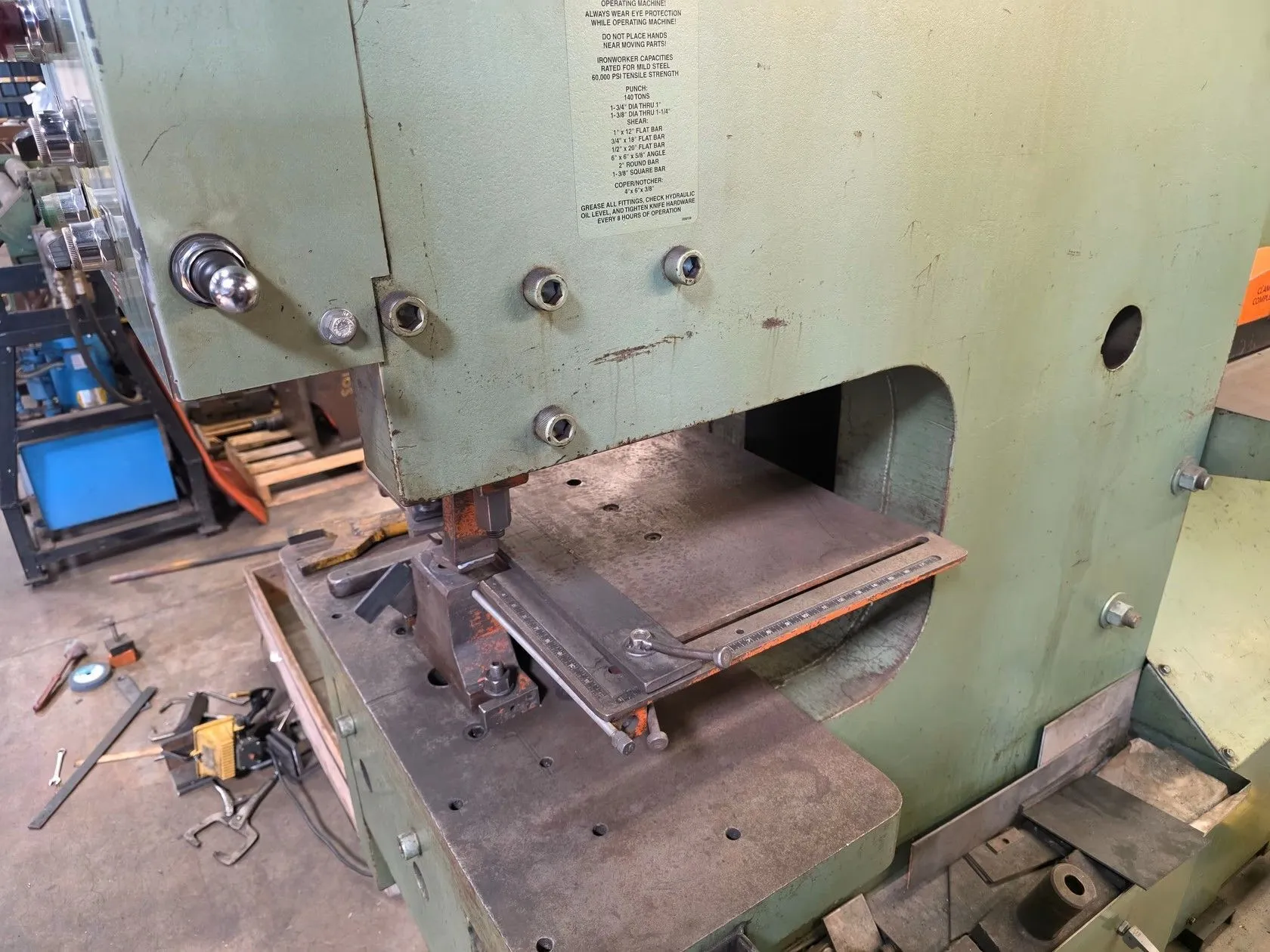

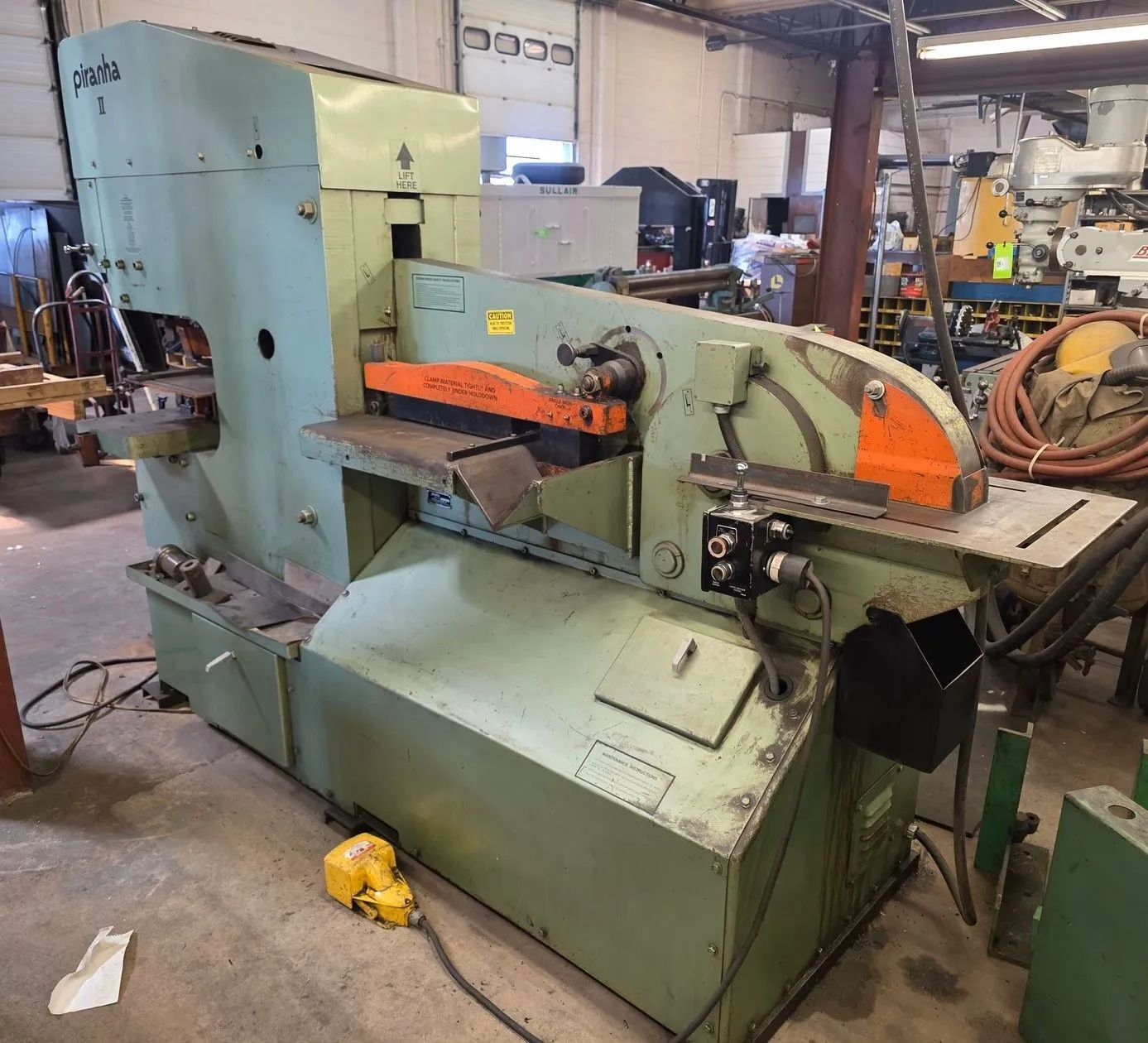

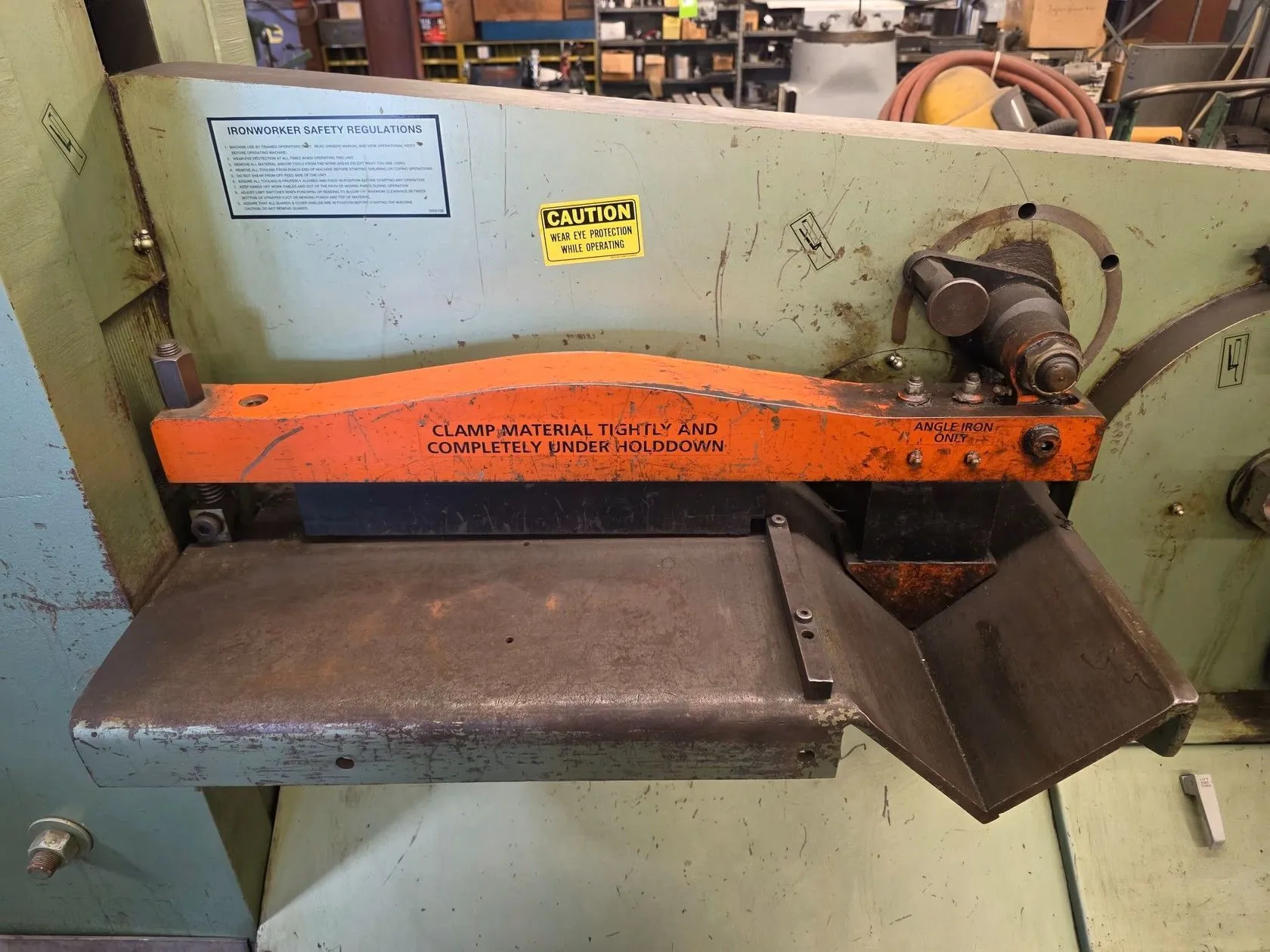

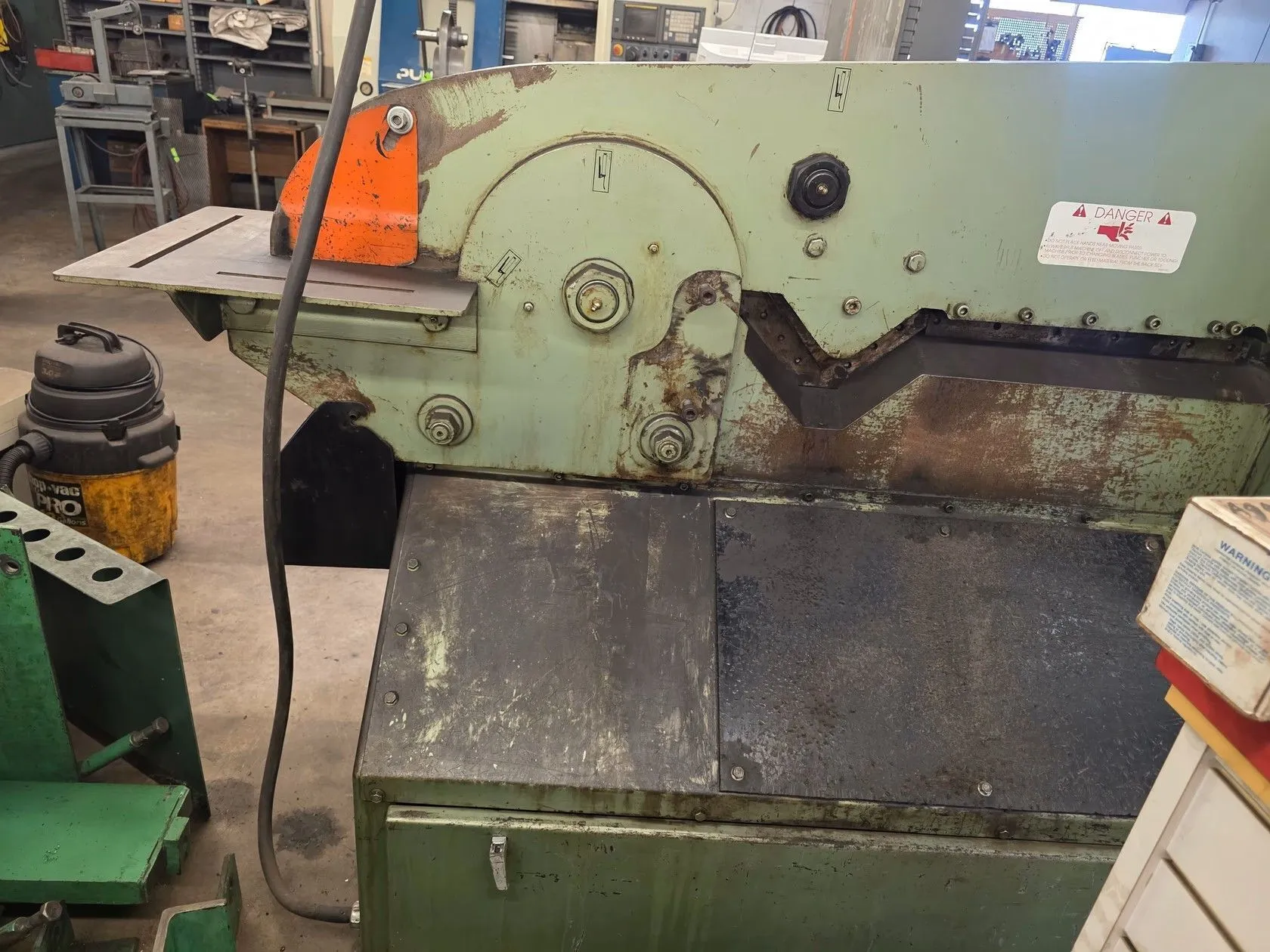

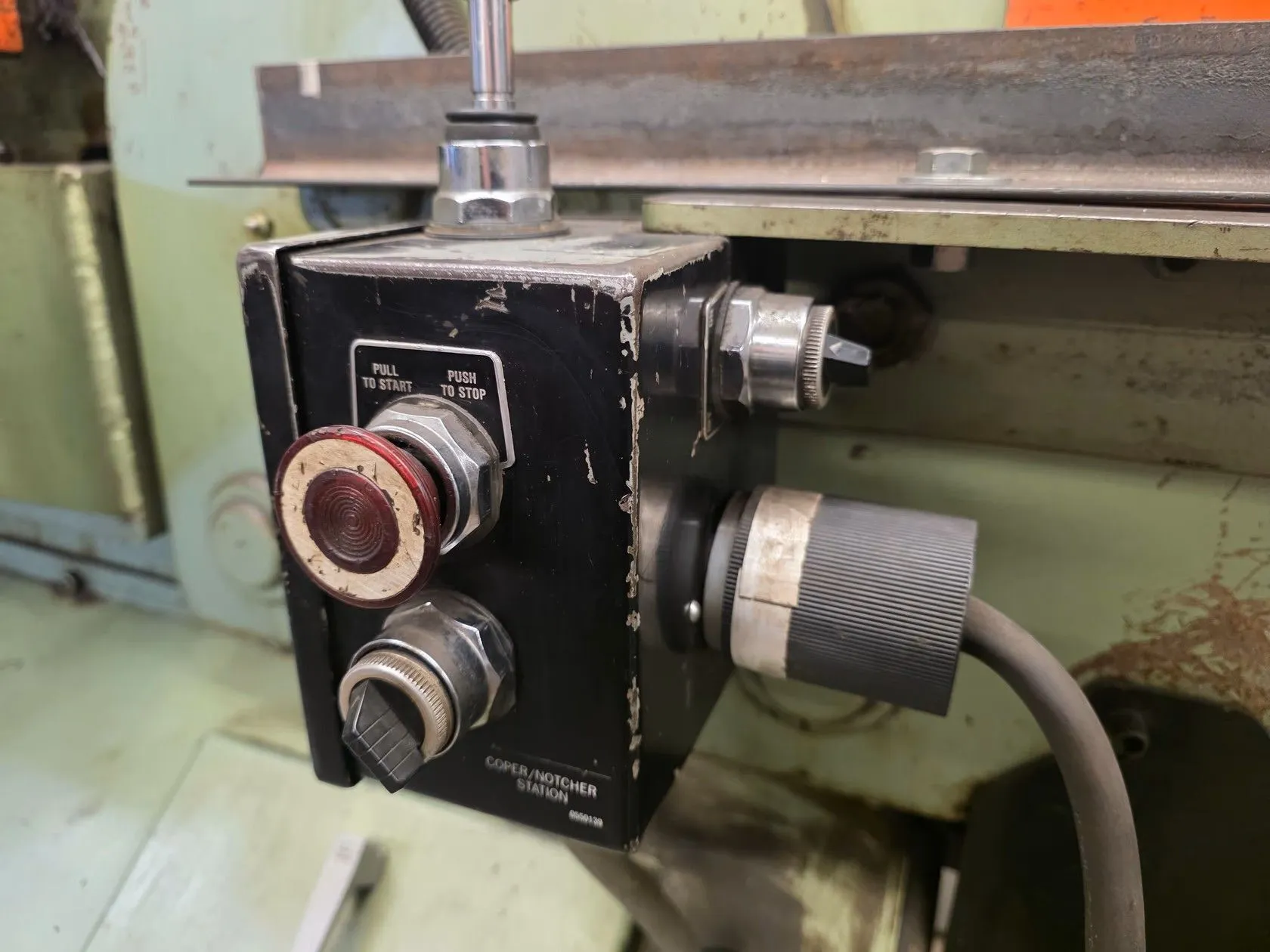

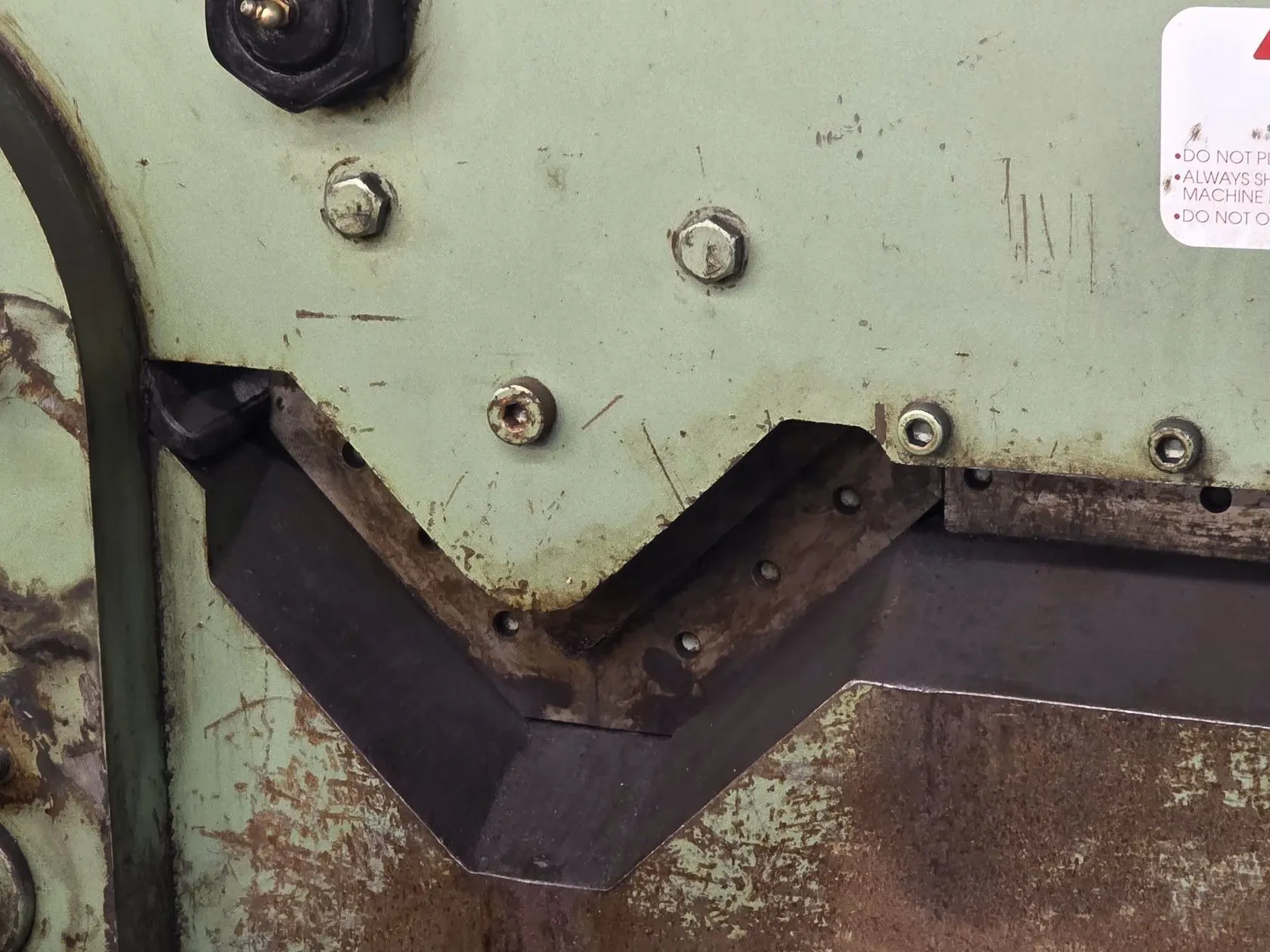

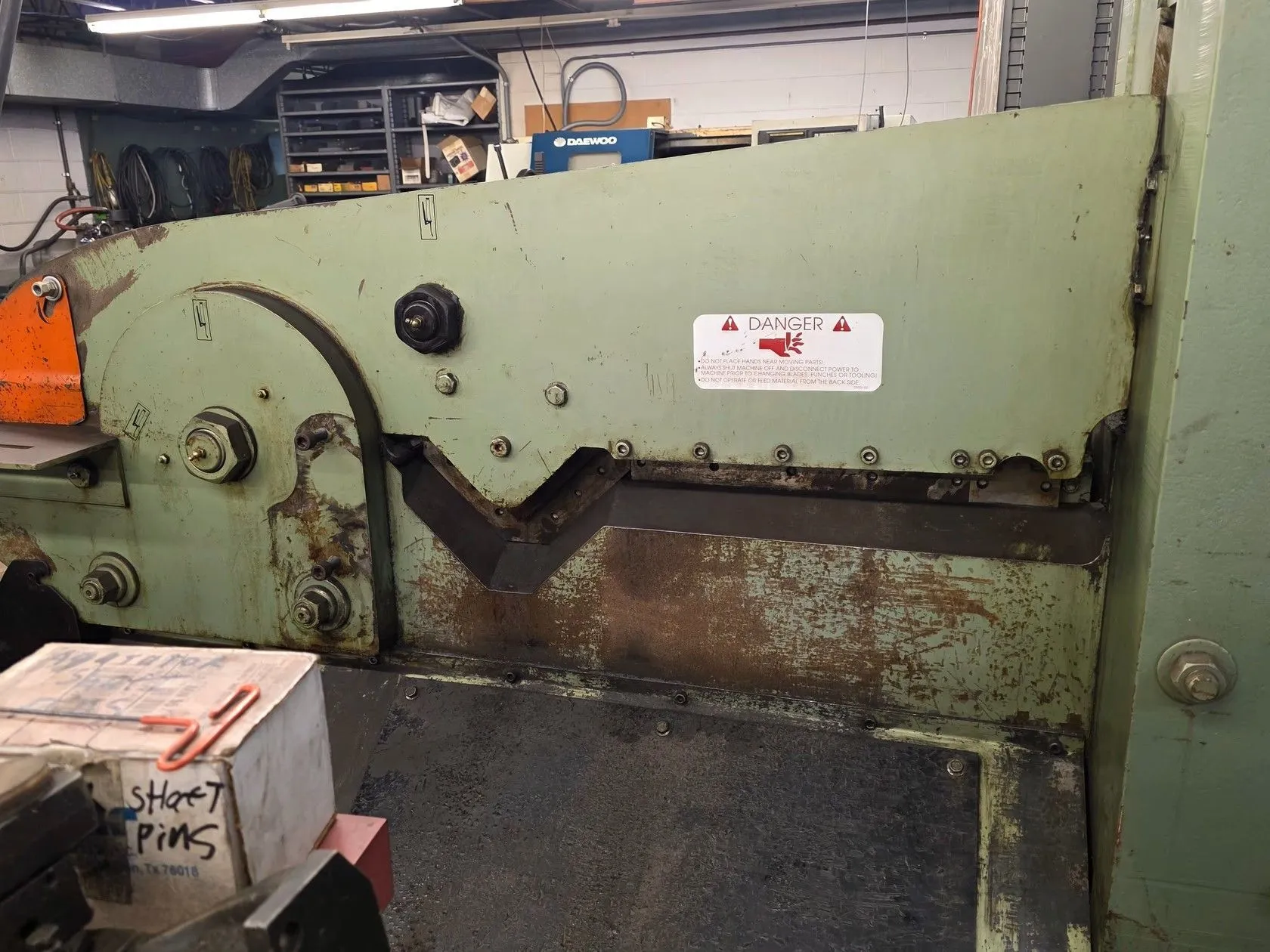

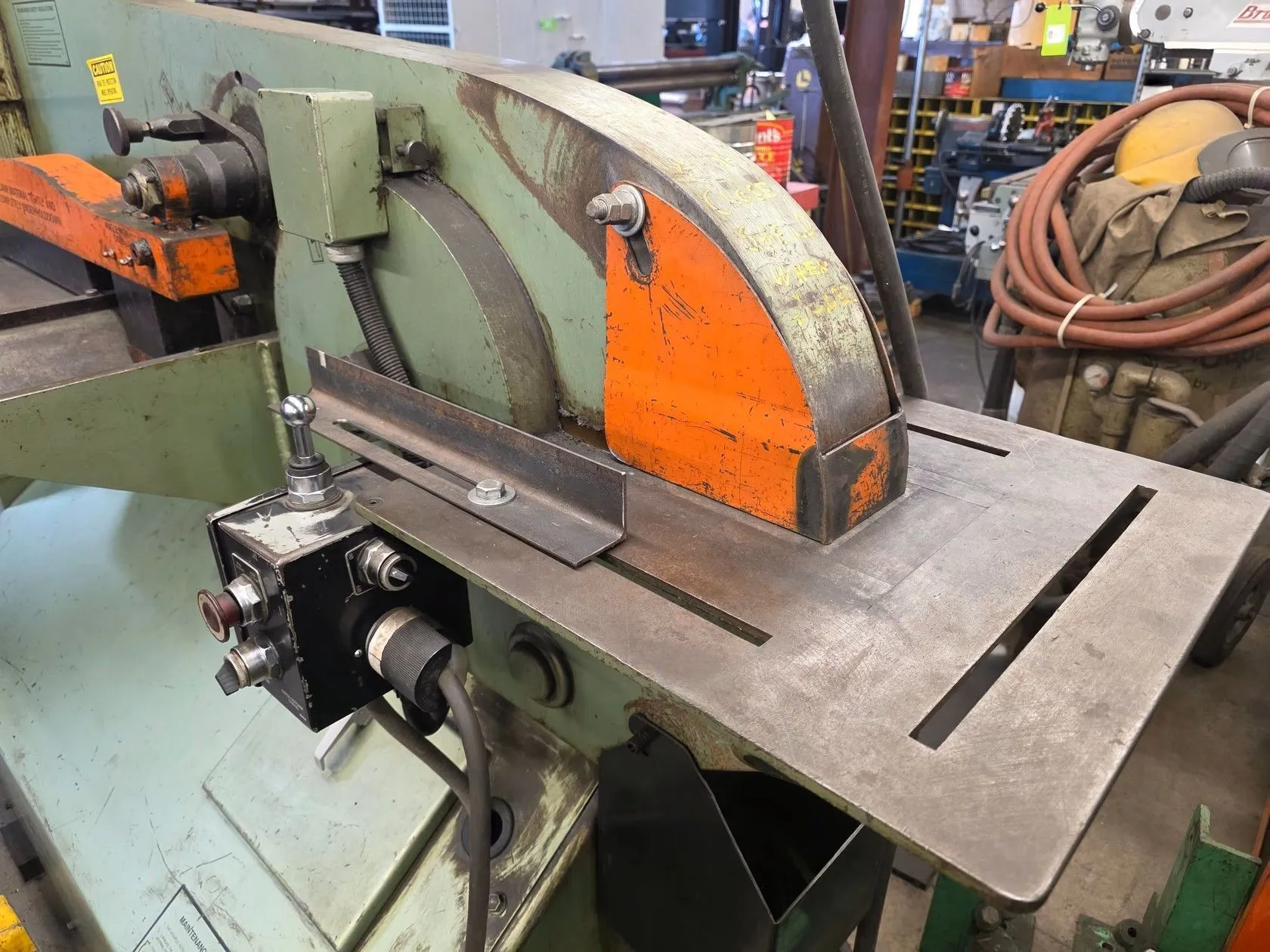

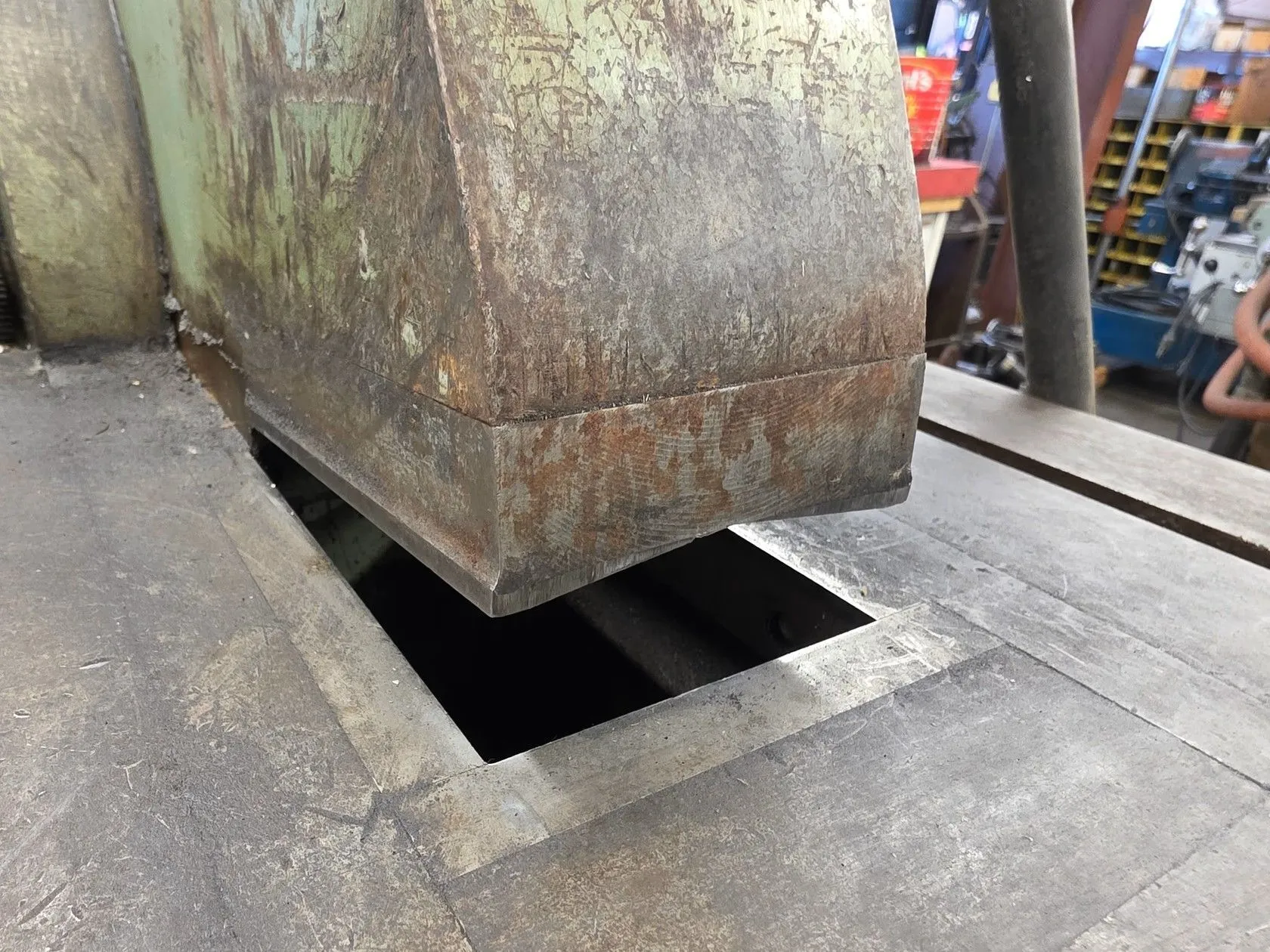

The Piranha PII-140 is a hydraulic ironworker featuring a 140-ton punch capacity capable of punching a 1-3/8" diameter hole through a 1-1/4" plate, or up to 5" through a 5/16" plate. It is equipped with a 20 HP, 220/440V 3-phase motor, delivering a hydraulic flow rate of 15 gallons per minute from a 40-gallon hydraulic capacity. The machine delivers a 7" stroke length with a 14" open height and 7-3/4" closed height, alongside a throat depth of 20.5". Workstations include a platen table measuring 16" front-to-back by 36" right-to-left. Shearing capabilities consist of a flat bar shear rated for 20" x 1/2", 18" x 3/4", or 14" x 1"; an angle shear capacity of 6" x 6" x 5/8" (with technical specifications also noting L1 and L2 angles at 6" and a thickness of 0.625"); a round bar shear capacity spanning 1/2" through 2"; and a square bar shear capacity from 1/2" through 1-3/8". Additionally, the built-in coper-notcher handles material up to 4" x 6" x 3/8". The physical dimensions of the unit are 48" x 120" x 90", and it has an overall weight of 12,000 lbs.
