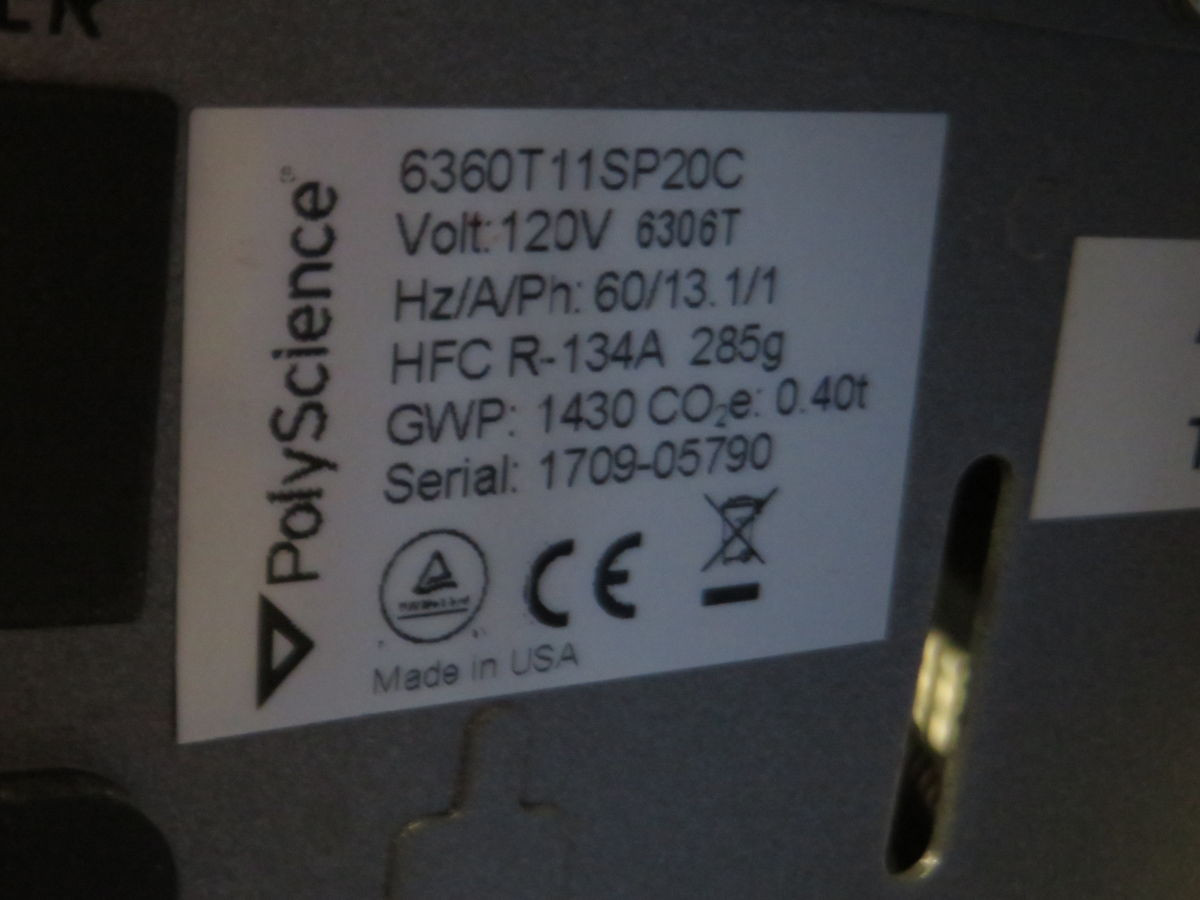

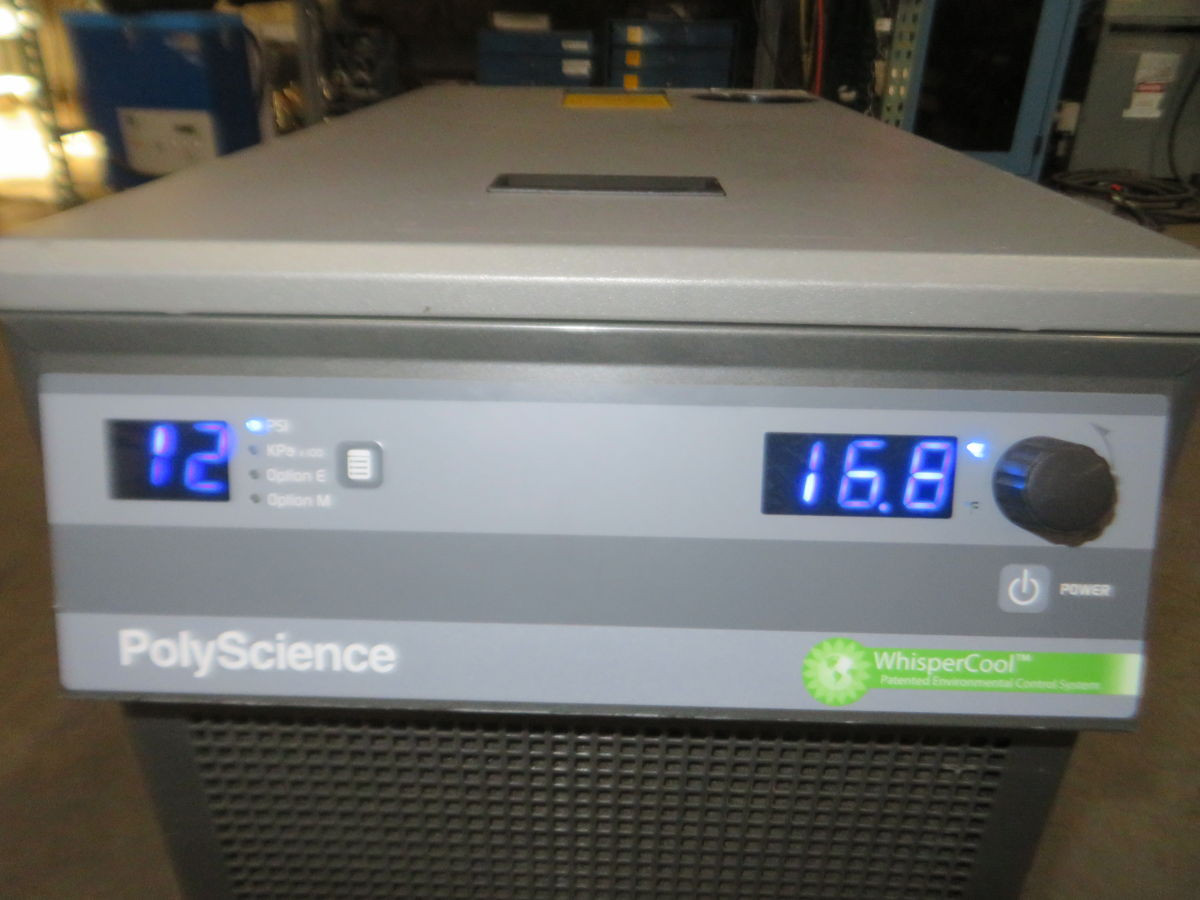

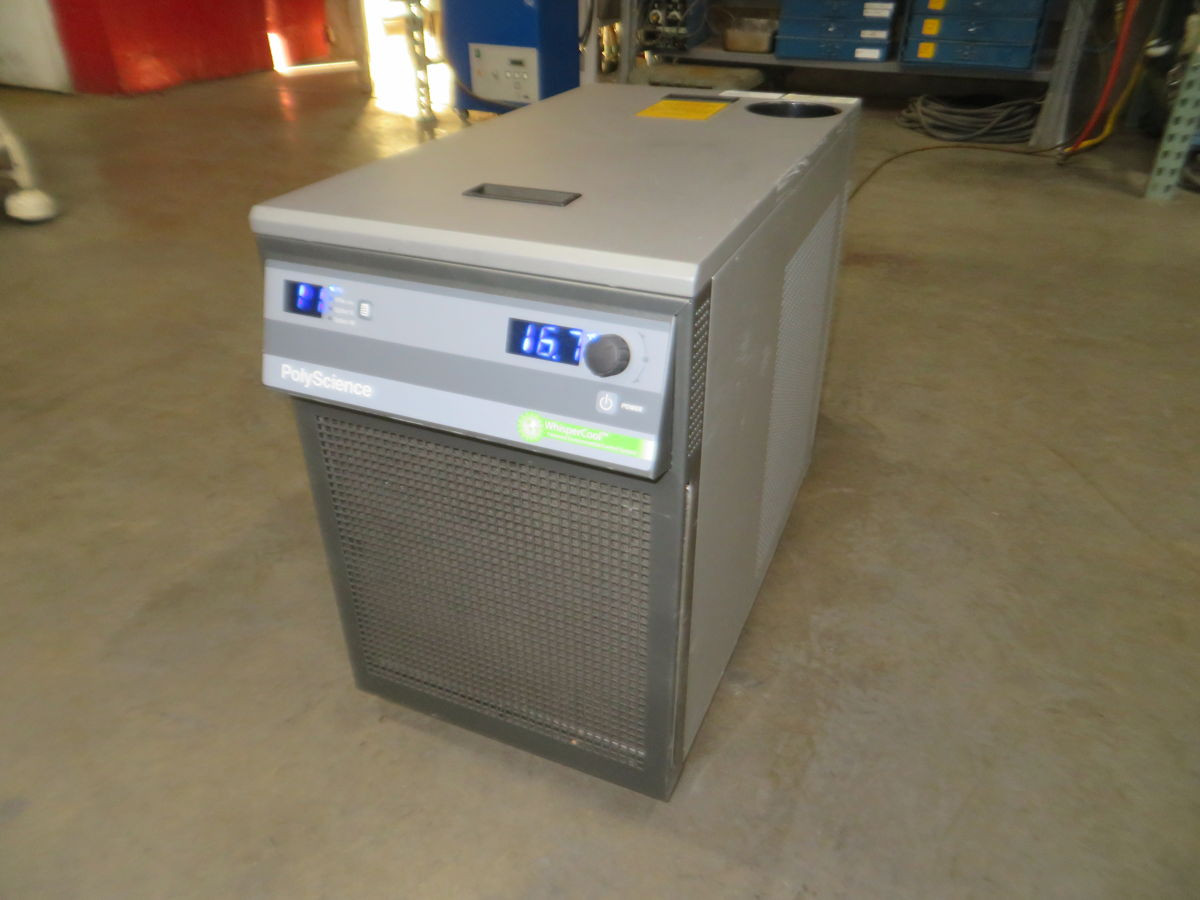

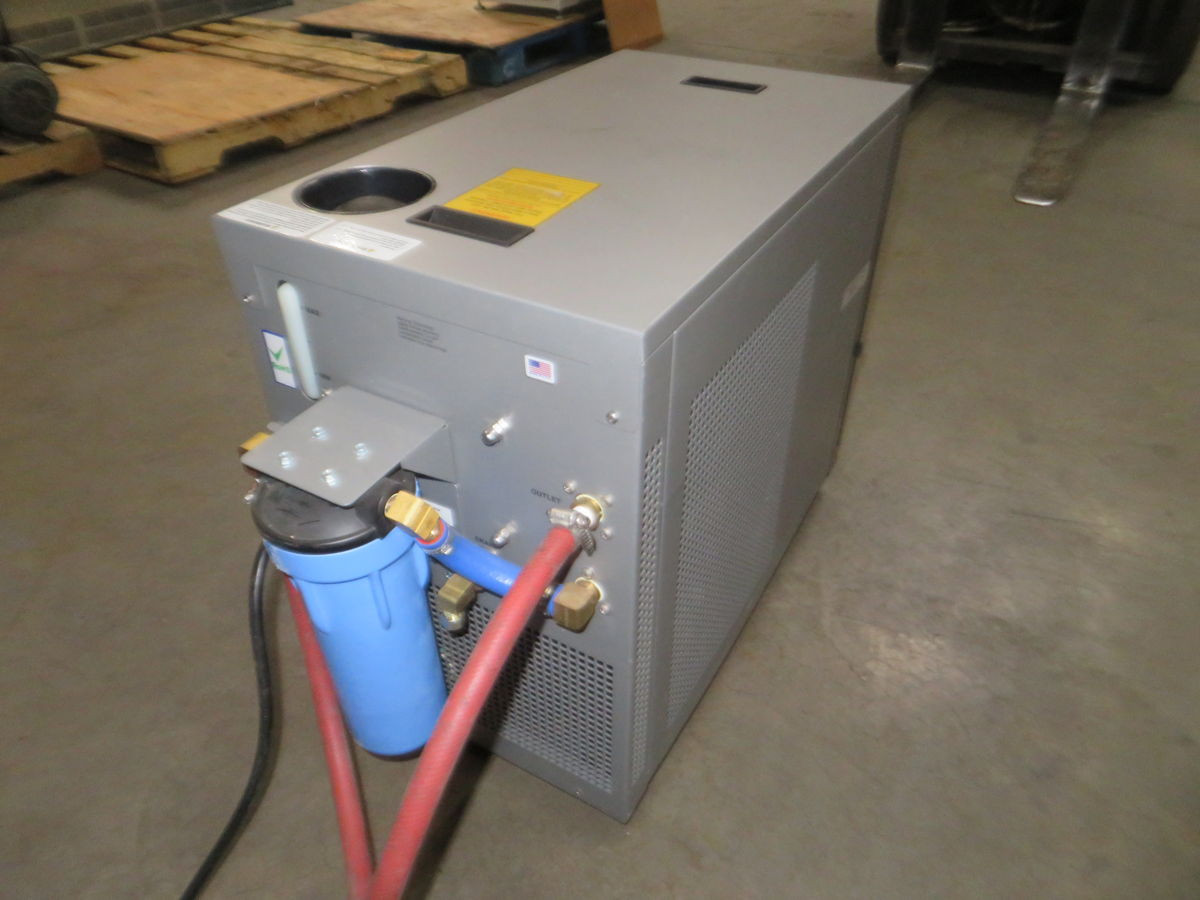

POLY SCIENCE 6360T11SP20C RECIRCULATOR CHILLER

THE POLY SCIENCE 6360T11SP20C IS A RECIRCULATING CHILLER OPERATING ON A 120 VAC, 1-PHASE POWER SUPPLY. THIS MODEL PROVIDES A COOLING CAPACITY OF 3600 WATTS AT 20°C, MAINTAINING A TEMPERATURE RANGE FROM -20°C TO +30°C. IT INCORPORATES A POSITIVE DISPLACEMENT PUMP THAT DELIVERS A MAXIMUM FLOW RATE OF 15.1 LITERS PER MINUTE (4.0 GPM) AND A MAXIMUM PRESSURE OF 62.1 KPA (9.0 PSI). THE UNIT IS EQUIPPED WITH A 6.9-LITER (1.8-GALLON) RESERVOIR AND UTILIZES R-134A REFRIGERANT. ITS PHYSICAL DIMENSIONS ARE APPROXIMATELY 60.2 CM (23.7 IN) IN HEIGHT, 36.6 CM (14.4 IN) IN WIDTH, AND 60.2 CM (23.7 IN) IN DEPTH, WITH AN APPROXIMATE WEIGHT OF 72.6 KG (160 LBS).
