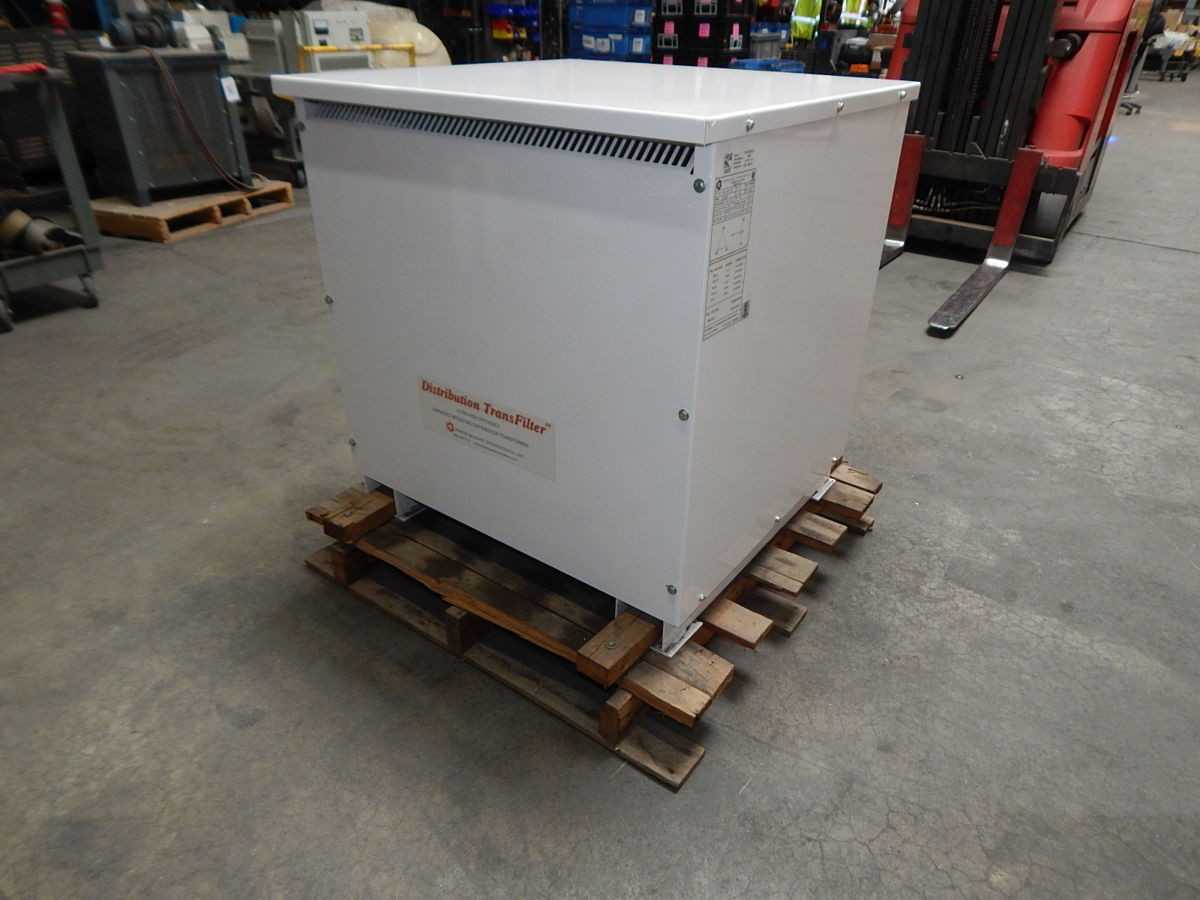

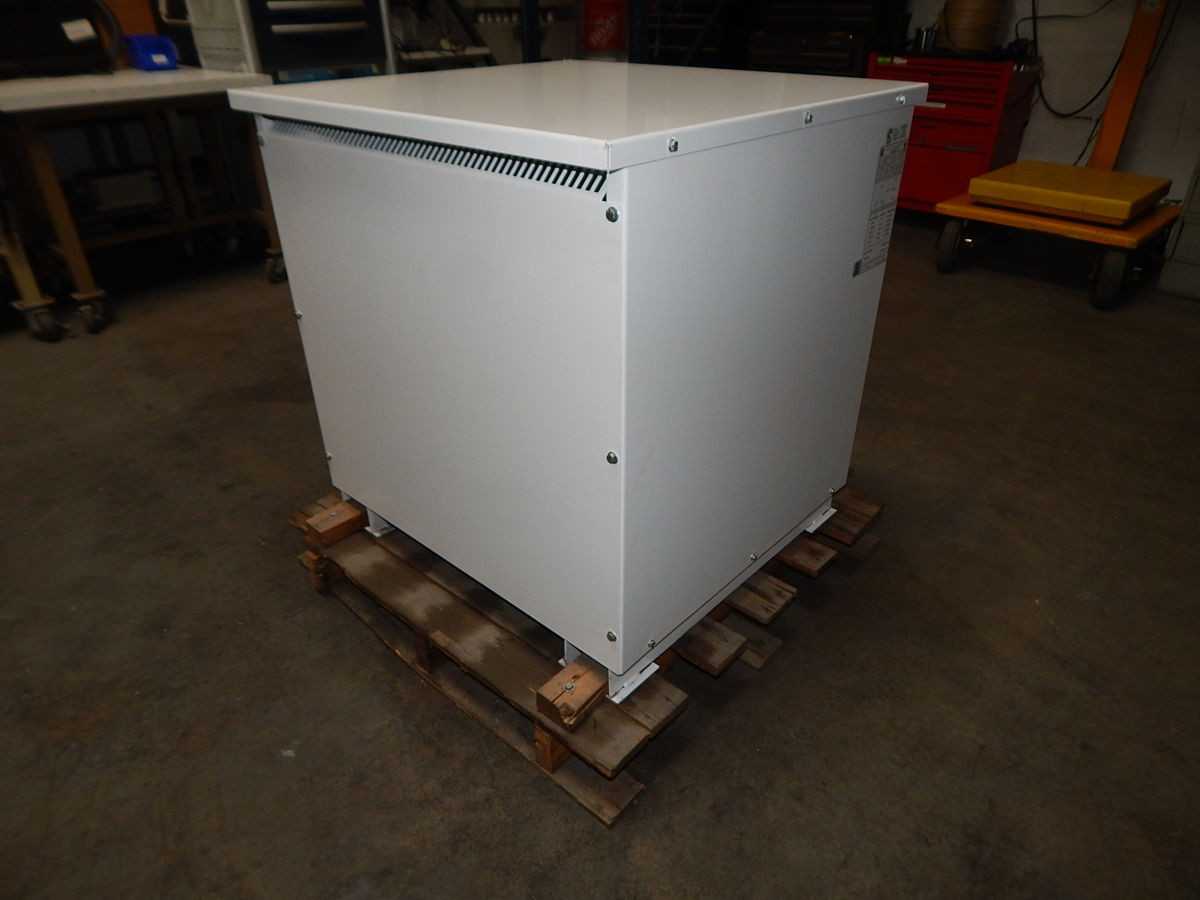

Power Quality International DY30-60-075-480:120/208-150-CU-Z1 Dist. Transformer, 75 kVA, 3PH, 60Hz
Aucto ID: #98540
Ends in:
30fbc0c2-5211-45ec-8b8f-76307a6ae32d
Location: El Paso, Texas, United States
Logistics:
Rigging:
Not Required
Loading:
Included
Shipping:
Buyer
orAucto Delivery! Get a Quote!buy now
Buy Now: Submit an offer or purchase immediately!
FAQsVerified Seller - Since 2026
3106Product Description

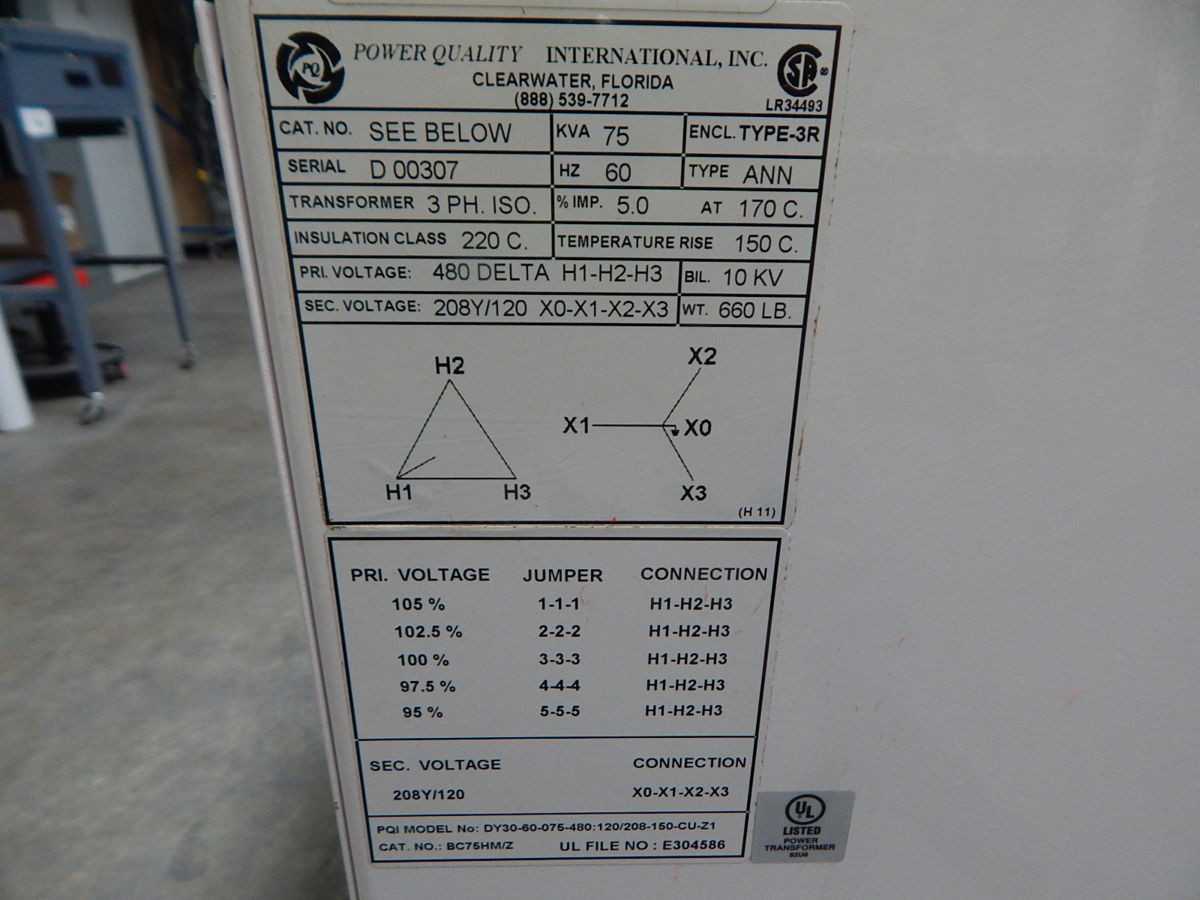

The Power Quality International model DY30-60-075-480:120/208-150-CU-Z1 is a 75 kVA, 3-phase, 60 Hz harmonic mitigating distribution transformer. It features a primary voltage of 480V and a secondary voltage of 208Y/120V. This unit is constructed with copper windings and designed for a 150°C temperature rise, while featuring ultra-high efficiency operation. The DY30 designation indicates a delta primary to wye secondary winding configuration, optimized for harmonic current cancellation.
Core Specifications
Model: DY30-60-075-480:120/208-150-CU-Z1
Weight: 660 lb
Condition: Factory New
- New in original packaging with all associated accessories, componentsCategory:
PLANT & FACILITY > ELECTRICAL EQUIPMENT > POWER TRANSFORMERS > DRY TRANSFORMERSLogistics
Rigging Responsibility:
Not Required
Loading Responsibility:
Included
Shipping Responsibility:
Buyer
