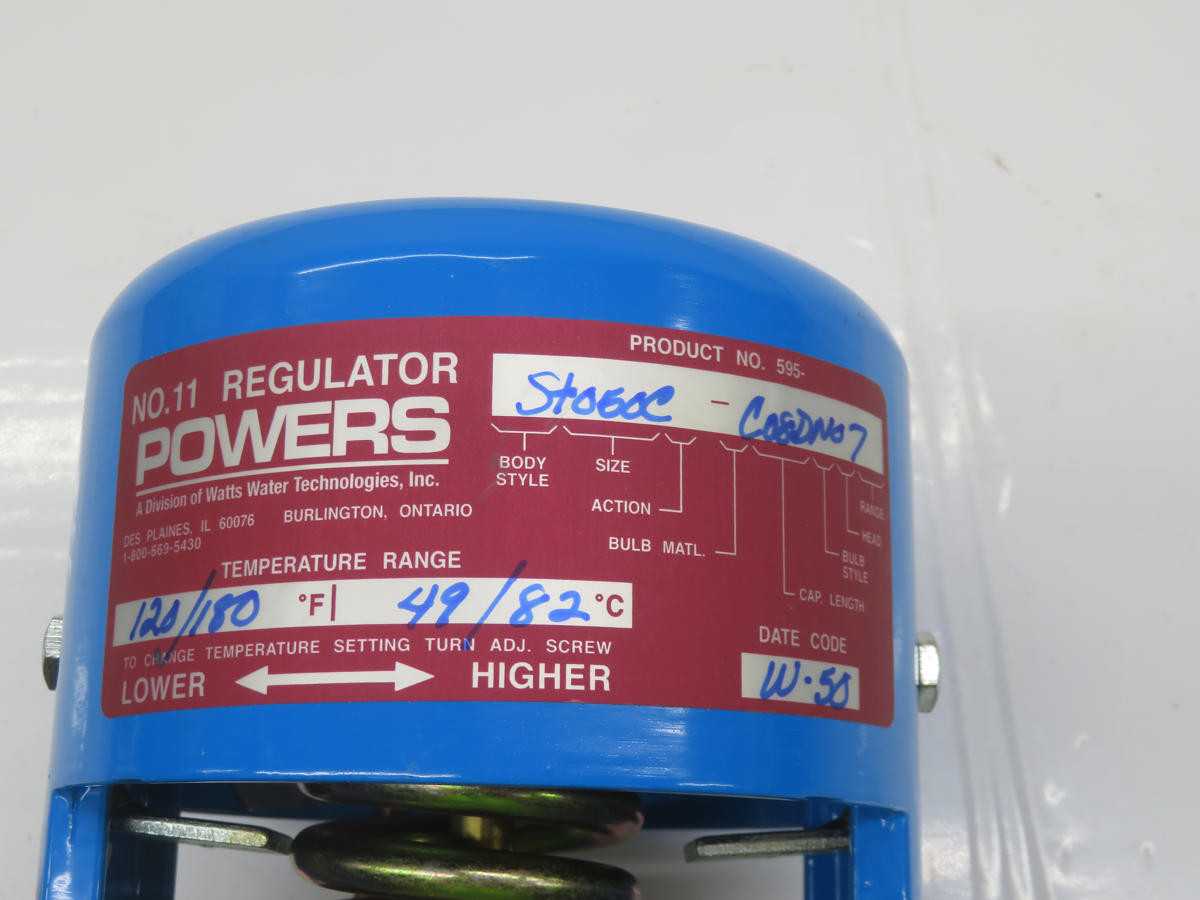

POWERS 595-ST050C-C08DN07 PRESSURE REGULATOR, THERMOSTATIC, 49-82C TEMP, 0.5IN NPS, 8.6BAR PRESS

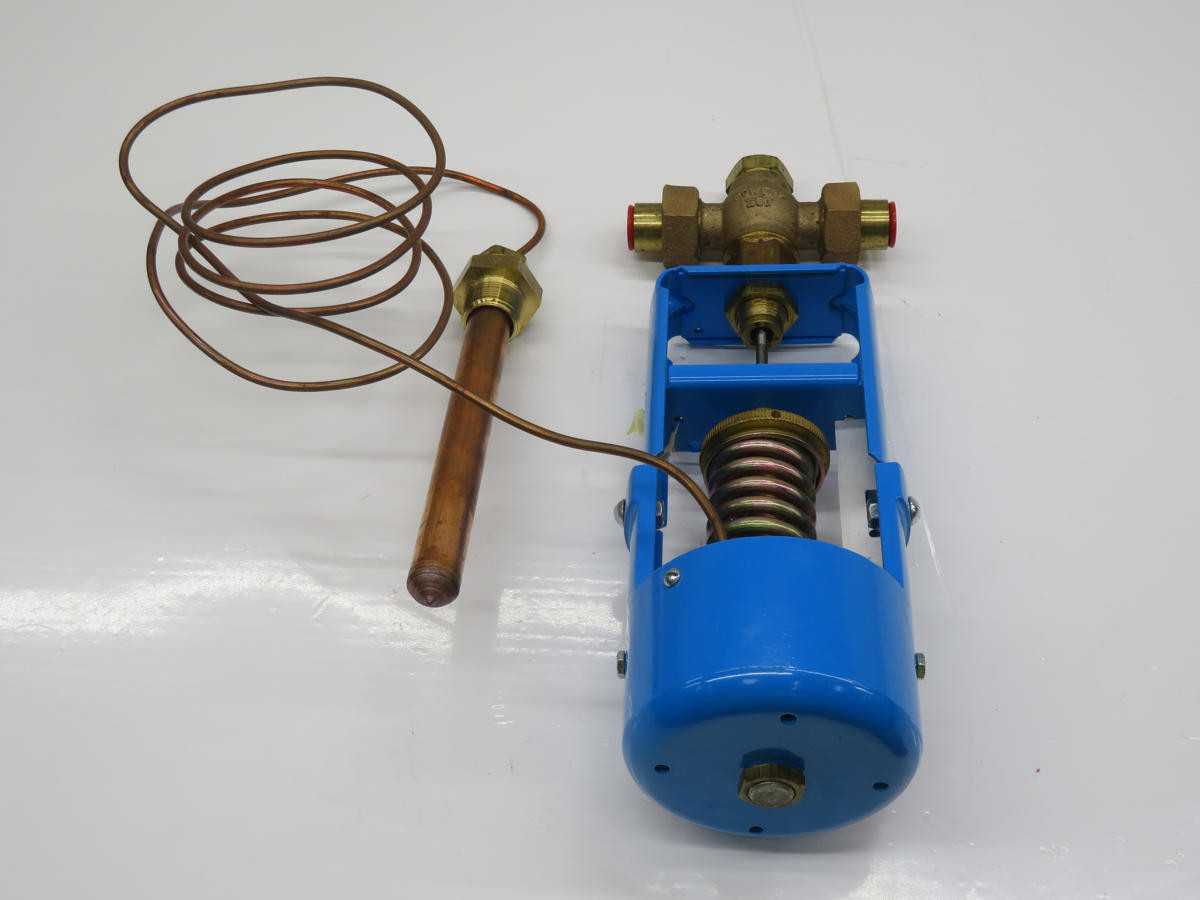

THE POWERS 595-ST050C-C08DN07 IS A SELF-CONTAINED, PISTON-TYPE, DIRECT-ACTING THERMOSTATIC WATER REGULATING VALVE. DESIGNED FOR PRECISE TEMPERATURE CONTROL, THIS REGULATOR FEATURES A BRONZE BODY WITH STAINLESS STEEL AND BRASS TRIM. IT INCORPORATES A REMOTE COPPER TEMPERATURE SENSING BULB CONNECTED BY AN 8-FOOT COPPER CAPILLARY, ENABLING ACCURATE REGULATION WITHIN A TEMPERATURE RANGE OF 120-180°F (49-82°C). THE VALVE HAS A NOMINAL PIPE SIZE OF 1/2 INCH AND TYPICALLY UTILIZES NPT THREADED CONNECTIONS. IT IS ENGINEERED TO OPERATE EFFECTIVELY WITH A MAXIMUM WORKING PRESSURE OF 125 PSI (8.6 BAR) AND CAN HANDLE FLUID INLET TEMPERATURES UP TO 250°F (121°C). ITS PRIMARY FUNCTION IS TO MODULATE FLUID FLOW BASED ON SENSED TEMPERATURE, MAINTAINING DESIRED HOT WATER CONDITIONS.
