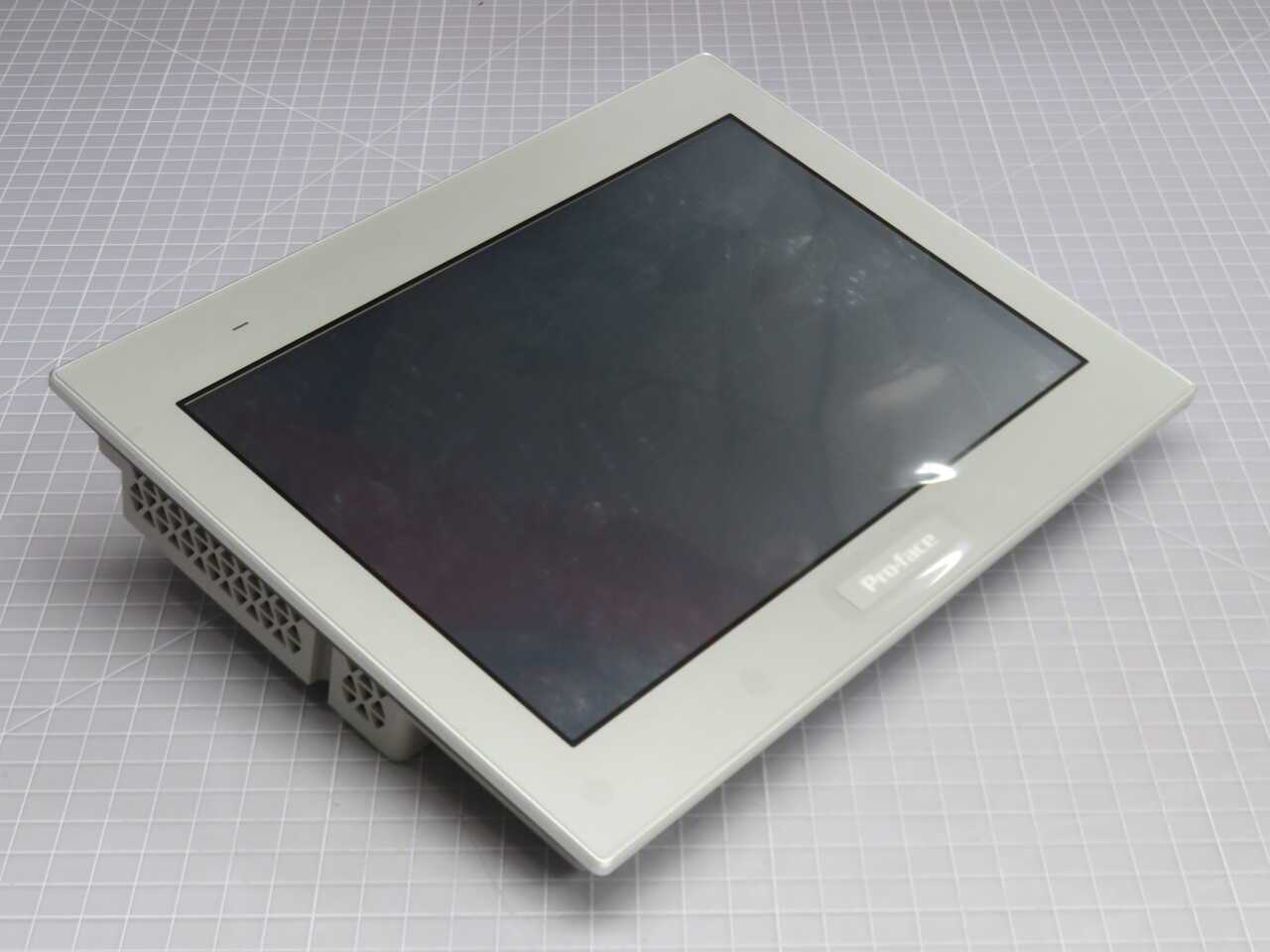

PRO-FACE PFXST6600WADE BASIC HMI TOUCH PANEL SCREEN 12.1-INCH 1280X800 24VDC 2XETHERNET 2XCOM

THE PRO-FACE PFXST6600WADE IS A 12.1-INCH WIDE BASIC HMI TOUCH PANEL SCREEN BELONGING TO THE ST6000 SERIES. IT FEATURES A COLOR TFT LCD DISPLAY WITH A WXGA RESOLUTION OF 1280 X 800 PIXELS, DISPLAYING UP TO 16 MILLION COLORS WITH A SINGLE-TOUCH ANALOG RESISTIVE TOUCHSCREEN. POWERED BY AN 800 MHZ ARM CORTEX-A8 CPU, IT INCLUDES 64 MB OF APPLICATION MEMORY, 320 KB OF SRAM BACKUP MEMORY, AND 64 KB OF VARIABLE AREA MEMORY. FOR CONNECTIVITY, THE INTERFACE OFFERS TWO ETHERNET PORTS (10BASE-T/100BASE-TX), ONE COM1 SERIAL LINK (RS-232C, D-SUB 9-PIN), ONE COM2 SERIAL LINK (RS-422/485, D-SUB 9-PIN), ONE USB 2.0 TYPE A PORT, AND ONE USB 2.0 MICRO-B PORT. OPERATING ON A RATED SUPPLY VOLTAGE OF 24 VDC (LIMITS OF 19.2 TO 28.8 VDC), IT HAS A MAXIMUM POWER CONSUMPTION OF 18.4 W. THE UNIT FEATURES NATURAL AIR CIRCULATION COOLING AND A WHITE LED BACKLIGHT WITH A LIFETIME OF 50,000 HOURS OR MORE. DESIGNED WITH AN ALUMINUM FRONT PANEL, IT COMPLIES WITH IP65F, NEMA 4X (INDOOR USE), AND NEMA 13 PROTECTION STANDARDS. ITS EXTERNAL DIMENSIONS ARE 313 MM WIDE, 235 MM HIGH, AND 50 MM DEEP, REQUIRING A PANEL CUT-OUT OF 295 X 217 MM, AND IT WEIGHS APPROXIMATELY 1.8 KG.
