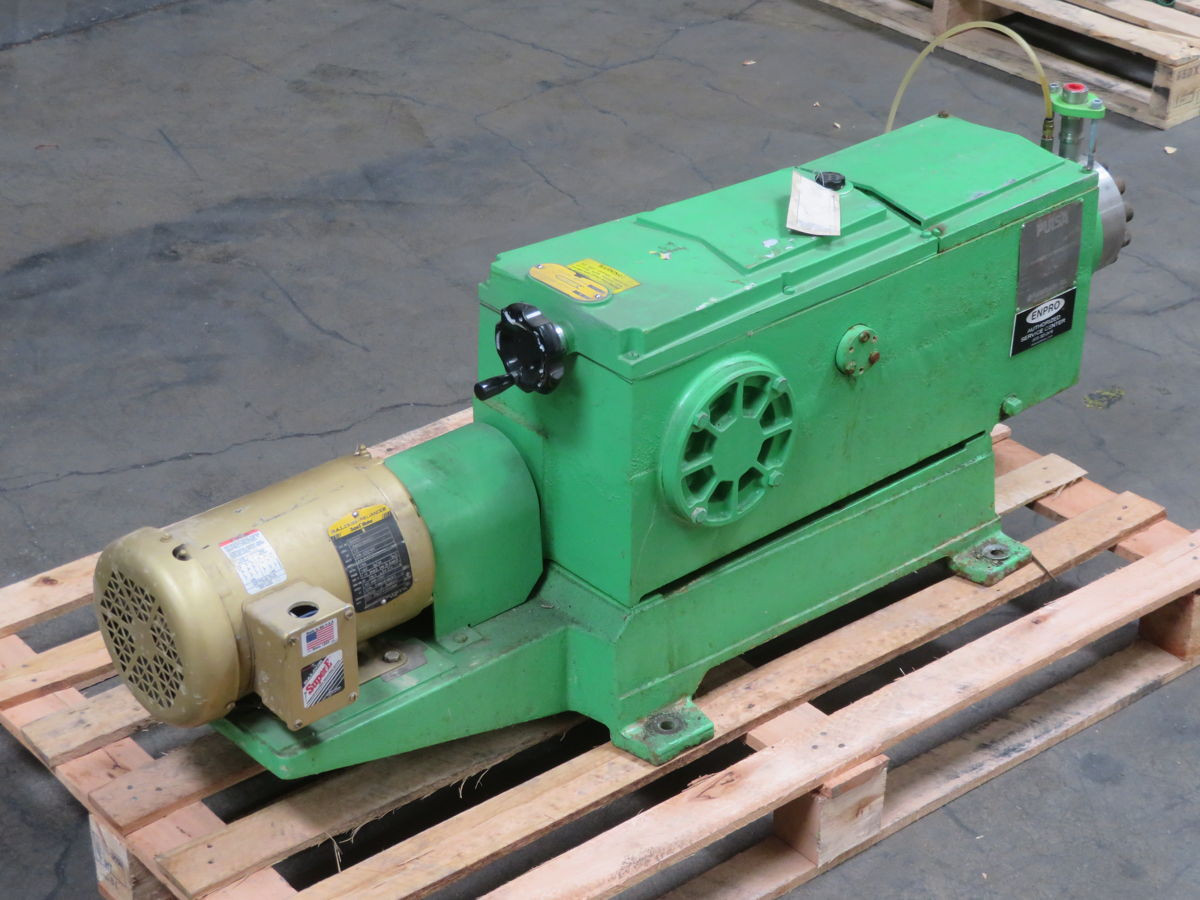

PULSA 7660-S-E METERING PUMP WITH BALDOR MOTOR 1.5 HP, 1.1 KW, 1750 RPM, 230/460 V, 2.2 AMPS

THE PULSAFEEDER PULSA 7660-S-E IS A MOTOR-DRIVEN DIAPHRAGM METERING PUMP RATED AT 9.7 GPH MAXIMUM FLOW AND 5000 PSIG MAXIMUM DISCHARGE PRESSURE, WITH A 1.50" PISTON DIAMETER AND 15:1 GEAR RATIO, DESIGNED FOR ACCURATE CHEMICAL DOSING IN HIGH-PRESSURE PROCESS APPLICATIONS. IT FEATURES A BALDOR EM3554T THREE-PHASE ELECTRIC MOTOR, PROVIDING 1.5 HORSEPOWER (1.1 KW) AT A NOMINAL SPEED OF 1750 RPM. THE MOTOR OPERATES ON 230/460 V WITH A CURRENT DRAW OF 2.2 AMPS. ITS CONSTRUCTION INCLUDES A NEMA FRAME 145T AND AN ENCLOSED TEFC (TOTALLY ENCLOSED FAN COOLED) DESIGN, CONFIGURED FOR FOOT MOUNTING. THIS MODEL IS PART OF PULSAFEEDER'S SERIES 7600, ENGINEERED FOR PRECISE VOLUMETRIC FLUID CONTROL.
