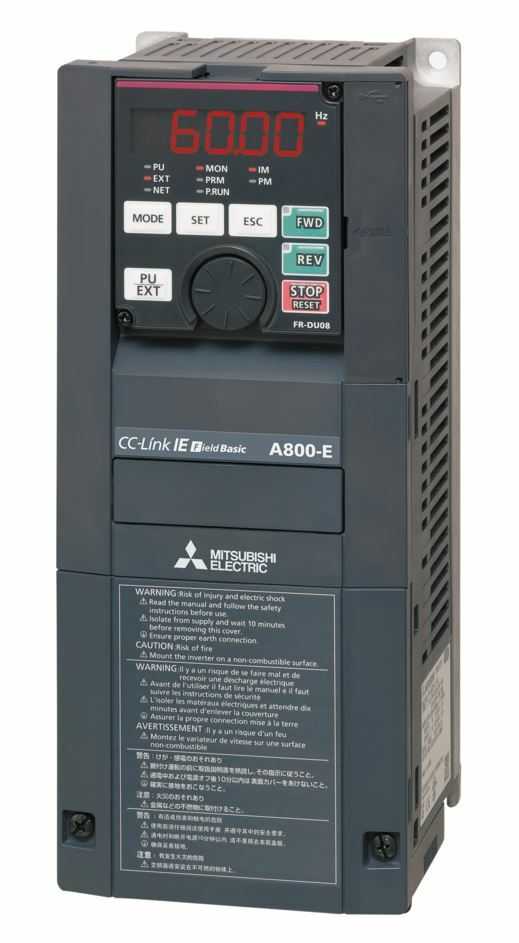

QTY 11: MITSUBISHI FR-A860-00027-E1N6 AC VFD DRIVE

MINIMUM RATED VOLTAGE (V) 525 MIN. PERMISSIBLE VOLTAGE (V) 472 MAXIMUM RATED VOLTAGE (V) 600 MAX. PERMISSIBLE VOLTAGE (V) 660 CURRENT TYPE AC PHASES 3 RATED OUTPUT CURRENT ND (A) 1,7 RATED MOTOR CAPACITY ND (KW) 0,75 RATED MOTOR CAPACITY HD (KW) 0,4 FREQUENCY RANGE (HZ) 0,2–590 CONTROL METHOD VECTOR CONTROL MOTOR TYPE INDUCTION MOTOR, PM MOTOR INTEGRATED EMC FILTER YES SAFE TORQUE OFF (STO) YES REGENERATIVE (4Q) NO INTEGRATED DC CHOKE NO PLC FUNCTION YES PROGRAM MEMORY 6K PROGRAM MEMORY UNIT STEPS INTEGRATED DIGITAL INPUTS 12 DIGITAL OUTPUTS (TRANSISTOR) 5 DIGITAL OUTPUTS (RELAY) 2 INTEGRATED ANALOGUE INPUTS 3 INTEGRATED ANALOGUE OUTPUTS 2 IO TYPE OF TERMINAL BLOCK SPRING CLAMP EXPANDABLE YES USB 1+1 MINI ETHERNET PORT 1 BUILT-IN NETWORK CC-LINK IE FIELD BASIC, MODBUS/TCP POWER LOSS SLD (W) 65 POWER LOSS LD (W) 60 POWER LOSS ND (W) 45 POWER LOSS HD (W) 35 PROTECTION CLASS IP00
